How to setup an External Monitor

Applies To: VERUS® Edge


1.   The Intel HD Graphic Options can quickly be accessed two ways

  • Right click (long press) on the Windows desktop

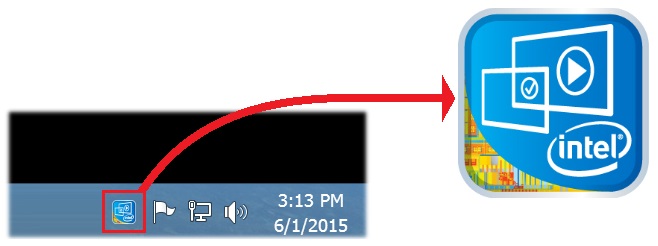

  • Click on the Intel HD Graphic Taskbar Icon (blue box with gold lower left corner)

2.   Graphic Options > Output To > Clone Displays > Monitor + Built-in Display -
This sets the external monitor as the primary display and forces the VERUS Edge display to either match the monitor display ratio with black bars or a stretch/compress if necessary.

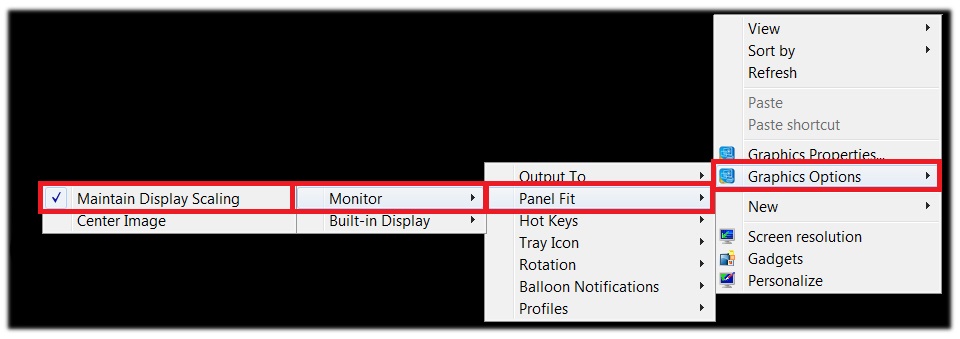

3.   Graphic Options > Panel Fit > Monitor > Maintain Display Settings -
This sets the monitor’s ratio as the primary display ratio.

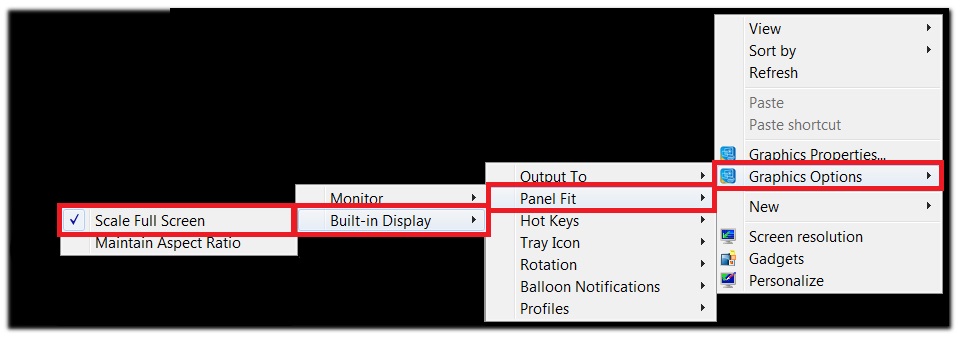

4.   Graphic Options > Panel Fit > Built-In Display > Scale Full Screen -
This forces the VERUS Edge display to either match the monitor display ratio with a stretch or compress if necessary. No black bars will be visible.

Last Updated: May 16, 2019
