Pairing the Scan Module with the Display Device

Applies To: VERDICT®, VERUS®, VERUS® PRO, VERUS® Wireless
Overview:

How to Bluetooth pair the Scan Module (S3/SM3)

Symptoms:

These instructions will guide you thru Bluetooth pairing the Scan Module to the Display Device. Make sure the Display Device has a charged battery and is connected to an AC power supply before beginning.

Resolution:

  1. Power on the Display Device

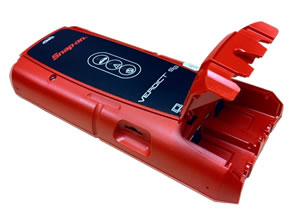

  2. Remove the rubber hand grip from the S3 Scan Module and open the access door

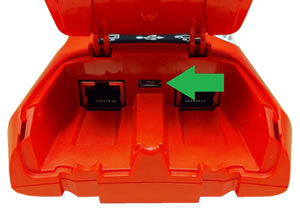

  3. Connect the MicroUSB end of the cable to the Scan Module
  4. Connect the standard USB connector end of the USB cable to the display unit
  5. Tap the System Settings button on the Home screen of the display unit
  6. Tap the Paired Devices button at the top center of the screen
  7. From the Paired Devices screen select Add from the top right corner of the screen
  8. When prompted select OK from the top right corner of the screen
  9. Select the Scanner Module from the search results list. A search in progress message displays during the pairing procedure, the Paired Devices screen displays once the procedure completes
  10. On the display unit, tap the Home button in the bottom left of the toolbar to return to the Home screen
  11. Disconnect the USB cable from the Scan Module and the Display Device

The Scanner and Display Device are now synchronized for wireless communication.

Last Updated: June 20, 2019
