Scanner Module

Applies To: MODIS™
Overview:

How to verify the MODIS has the most current Scanner Plug-in Module installed

Symptoms:

If the MODIS is equipped with Software Bundle 4.1 or older the updated Scanner Plug-in Module must be purchased prior to upgrading to the current software upgrade. To identify your Scanner Module, follow these steps.

Resolution:

  1. Power off the MODIS.
  2. Remove the battery and unplug the AC adapter.
  3. Press the Scanner Module release tab on the back of the MODIS while pulling up on the data cable (above the arrow in the image below.) The Scanner Module will come completely out of the MODIS body.


  4. Use the pictures and descriptions below to identify your Scanner Module.

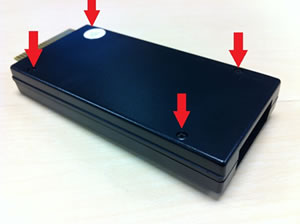

    4.1 and older Scanner Plug-in Module                                  4.2 and newer Scanner Plug-in Module
    (Discontinued)                                                                            (Part Number EAA0319B02A)
    Metal body                                                                                   Plastic body
    2 silver screws on each narrow sides (4 total)                    4 black screw all on the same wide side

Last Updated: June 20, 2019
