Using the M4 Scope Multimeter Remotely

Applies To: VERUS® PRO
Overview:

How to connect the scope multimeter module to the display device using a USB cable.

Symptoms:

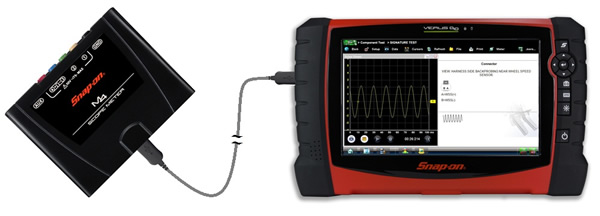

The Scope Multimeter module can be removed from the Display Device, then connected to the Display Device with a USB cable. This increases the range of mobility for the Display Device while monitoring signals on the test vehicle. A Type A/B USB cable, which is provided with your kit, makes the connection.

Resolution:

NOTE: The Scope Multimeter module can be removed from the Display Device at any time, whether powered on or not. However, data and settings will be lost if it is removed while operating.To prevent accidental loss of data, make it a practice to first save the current data if desired, then select either the Power Off or Back button from the toolbar to suspend meter operation. Power Off saves the current settings, but does not save data. Settings are not saved if Back is elected.

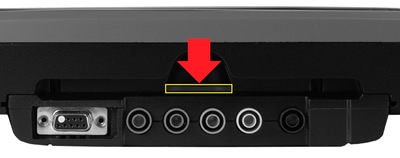

  1. Depress the Scope Multimeter module release tab located on the top of the unit
  2. Slide the Scope Multimeter module free of the Display device.
  3. Open the USB port cover on the bottom of the Scope Multimeter module.
  4. Connect the square end of the USB cable to the port on the Scope Multimeter.

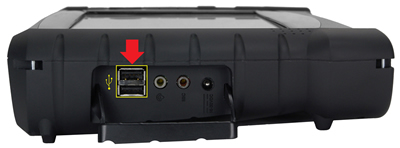

  5. Open the hinged cover on the left-hand side of the Display Device
  6. Connect the rectangular end of the USB cable to either of the two ports on the Display Device.
  7. The Scope Multimeter is now ready for remote use.

Last Updated: June 20, 2019
