Ethernet/DoIP - Diagnostic Tool Information

Ethernet for diagnostics or “DoIP” uses Ethernet frames to package diagnostic messages, which communicate with a vehicle based on standardized communications protocols increasing interconnection between vehicles and their environment.

Jaguar

● I-Pace 2019

Land Rover 2018 and newer

● Discovery
● Range Rover
● Range Rover Sport
● Range Rover Velar

Volvo

● XC90, 2016 and newer
● V90, 2017 and newer
● S90, 2017 and newer
● XC40, 2018 and newer
● XC60, 2018 and newer
● S60, 2019 and newer
● V60, 2019 and newer
Diagnostic Tool

Standard Ethernet Capability

 Alternative Equipment Required to Provide Ethernet Capability
APOLLO-D9, TRITON-D10

Yes
Must use supplied OBD-II/DoIP data cable (Part Number EAX0073L20A)

 None
SOLUS Legend

Yes
Must use supplied OBD-II/DoIP data cable (Part Number EAX0072L17A)

 None
TRITON-D8, APOLLO-D8, MODIS Edge, MODIS Ultra, SOLUS Edge, ETHOS Edge, P1000

No

OBD-II/DoIP Data Cable (Part Number EAX0072L17A)

ZEUS+

Yes
Must use supplied Compact Scan module (S9) Part Number EAA0406L76A

 None



ZEUS

Yes
If using original supplied Compact Scan Module S7 [EESM306]

If a Replacement is Needed...

Use Compact Scan Module S9 (EESM306B)
Part Number EAA0406L76A (or kit P/N EAK0355L10B)
and software version 22.4 or later"

No
If using original supplied Compact Scan Module S5 [EESM304A]

 Use Compact Scan Module S9 (EESM306B)
Part Number EAA0406L76A (or kit P/N EAK0355L10B)
and software version 22.4 or later
VERSUS Edge

No

Use Compact Scan Module S9 (EESM306B)
Part Number EAA0406L76A (or kit P/N EAK0355L10B)
and software version 22.4 or later



Compact Scan Module Identification

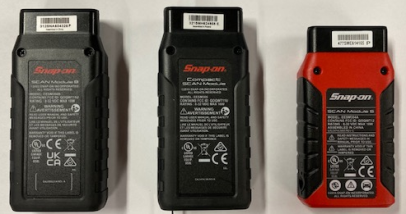

Model Number is located on Back of Unit
Version

Model Number
S5

EESM304A
S7

EESM306
S9

EESM306B
