SureTrack®
Wi-Fi is Required to Use This Application !
If SureTrack® information is available for a selected DTC, additional troubleshooting information (e.g. Top Repairs Graph, Real Fixes and Troubleshooter) may also be available.
Accessing SureTrack
To access SureTrack, you must:
| ● | Have authorized access. SureTrack is an optional service, contact your sales representative for information. |
| ● | Connect the tool to Wi-Fi. |
| 1. | Select Scanner from the Home Screen, > Identify the Vehicle > Select a System > Select Codes Menu / View Codes (or applicable option). |
| 2. | If DTC's are present, select a DTC or the Diagnose Icon to view related SureTrack information. |

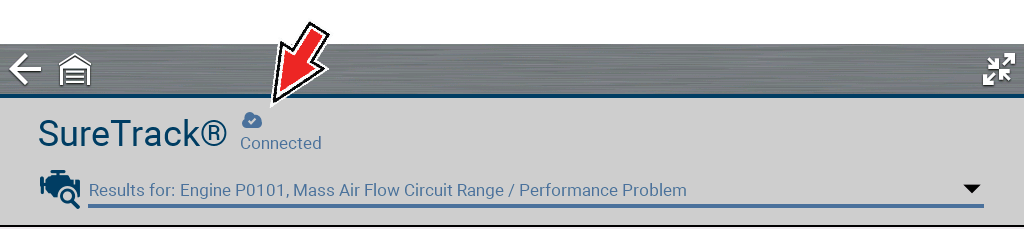

Wi-Fi Status Indicator
The cloud icon indicates Wi-Fi connection status. The icon will change red in color and display “Expired” when your service has expired.

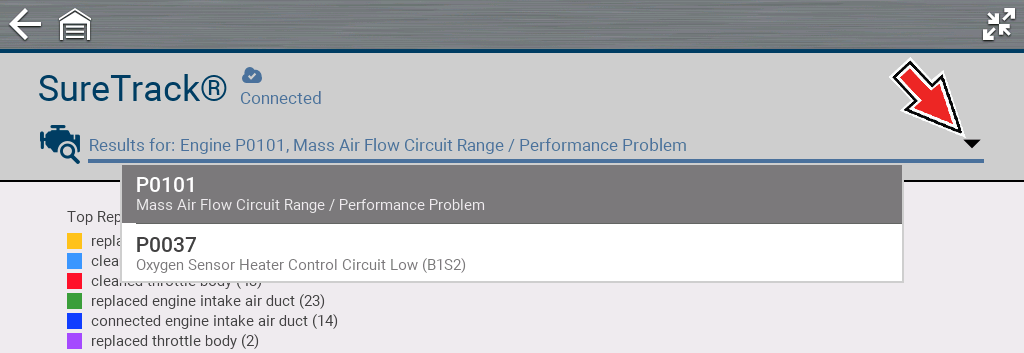

Code Results Dropdown Menu
The Code Results Dropdown menu allows you to quickly choose any of the scanned codes from the code results list. Select a code to view related information about that code within Intelligent Diagnostics.

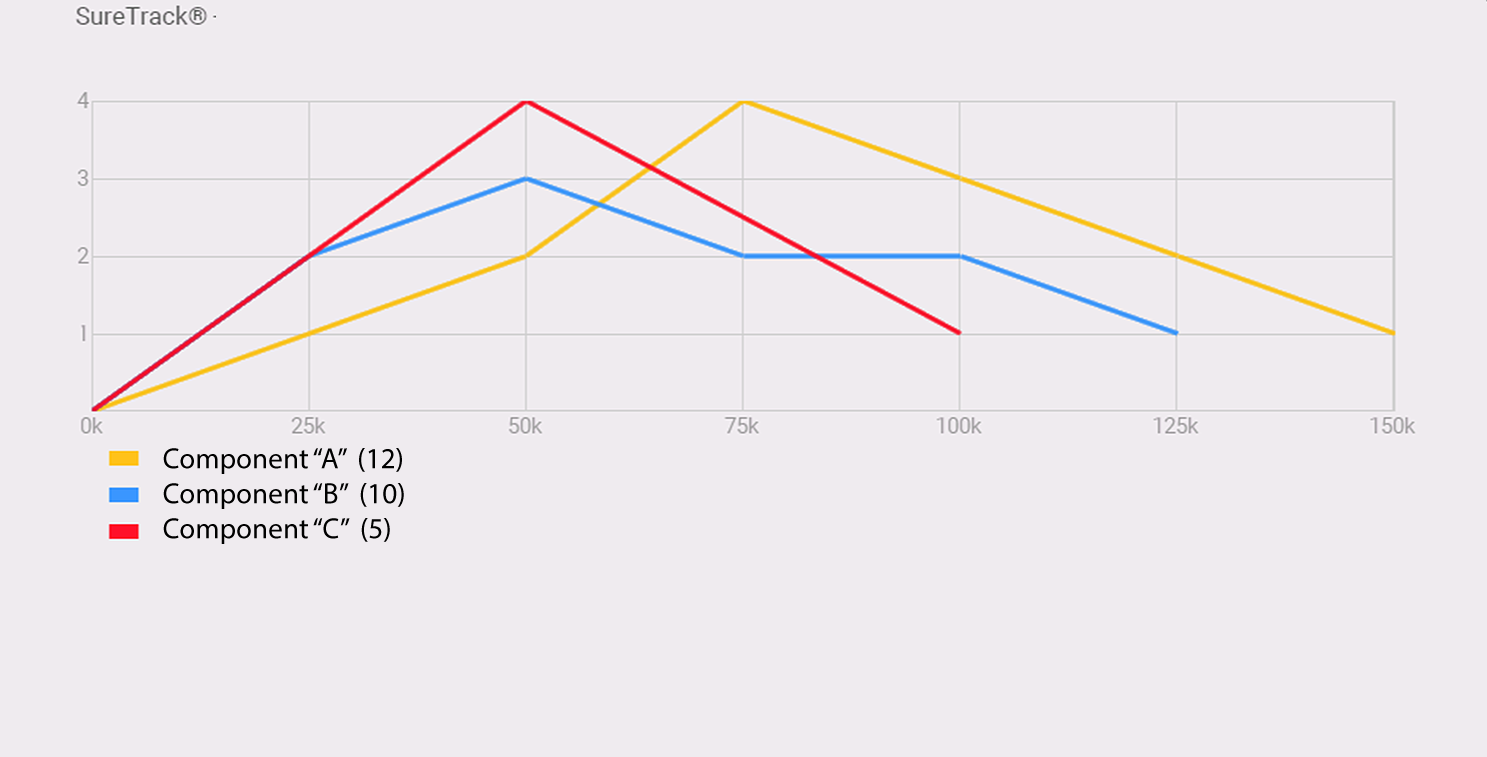

Top Repairs Graph
The Top Repairs Graph shows the most common verified fixes and procedures for the selected code.
Example - (see graph), the most common fix is componet "A". This fix occurred 12 times, with the most occurrences (4) at 75k miles in vehicles with up to 150k miles.
