Home Screen: Tools> Settings> Configure Scope / Meter > Grid

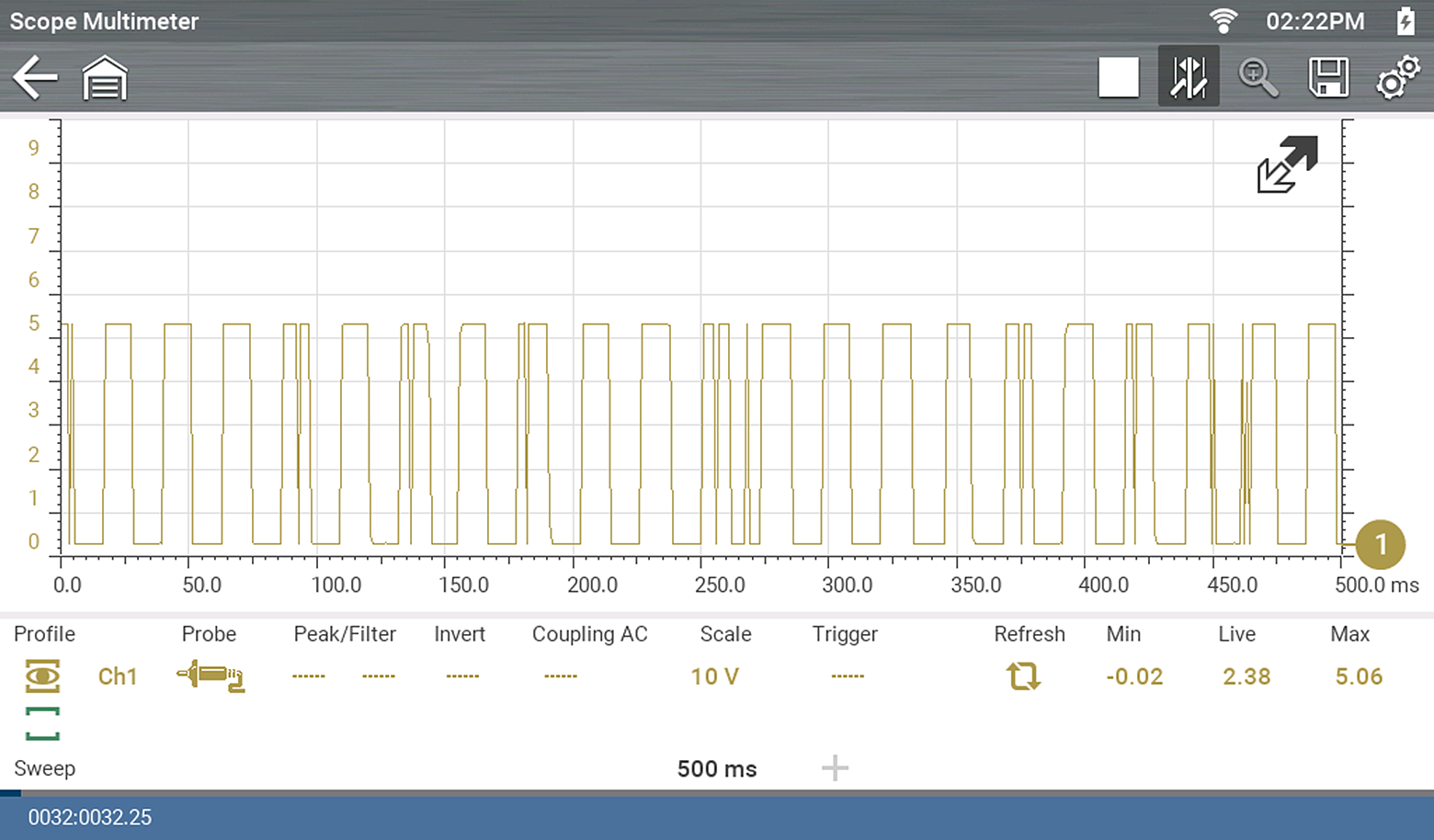

The Grid option allows you to display or hide the screen grid lines.

–

Show Grid—grid lines on

–

Hide Grid—grid lines off

Home Screen: Tools > Settings> Configure Scope / Meter> Trace Divisions

The Trace Divisions option allows you to change how the vertical scale menu selections are represented.

–

Trace Full Scale, or

–

Trace Per Division

This setting ONLY changes the vertical scale, the sweep (horizontal) scale is NOT changed.

When adjusting the vertical scale setting, it is important to remember that the vertical scale is divided into 10 major divisions, and all scale adjustments reflect this factor of 10. The division set of 10 cannot be changed, divisions cannot be added or removed.

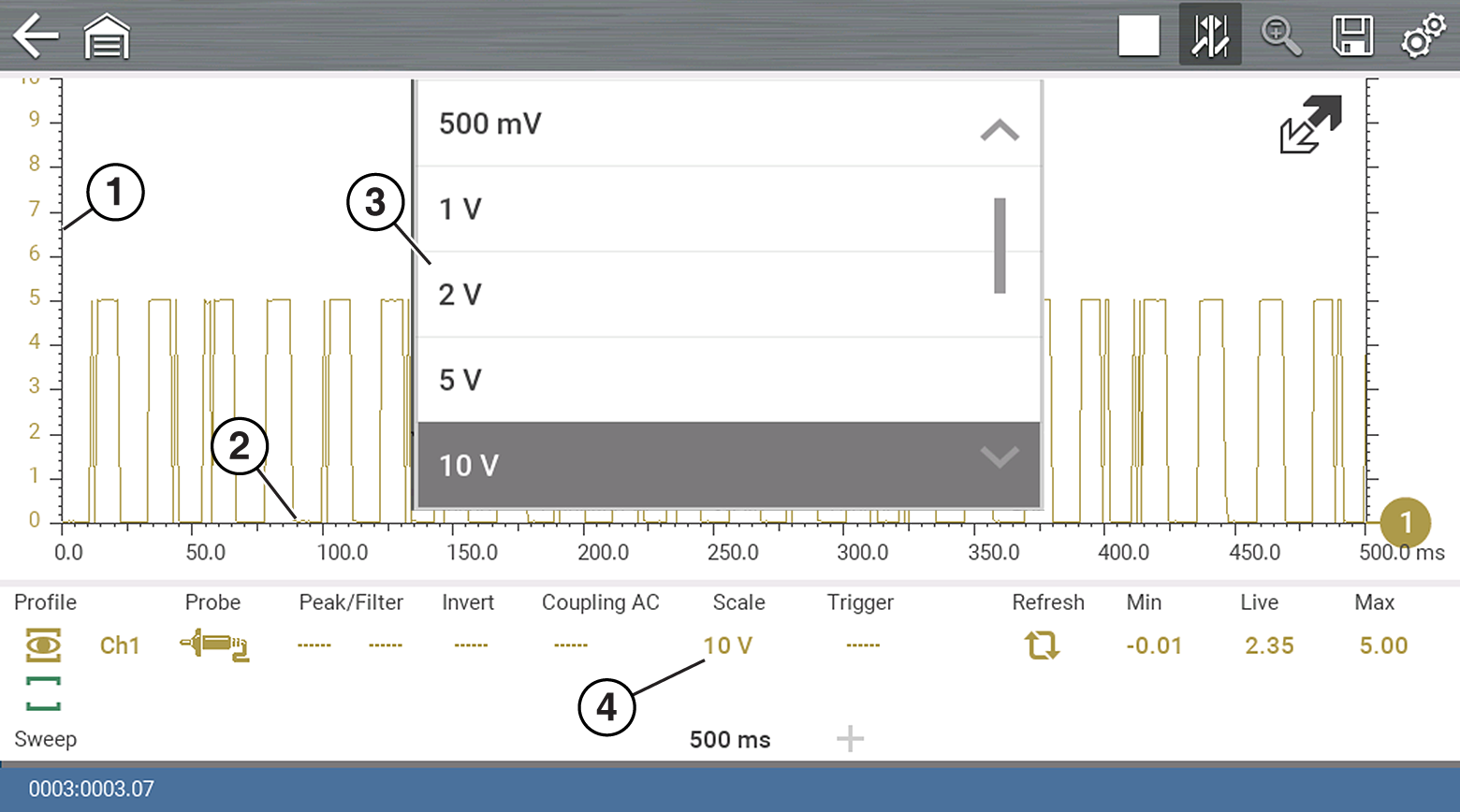

1.

Vertical Scale

2.

Sweep (horizontal or time) Scale

3.

Vertical Scale Menu

4.

Vertical Scale Icon

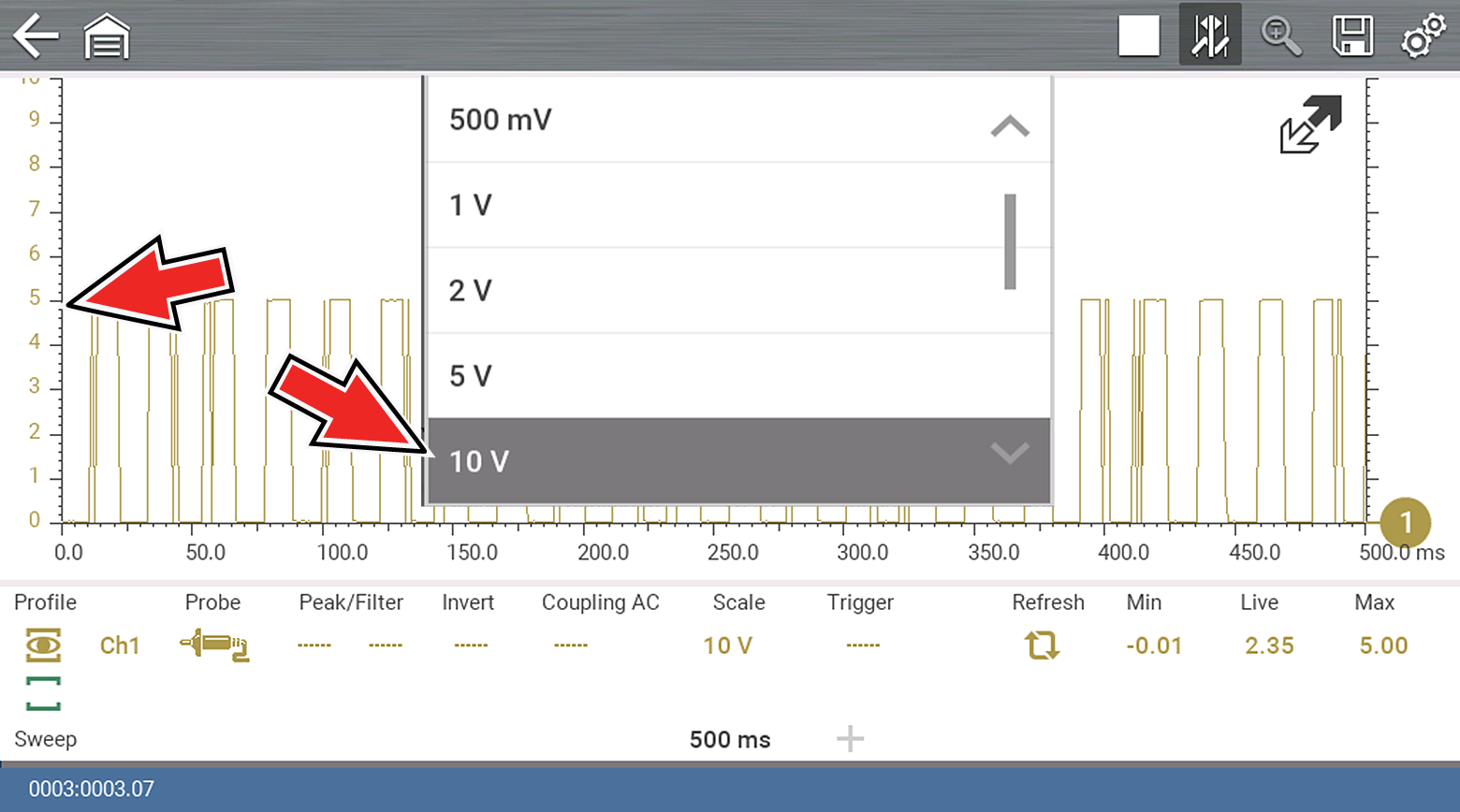

Trace Full Scale

Changes the dropdown vertical scale menu selections to full scale mode, which represents the selected unit of measurement over the entire (full) scale.

Example :Selecting 10V, changes the vertical scale to a 10V volt scale. The vertical scale is “always” divided by 10, therefore each division is incremented by 1V.

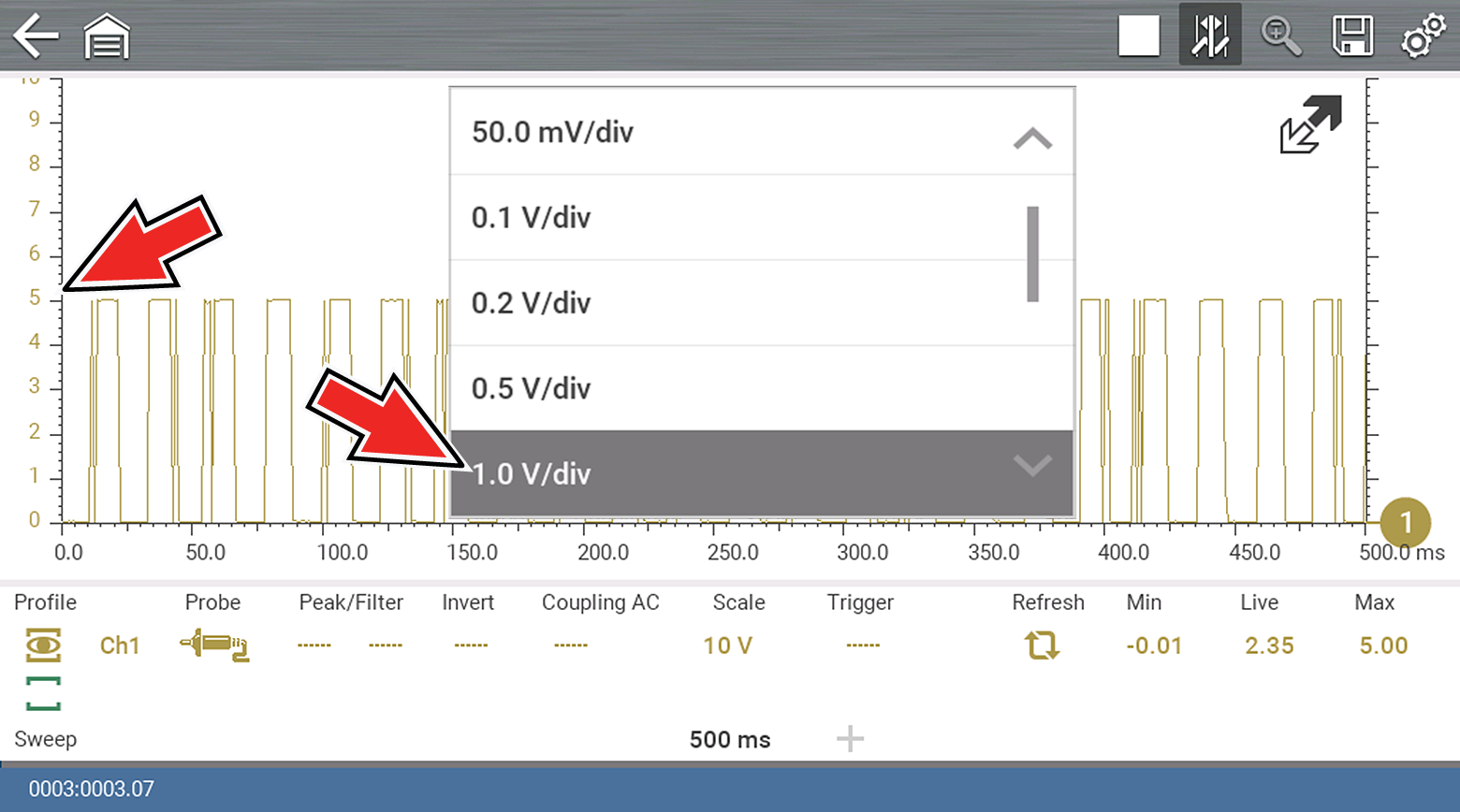

Trace Per Division

Changes the dropdown vertical scale menu selections to ##/div mode, which in turn changes the vertical scale to represent ## by division.

## - represents (variable) what is being measured (voltage, amperage, pressure etc.

Example :Selecting 1.0V/div, displays a vertical scale divided by 10. The vertical scale is “always” divided by 10, therefore each division is incremented by 1.0V, thus a 10V scale.

Home Screen: Tools > Settings> Configure Scope / Meter

Display

–

Display Full Scale

–

Display Per Division

The Display setting allows you to change the displayed value in the Vertical Scale icon to your preference.

This setting ONLY changes the value displayed in the Vertical Scale icon.

1.

Vertical Scale

2.

Sweep (horizontal or time) Scale

3.

Vertical Scale Menu

4.

Vertical Scale Icon

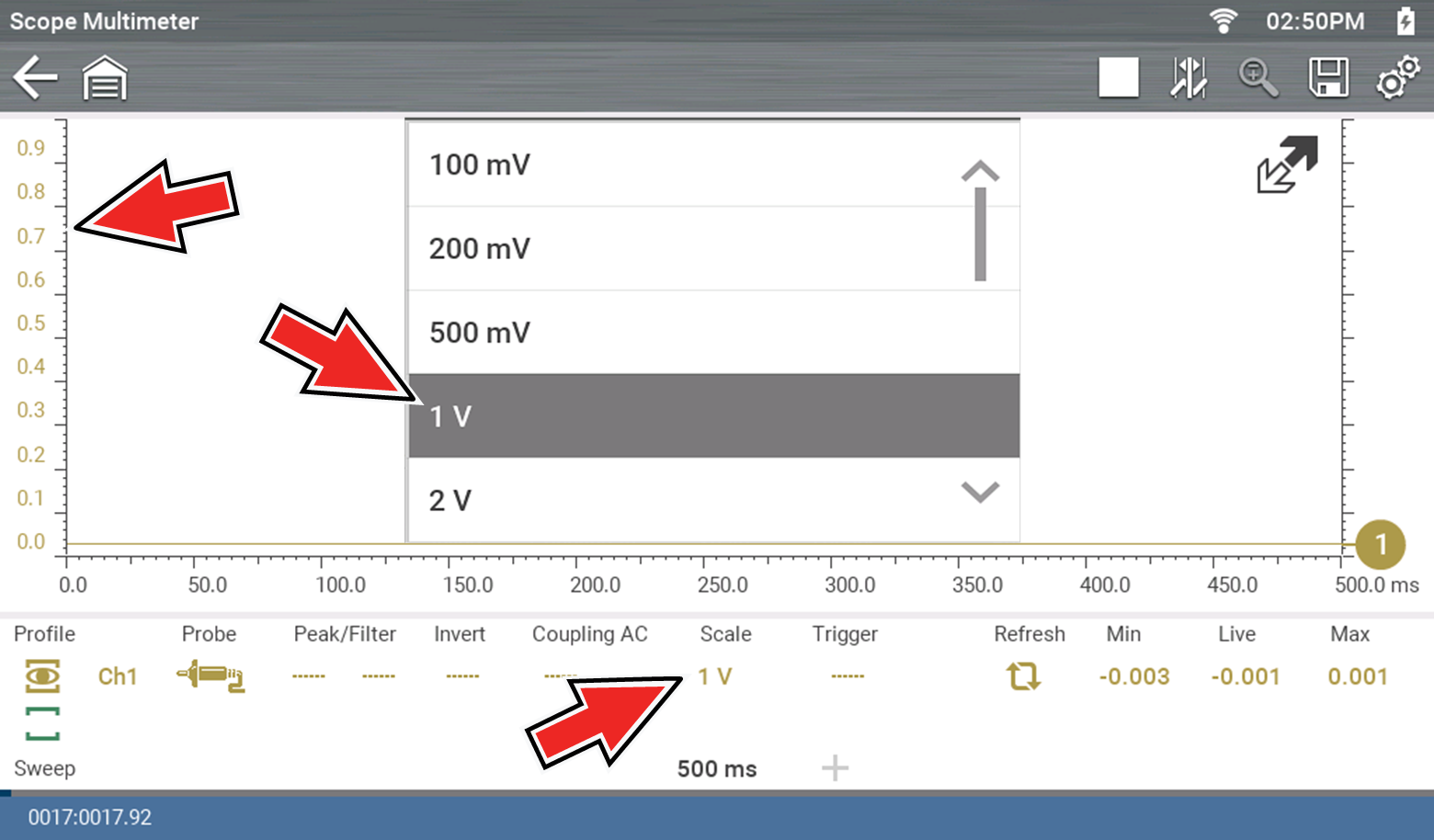

Display Full Scale

Displays the value of the entire (full) scale

Example :If the vertical scale is set to 1V, the value displayed is 1V.

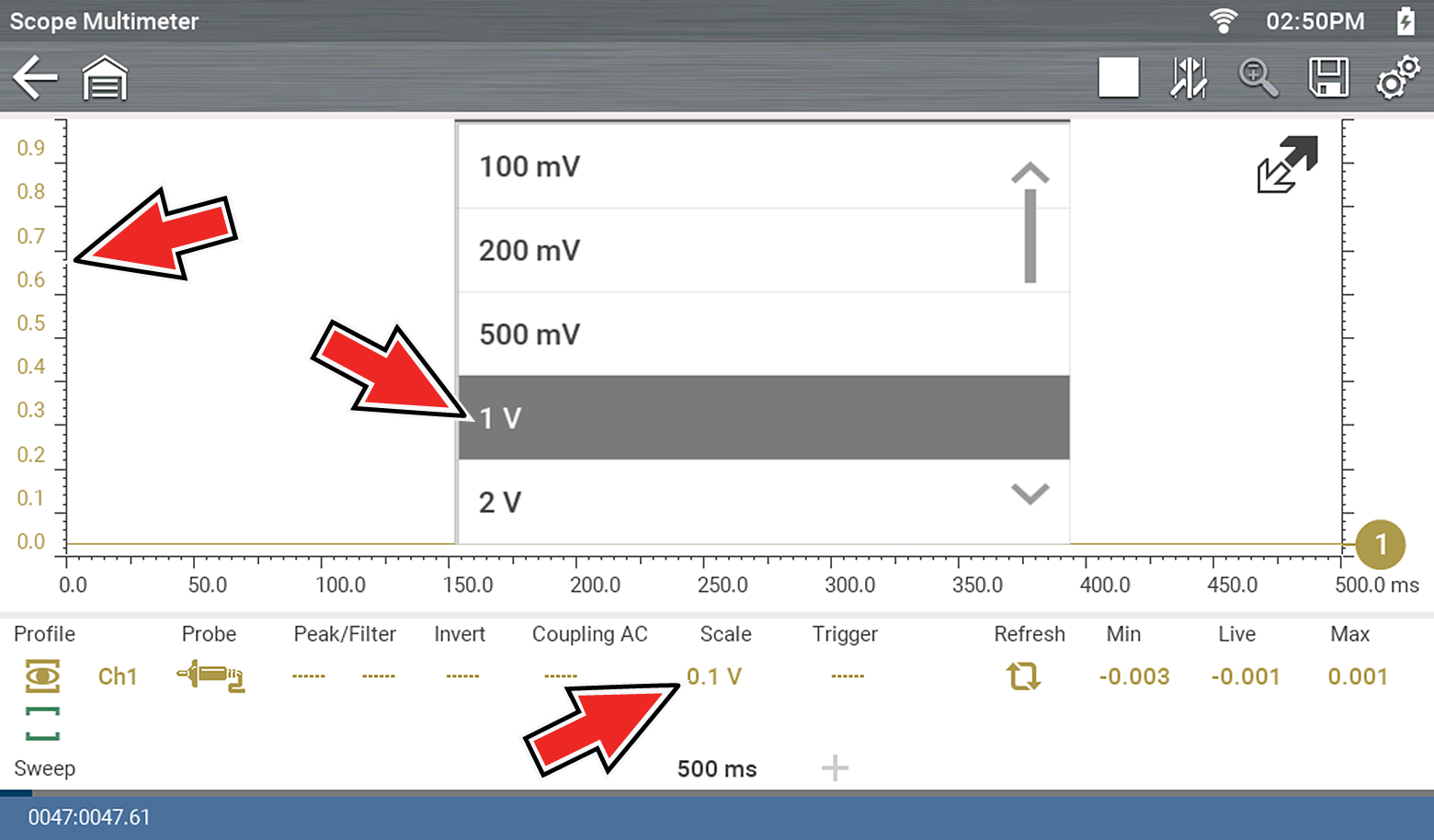

Display Per Division

Displays the graduation value of the major scale divisions

Example :If the vertical scale is set to 1V, the value displayed is 0.1V.
