Basic Features / Controls / Navigation

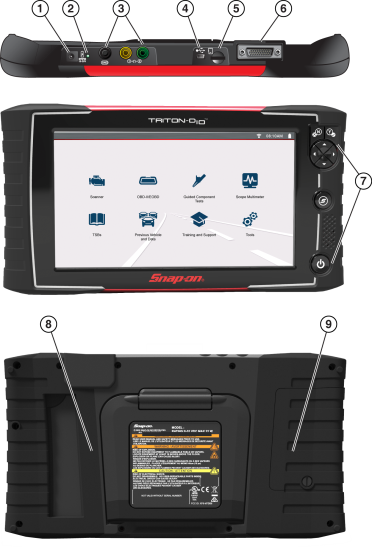

There are four “push type” control buttons and one “thumb pad rocker type” multi-directional button located on the right side of the diagnostic tool. All other diagnostic tool operations are controlled through the touch screen.

Touch screen controls are used for most operations, however the control buttons may also be used to navigate and select functions.

Item

Button

Description

1

-

Power Supply Jack

2

-

Battery Status Indicator LED

3

-

Scope Meter Jacks

4

-

Mini USB Jack

5

-

Micro secure digital (uSD) Card - contains operating system programming.
IMPORTANT The uSD card must be installed for operation. Do not remove the uSD card while the diagnostic tool is powered on.

6

-

Data Cable Connector

7

N/Cancel - Push type button

To exit a menu or program.

To close an open list and return to the previous menu or screen.

To answer “No” when a yes/no choice is given.

Y/Accept - Push type button

To confirm a selection from a menu or program.

To select an item that was highlighted using the direction arrows.

To advance to the next screen in a series.

To answer “Yes” when a yes or no choice is given.

Directional - Thumb pad rocker type buttons

Buttons move the cursor or highlight in their respective direction:

Up (b)

Down (d)

Left (e)

Right (c)

Power (On/Off) - Push type button

Turns the diagnostic tool on and off. Also, press and hold for 5 seconds for emergency shutdown.

8

-

Fold out Stand

9

-

Battery Cover

The Home screen includes a title bar and main body. The Home screen contains the primary diagnostic tool function icons.

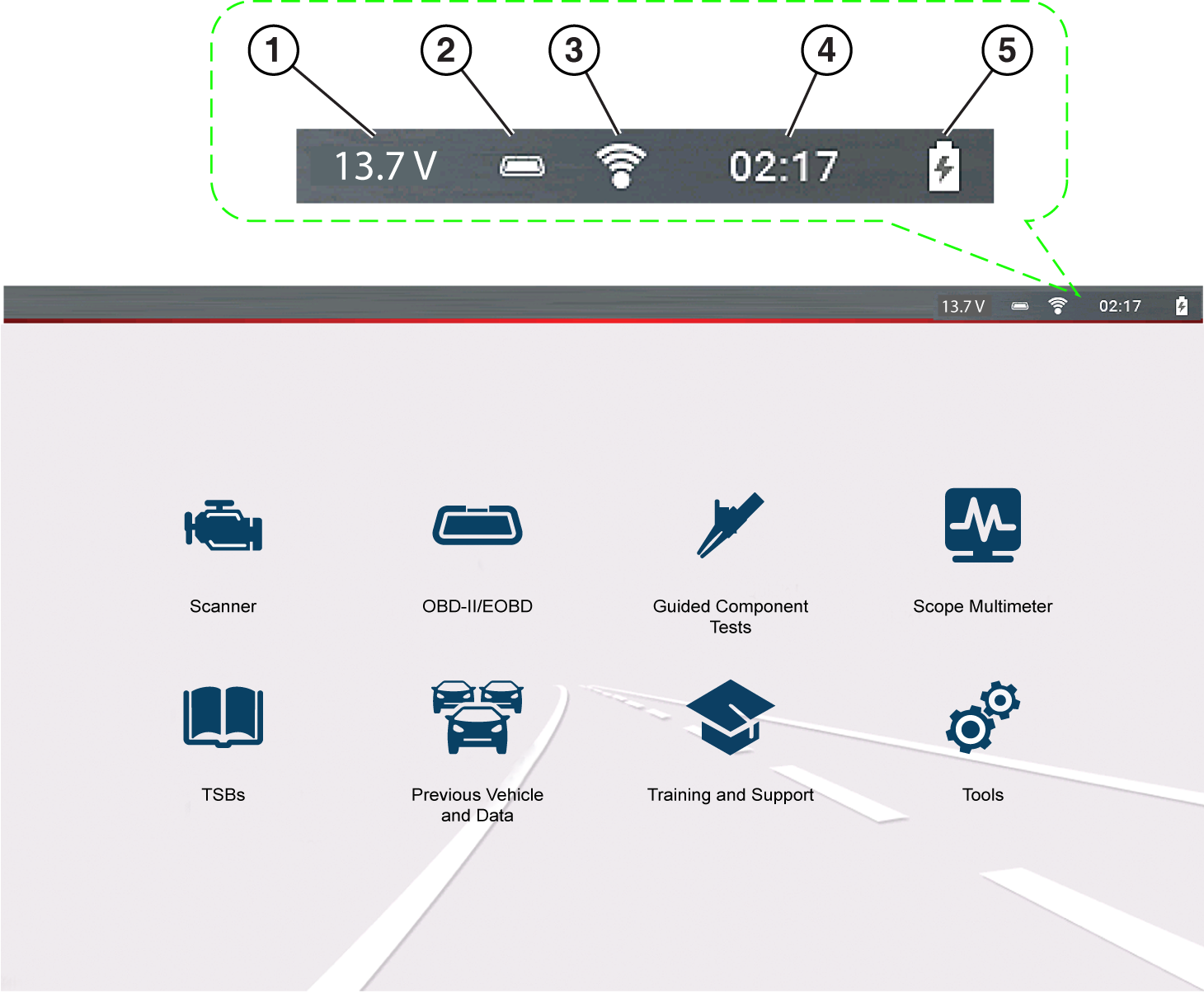

Common Title Bar Indicators

1. Vehicle data link connector voltage
2. Active vehicle communication status
3. Wi-Fi connection status
4. Time of day
5. Battery charge level and power connection status

Title Bar

The title bar at the top of the screen provides basic information about current diagnostic tool operating conditions. Title bar options vary depending upon vehicle make and model, what function is active, what test is being performed, or what menu is selected. The title bar contains information only, there are no selectable items.

Elements of the Title bar let you know at a glance:

● Which diagnostic tool function is active
● The current time
● Wi-Fi signal strength
● The source and status of the power being supplied to the diagnostic tool

A real time clock displays to the left of the power supply icon. The clock is powered by a dedicated internal battery, so the correct time is maintained even when the main battery pack is discharged. Use the Tools function to set the clock and format how time is displayed.

The Title bar displays other information that varies depending upon what functions are being performed. Other information may include:

● The identification (ID) of the test vehicle
● The name of the active menu or function
● The name of the test being performed

Icon

Function

Icon

Function

Full Battery Charge Level - Indicates power is being supplied by the internal battery pack. Horizontal bars diminish as the battery discharges.

External Power Connected - Indicates power is being supplied through the data cable connection to a vehicle or by the AC Power Supply and charging the battery pack.

Low Battery Charge Level - Indicates the internal battery pack is low and needs to be recharged immediately. A warning message will also display on the screen when the battery gets low.

Wi-Fi Signal Strength - Indicates signal strength of the wireless network connection.
3 bars - full strength signal
1 bar - weak signal

Each available diagnostic tool function is represented by a icon on the Home screen. Select an icon from the Home screen to start a function. You can also use the control buttons to select an icon. Use the directional button to highlight the desired function and then press the Y/Accept to select it.

Function Name

Function Icon

Description

Scanner

Used to communicate with the electronic control systems of a vehicle. This function allows you to retrieve diagnostic trouble codes (DTCs), view PID data and perform diagnostic tests.

OBD-II/EOBD

Allows you to access generic OBD-II/EOBD data and tests without identifying the vehicle being tested.

TSBs

Provides quick access to the OEM Technical Service Bulletins.

Previous
Vehicles & Data

Allows you to quickly reconfigure the diagnostic tool to a recently tested vehicle and to access saved data files.

Guided Component Tests

Allows you to access preconfigured meter tests and reference information.

Scope Multimeter

Allows you to perform multiple types of circuit and component measurement tests.

Training and Support

Training and Support provides short videos on how to setup and get started using select features of your diagnostic tool.

Tools

Allows you to adjust diagnostic tool settings to your personal preferences and perform other special functions.

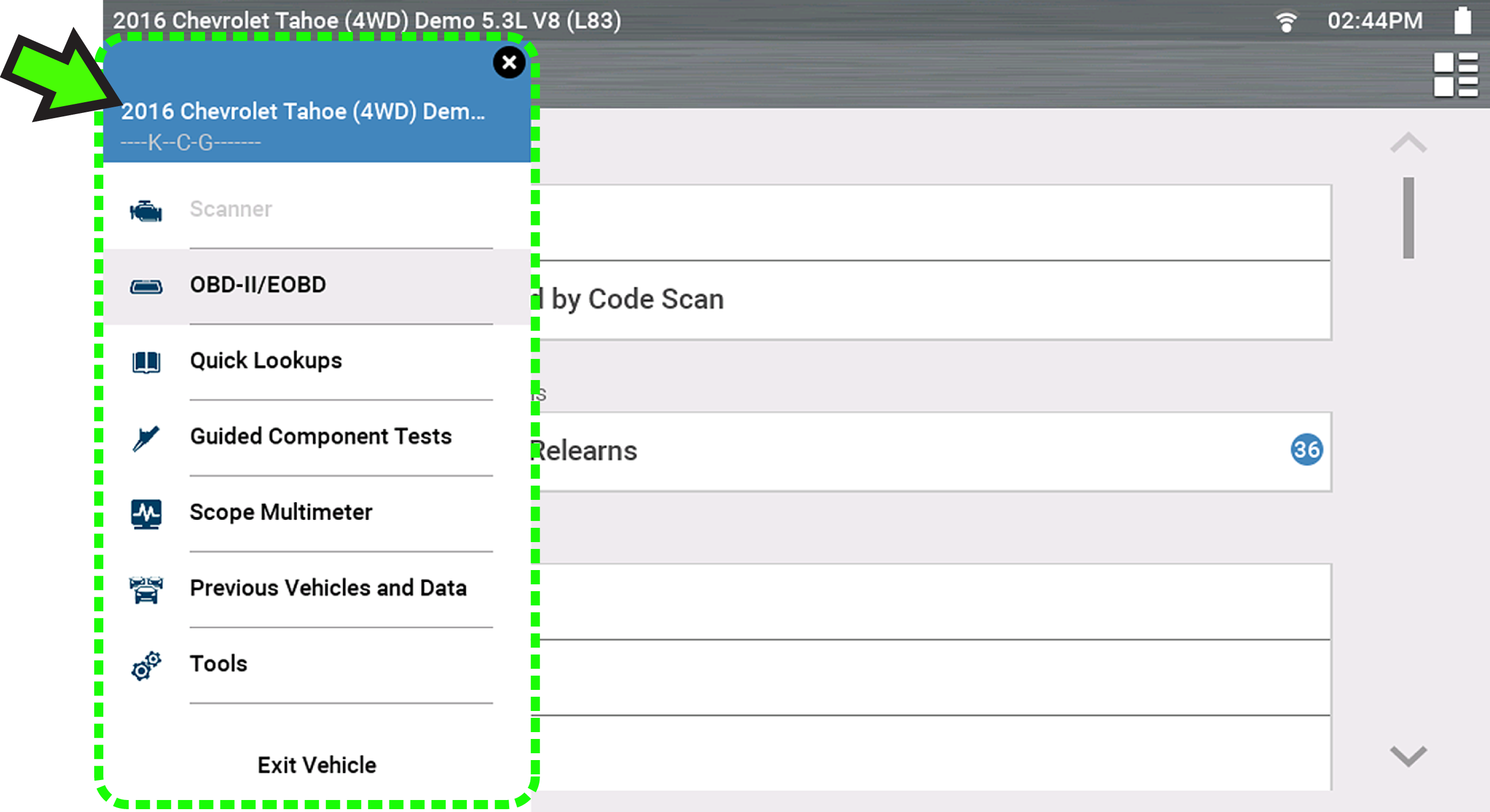

Use the Quick-Access Menu as a shortcut to “jump” between functions, or to Exit the active vehicle. This menu is available within most functions (after identifying a vehicle), and is application sensitive, being that it provides only applicable links based on your location in the software.

The menu title displays the active vehicle identification information including the VIN.

Selecting the Home icon opens the Quick-Access Menu, depending on your location in the software.

Examples:

● Scanner to OBD-IIEOBD - to check monitor status or freeze frame data etc
● Scanner to Previous Vehicles and Data - to view a code scan report, screen shot, or captured PID data
● OBD-IIEOBD to Scanner - to check enhanced codes and access Intelligent Diagnostics
● Scanner to Exit Vehicle - to quickly end vehicle communication
● Scanner to Tools - to change display settings, turn Wi-Fi on, configure the Shortcut button or connect to a PC

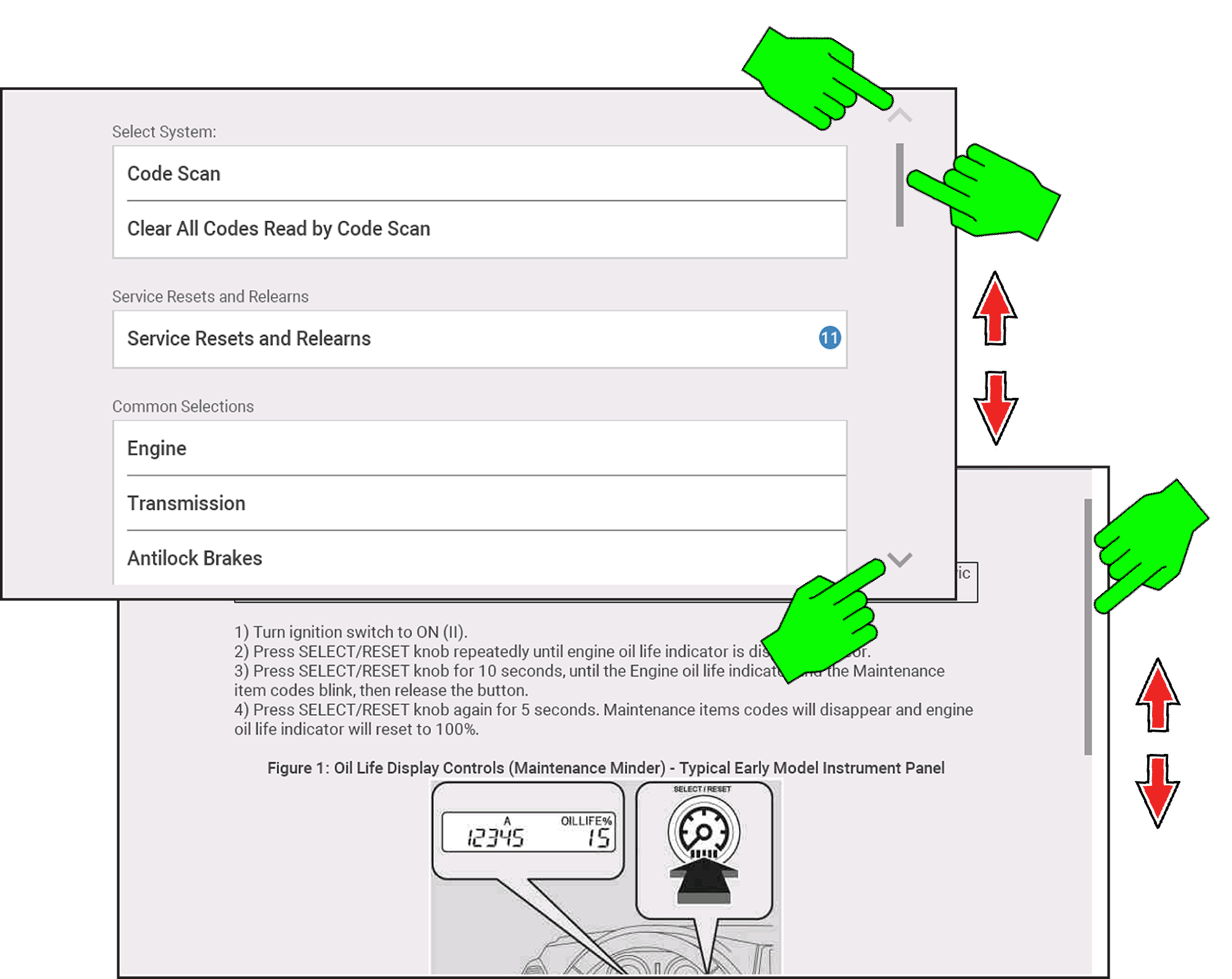

Onscreen scrolling controls are displayed (when applicable) to move screens up/down to view additional content. Scroll control icons display on the right-side of the screen, and may vary in appearance as shown below.

Multiple operation methods are:

● Swipe up/down
● Swipe fast and release to coast
● Tap on the arrow icons to move by a page
● Press and hold the arrow icons to move to the end of the list
