See Getting Started at the top of the main menu in this User Manual application.

To find accessories, contact your Snap-on representative and/or visit Diagnostic Tools and Accessories

To find screen protectors, contact your Snap-on representative and/or visit Diagnostic Tools and Accessories

NOTE - Screen protectors are not available for all models.

Most all ADAS recalibrations are performed using the Scanner function on your diagnostic tool. Select Scanner, then choose the applicable vehicle system and navigate to the desired function or test. NOTE - Some ADAS tests are displayed on top level menus, so be sure to scroll through the complete menu during navigation.

Depending on the vehicle and recalibration test, special recalibration equipment may be required.

For additional information about Snap-on ADAS recalibraiton equipment visit EZ-ADAS Hub.

ADAS Recalibration Report Form

Depending on the vehicle (if supported), an ADAS Recalibration Report form may be available after performing an ADAS recalibration test.

The ADAS Recalibration Report form allows you to print the form with your shop information, the vehicle’s VIN, odometer and license plate information. The recalibration information is manually entered after the form is printed. Sample ADAS Report

When an ADAS report is generated, press the SAVE icon to automatically uploaded it to the Snap-on Cloud. From the Cloud you can print or share the report. For additional information, see Snap-on Cloud.

EZ-ADAS Recalibration instructions and user guides are integrated within the Mobile APP and website at EZ-ADAS Hub

Important notes about ADAS and diagnostic tools:

Supported ADAS recalibrations and tests vary by vehicle make/model.
ADAS systems, tests, components, naming conventions and terminology can also vary between make/model.

Before performing any ADAS recalibraiton always make sure:

You have the vehicle identified correctly

You are using the correct special equipment as applicable to the specific vehicle

You follow all instructions and safety precautions as specified

For more information, contact your Snap-on representative and/or visit Diagnostic Tools and Accessories

Only use the manufacturer recommended original equipment replacement battery pack.



Make sure you are using a known good power source, and then try the following:

●

Check to make sure the power button is "clicking" when pressed, make sure it is not stuck in or damaged.

●

Make sure the battery pack is charged, connected and in good condition.

●

Remove and reinstall the battery pack, and try to power up.

●

Connect the AC power supply, and try to power up.

If you are still experiencing difficulties, contact customer support

Phone

●

1-800-424-7226

E-Mail

●

diagnostics_support@snapon.com

All the diagnostic tool listed below use power supply Snap-on P/N 2-60666A.

Original Mftr Information - APS P1415 AC Adapter Model: KSAS0251500200D5

Specs:

●

Input: 100-240V~50/60Hz 0.9A

●

Output: 15V - - - 2.0A

TRITON-D10

TRITON-D8

APOLLO-D9

APOLLO-D8

MODIS Edge

MODIS Ultra

SOLUS Edge

SOLUS Legend

SOLUS Ultra

P1000

VANTAGE Legend

VANTAGE Ultra

ETHOS Edge*

ETHOS Tech*

ETHOS PRO*

ETHOS PLUS*



* Also require Snap-on Power Adapter (HD26 to DC plug) P/N EAC0069B26A

Not all scan tool AC adapters are compatible. Using the incorrect AC adapter can prevent the battery from charging or cause issues during software upgrade installations.

For more information, contact your Snap-on representative and/or visit Diagnostic Tools and Accessories

Guided Component Tests provides vehicle specific step-by-step testing and reference information for electrical components and sensors.

= Home Screen > Guided Component Tests

Detailed instructions and reference information are provided to guide you through the testing process, from locating the component, to selecting the appropriate test, showing test lead connections, and illustrating electrical connector and pin configurations.

In addition, the test meter is preconfigured for the selected test to save you time. Test results, including waveform examples, procedures, tips, and specifications may also be provided.

See FAQ Scanner Operations

For most OBD-I (non-OBD-II/EOBD) compliant vehicles you can use the supplied data cable with the optional DA-5 adapter, and an optional manufacturer specific OBD-I adapter.

a.

The 26-pin end “A” of the cable connects to the diagnostic tool.

b.

The16‑pin end “B” of the cable connects to the DA-5 adapter “C”.

c.

One end of the manufacturer specific adapter “D” connects to the to the DA-5 adapter.

d.

The other end of the manufacturer specific adapter “E” connects to the vehicle.

OBD-I adapters with a power jack MUST be connected to the vehicle battery using an accessory power cable “F”.

If the OBD-I adapter does not have a power jack, an external power connection (accessory power cable) is not needed.

The image below shows a typical OBD-I adapter (with power jack). This type of adapter MUST be connected to the vehicle battery, using either of the power cables shown.

1.

Connect Clamps to Vehicle Battery

2.

Accessory Power Cable (Battery clamp type)

3.

Power Cable Connection

4.

Connects to DA-5 Adapter

5.

Typical OBD-I Adapter (with power jack)

6.

Connects to Vehicle

7.

Accessory Power Cable (Power port type)

Only use original Snap-on data cables and accessories with your diagnostic tool. Total data cable length must not exceed 114.17 inches (2.9 meters)

●

An optional OBD-I data cable adapter (DA-5) is available, which allows connection of the supplied DA-4E (OBD-II/EOBD) cable to the DA-5 adapter. The DA-5 adapter connects to the manufacturer specific OBD-I adapter. This may be used instead of the optional OBD-I data cable. Part# EAA0355L93A

●

An optional OBD-I data cable is available, which allows direct connection between the diagnostic tool and the manufacturer specific OBD-I adapter. This may be used instead of the optional DA-5 adapter. DA-5 Cable - Part# EAX0068L01A

●

An optional U.S. domestic and Asian vehicle OBD-I adapter kit is available for select vehicles. The kit includes multiple manufacturer specific adapters and cables for OBD-I connection.

●

An optional European vehicle OBD-I adapter kit is available for select vehicles. The kit includes multiple manufacturer specific adapters, cables and personality keys, providing OBD-I connection capabilities for select vehicles such as Mercedes Benz, VW and BMW. Depending on your diagnostic tool, optional European vehicle software may be required.

For more information, contact your Snap-on representative and/or visit Diagnostic Tools and Accessories

Chrysler Imports Stealth 1994-1996

Chrysler Imports Talon 1995-1998

Mitsubishi 3000GT 1994-1999

Mitsubishi Diamonte 1994-1996

Mitsubishi Eclipse 1995-1996

Mitsubishi Expo 1994-1996

Mitsubishi Galant 1994-1998

Mitsubishi Mirage 1994-1995

Mitsubishi Montero 1994

Chrysler Sebring 1995-2000

Dodge Avenger 1995-2000

Eagle Talon 1995-1999OBD-I

Depending on your tool and the vehicle, you may be able to use the OBD-I European Vehicle Cable Adapter Kit.

Contact your Snap-on representative for information.

Depending on your device, market and subscription, information services will vary and /or not be available. Performance varies depending on your wireless network equipment and ISP.

The following integrated information services provide up-to-date service/repair information directly to your diagnostic tool, via wireless network connection from our Snap-on Web Services Network:

●

Intelligent Diagnostics

●

SureTrack®

●

Technical Service Bulletins (TSBs)

●

Oil Specs and Resets

If your access to these services has expired, or you have received messages about upcoming software upgrades or pending expiration, contact your sales representative.

Selecting this option opens the brightness setting screen for adjusting the back lighting of the display.

This feature allows you to change the function of the "S" (Shortcut) button.

Select a function from the menu to set your preference

Options may vary:

●

Brightness—opens the brightness setting screen.

●

Save Screen—saves an image of the visible screen.

Do not use any abrasive cleansers or automotive chemicals on the touch screen or housing.

This feature is not applicable to all tools.

The OBD-II/EOBD function can be useful in a situation where the vehicle is not recognized or is an OBD-II compliant vehicle that is not supported by the enhanced scanner software, as you can still access “global” OBD-II/EOBD codes and data.

You can also use it to:

●

Access the OBD-II Service Modes

●

Check Readiness Monitor status

●

Check MIL status

Using the OBD-II/EOBD Health Check function, you can quickly check / clear emissions-related diagnostic trouble codes (DTCs), and check readiness monitors for emissions testing.

OBD-II (On-Board Diagnostics) provides a standardize “global” way to communicate with vehicle control modules/systems in order to check emission related components/systems for compliance. On-Board Diagnostics is basically the integrated “diagnostic” programming of the engine management system that monitors electrical sensors/components that influence exhaust emissions.

OBD-II Service Modes (or services) provide the standardized emissions related data, test results and services that the engine management system monitors and are available without the use of a specialized diagnostic tool. There are basically ten basic modes / services. Brief descriptions are provided below.

Visit Product Forums

For data and files that are automatically sent to the Snap-on Cloud, you can print them using your PC or mobile device from the Snap-on Cloud.

No - Your diagnostic tool is not designed for reprogramming.

Other tools are available for this type of work, see Pass Thru

This feature is not applicable to all tools.

Depending on the vehicle, the vehicle identification process may be automated or it may require manual entry of the vehicle information.

Instant ID - Automatically completes the identification process upon initial communication between diagnostic tool and the vehicle using OBD-II VIN mode $09. Instant ID requires specific vehicle support and procedures.

Auto ID - Automatically completes the identification process after the vehicle make and year are manually entered.

= Home Screen > Scanner > [ID Vehicle] > Engine > Codes Menu > Display Codes

Terminology will vary between makes for the menu choices. As example the selections “Codes Menu” and "Display Codes" (as shown above), may appear as a different names (e.g Codes, Codes Menu, Codes Only, Codes (No Data), Service Codes) or something similar depending on the vehicle manufacturer.

Selecting the applicable menu choice (e.g. Display Codes) may open either a list of diagnostic trouble codes (DTCs) for that system or a submenu of DTC viewing options.

Depending on your diagnostic tool features, the code list may also include SureTrack® information. SureTrack is an optional service which may provide additional troubleshooting information (e.g. Common Replaced Parts data, Real Fix and Related Fixes) for the selected DTC.

= Home Screen > Scanner > [ID Vehicle] > [Choose System] > Functional Test

Functional Tests are used to access vehicle-specific subsystem tests. Test availability varies by manufacturer, year, and model. Only the tests available/supported for the identified vehicle display in the menu.

Follow all screen instructions while performing tests. How and what information is presented on the screen varies according to the type of test being performed and the vehicle being serviced.

Functional tests are typically actuated by icons or controls in the upper toolbar designated to turn a component on/off or set testing times or other variables.

Types of functional tests will vary:

●

Information Tests—these are read-only tests, like selecting “VIN” from a Functional Tests menu to display the VIN of the identified vehicle.

●

Toggle Tests—these tests switch a component, such as a solenoid, relay, or switch, between two operating states.

●

Variable Control Tests—these tests command a certain value for a system or component, such as varying spark timing in 1° increments or EGR valve duty cycle in 10% increments.

●

Reset Tests—these tests reset the adaptive, or learned, values that are stored in the vehicle electronic control module memory.

●

Scripted Tests—these tests are software routines that place the vehicle into special operating modes for performing certain repairs, such as bleeding brakes with ABS.

If the vehicle is OBD-II compliant, typically 1996 and newer you can still get useful data using the OBD function, as this allows you to access “generic” OBD-II/EOBD data.

Generic OBD-II/EOBD data is limited to emission related diagnostics and allows you to access:

●

OBD-II Service Modes, to check emissions-related data and diagnostic trouble codes (DTCs)

●

Readiness Monitor status

●

MIL status

Communication protocols provide a standardized way of transferring data between an ECM and a diagnostic tool. Global OBD may use the following communication protocols:

●

ISO 15765-4 (CAN)

●

ISO 27145 (WWHOBD CAN)

●

ISO J1939 (CAN)

●

ISO 9141-2 (K-LINE)

●

SAE J1850 PWM (Pulse Width Modulation)

●

SAE J1850 VPW (Variable Pulse Width)

●

ISO 14230-4 (Keyword Protocol 2000)

●

SAE J2284/ISO 15765-4 (CAN)

When initially attempting to establish communication with the ECM the diagnostic tool attempts to communicate trying each protocol in order to determine which one is being used. During normal operation the communication protocol is automatically detected. If automatic detection fails, communication protocol can be manually selected.

Using unsupported OBD communication protocols may activate warning lights and can set network related faults. Only use the manual selection option when OBD protocol is already known.

This feature is not applicable to all tools, and requires Wi-Fi connection.

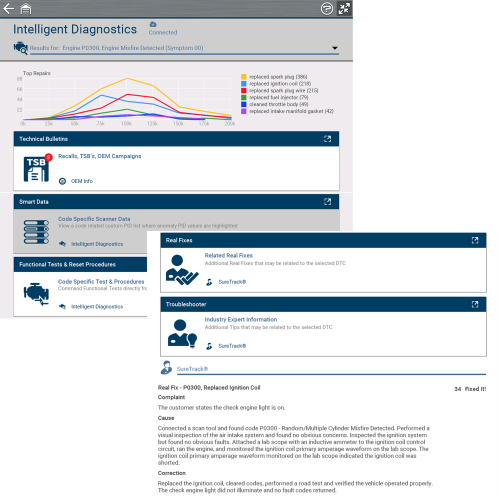

Fast Track Intelligent Diagnostics provides access to code related data, information, and tests, all from one screen when viewing codes in Scanner.

Quickly find TSB's, smart data PID lists, out-of-range PIDs, functional tests, Top Repairs Graph and Real Fixes, all related to the selected code.

In addition, you can directly access all (not just code related) PIDs and functional tests from one place, as compared to accessing them separately through the individual system menu.

In this User Manual application, see Main Menu > Diagnostic Tool Functions > Intelligent Diagnostics for details.

See SureTrack

Leads and probes are supplied with your diagnostic tool. Their recommended connection is as follows.

The shielded yellow lead is used with channel 1, and is color matched with the channel 1 jack on the diagnostic tool. This lead also includes two black, right-angle common ground plugs. One plug is standard and the other is stackable. The standard ground plug should always be connected to the ground (GND) jack on the diagnostic tool.

The stackable ground plug is used for connecting additional ground leads, such as the Channel 2 or the Secondary Coil Adapter lead grounds. The stackable ground lead is internally connected to the standard ground lead, therefore it does not need to be connected to the diagnostic tool ground jack.

The shielded green lead is used with channel 2, and is color matched with the channel 2 jack on the diagnostic tool. This lead also includes a black, right-angle stackable ground plug.

Insulated alligator clips and probes (pointed type) can be attached to the end of the test leads. Each alligator clip is color matched with a test lead, and the probes are available in red and black.

To purchase leads, probes and related equipment, contact your Snap-on representative and/or visit Diagnostic Tools and Accessories

This

An optional Low Amp Current Probe is used measure AC or DC current up to 60A. This probe includes two scales (0 to 20A) and (0 to 60A) that can be used to provide accurate and reliable non-intrusive current measurement for components such as, ignition coils, fuel injectors, fuel pumps, relays, and electric motors.

For more information, contact your Snap-on representative and/or visit Diagnostic Tools and Accessories

Battery Replacement

The RED LED flashes when the minimum operating voltage is approached, indicating that the battery needs to be replaced. When replacing the battery, use the 9-volt alkaline type only. Using any other type of battery in the Snap-on Low Amp Current Probe will invalidate your warranty.

To replace the battery:

1.

Unclamp the probe from the conductor.

2.

Using the On/Off and Range Selector switch, turn the Low Amp probe off.

3.

Disconnect the output leads from external equipment.

4.

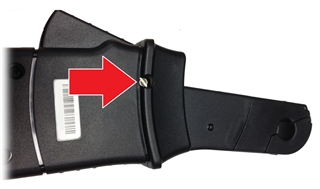

Loosen the rear captive screw that secures the front battery cover.

5.

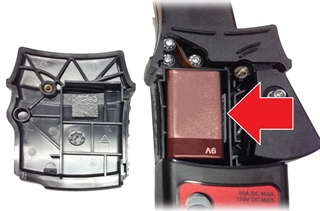

Lift the cover through 30° and pull it clear of the probe body. The battery is then accessible.

6.

Remove the old 9-volt alkaline battery and insert the new 9-volt alkaline battery. Replace the battery cover and re-tighten the battery cover captive screw. Be careful not to over tighten it.



Different pressure transducers and adapters are available for measuring positive and negative gas and liquid pressures. Depending on the adapter, measurement capabilities range from 1 to 5000 psi and up to 29 inHg. Measurement and application capabilities vary per device.

For more information, contact your Snap-on representative and/or visit Diagnostic Tools and Accessories

See Component Testing

Much like a standard multimeter, the Scope Multimeter function allows you to perform multiple types of circuit and component measurement tests using the built in Digital Multimeter (DMM). In addition, two more powerful features are also built in, Graphing Multimeter (GMM) and Lab Scope.

The graphing multimeter(GMM) provides two channels for testing and plots a visual graphing line of the signal. The GMM uses a higher sample rate (than a DMM) to calculate signal measurements. This characteristic along with the visual graph, make the GMM ideal for finding intermittent dropouts or glitches that may not be obvious when viewing a digital value. A key advantage of the GMM is being able to capture a signal over a long time interval and then review it’s graphical history, to visually see if and when dropouts have occurred.

The Lab Scope provides two channels for testing and allows you to visually see a signals waveform, which in turn allows you to see the strength and shape of the signal. The lab scope also samples signals at a high rate, which allows you to see a higher level of detail in short samples of the signal, especially in signals that change rapidly. In addition, the lab scope also provides more control over the acquisition of the signal and in how it is displayed, through the use of triggers and channel controls. All of these features allow you to analyze signals in great detail when performing component testing.

To use these functions, open as shown below

= Home Screen > Scope / Multimeter>(Lab Scope, Graphing Multimeter or Digital Multimeter)

Connect the supplied test leads and probes as applicable using one or both channels and the ground lead. See How do I connect the meter leads to the tool?

For additional information, within this User Manual application, see Main Menu > Diagnostic Tool Functions > Scope / MultiMeter.

This feature is not available on all diagnostic tools.

To protect vehicle communication networks from unauthorized access, OEM’s are implementing Security Link modules that only allow authorized users to access certain diagnostic functions using an approved diagnostic tool.

Using Security Link and your Snap-on diagnostic tool, you can have the ability to communicate with most vehicles that are equipped with Security Link modules.

Currently Security Link is only compatible with Fiat Chrysler Automobiles (FCA) 2018+ models.

How do I get setup to use it, so I can connect to vehicles with Secure Vehicle Gateways?

●

To use Security Link you will need to create an AUTOAUTH account and a Snap-on profile.

For more information on how to setup these accounts and get authorized:

See Security Link

This feature is not available on all diagnostic tools.

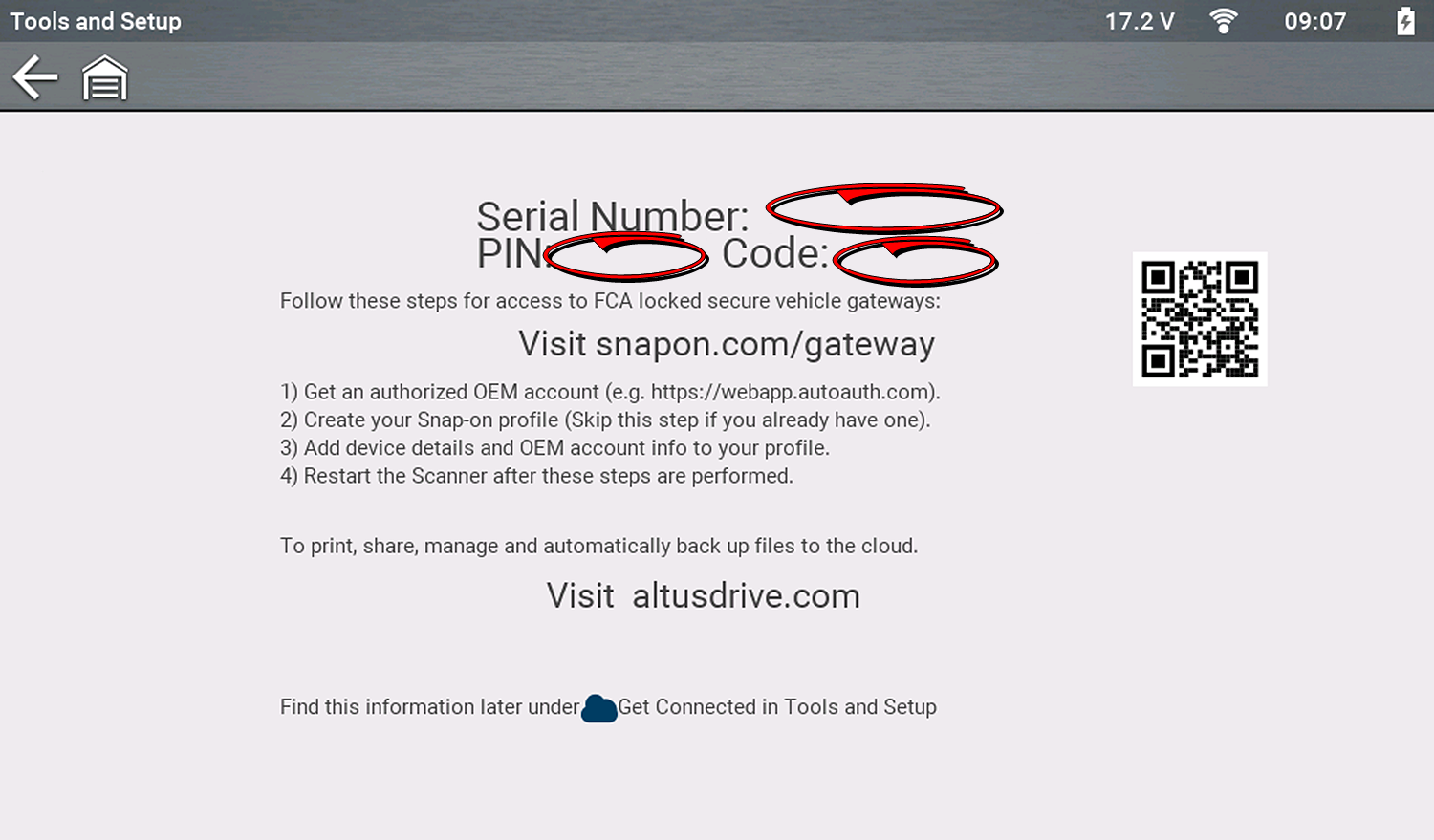

Get Connected allows you view the diagnostic tool serial number, PIN and Code needed for Snap-on Cloud registration.

Get Connected allows you view the diagnostic tool serial number, PIN and Code needed for Snap-on Cloud registration.

This feature is not available on all diagnostic tools.

Snap-on Cloud is a mobile-friendly cloud-based application designed specifically for technicians to store, organize and share information.

Using Snap-on Cloud (ALTUSDRIVE.com) allows you to:

●

Automatically transfer vehicle code scan reports from your diagnostic tool (Wi-Fi must be ON and connected ) to the Snap-on Cloud.

●

Share/send reports and data files from the cloud via e-mail, or other mobile apps.

●

Organize stored data.

●

Search your saved files by user defined Tag, Description and Title

To access and use the Snap-on Cloud you need to first setup a Snap-on profile, see next question.

Before you can use the Snap-on Cloud or Security Link applications, you need to create a "profile" at ALTUSDRIVE.com.

However, if you already have a ShopKey Pro or SureTrack account, just login using your authorized Username and Password, then proceed to step 6 below.

1.

On your PC or mobile device visit ALTUSDRIVE.com and select Create Individual Account, then Get Started.

2.

Enter all the required information, create a Username and Password, then select Create.

3.

At the “Success” confirmation screen, select Done.

4.

Log in using your Username and Password.

5.

Answer the security questions, then select Submit.

6.

From Technician Profile Manager select the Device Management tab.

7.

Select Add Device, then enter your Serial Number, PIN, Code, and Diagnostic Device Name and select Save when done.

The numbers and codes needed (in the step above) are found on your diagnostic tool (see image below). The device Serial Number, PIN and Code needed to register are displayed onscreen.

= Home Screen > Tools > Get Connected

8.

Log out of Profile Manager, then select the ALTUS Home Page browser tab to get started.

9.

Reboot the diagnostic tool.

Depending on your diagnostic tool, software updates/upgrades are available in the following ways (see instructions below):

●

Online (via PC & ShopSteam Connect application) - Only Select Diagnostic Tools

●

Direct download to the diagnostic tool (via Wi-Fi) – Only Select Diagnostic Tools

●

From your Snap-on representative – All diagnostic tools

Related Quick Tip Videos

ShopStream Connect™ Software Updates		ShopStream Connect is a Windows®-based Snap-on software application that helps keep you and your diagnostic tool productive and profitable every day.
Installing Software with ShopStream Connect		Watch this 1 minute video to see how easy it is to perform a software upgrade for your subscribed APOLLO-D8™, TRITON-D8®, MODIS™, SOLUS™, P1000™ or ETHOS® using ShopStream Connect™.

Software update/upgrade using ShopStream Connect

APPLICATION: TRITON-D8, APOLLO-D8, MODIS Edge, MODIS Ultra, SOLUS Edge, SOLUS Legend, SOLUS Ultra, P1000, VANTAGE Legend, VANTAGE Ultra, ETHOS Edge, ETHOS Tech, ETHOS PRO, ETHOS PLUS

Windows® 8/8.1 or 10 is required to use ShopStream Connect.

READ THIS BEFORE YOU START - Depending on your Wi-Fi connection and the size of the update, download times will vary. Download times can range from 15 to 120 minutes or more. It is recommended that you perform the platform software installation Monday - Friday, during business hours to ensure Customer Care representatives are available for support should you need it. Once downloaded it may take 10-15 minutes to install on the tool.

If the Internet connection is interrupted or you select cancel during a download, the download is canceled. You must restart the process from the beginning.

Only disable your PC anti-virus software if it blocks your ability to download an upgrade.

1.

Download ShopStream Connect from our website to your PC (it's free).

Visit your product specific market website to download the application. For the United States and Canada visit:

     snapon.com/diagnostics/us/SSC

2.

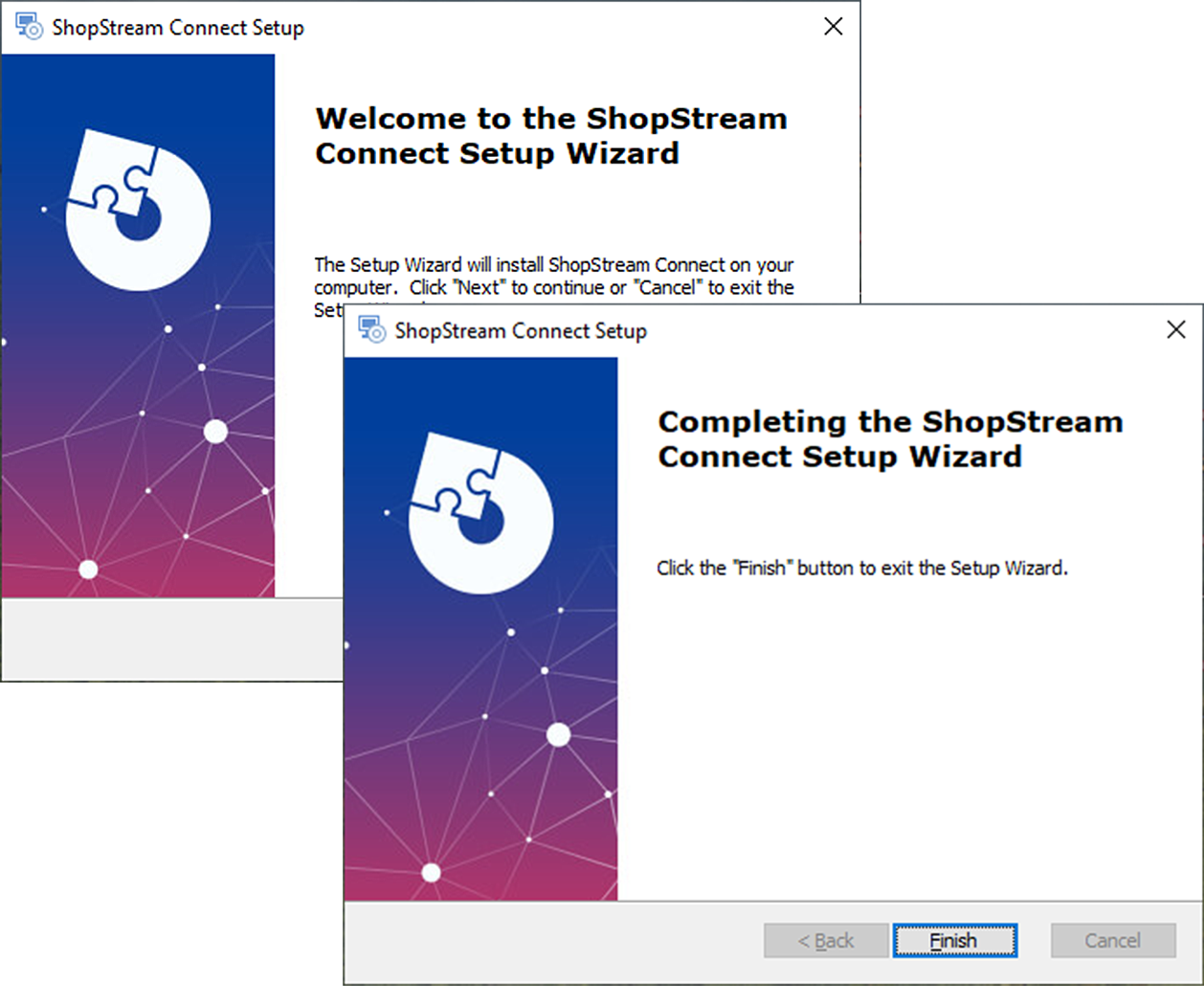

Launch the installation file (ShopStreamConnect.exe).

3.

Follow the screen prompts to complete the installation.

4.

Connect the supplied USB cable from the USB jack on your diagnostic tool to your PC.

5.

From the Home screen on the tool, select Tools > Connect-to-PC.

In most situations, when you connect your diagnostic tool to the PC, ShopStream Connect (SSC) will open automatically and then check for software updates/upgrades, Just follow the screen prompts to accept, download and install the software.

To manually check for software updates/upgrades, from the SSC menu select Tools > Update Software, then select your diagnostic tool (e.g. APOLLO-D8, TRITON-D9, etc.).

The software checks the Snap-on web server for available updates/upgrades.

If service release updates are available, select Next to continue, then select Download and follow the on-screen instructions to complete the installation.

If software upgrades are available, select Next > Download > Install and follow the on-screen instructions to complete the installation, see below.

●

If the diagnostic tool is authorized to receive software upgrades and one is available, an upgrade window is displayed.

●

If the diagnostic tool is authorized to receive software upgrades and already has the latest software, the following message will be displayed “ShopStream Connect did not find any updates”.

●

If the diagnostic tool is not authorized to receive software upgrades, SSC software will automatically check the Snap-on web server for a Service Release update. If a Service Release update is available, an update window is displayed. Follow the screen prompts to install the Service Release update.

●

If the Diagnostic Tool is not authorized to receive software upgrades, SSC software will automatically check the Snap-on web server for a Software Release update. If a Software Release update is available, an update window is displayed. Follow the screen prompts to install the Software Release update.

Selecting Upgrade Detail automatically connects to the Snap-on web server and opens a PDF file with information about the new upgrade.

Install window

Update status window

After the download is complete, the installation confirmation message is displayed. Select Continue to proceed with the software upgrade installation.

The Programming status window is displayed until programming is completed. Once programming is completed select Exit, then restart the diagnostic tool.

Do not disconnect or remove the diagnostic tool during programming.

Additional SSC Software Update/Upgrade esources:

https://www.snapon.com/EN/US/Diagnostics/SSC

https://www.snapon.com/Diagnostics/US/KB/DQT-GG-ShopStream-Connect-Software-Updates.htm

Software license agreements are integrated into the software and are "accepted" when the tool is initially activated and whenever a new software upgrade is installed.

Use of Software is governed by the terms and conditions of the End User License Agreement. The diagnostic tool should not be initially operated until the End User License Agreement is read. Use of the device acknowledges your acceptance of the End User License Agreement. The Snap-on Incorporated Software End User License Agreement may be provided with the diagnostic tool, and is available at: https://eula.snapon.com/diagnostics

For customer and end-user access and convenience, Snap-on is providing the End User License Agreements (link above) applicable to the Snap-on Diagnostics software and platforms. These agreements or an earlier one you agreed to was either provided as hard copy or resident within the diagnostics platform software.

Use our Vehicle Coverage Lookup application.

This feature is not applicable to all tools.

If you have purchased a new diagnostic tool, you will need to create a SureTrack account before you can access SureTrack.

SeeSureTrack

This feature is not applicable to all tools.

If you have recently purchased a software upgrade, you will need to reactivate your account to access SureTrack.

SeeSureTrack

This feature is not applicable to all tools.

SeeSureTrack

SureTrack is an evolving database of "real-world" automotive repair knowledge based on expert knowledge and millions of actual repair orders. It was designed to help you improve automotive diagnostic accuracy and reduce repair times.

SureTrack information (Real Fixes/Tips, Top Repairs graphs) is provided in two ways, by WiFi in the integrated Scanner function on your diagnostic tool, and online via the SureTrack Community application.

SureTrack is not available for motorcycles.

Check the power source.

In situations where the display is frozen and is not responding to touch screen actions or control buttons, it may be necessary to perform an emergency shutdown. It is not recommended to do this during active vehicle communication, try to exit vehicle communication before shutting down.

If you are still experiencing difficulties, contact customer support

Phone

●

1-800-424-7226

E-Mail

●

diagnostics_support@snapon.com





This feature is not applicable to all tools.

The Quick Lookups feature provides access to vehicle manufacturer, Engine Oil Specifications, Oil Service Reset Information

= Home Screen > Quick Lookups > Oil Specs and Resets

This application requires Wi-Fi connection and is not available on all diagnostic tools.

This feature is not applicable to all tools.

The Quick Lookups feature provides access to vehicle manufacturer, Tire and Wheel Service Information and TPMS Reset Information.

= Home Screen > Quick Lookups > Tire and Wheel Service

This application requires Wi-Fi connection and is not available on all diagnostic tools.

ShopKey Pro is a specialized service that provides OEM repair information, procedures, TSBs, wiring diagrams, and much more. In addition it has shop management capabilities like estimating, ordering and more.

Visit ShopKey Pro to learn more.

1.

Select the SureTrack & Repair Information icon from the home screen.

2.

Select the menu icon from the lower toolbar.

3.

Choose website, then select the desired application ShopKey Pro or ProDemand

Visit ShopKey Pro to learn more.

Videos are provided for most tools at:

●

Training and Support

●

Snap-on Diagnostics - Training Videos On YouTube®

Use our online registration form to create and submit your contact information. Registering your diagnostic tool allows you to obtain warranty assistance and receive periodic messages from Snap-on about current products, features and promotions.

Register online (United States) : https://registration.snapon.com/products/DiagProductRegistration.aspx

Register online (Canada) : snapon.com/productregistration

Also see Warranty Information

It is recommended to keep Wi-Fi on and connected at all times.

In the United States and Canada:

Website

●

www.snapon.com/diagnostics

Phone

●

1-800-424-7226

E-Mail

●

diagnostics_support@snapon.com

Online Contact Form

●

snapon.com/diagnostics/us/Contact
