VANTAGE® Legend Component Test Meter

Model: EETM345MSRP: $2,986.00

VANTAGE® Legend is the perfect companion to any scan tool.

A digital graphing meter, high-speed 2-channel lab scope, plus exclusive expert information make it easy to verify component failures.

Exclusive Fast-Track® Guided Component Tests help give a confident diagnosis.

Vehicle-specific illustrated test procedures show where to connect, how to connect, and what the results should look like.

Don’t settle for a general diagnosis when the rest of the story is just one tool away.

VANTAGE Legend Overview
  • VANTAGE Legend Overview
  • VANTAGE Legend

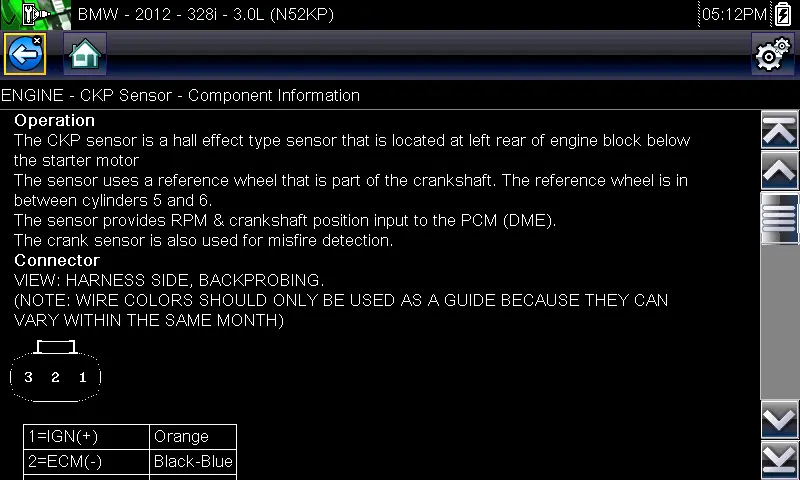

  • Component Information

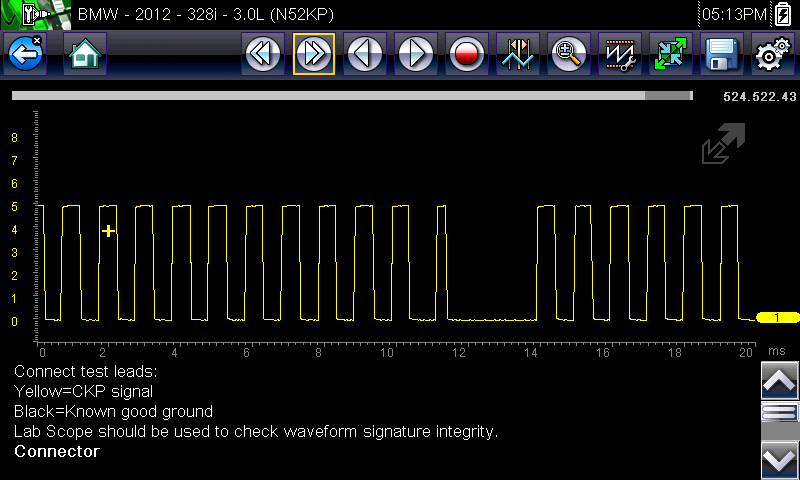

  • Component Test

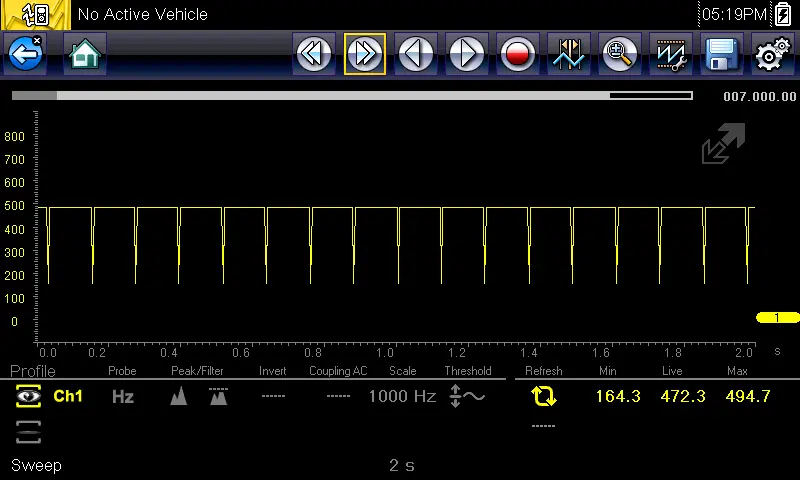

  • Graphing Frequency

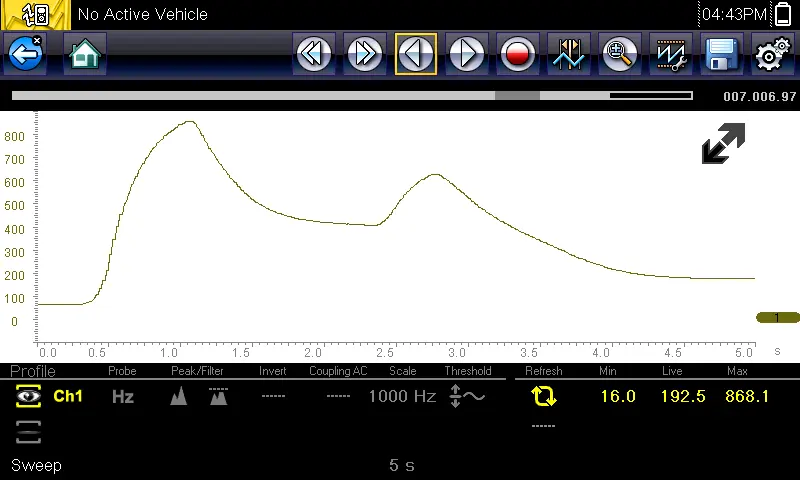

  • Graphing Trends

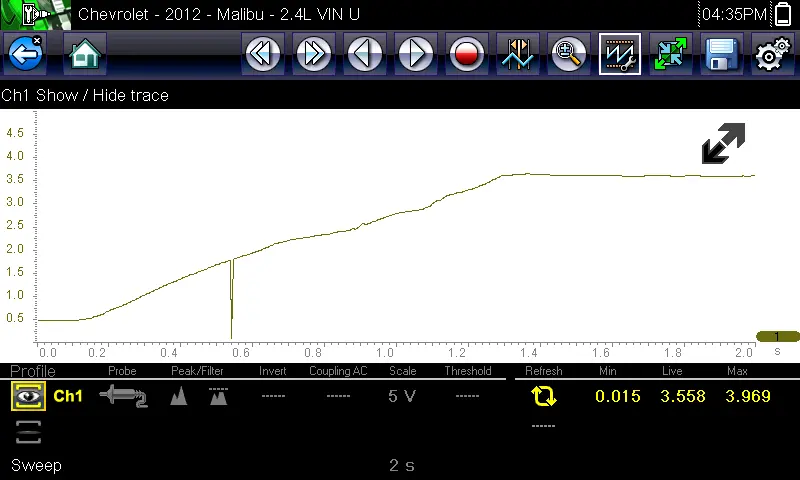

  • Peak Detect Function
  • Connector Diagram
  • GCT Test Location
Open AllClose All
Specifications

Here are the numbers

BatteryRemovable, Rechargeable, Lithium-ion batteryBattery Voltage7.4 voltsBoot up SpeedLess than 10 second boot upDepth2 inches (51 mm)Display: Resolution800x480 pixelDisplay: Size8 inchDisplay: TypeResistive, daylight-readable LCD touchscreen, colorExtended Warranty Option1-3 yearsDimension: Height6.5 inches (165 mm)Lab Scope / Meter2-channelBandwidth 3MHzSample Rate: Up to 6 million samples/secScale range 0-100mV to 0-400VSweep rate 1 second to 5 minutesSweep rate 50 microseconds to 20 seconds (5 min in GMM mode)Live Data GraphingSelective display of 1, 2 or 4 graphsNavigation4-way keypadTouchscreenOperating SystemEmbedded SMX®USB PortPC connectivityVehicle Systems100+ OEM-specific vehicle systemsWarranty1 yearWeight (incl. battery)3.2 pounds (1.5 kg)Dimension: Width12.5 inches
