Measurement of the volume and density of airflow entering an Internal Combustion Engine (ICE) is critical to ensure the system is operating efficiently and within the emissions specifications. Many versions of Airflow Sensors have been utilized in recent decades. These included Vane Type, Karmen Vortex, and Hot Wire Type. These sensors all had issues with reliability and/or performance. The Vane type created an obstruction to the air entering the engine, The Karmen Vortex type had issues with accuracy due to external vibration and the Hot Wire type had accuracy issues due to backflow of air which has been previously measured.
The Hot Wire type uses the cooling effect of air over a Heated Wire, which is at a constant temperature. A current is applied to the Hot Wire which results in a temperature increase.
Increased airflow results in a greater cooling effect, the Engine Control Module increases the current flow through the Hot Wire to maintain the specified temperature. This current flow is proportional to the mass of air entering the engine. The output from this sensor is analog and must be converted to a digital signal within the Engine Control Module.
The development of the Hot Film Mass Airflow meter (HFM) provided a more accurate and reliable method of measuring airflow. The design of the HFM also uses a thermal method to measure airflow similarly to the Hot Wire type. However, the HFM ensures the direction of airflow is measured.

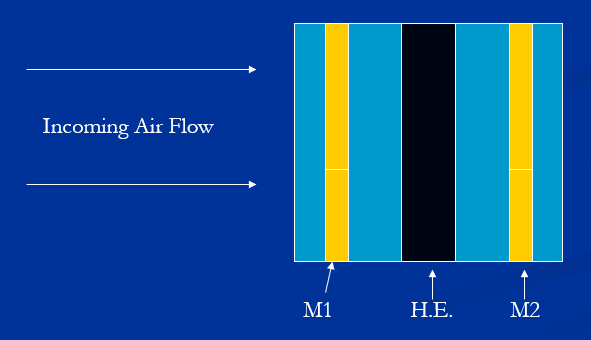

The basic concept is based on two measuring elements separated by a Heater Element. As air enters the HFM a temperature drop is detected across Measuring Element 1 (M1) and then passes over the Heater Element (H.E.), this raises the temperature of the air, which results in a higher temperature measured at Measuring Element 2 (M2). Reverse airflow is detected when the temperature change measured is reversed.
It must be noted that only a percentage of air entering the MAF is sampled.
A further improvement with the HFM is the addition of signal processing electronics to convert the analog signal into a digital output. This ensures the accuracy of the signal as the sensor ages.

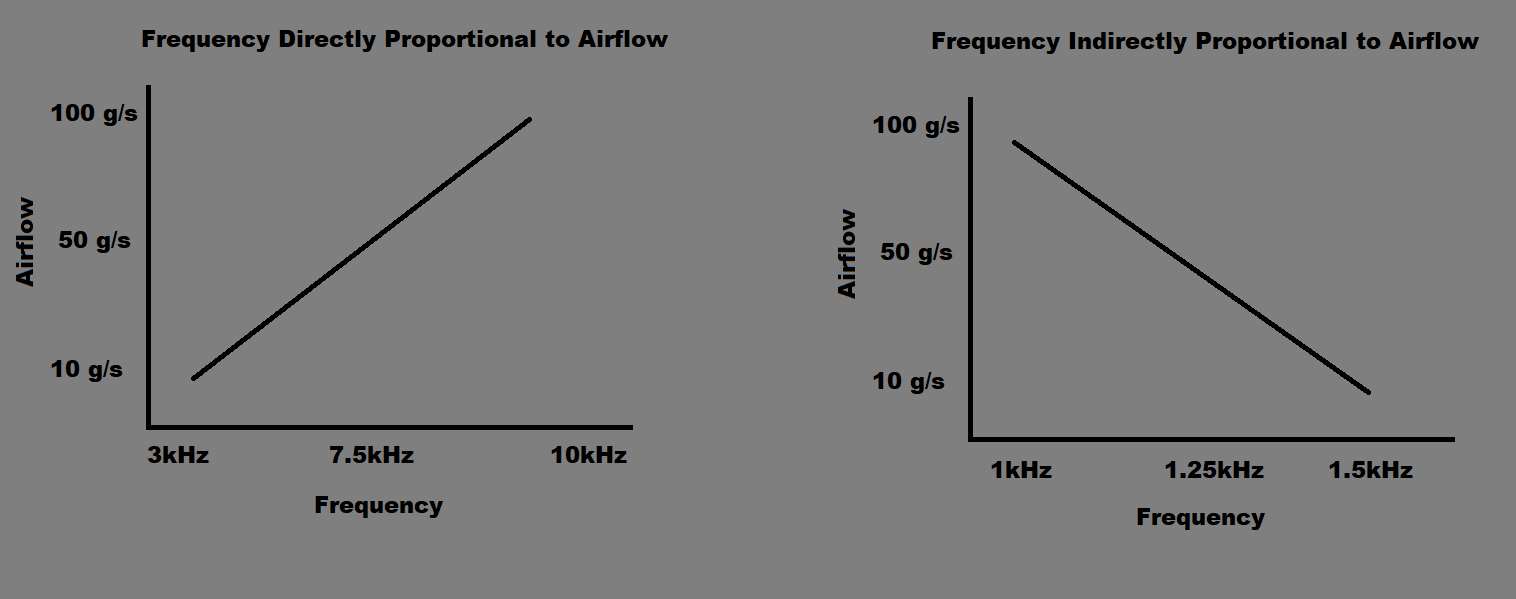

The signal output is a 0 to 5 Volt digital signal. Most sensors output an increased frequency as the airflow increases. However, on some variants, the frequency is inversely proportional to airflow, however, these tend to be rare.
Although Digital Mass Airflow Meters are more reliable they can prove difficult for technicians to test, however using a good fault-finding process the technician can validate the operation of the sensor.
Serial vs Parallel Diagnostics:
Serial diagnostic is a term used when a scan tool is connected to the Data Link Connector to communicate with the vehicle control modules. The data displayed on the scan tool has been processed by a control module so if a fault exists with the control module or a substituted value is used the scan tool will display this incorrect data.
Parallel diagnostics refers to using a test device, like an oscilloscope or digital/graphing meter, to test the electrical signals between a component and a control module. This is the actual raw signal from a sensor or the control of an actuator.

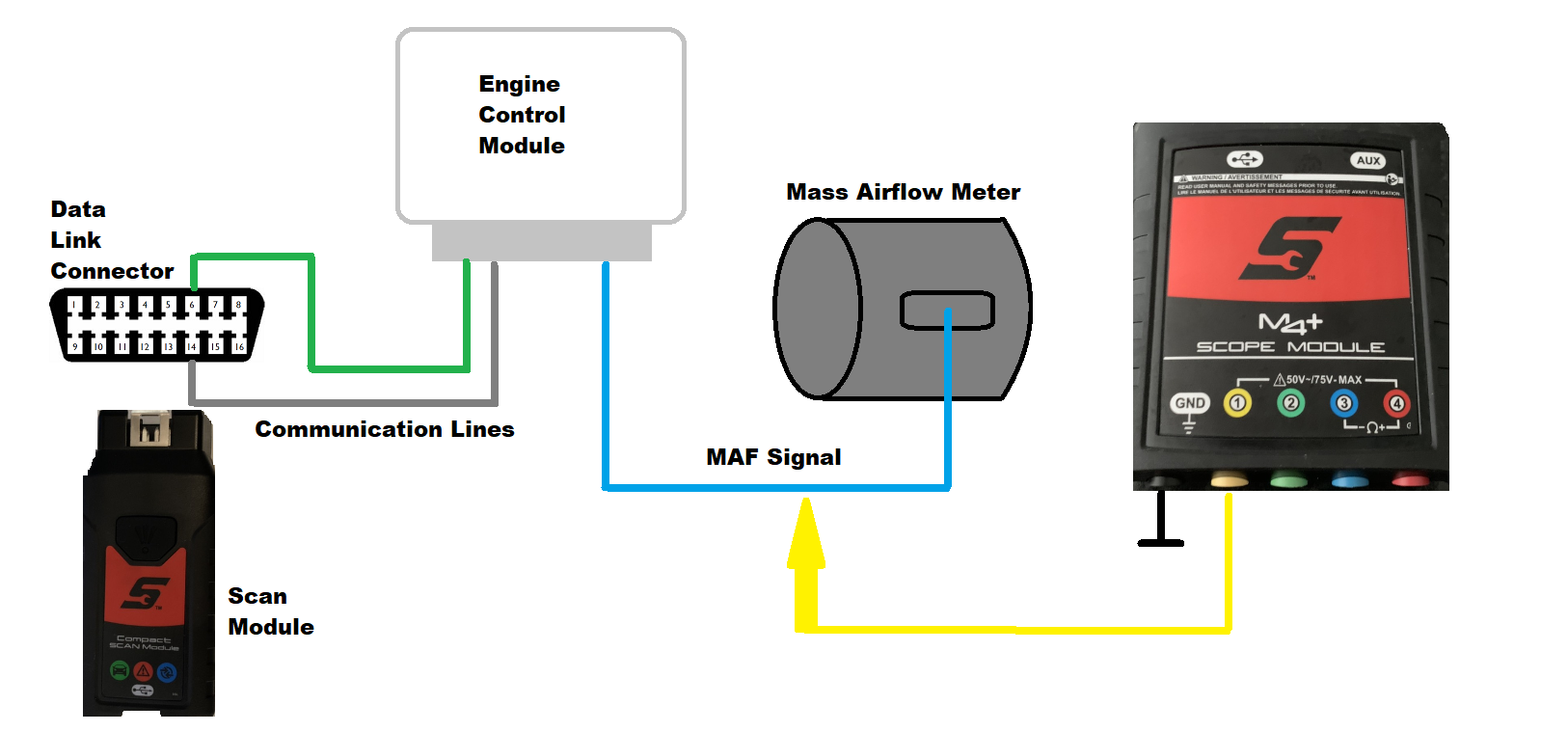

Ideally, a technician would observe both Serial and Parallel diagnostics simultaneously. This can be done on the Snap-on ZEUS+ by using a split screen as can be seen below. The scanner live data graph is on the left of the screen and the Frequency graph view is on the right.

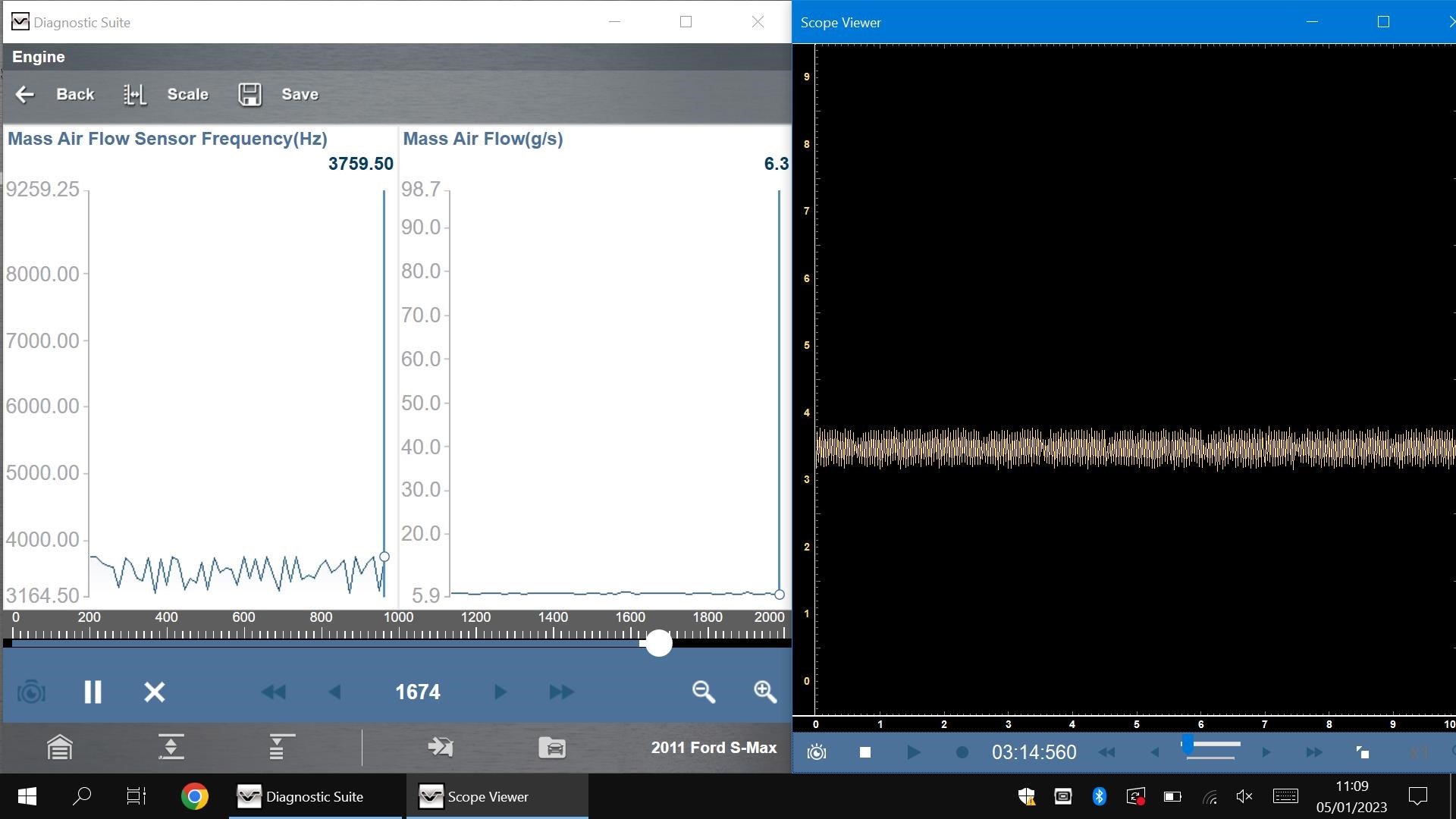

Mass Airflow Meter scanner live data and frequency (Graphing Meter) at Idle.
We can see from the data above that the frequency of the signal from the Airflow sensor at idle is ≈3.7kHz. This equates to an inferred airflow of 6.3 grams per second.

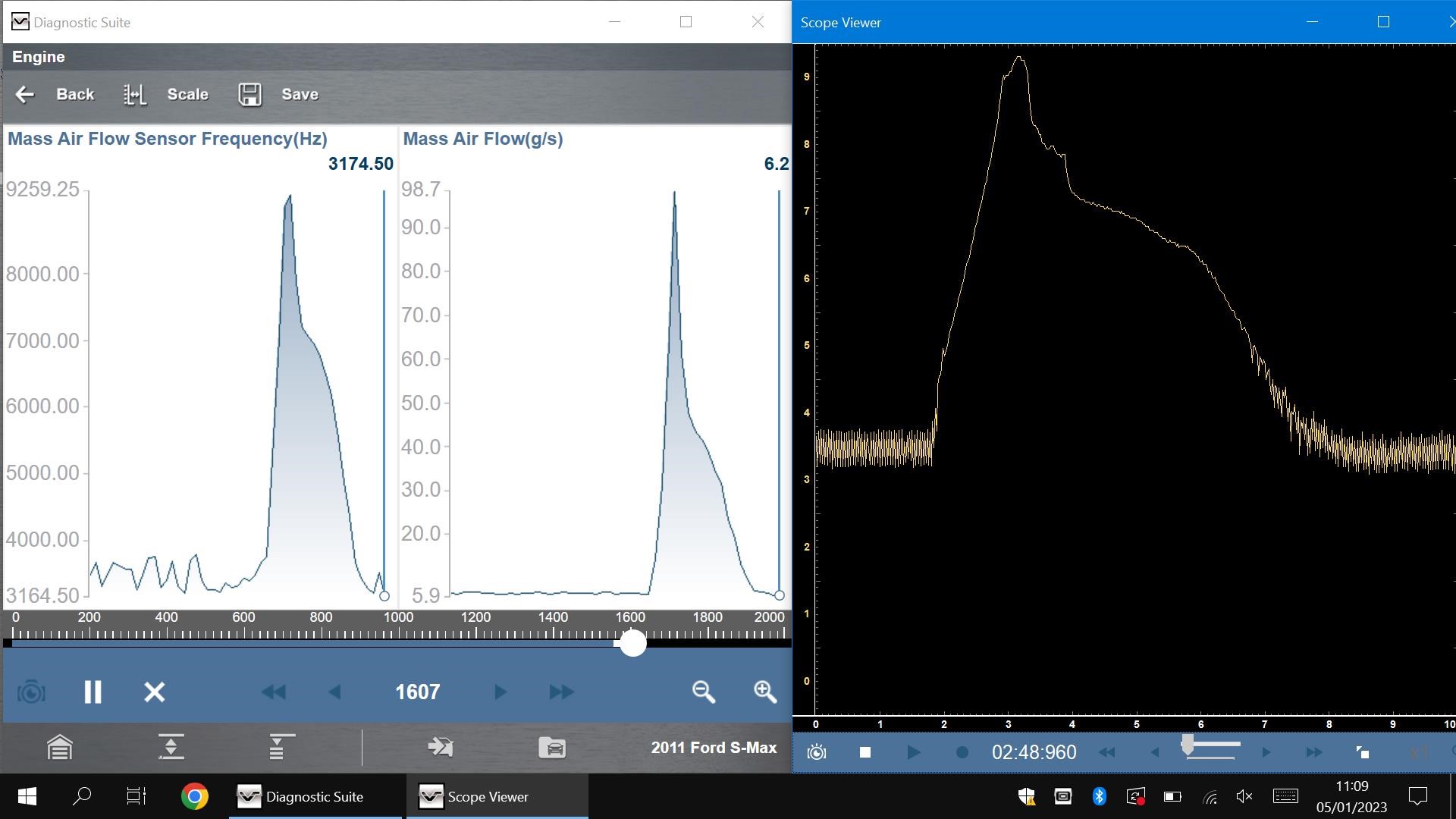

Mass Airflow Meter scanner live data and frequency (Graphing Meter) at Wide Open Throttle.
The image above shows the same data parameters during a Wide Open Throttle test. The frequency peaks at ≈9.2kHz, which equates to 98.7 grams per second.

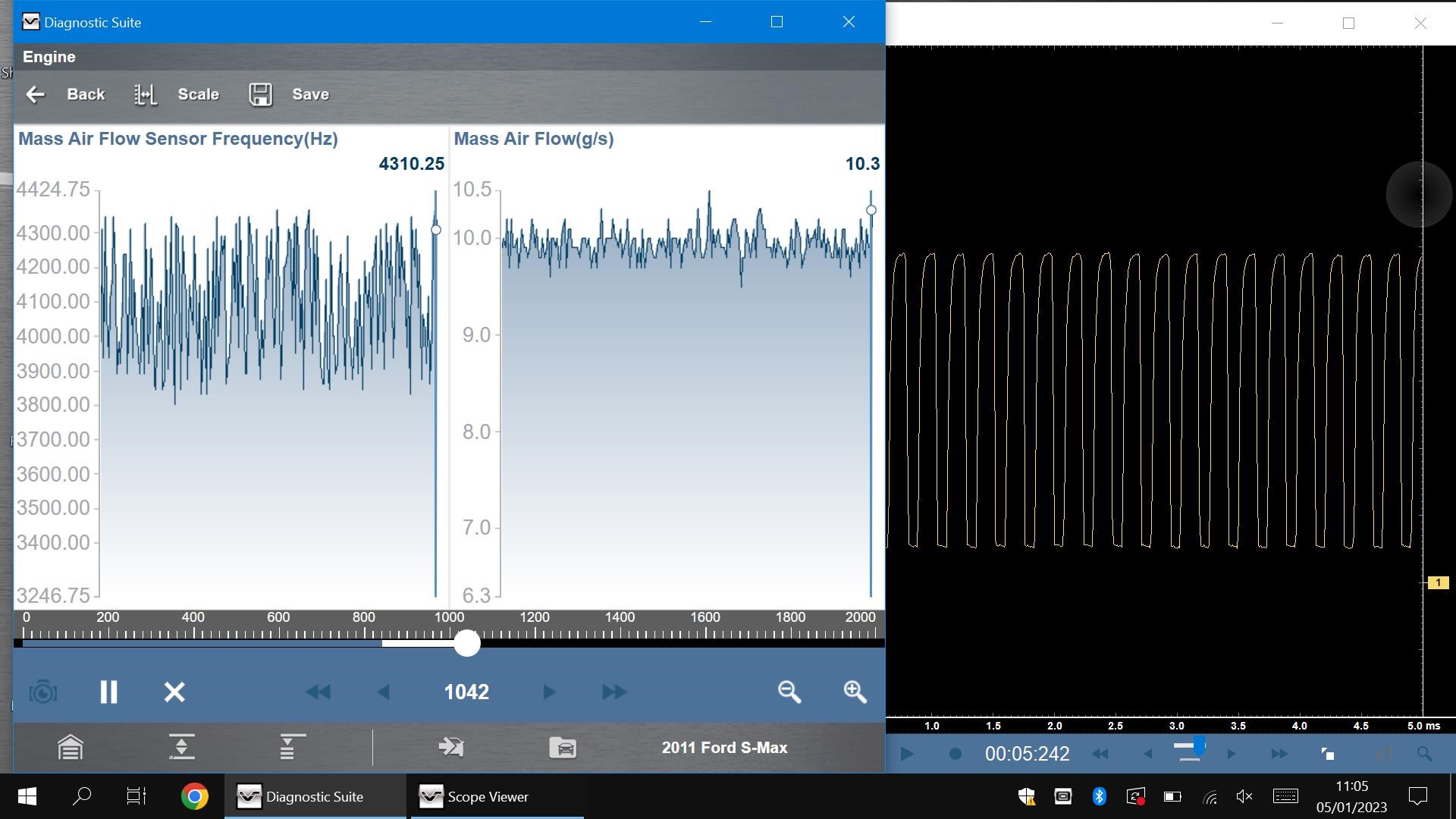

Mass Airflow Meter scanner live data and Voltage (Oscilloscope) at Idle.
The waveform on the righthand side of the above image shows the actual digital trace at idle, using the oscilloscope. It is difficult to see the change in frequency due to the time base (5 milliseconds) required to display such a high-speed digital signal. For this reason, we selected the Frequency measurement from the Graphing Meter.
