Access to Fast-Track Intelligent DiagnosticsAvailable on ZEUSBatteryRemovable, Rechargeable, 10.8V Lithium-ion batteryBoot up SpeedLess than 10 second boot up from Ready ModeBuilt-in Camera8MP (3264 x 2448)Dimension: Height7.8 inches (198 mm)Dimension: Width12.4 inches (315 mm)Dimension: Depth1.7 inches (43 mm)Display: Resolution1920x1080 pixelDisplay: Size11.6 inch diagonalDisplay: TypeOptically bonded touchscreen, colorExtended Warranty Option1-3 yearsLab Scope / Meter4-channelBandwidth 3MHzSample Rate: Up to 6 million samples/secScale range 0-100mV to 0-400V, 50kV secondary ignitionSweep rate 50 microseconds to 20 seconds (5 min in GMM mode)Live Data Graphing16 graphNavigationTouchscreenOBD-IIAll 10 modes of Global OBD-IIOperating System64-bit Windows® 10Scan ModuleWirelessUSB-C PortCharging / connectivityUSB PortPC connectivityVehicle Coverage12 European automotive makes16 Asian automotive makes22 domestic automotive makesVehicle Systems100+ OEM-specific vehicle systemsWarranty2 yearWeb BrowserChromeWeight (incl. battery without Scope/meter)4.1 lb (1.85 kg)Weight (incl. battery and Scope/meter)4.6 lb (2.00 kg)Wi-FiWi-Fi Capable
DIAGNOSTIC SOFTWARE IS THE POWER INSIDE YOUR SCAN TOOL
From electric cars to autonomous vehicles to new vehicle security requirements, automotive technology changes just about every day. The only way to stay on top of it all is with uninterrupted access to an array of tips and techniques, tests, guided resources, and graphing capabilities from a constantly updated universe of vehicle data resources — exactly what Snap-on® diagnostic software delivers.
No matter which Snap-on diagnostic platform you choose, keeping its software up to date is the only way to make sure you can always get the most out of it and handle the problems that come your way.

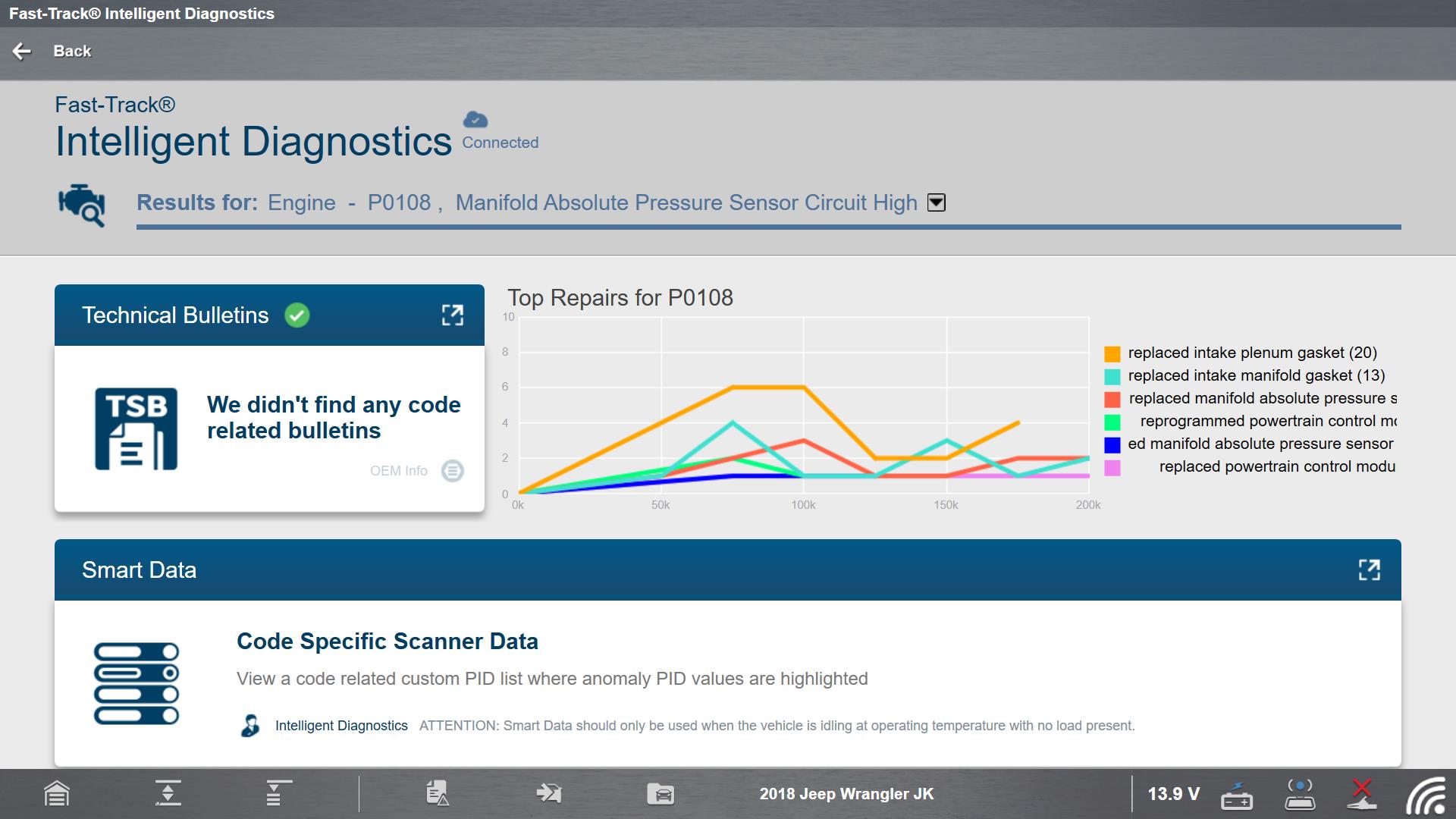

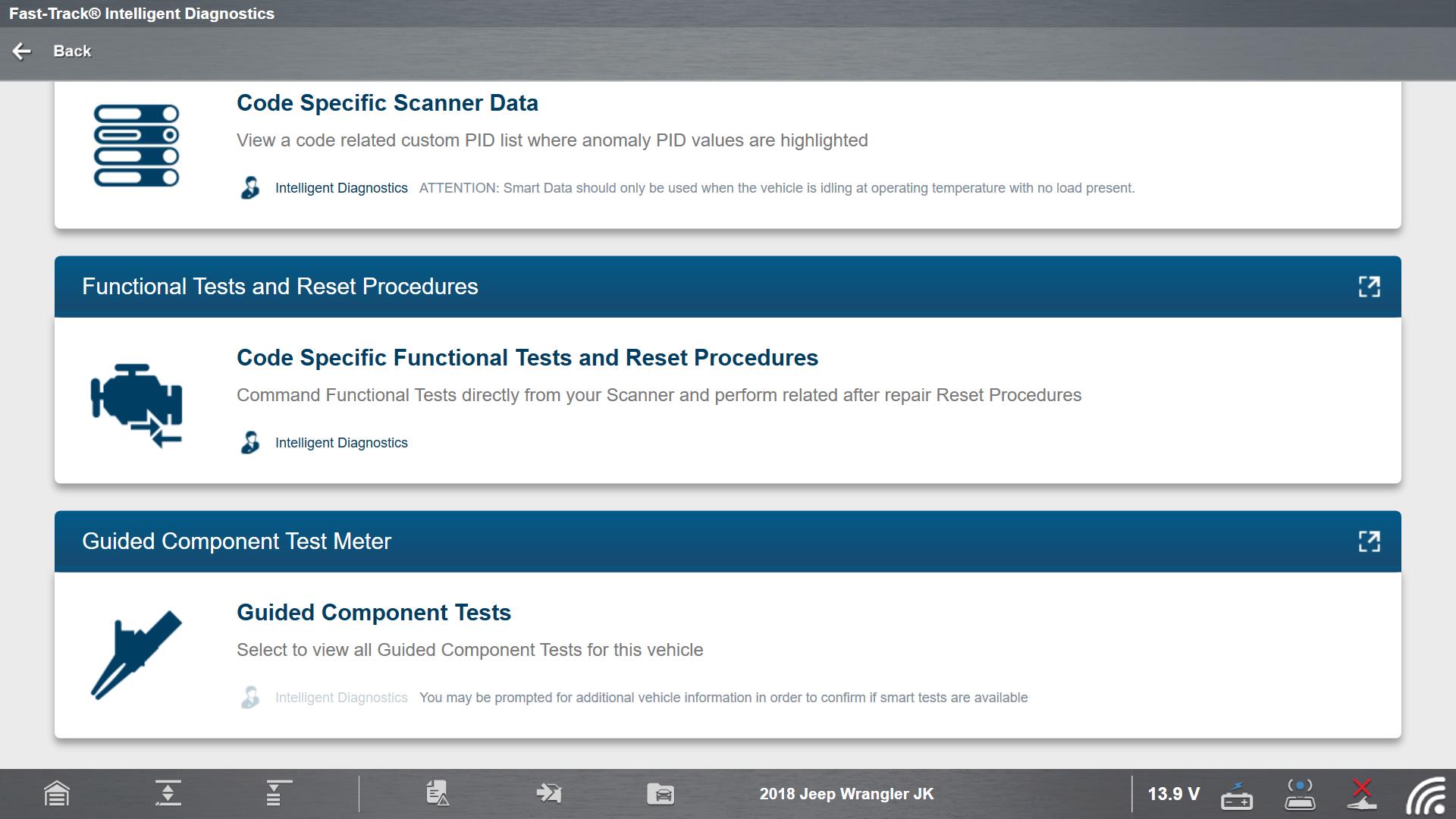

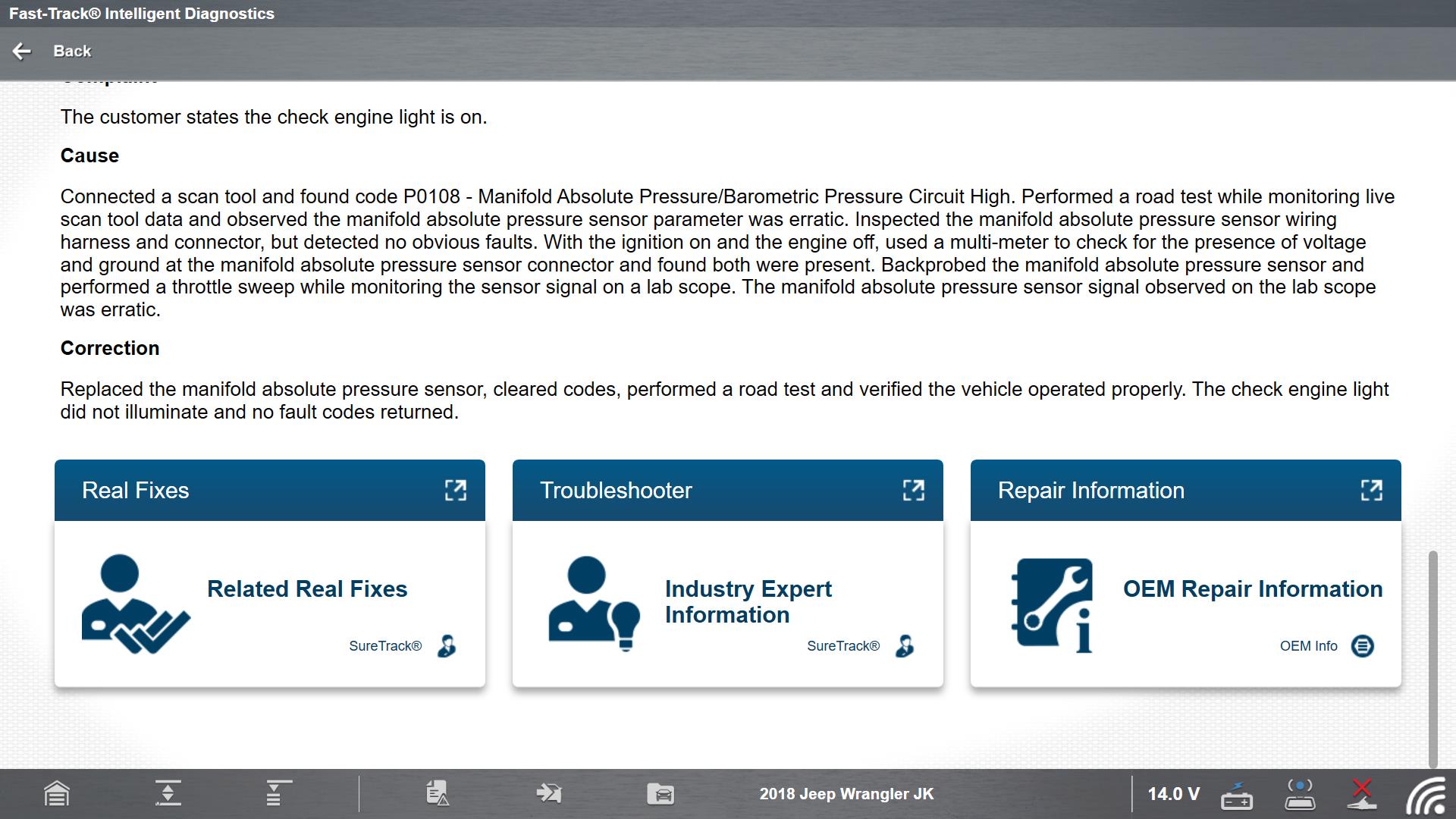

Fast-Track Intelligent Diagnostics¹,²
Fast-Track Intelligent Diagnostics guides users through every step needed to find the solution, while avoiding the steps they don’t. It includes continuous Smart Data updates with any Prepaid or Subscription plan. With Smart Data it automatically configures the display to show vehicle data parameters (PIDs) relevant to the fault code. Non-related parameters are filtered out to save you time. It highlights vehicle data that is out of expected range, includes SureTrack common replaced parts and real fixes for the specific DTC, and reset procedures to complete the repair after component replacement with only those that pertain to that fault code shown.
New Coverage Highlights2024 Model Year Update - All Makes2025 Code Scan & Clear - All Makes2009-2013 ZDX® Engine Idle Stop Starter Counter Special Function
Guided Component Tests for RDX®, TL® and RSX®
Acura® ZDX® RDX®, TL® and RSX®2014 – 2020 A3® new Transmission variant
2022+ eTron® Rear Camera Module, added new variant
2016+ A4® and A6® new Battery Charger Module variant
New Drive Motor Control Module variant for all applicable vehicles
Audi® A3®, A4®, A6® and eTron®2017 – 2024 530E®
Electrical Machine Electronics Special Functions
Battery Management Electronics Special Functions
Guided Component Tests for X3®, X3 M®, X3 M Competition®
X5® and 5-Series®Component Location Images
BMW®Guided Component Tests
2023 Envision® and Encore® GX 1.2L and 1.3L ABS, Body Electrical, Charging, HVAC, Starting and Transmission (CVT and (9 speed) Systems
Buick® Envision® and Encore® GXGuided Component Tests for 2023 Blazer®, Colorado®, Equinox®, Malibu®, Trailblazer® and Traverse® and Impala® 3.6L
Chevrolet®Guided Component Tests for Pacifica®, Pacifica® Hybrid 300® and Town & Country®
Chrysler®Guided Component Tests
2003-2009 Sprinter® Body Electrical and HVAC Systems
2007-2009 Sprinter® Head Light Washer Pump and Rear Washer Pump
2020 Charger® Transfer Case
Dodge® Sprinter® and Charger®Body Control Module (BCM) Crash Status Reset Special Function
Ford® Transit® Connect 2014 – 20182021+ G80®, 2022+ GV70® and 2021+ GV80® Special Functions
- TPMS—Wheel Sensor ID Writing
- ADAS Parking & Driving Assist—Variant Coding
- Corner Radar—BSD Radar Calibration and Variant Coding
- Front View Camera—Service Point Target Auto Calibration (SPTAC) and Variant Coding
Guided Component Tests and new Location Images for GV80®
Genesis® G80®, GV70® and GV80®Guided Component Tests
2022-2023 Arcadia® HVAC System
2023 Arcadia® Body Electrical System and Traction Control
2023 CK Trucks PWM Controlled Headlights
2023 Terrain® Body Electrical System and HVAC System
GMC® Arcadia®, CK Trucks and Terrain®2015 – 2020Civic® Engine Special Functions
- Cylinder Air Fuel Ratio Test
- EVAP System Test – Gross Leak
Honda®2017 – 2022 Ioniq®, 2014 – 2019 Sonata® and 2012 – 2018 Santa Fe® Electric Power Steering Functional Tests
2019+ Sonata® Airbag ACU/SRSCM Variant Coding Functional Test
2019+ Sonata® Engine Special Functions
2020+ Battery Management System Special Functions for all applicable vehicles
2020 ADAS Special Functions for all applicable vehicles
Guided Component Tests
2021-2023 Tucson® 1.6L, 2.0L, 2.4L, 2.5L Body Electrical System, Charging System, Starting System
2021 Venue® 1.6L Body Electrical System, Charging System, Starting System
2023 Tucson® 1.6L and 2.5L HVAC System
New Location Images
2021 Venue® 1.6 Camshaft Position Sensor, Engine Control Module, EVAP Purge Solenoid, Fuel Injector, Ignition Coil, Intake Manifold Runner Control Actuator, Knock Sensor, Throttle Motor, Throttle Position Sensor, Oil Control Valves and ABS Module
Hyundai®2020+ with Battery Management Systems Special Functions
- Inspection of Insulation Resistance of High Voltage Parts in EV/(P) HEV
- 12V Battery SOC Correction Function
- Inspection of 12V Battery Status
Hyundai®and Kia® Battery Management Systems2021+ ICC-ADAS and Shifter Systems for all applicable vehicles
Infiniti 2021+Guided Component Tests New Location Images
2010-2012 Liberty® Engine System, ABS, Charging System and HVAC System
Jeep® Liberty® 2010-20122016 – 2022 Niro® Hybrid Electric Control Unit Engine Clutch/Motor Resolver Adaptation Special Functions
Special Functions for all applicable vehicles
2020+ TPMS Wheel Sensor ID Writing
2020+ Rear Corner Radar BSD Radar Calibration and Variant Coding
2021+ Front Radar Variant Coding and Radar Sensor Alignment
2021+ ADAS-Parking Variant Coding
2023+ ADAS-Driving Variant Coding
Kia® Special Functions2012 Defender® 2.2L Diesel Engine, Special Functions
2015 Range Rover® 4.4L Diesel Engine Special Functions
2012 Range Rover Evoque® Parking Brake Module Brake Caliper Replacement Assembly Test Special Function
2015 Range Rover® 2011 Discovery 4® Automatic Transmission Pulse Adaption Learn Special Function
2010 Range Rover®, 2010 Range Rover Sport®, Transfer Case Solenoid Replacement Special Function
Special Functions for All applicable vehicles:
2013+ Body Control Module Functional Tests
2010+ IMPB Camera Auto Learn Routine and Camera Calibration
2015+ Park Assist Module―Parking Aid Control Module Reset and Reset Configuration State
Land Rover®Vehicle Control History Functionality Updates for Read and Clear Data
- Blind Spot Monitor
- Airbag
- Electronic Parking Brake
- Brake Booster
- Laser Cruise Control
- Tire Pressure Monitoring
- Circumference Monitoring Camera Control Module
- Clearance Sonar
Guided Component Tests for IS500® 5.0L, RX350h® 2.5L, RX500h® 2.4L, ES300h® 2.5L and RX350® 2.4L, RX350h® Hybrid 2.5L
New Location Images for GX40® Engine
Lexus®Guided Component Tests New Location Images for Engine
Lincoln® Aviator® 20222016+ CX-9® Airbag Basic Setting Seat Occupied Recognition Functional Test
Mazda®2017+ Armada® Air Suspension Clear Height Values Compressor Special Function
2004 – 2017 Armada® Suspension Control Module System
2018 + LEAF® Charger / PD Module System
2020+ Rogue® Sport Engine Functional Tests
2022+ Altima® Electric eVTC System
2022+ Ariya® Brake (EACT) System
2021+ ICC-ADAS and Shifter Systems as applicable
Guided Component Tests for Rogue® and Qashqai®
Nissan®Guided Component Tests New Location Images for Promaster® 3.6L Engine System and 6.7L Cummins® ABS, Body Electrical, Charging, Engine and Starting Systems
RAM®2009 – 2014 Outback® CAN Bus, Transmission Valve Body Relearn
Subaru®Vehicle Control History Functionality update to Read and Clear Data
Toyota®2023+ Atlas® new Engine variant
2013 – 2017 Golf® and 2018+ Arteon® new Transmission variant
2010 – 2017 Touareg® new Electronic Level Control variant
New Drive Motor Control Module variant for applicable vehicles
Guided Component Tests
2020-2023 Tiguan® Body Electrical System
2022-2023 Tiguan® ABS, Charging, Starting and Transmission Systems
2023 Tiguan® Engine System
Volkswagen® Atlas®, Golf®, Touareq® and Tiguan®Engine Special Functions
New Systems, Codes, Data and Functional Tests
- Air Suspension Control Module
- Power Steering Control (PSC)
- Power Steering Control Backup (PSCB)
- Redundant Battery Monitoring Sensor (RBMS)
Volvo® XC90® 2016+Fast-Track Intelligent Diagnostics¹,²For more information, see Features.New Features and EnhancementsVisit snapon.com/securitylink for details
Mercedes-Benz® secure gateway access (US Only)Product training available in English and French
Multilingual Product Training SupportToggle between English and 7 different languages, including French and Spanish
New Snap-on® Cloud multilingual supportSimultaneously select multiple files to download or delete.
Easier and faster file use within Snap-on CloudSoftware OptionsOffers 6 months of current domestic, Asian and European coverage
Basic UpgradePrePaid Plan - 1 or 3 yearContinuous software upgrades supply domestic, Asian and optional European coverage. Fast-Track® Intelligent Diagnostics-enabled products receive complete data services for one year

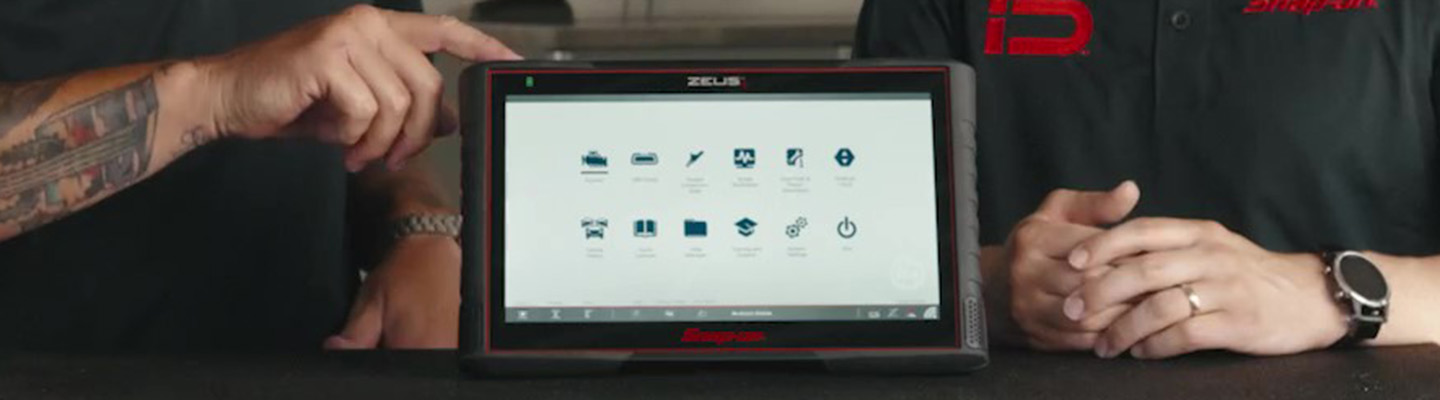

Subscription Key Features of the ZEUS+™
Fast-Track Intelligent Diagnostics guides users through every step needed to find the solution, while avoiding the steps they don’t. It includes continuous Smart Data updates with any Prepaid or Subscription plan. With Smart Data it automatically configures the display to show vehicle data parameters (PIDs) relevant to the fault code. Non-related parameters are filtered out to save you time. It highlights vehicle data that is out of expected range, includes SureTrack common replaced parts and real fixes for the specific DTC, and resets procedures to complete the repair after component replacement with only those that pertain to that fault code shown.
Fast-Track® Intelligent Diagnostics¹Adjustable Graph ScaleReads the VIN for you
Reads the VIN for youAutomotive Coverage from 1983 to presentBi-directional ControlsBoots up in <10 secondsCameraID BY Camera is for use with stubborn or older vehicles unable to take advantage of Instant ID. It offers automated VIN identification using the scan tool's onboard camera

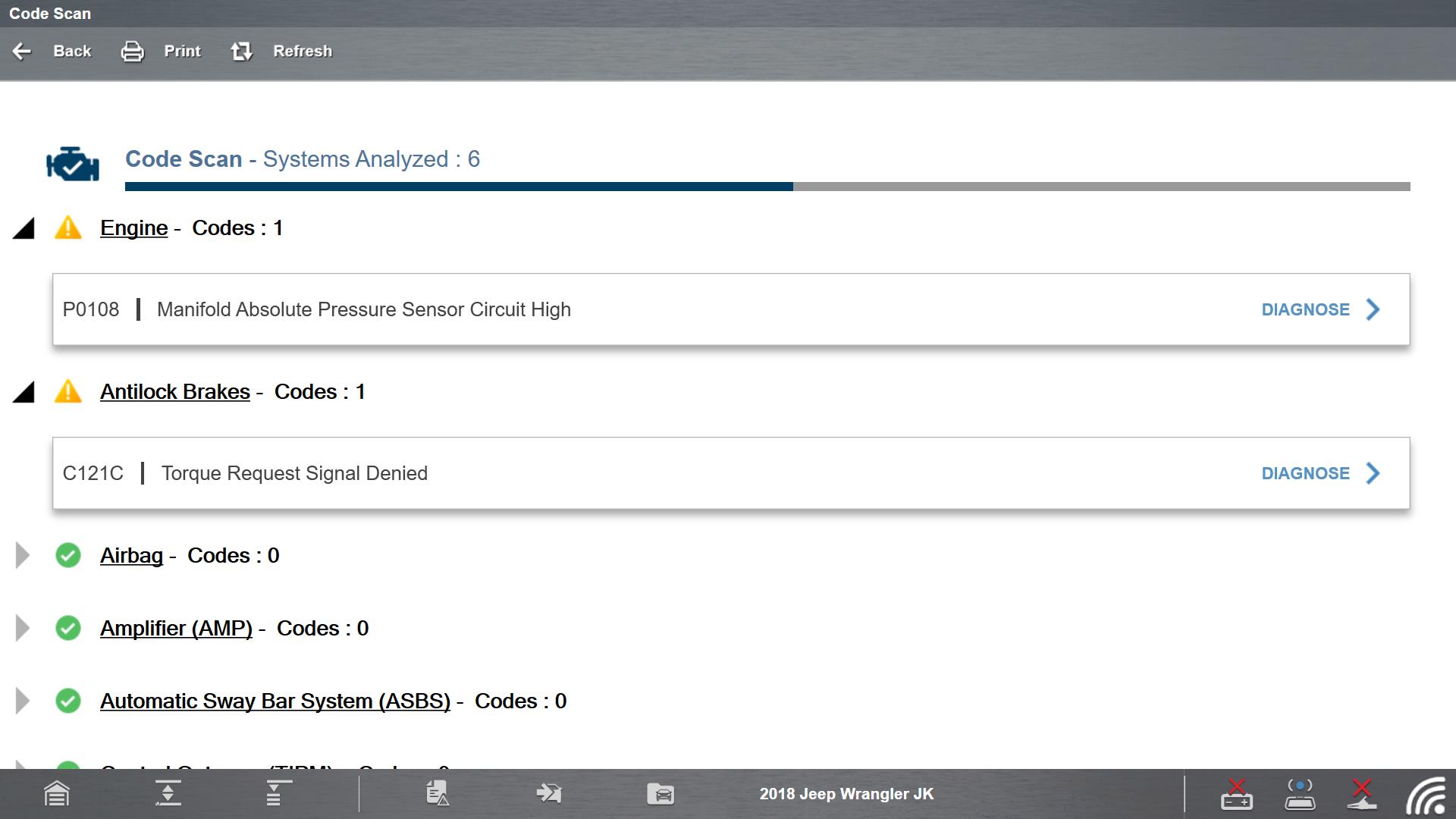

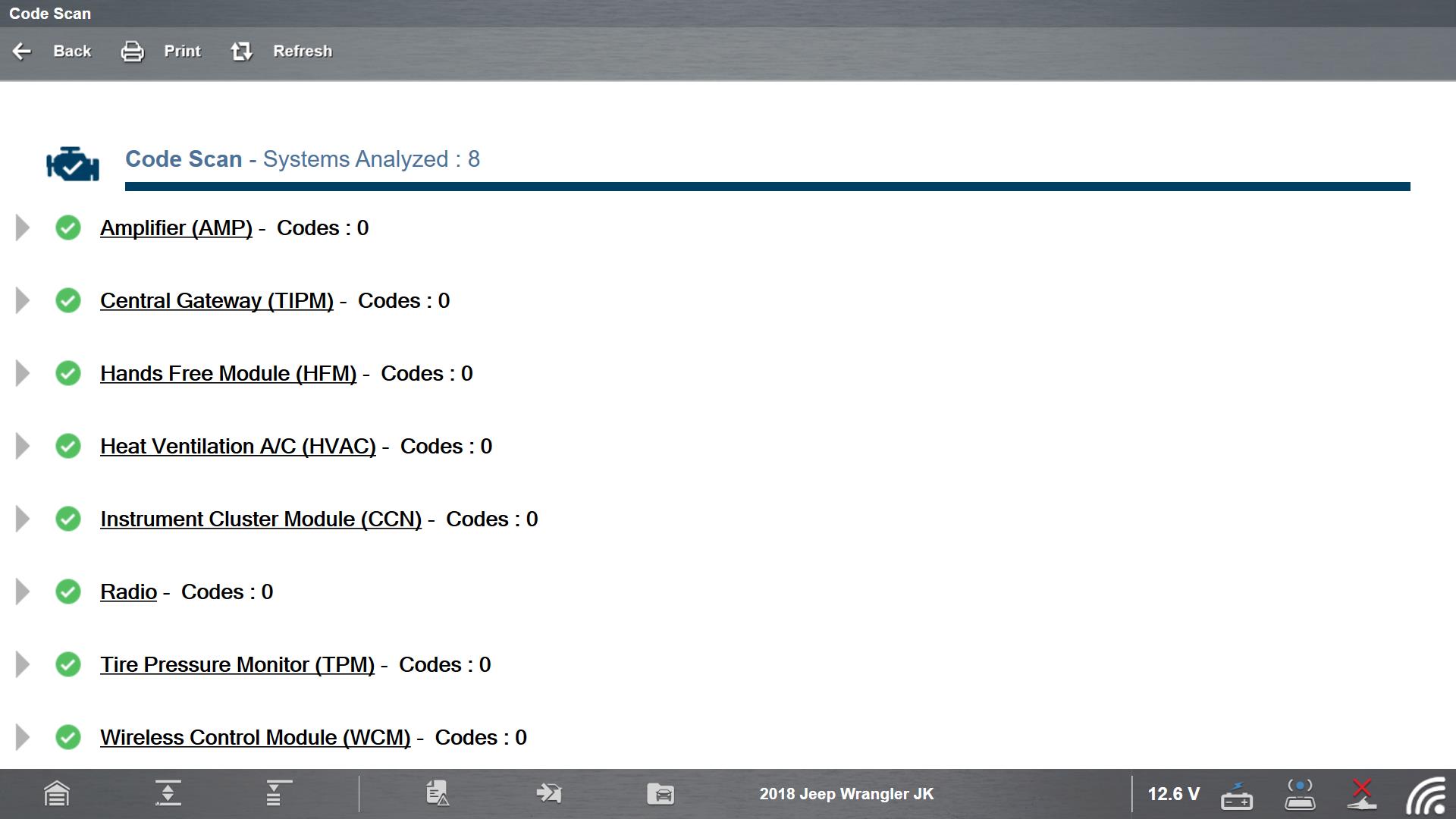

Camera IDCharging SystemCode Scan ReportCustom Data ListsData Manager Application for vehicle records
Data ManagerEthernet/DoIP Support is built in for Jaguar, Land Rover and Volvo models with Ethernet Adapter
Ethernet SupportShows you how to test, where to connect and what results to look for

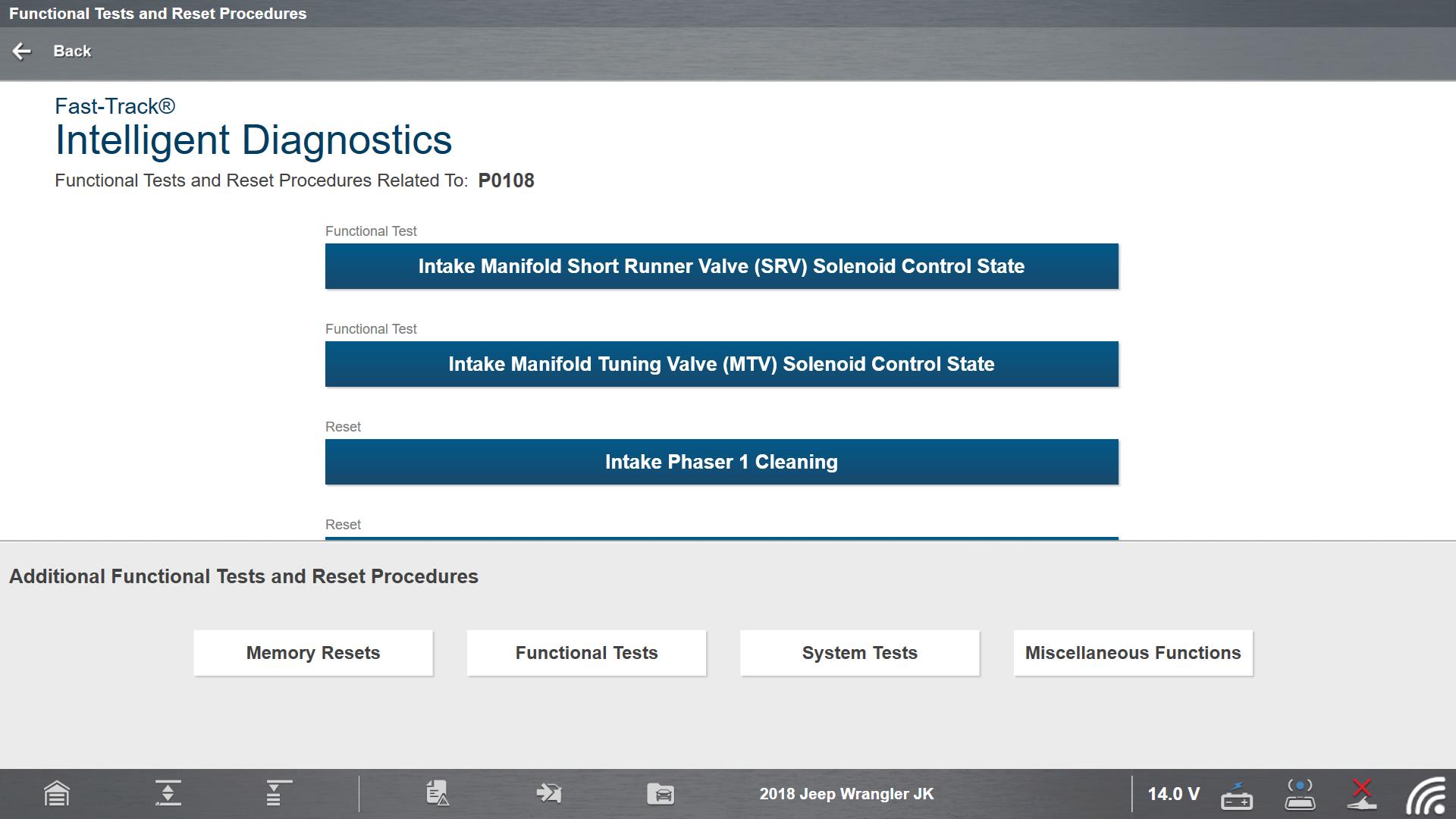

Fast Track® Guided Component TestsFunctional Tests to verify component operation
Full range of component test functionalityFunctional Tests to verify component operation
Functional TestsGradient Graphs make it easier to catch those intermittent glitches
Gradient GraphsFind over 70 topics and hundreds of on-tool Guided Component Test courses ranging from 5-30 minutes, including Power User Tests, How To’s and more
Guided Component Test TrainingHigh-Speed Lab ScopeIgnition Scope CapabilitiliesAuto ID using Mode 9 VIN
Instant IdInstant Screen Shots with Hotkey
Instant Screen ShotsAbility to record all available live data parameters and graph any four on screen at once. View up to eight data parameters in text mode; Display up to seven live data points in digital mode; Record all available data parameters in the background. Pause and Playback.
Live Data Graphing
One-Touch Code Scan and ClearOver-the-air download that occurs in the background. Software installation at your convenience.
Over-The-Air Automatic Software UpdateOnline Instructor-led Training
PID RecordingPID SortingPID Trigger (a Snap-on exclusive)Complete data services, domestic, Asian and European coverage plus SureTrack®, Smart Data and more. One and three year plans available.
Prepaid Software Plan, 1 and 3 yearRelearnsA companion to the Pre- and Post-scan Reports.
Now document recalibration completion for one or many systems.
Report: ADAS RecalibrationFriendly simplified language report for owners. Includes Pre-/Post-Scans for shop use.
Report: Diagnostic Health ScanReset Procedures to complete the repair after component replacement
Reset ProceduresApproved by OEMs to access direct from the scan tool to vehicle gateway modules. Visit www.snap-on.com/securitylink for more information.

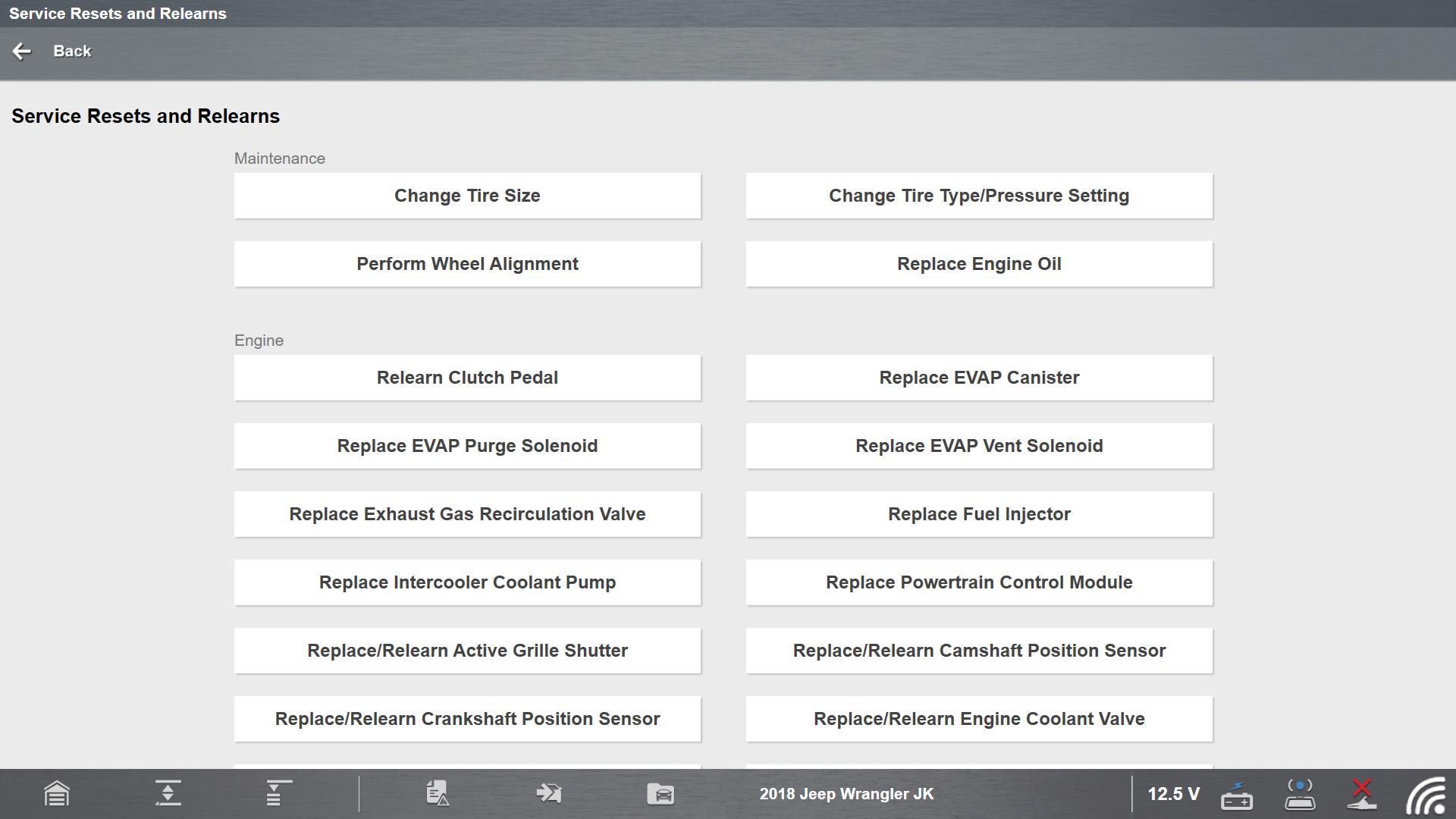

Security Link™³With Wi-Fi and current software get all the necessary information about related and required repair procedures that must be done to complete the job.
Service Resets and Relearns³ShopKey Solutions (optional)Upload images to print, store and share with others
The Snap-on® Cloud @AltusdriveSoftware Status Icon lets you know you are on the latest software
Software Status IconSubscription guarantees that you receive continuous coverage, access to secure gateways and SureTrack expert information, and for those devices that have it, Fast-Track® Intelligent Diagnostics is always enabled.
Software SubscriptionSureTrack Community on-tool web browser

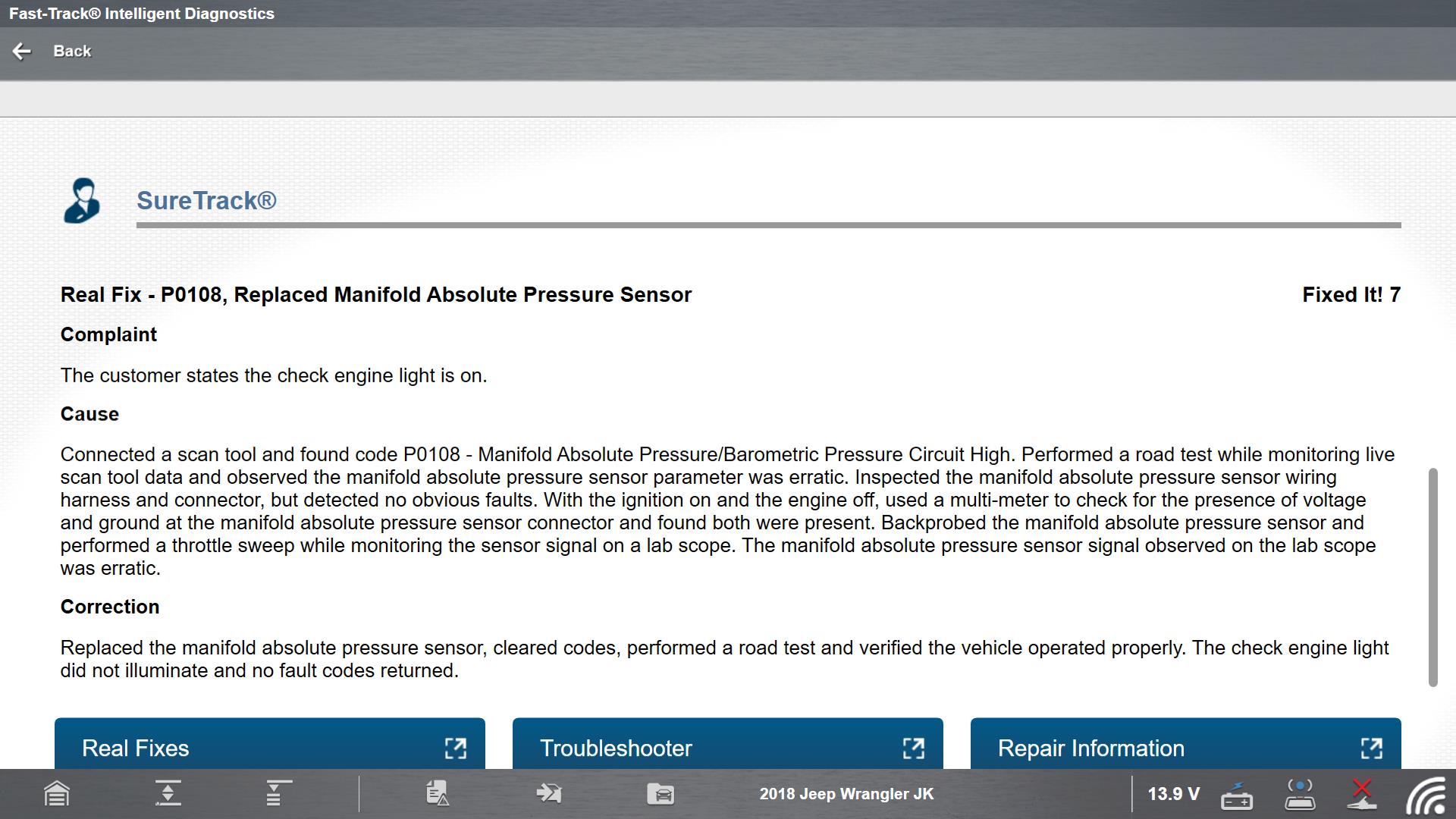

SureTrack Community²Integrated expert information on the tool with a current Snap-on software upgrade. Simply connect the diagnostic platform to Wi-Fi to get Real Fixes and verified parts replacement records harvested from millions of actual repair orders.
SureTrack® Expert Information²Touchscreen OperationTrouble Code DefinitionsTSBS, Campaigns & RecallsShortcut key for popular functions
User-programmable function keyWaveform Library and Known Good Test Values
Waveform LibraryWi-Fi enabledWi-Fi Status IconWireless Printing (via Snap-on Cloud)
Wireless PrintingWireless ScannerScalable X-axis for live data graph
ZoomLook here for the ZEUS+ User Manual, other helpful documents and Training
