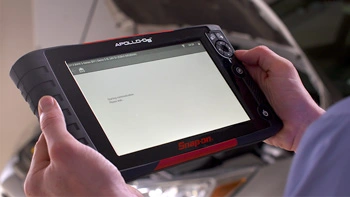

APOLLO-D9™ Scan Tool

Fast-Track® Intelligent Diagnostics Available*

Model: EESC335MSRP: $5,280.00

Your job calls for having all the right answers every time you make a repair. But for that, you need the right diagnostic tool — from a company you can trust.

The APOLLO-D₉ provides the information and resources you need to get the job done. It even gives you access to Fast-Track Intelligent Diagnostics from Snap-on — for filtered codes and vehicle-specific data to help you find the right fix, fast. No more hunting through forums or endlessly searching to find the right answers. No more wondering which fix is the right one for the job at hand.

Everything you need, and nothing you don’t. For that specific issue on that specific vehicle. All right there, when and where you need it.

* Access to Fast-Track Intelligent Diagnostics software requires an applicable software agreement.

Open AllClose All

Specifications

Here are the numbers

Warranty1 yearDepth1.6 inches (40.3 mm)Vehicle Systems100+ OEM-specific vehicle systemsDisplay resolution1024x600 pixelWidth11.8 inches (299 mm)Vehicle Coverage12 European automotive makes16 Asian automotive makes21 domestic automotive makes9 motorcycle makes (with optional adapters)Extended Warranty Option1-3 yearsWeight (incl. battery)2.6 pounds (1.18 kg)Navigation4-way keypadTouchscreenHeight6.4 inches (162 mm)Battery Voltage7.4 voltsDisplay size9 inchOBD-IIAll 10 modes of Global OBD-IIAccess to Fast-Track Intelligent DiagnosticsAvailable on APOLLO-D9Operating SystemEmbedded SMX®Scan ModuleIntegratedBoot up SpeedLess than 10 second boot upUSB PortPC connectivityBatteryRemovable, Rechargeable, Lithium-ion batteryDisplay typeResistive, daylight-readable LCD touchscreen, colorLive Data GraphingSelective display of 1, 2 or 4 graphsWi-FiWi-Fi Capable

What Is It used For

How can APOLLO-D9 help you?

Driveability Issues

Measures fluid capacities

Fluid Capacities

Resets vehicle maintenance indicator

Maintenance ResetsMulti-Code ProblemsPulling Simple CodesRelearnsRemove & Replace Components

Reads tire pressure monitoring system

TPMS

Software

DIAGNOSTIC SOFTWARE THAT CONQUERS EVERY QUESTION

Snap-on is in touch with your needs. We develop revolutionary car diagnostics products and repair information solutions to repeatedly redefine car diagnostics. A Snap-on diagnostic tool is always ready to serve with unparalleled general and collision repair coverage. Vehicle coverage, plus the features that super charge it, are key to keeping tools as good as the day you bought it to make sure you can see anything that pulls into your bay.

Fast-Track Intelligent Diagnostics¹Fast-Track Intelligent Diagnostics guides users through every step needed to find the solution, while avoiding the steps they don’t. It includes continuous Smart Data updates with any Prepaid or Subscription plan.Highlights vehicle data that is out of expected rangeLive Vehicle Battery Voltage reading on Fast-Track Intelligent Diagnostics platforms makes it easy to know when it is ready to perform testsReset procedures to complete the repair after component replacement. Only those that pertain to that fault code are shownSmart Data automatically configures the display to show vehicle data parameters (PIDs) relevant to the fault code. Non-related parameters are filtered out to save you timeSureTrack common replaced parts and real fixes for the specific vehicle and DTC²New Coverage Highlights

2002 – 2009 Mercedes-Benz® CLK® Electronic Ignition Switch (EIS) Special Functions

Power Management – Evaluate Battery Charge State and Closed Circuit Current Monitoring, plus Run in protection for A/C Compressor for Air Conditioning

2007 – 2013 BMW® X5®

Special Functions

2008 and newer BMW® 7 Series® Central Gateway FlexRay® Initializations and Head-up Display (HUD) settings, plus LED Headlights

Engine Relearn Engine Data, Misfire Testing and Programmable Module Installation; Anti-lock Brakes Interactive Vehicle Dynamics Initialization Sequence

2009 – 2014 Ford® F150® XL (5.0L)

Relative Compression Test and Programmable Module Installation (PMI)

2009 – 2014 Ford® F350® Engine (6.7L Diesel)

Actuator Tests

2009 – 2016 FIAT® 500L Brake Control Hydraulic Modulator Inlet and Outlet Valves2009 and newer RAM® 1500 Engine New ECU Variants

Two NewTransmission Variants

2009 Audi® A4®

Engine Special Functions and Programmable Module Installation (2.0L/23kWh)

2010 – 2018 Ford® Focus®

2013 – 2020 Mercedes-Benz® S Class® Front Signal Acquisition Module (SAM) Battery Registering Procedure2013 – 2021 Volkswagen® Golf® New Battery Energy Control Module and Drive Motor Control Module Systems

Special Functions

2014 and newer BMW® 2 Series® Vertical Dynamics Module

Engine Static DPF Regeneration

2015 – 2019 Ford® F250®

Cruise Control Module Radar Dynamic Calibration

2015 – 2020 Ford® F350®

NewTransmission Variant

2016 and newer Audi® Q7® 2017 and newer Alfa Romeo® Giulia® Transmission Adaptations

Special Functions

2018 and newer Alfa Romeo® Stelvio® Adaptive Cruise Control Front Radar Calibration, Transmission Adaptations, Body Control Module

New Variants for Brake Control Module, Electronic Parking Brake and Back-up Camera

2018 and newer Audi® A6®

Codes, Data and Maintenance Mode

2018 and newer Subaru® Forrester® Electronic Parking Brake

Engine Static DPF Regeneration and Dynamic DPF Regeneration

2020 – 2022 Ford® F250®

Two NewTransmission Variants

2020 and newer Audi® A3® 2020 and newer Audi® e-Tron Quattro® New Powertrain

New Engine Control Module Variants

2021 Lincoln® Navigator® and Nautilus®

Codes, Data and Functional Tests

2021 RAM® ProMaster® Driver Assist System Module and Forward Facing Camera Module

Codes, Data, Functional Tests and Special Functions

2022 and newer Acura® MDX® 3.0L AWD Engine System

Engine System Codes, Data, Functional Tests and Special Functions

2022 and newer Civic® 2.0L Turbo and Civic® Si 1.5L Turbo

New Engine Control Module Variants

2022 Ford® F150® Lightning and Transit Electric, 2021 Ranger® and Transit®

Hybrid – DPAA 2.0L TFSI, DMSA 2.0L TFSI, DLGA 2.0L TFSI and DJPB 4.0L Petrol; Diesel – DFSA 2.0L

Audi® New Engine Variants

DPAA 2.0L TFSI, DMSA 2.0L TFSI, DLGA 2.0L TFSI and DJPB 4.0L Petrol; Diesel – DFSA 2.0L

Volkswagen® New Engine VariantsNew Features and Enhancements

Simplifies technician profile management including manufacturer set up and automatic credential validation

Security Link WizardStandard Features

With Wi-Fi and current software, for up-to-the-second online storage. Archive, reference, retrieve and communicate Vehicle System Reports, thermal images and more to customers, colleagues, insurance companies

Access to Snap-on® CloudADAS Recalibration Reports provide a useful summary for your customers of the diagnostic work carried out

Friendly simplified language report for owners. Includes Pre-/Post-Scans for shop

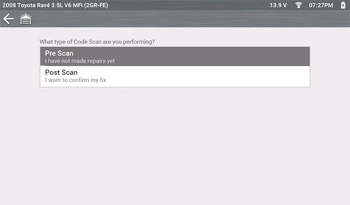

Diagnostic Health Scan with Pre- and Post-scanEthernet communications support with applicable adapter for relevant Jaguar, Land Rover® and Volvo® vehiclesExclusive access to SureTrack®, providing Real Fixes and verified parts replacement records from millions of successful repair orders²John Bean��and Hofmann��TRU-POINT� | EZ ADAS� Recalibration System compatible

Including an enhanced user profile wizard

Security Link� - direct access for OEM-secured vehiclesService Resets & RelearnsStore up to 100 different PID listsWide-ranging support programs, including a Customer Care hotline, extended warranty and free comprehensive online Training and SupportSoftware Options

Offers 6 months of current domestic, Asian and European coverage

Basic UpgradePrePaid Plan - 1 year

Continuous software upgrades supply domestic, Asian and optional European coverage. Fast-Track^® Intelligent Diagnostics-enabled products receive complete data services for one year

Subscription

Features

Here is the good news

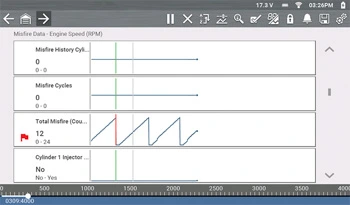

Fast-Track Intelligent Diagnostics: Smart Data automatically configures the display to show vehicle data parameters (PIDs) relevant to the fault code. Non-related parameters are filtered out to save you time¹Fast-Track Intelligent Diagnostics: Highlights vehicle data that is out of expected range¹Fast-Track Intelligent Diagnostics: SureTrack common replaced parts and real fixes for the specific vehicle and DTC¹Fast-Track Intelligent Diagnostics: Reset procedures to complete the repair after component replacement. Only those that pertain to that fault code are shown¹AdaptationsAdjustable Graph ScaleAutomotive Coverage as far back as 1983 model yearAutomotive Coverage for 48 domestic, Asian and European makesBasic Software Upgrade: 6 months of current domestic, Asian and European coverage, plus built-in SureTrack®Bi-directional Controls

Plug and play feature automatically powers up when connected to vehicle

Boot up - automatically powers up when connected to vehicleBoots up in just 5 seconds

Unique, steady-charge lithium-ion battery technology charges automatically from the vehicle

Charging SystemCursor FunctionsCustom Data Lists

High-capacity microSD™ card contains the diagnostic software and stores your data files

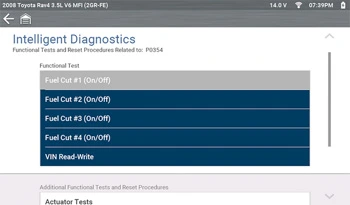

Data StorageDisplay - large, for better readability and greater ease of useEthernet Support is available for applicable Jaguar, Land Rover and Volvo models with Ethernet AdapterFreeze FrameFunctional Tests to verify component operation

Auto ID using Mode 9 VIN

Instant IdInstant Screen Shots with Hotkey

Ability to record all available live data parameters and graph any four on screen at once. View up to eight data parameters in text mode; Display up to seven live data points in digital mode; Record all available data parameters in the background. Pause and Playback.

Live Data Graphing (Scanner and/or Scope)

High-capacity microSD™ card contains the diagnostic software and stores your data files

MicroSD™ CardNavigate with touchscreen or 4-way keypad

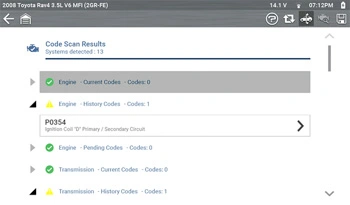

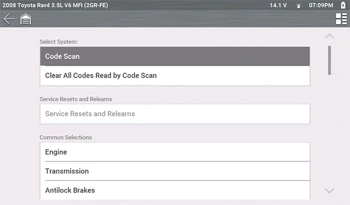

One-Touch Full Vehicle Code Scan & Clear quickly checks and clears codes for all available modules on the vehicle.

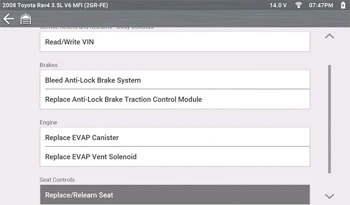

One-Touch Code Scan and ClearOnline Software Update via ShopStream ConnectOver-Air Automatic Software UpdatePerforms Relearns & Initializations

Records All PIDS While On or Off Screen

PID RecordingPID SortingPID Trigger (a Snap-on exclusive)

Complete data services, domestic, Asian and European coverage plus SureTrack®, Smart Data and more. One year plan available.

Prepaid Software Plan, 1 year plan available

Quick Lookups from home screen for tire and wheel service plus oil specifications and service interval resets

Quick Lookups with Wi-Fi and current software³RelearnsReset Procedures to complete the repair after component replacement

Access direct from the scan tool to the FCA vehicle gateway module for 2018 and newer models

Easy set-up process by any device with Wi-Fi and browser

Turnkey access to vehicles directly from the scan tool

Security Link™ (formerly known as Secure Vehicle Gateway™)³

With current software use the Snap-on® Cloud for up-to-the-second online storage.

Snap-on® Cloud³Software Status Icon lets you know you are on the latest software

Continuous software upgrades supply domestic, Asian and optional European coverage. Fast-Track Intelligent Diagnostics-enabled products receive complete data services for the term of the subscription.

Make sure your tool has all the latest information

Software SubscriptionSureTrack Community on PC web browser

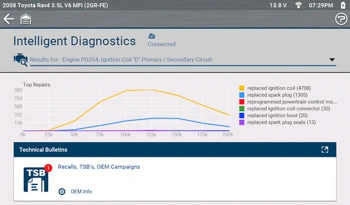

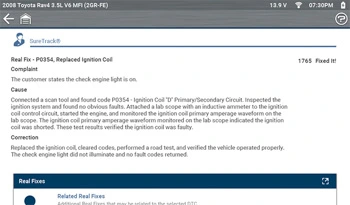

Integrated expert information on the tool with a current Snap-on software upgrade. Simply connect the diagnostic platform to Wi-Fi to get Real Fixes and verified parts replacement records harvested from millions of actual repair orders.

SureTrack® Expert Information²Thin and light designTrouble Code Definitions

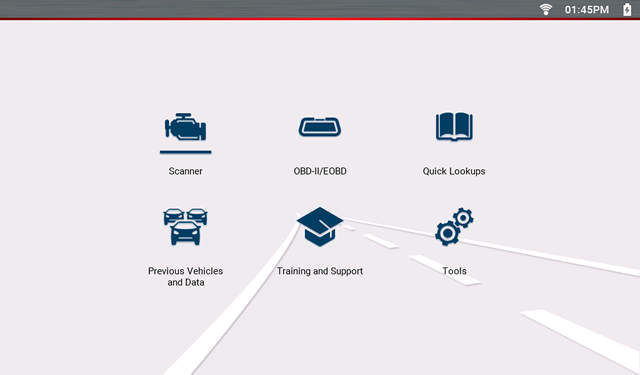

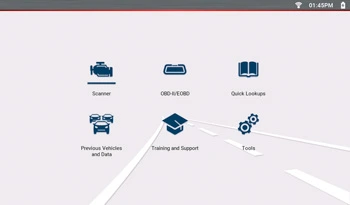

Icon-based navigation for fast operation

User Interface

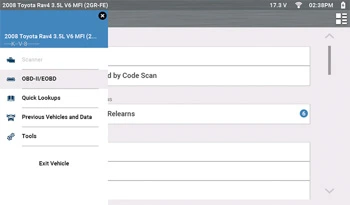

Shortcut key for popular functions

User-programmable function keyVehicle System ReportsWi-Fi enabledWi-Fi status icon confirms you're connectedWireless Printing (via Snap-on Cloud)

Scalable X-axis for live data graph

Zoom
