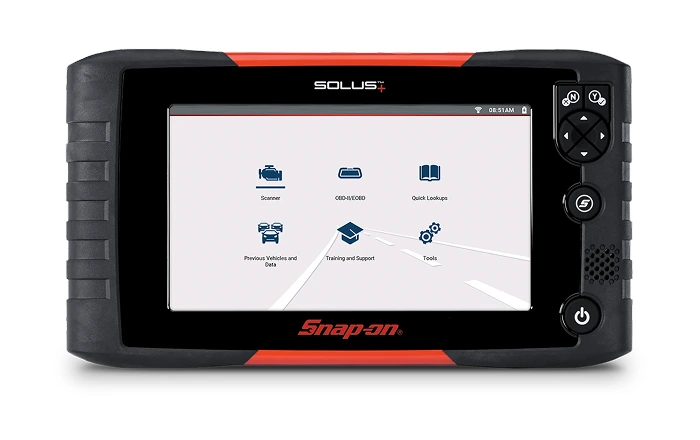

BatteryRemovableBattery Voltage7.2 VDC 2200 mAh (16 Wh)Boot up SpeedReady to use in just 2 secondsDepth1.58 in. (40.1mm)Display: Resolution1024x600 pixelDisplay: Size8 inchDisplay: TypeColor capacitive touchscreen displayExtended Warranty Option1-3 yearsDimension: Height6.22 in. (158mm)Live Data GraphingSelective display of 1Navigation4-way keypadTouchscreenOBD-IIAll 10 modes of Global OBD-IIOperating SystemEmbedded SMX®Scan ModuleIntegratedUSB PortPC connectivityVehicle Coverage16 Asian automotive makes20 Domestic automotive makesCoverage for 12 European MakesVehicle Systems100+ OEM-specific vehicle systemsWarranty1 yearWeight (incl. battery)2.37 lb (1.07 kg)Dimension: Width11.06 in. (281mm)Wi-FiWi-Fi Capable
How can SOLUS+™ help you?
Measures fluid capacities
Fluid CapacitiesResets vehicle maintenance indicator
Maintenance ResetsPulling Simple CodesRelearnsRemove & Replace ComponentsReads tire pressure monitoring system
TPMSDIAGNOSTIC SOFTWARE IS THE POWER INSIDE YOUR SCAN TOOL
From electric cars to autonomous vehicles to new vehicle security requirements, automotive technology changes just about every day. The only way to stay on top of it all is with uninterrupted access to an array of tips and techniques, tests, guided resources, and graphing capabilities from a constantly updated universe of vehicle data resources — exactly what Snap-on® diagnostic software delivers.
No matter which Snap-on diagnostic platform you choose, keeping its software up to date is the only way to make sure you can always get the most out of it and handle the problems that come your way.
New Coverage Highlights2024 Code Scan & Clear - All MakesChevrolet®, Genesis®, GMC®, Hyundai®, Infiniti®, Kia®, Land Rover®, Lexus®, Mazda®, Mitsubishi®, Nissan®, Subaru®, Tesla®, Toyota® and Volvo®
2024 Model Year Update- 2007-2014 A3 Transmission and Airbag
- 2014-2020 A3 Airbag, Battery Energy Control Module and Drive
- 2009-2017 A4 Drive Motor Control
- 2011-2019 A6 Park Assist and Drive Motor Control
- 2019+ A6 Brake Booster Module, DC/DC Converter and Drive Motor Control Module
Audi® A3, A4 and A62008-2014 X6 New Systems
- Servotronic
- Valvetronic 1
- Valvetronic 2
2009-2010 X6 Hybrid New Systems
- Integrated Chassis Management
- Vertical Dynamics Module
- Damper Satellite Modules x 4
Guided Component Tests
2021-2023 330e and 330 xDrive 2.0L Hybrid Engine
2020-2021 X3 M40i, 3.0L Engine
2022-2023 X3 M40i, 3.0L Hybrid, Engine
2020-2021 X3 M, 3.0L Engine
2020 X5 sDrive 40i and X5 xDrive 40i, 3.0L Engine
2020-2023 X5 M50i 4.4L Engine.
2021-2023 X5 xDrive 45e 3.0L Hybrid EngineBMW® X6 and X6 Hybrid2023+ Hornet Special Functions:
- Anti-lock Brake Control Module
- Assembly Check
- Brake Discs Substitution
- Brake Pads Substitution
- Caliper Substitution
- Check Air Presence in ABS Unit
- Maintenance Mode Electric Park Brake ENTER (Set to Active)
- Maintenance Mode Electric Park Brake EXIT (Set to Not Active)
- Occupant Classification System
- Clear Historical Data Record
- Re-zero Occupant Classification System
- Instrument Cluster Module
- Last Service Date
- Reset Service Information
Dodge® Hornet Special Functions2023+ F-Series Super Duty
- New Engines – 5.2L Raptor, 6.8L, 7.3L and 6.7L
- Body Control Module – 39 New Variants!
2020+ F-150 Special Functions
- Anti-lock Brake System
- Engine
- Low Pressure Fuel System Test
- Occupant Classification Module
- Passenger System Reset
- Automatic Headlamp Levelling System
- Calibration
More Programmable Module Installation (PMI)
- 2011-2017 Mustang Power Steering Control Module
- 2010-2018 Focus Restraint Control Module
2021+ Bronco Special Functions
- Power Steering Control Module Resets
- Electronic Power Assist Steering Communication Error
- Electronic Power Assist Steering Internal Failure
- Electronic Power Assist Steering Invalid or Missing
- Electronic Power Assist Steering Signal Error
- Electronic Power Assist Steering Voltage Error
- Engine
- Low Pressure Fuel System Test
- Occupant Classification Module
- Passenger System Reset
Ford® PMI, Tests, Special Functions2021+ Pan America
2022+ Sportster S
2022+ Nightster
2023+ CVO
Harley-Davidson® Added Models2016-2022 CR-V Engine, Power Steering Control Module, Intelligent Cruise Control Module Actuator Tests and Special Functions
2016-2021 Clarity Intelligent Cruise Control Module Actuator Tests and Special Functions
2015-2020 Civic Intelligent Cruise Control Module Actuator Tests and Special Functions
2019+ Passport Engine Actuator Tests and Special Functions
Honda® Actuator Tests & Special Functions2010 - 2015 XF Active Damping Control Module codes and data, actuator tests and special functions
2013 - 2015 XF Chassis Control Module codes and data, actuator tests and special functions
Jaguar® XF Coverage UpdatesTowbar codes, data, functional tests and special functions
Land Rover 2015+ Discovery SportChassis Control Module Special functions
2013-2016 Range Rover
2014-2016 Range Rover Sport
Speed Control Module
2014+ Discovery Sport
2015+ Range Rover Evoque
2015+ Discovery Sport Towbar: Codes, data, functional tests and special functions
Land Rover® Coverage UpdatesNew Model! 2024 Alfa Romeo® TonaleModels S, X, Y and 3
2012-2020 Model S
2016-2020 Model X
2023 and earlier Models S, X, 3 and Y
Onboard function instructions to find Alert Codes, and how to unlock Gateway and enable/disable Service Mode
Tesla® - New Make! Occupant Classification System calibration
Toyota 2017+ Camry2018+ Crafter Transmission
2010-2014 Touareg Anti-lock Brake Control Module
Volkswagen® System Coverage UpdatesCodes, data, actuator tests and resets
Ford 2014 - 2020 Transit Dosage ModuleSpecial functions
Ford 2021+ E-Series TransmissionCruise Control Module Radar Dynamic Calibration
Ford® 2015 – 2020 F350®New Features and EnhancementsVisit snapon.com/securitylink for details
More makes for more access via Security Link™Product training available in English and French
Multilingual Product Training SupportToggle between English and 7 different languages, including French and Spanish
New Snap-on® Cloud multilingual supportSimultaneously select multiple files to download or delete.
Easier and faster file use within Snap-on CloudSoftware OptionsOffers 6 months of current domestic, Asian and European coverage
Basic UpgradeContinuous software upgrades supply domestic, Asian and optional European coverage. Fast-Track® Intelligent Diagnostics-enabled products receive complete data services for one year
Subscription Look here for the SOLUS+™ User Manual and other helpful documents and training.
