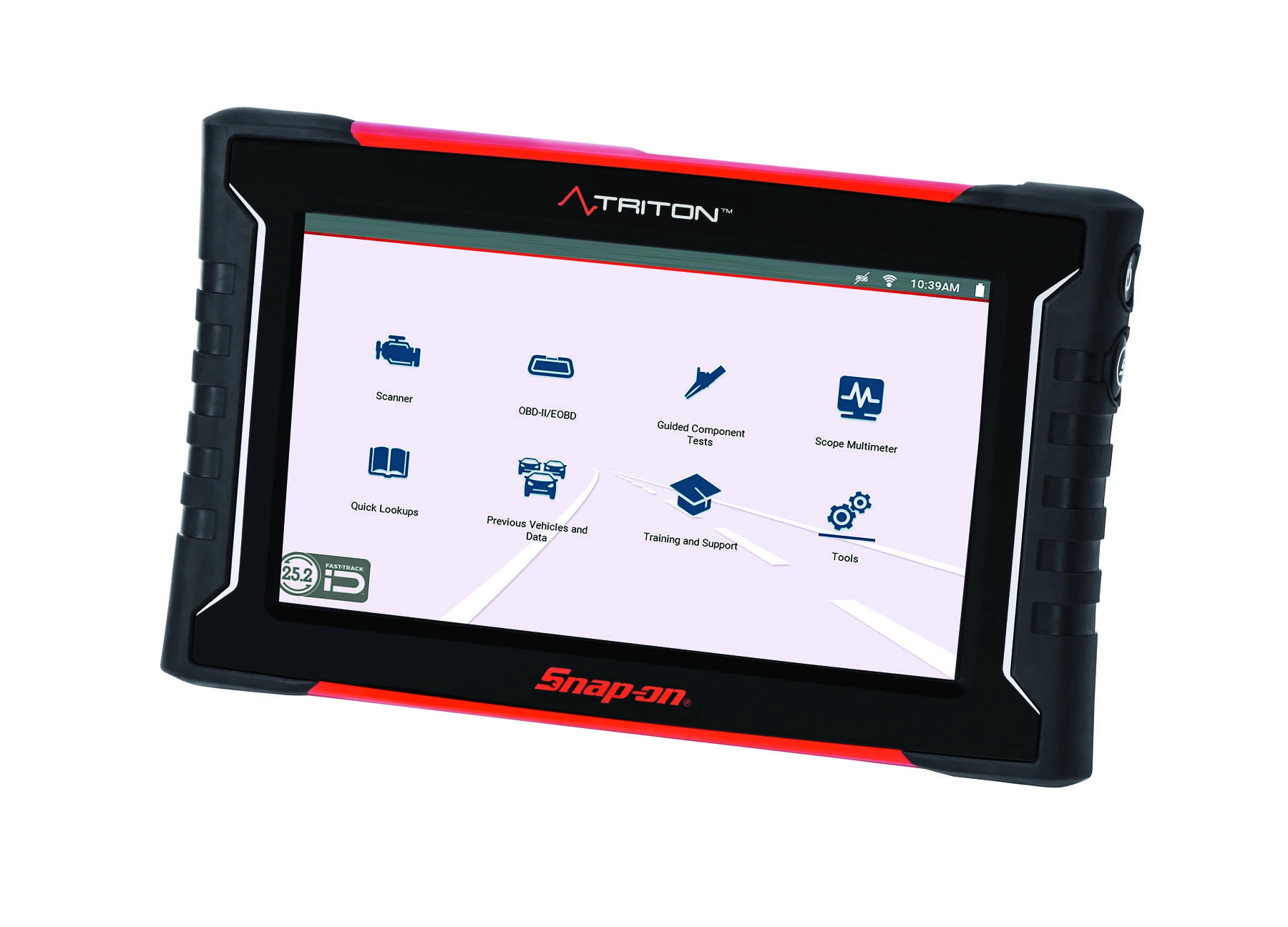

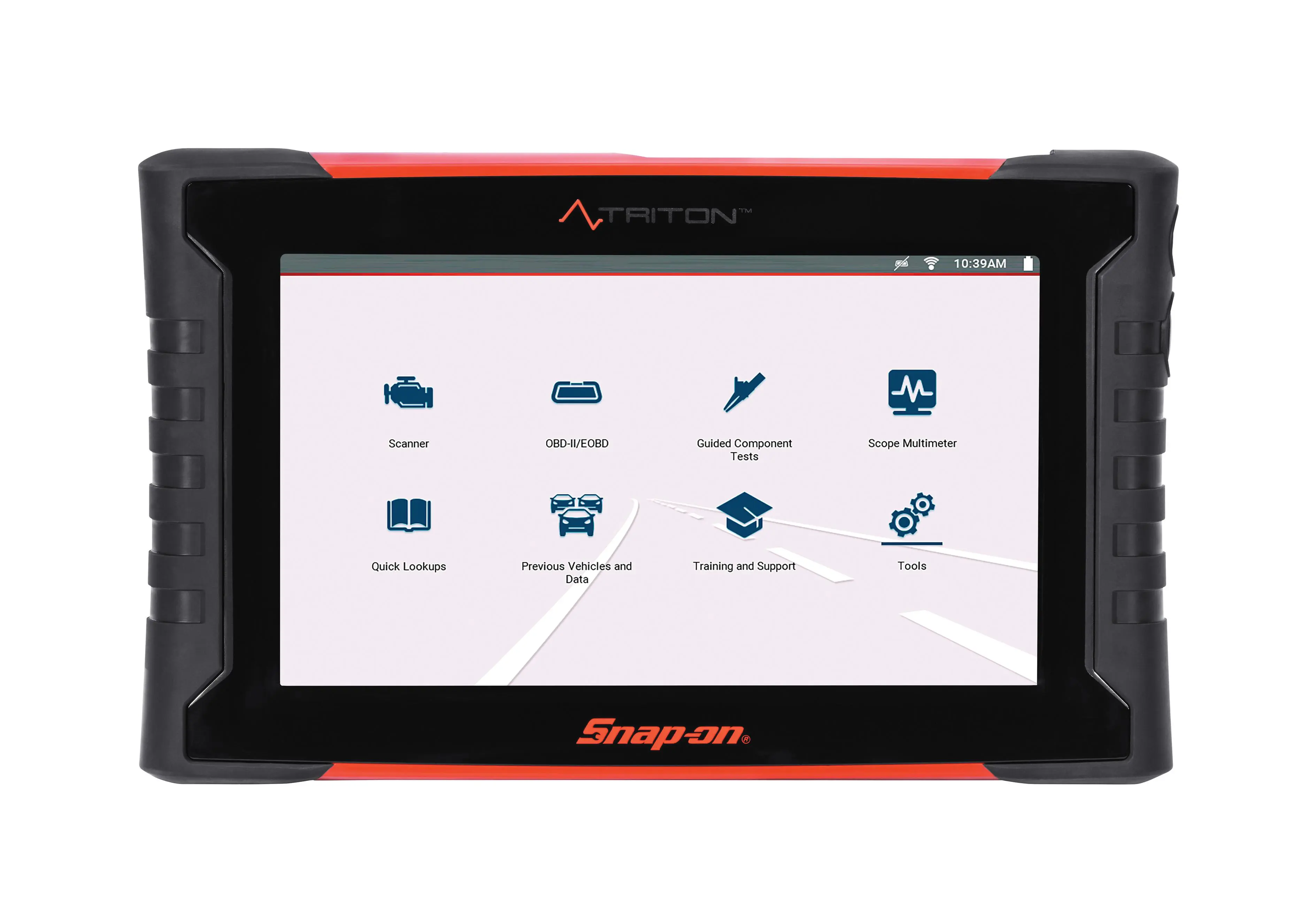

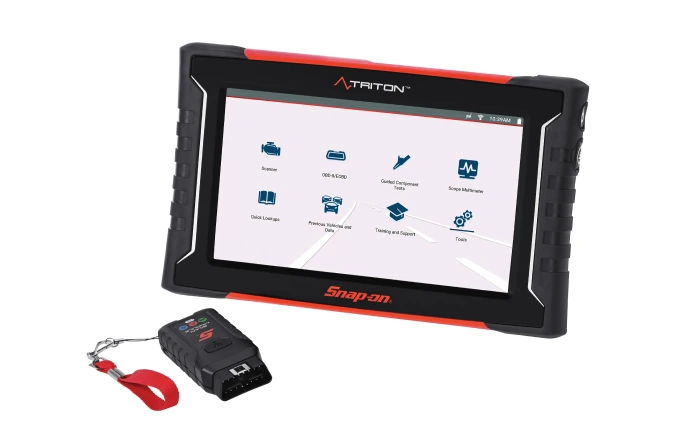

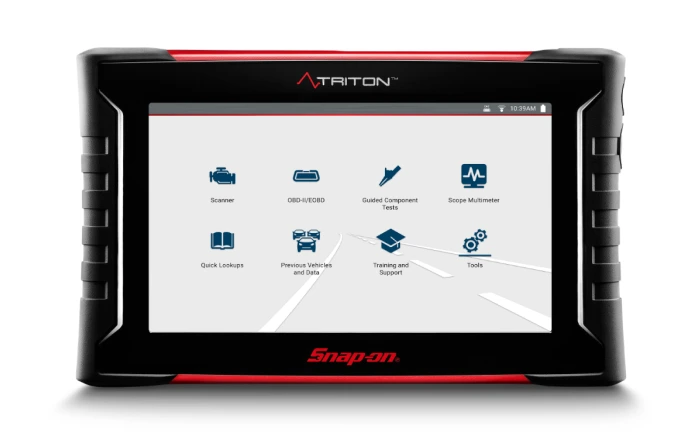

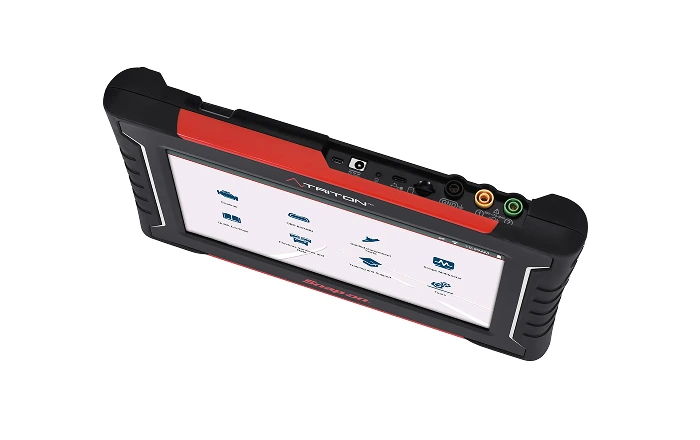

TRITON™ Scan Tool & Scope

Fast-Track® Intelligent Diagnostics Available*

Model: EEMS349MSRP: $5,995.00

The third-generation TRITON^™ streamlines your workflow, enhancing your efficiency and increasing your productivity on every repair.

TRITON sets you free, featuring wireless technology you can count on for a fast, reliable connection — along with Fast-Track Guided Component Tests and code-based troubleshooting, a patented Snap-on^® exclusive that filters out complexity and presents one focused workflow. Based on an ever-expanding and validated repository of billions of repair records and hundreds of billions of diagnostic sessions, our solutions are trusted and always growing, keeping you on the path to the right repair.

Open AllClose All

Specifications

Here are the numbers

Access to Fast-Track Intelligent DiagnosticsAvailable on TRITONBatteryRemovable, Rechargeable, Lithium-ion batteryBattery Voltage7.2 voltsBoot up SpeedLess than 2 second boot upDimension: Height7.48 inches (190 mm)Dimension: Depth1.6 inches (40.3 mm)Display: Resolution1024x600 pixelDisplay: Size10 inchDimension: Width12.1 Inches (308mm)Display: TypeCapacitive, daylight-readable LCD touchscreen, colorExtended Warranty Option3 yearsLab Scope / Meter2-channelBandwidth 3MHzSample Rate: Up to 6 million samples/secScale range 0-100mV to 0-400VSweep rate 50 microseconds to 20 seconds (5 min in GMM mode)Live Data GraphingSelective display of 1, 2 or 4 graphsNavigationTouchscreenOBD-IIAll 10 modes of Global OBD-IIOperating SystemEmbedded SMX®Scan ModuleWirelessUSB PortPC connectivityVehicle Coverage12 European automotive makes16 Asian automotive makes22 domestic automotive makesVehicle Systems100+ OEM-specific vehicle systemsWarranty2 yearWeight (incl. battery)3.1 pounds (1.4 kg)Wi-FiWi-Fi Capable

What Is It used For

How can TRITON™ help you?

ComebacksDriveability Issues

Measures fluid capacities

Fluid CapacitiesIntermittent Complaints

Resets vehicle maintenance indicator

Maintenance ResetsMulti-Code ProblemsMulti-System IssuesPulling Simple CodesRelearnsRemove & Replace ComponentsScoping Sensors

Reads tire pressure monitoring system

TPMS

Software

DIAGNOSTIC SOFTWARE IS THE POWER INSIDE YOUR SCAN TOOL

The Fall Software release extends your Snap-on diagnostic tool capabilities with 2025 model year updates for 14 models as well as new expert-based information that gives you the ability to do more with the same Snap-on tool you invested in. In every software upgrade we add coverage for late and older models and this release is no different with 70,000 new systems added and 600 more functional tests, plus 2025 code scan and clear for all makes.

Exclusive guided component tests and location images to locate components faster help speed-up and simplify your diagnosis and repair process. This data is continually enhanced and updated with information based on real experience, straight from technicians and validated by our engineers. This means thousands more SureTrack® Real Fixes, PID Flags, images, tests and tips.

Check Out The Latest Coverage Details Here

Features

Here is the good news

Fast-Track Intelligent Diagnostics guides users through every step needed to find the solution, while avoiding the steps they don’t. It includes continuous Smart Data updates with any Prepaid or Subscription plan. With Smart Data it automatically configures the display to show vehicle data parameters (PIDs) relevant to the fault code. Non-related parameters are filtered out to save you time. It highlights vehicle data that is out of expected range, includes SureTrack common replaced parts and real fixes for the specific DTC, and resets procedures to complete the repair after component replacement with only those that pertain to that fault code shown.

Fast-Track® Intelligent Diagnostics¹AdaptationsAdjustable Graph Scale

Reads the VIN for you

Automatic VIN IDAutomotive Coverage from 1983 to presentBi-directional ControlsBoot-up 2-secondsCharging System

Domestic, Asian and European EV & hybrid makes

Coverage: EV & Hybrid AutomotiveCursor FunctionsCustom Data Lists

High-capacity microSD™ card contains the diagnostic software and stores your data files

Data File Storage

Operating System embeded, dedicated to diagnostic functions for fast, reliable operation

Embedded Operating System

Ethernet/DoIP Support is built in for Jaguar, Land Rover and Volvo models with Ethernet Adapter

Ethernet Support

Shows you how to test, where to connect and what results to look for

Fast Track® Guided Component TestsFreeze Frame

Functional Tests to verify component operation

Full range of component test functionality

Functional Tests to verify component operation

Functional Tests

Find over 70 topics and hundreds of on-tool Guided Component Test courses ranging from 5-30 minutes, including Power User Tests, How To’s and more

Guided Component Test TrainingHigh-Speed Lab Scope

Auto ID using Mode 9 VIN

Instant Id

Instant Screen Shots with Hotkey

Instant Screen Shots

Display - large, for better readability and greater ease of use

Large Display

Ability to record all available live data parameters and graph any four on screen at once. View up to eight data parameters in text mode; Display up to seven live data points in digital mode; Record all available data parameters in the background. Pause and Playback.

Live Data Graphing

One-Touch Code Scan and Clear

Over-the-air download that occurs in the background. Software installation at your convenience.

Over-The-Air Automatic Software UpdateOnline Instructor-led TrainingPerforms Relearns & Initializations

PID RecordingPID SortingPID Trigger (a Snap-on exclusive)

Complete data services, domestic, Asian and European coverage plus SureTrack®, Smart Data and more. One year plan available.

Prepaid Software Plan, 1 year

Quick Lookups from home screen for tire and wheel service plus oil specifications and service interval resets with Wi-Fi and current software.

Quick Lookups³Relearns

A companion to the Pre- and Post-scan Reports.

Now document recalibration completion for one or many systems.

Report: ADAS Recalibration

Friendly simplified language report for owners. Includes Pre-/Post-Scans for shop use.

Report: Diagnostic Health Scan

Reset Procedures to complete the repair after component replacement

Reset Procedures

Approved by OEMs to access direct from the scan tool to vehicle gateway modules. Visit www.snap-on.com/securitylink for more information.

Security Link™³

With Wi-Fi and current software get all the necessary information about related and required repair procedures that must be done to complete the job.

Service Resets and Relearns³

Upload images to print, store and share with others

The Snap-on® Cloud @Altusdrive

Software Status Icon lets you know you are on the latest software

Software Status Icon

Subscription guarantees that you receive continuous coverage, access to secure gateways and SureTrack expert information, and for those devices that have it, Fast-Track® Intelligent Diagnostics is always enabled.

Software Subscription

SureTrack Community PC web browser

SureTrack Community²

Integrated expert information on the tool with a current Snap-on software upgrade. Simply connect the diagnostic platform to Wi-Fi to get Real Fixes and verified parts replacement records harvested from millions of actual repair orders.

SureTrack® Expert Information²Thin and light designTouchscreen OperationTrouble Code DefinitionsTSBS, Campaigns & Recalls

Shortcut key for popular functions

User-programmable function key

Waveform Library and Known Good Test Values

Waveform LibraryWi-Fi enabledWi-Fi Status Icon

Wireless Printing (via Snap-on Cloud)

Wireless PrintingWireless Scanner

Scalable X-axis for live data graph

Zoom

Resource Center

Look here for the TRITON™ User Manual and other helpful documents

TRITON™ User Manual
