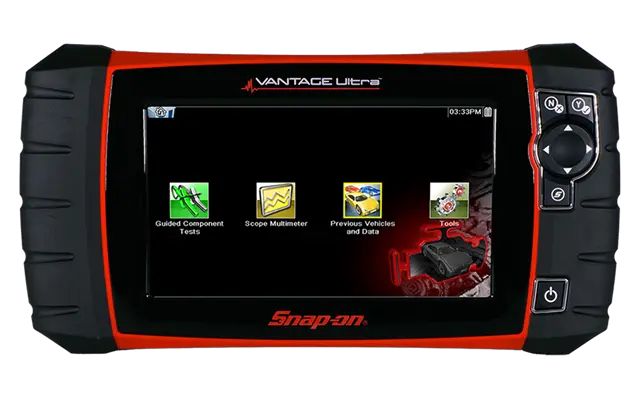

VANTAGE® Ultra Component Test Meter

Model: EETM309

VANTAGE Ultra is the perfect companion to any scan tool.

A digital graphing meter, high-speed 2-channel lab scope plus exclusive expert information make it easy to verify component failures.

Exclusive Fast-Track® Guided Component Tests help give a confident diagnosis.

Vehicle-specific illustrated test procedures show where to connect, how to connect, and what the results should look like.

Don’t settle for a general diagnosis when the rest of the story is just one tool away.

  • VANTAGE U;tra
  • New Connector
  • Test Location
Open AllClose All

Here are the numbers

BatteryRemovable, Rechargeable, Lithium-ion batteryBattery Voltage7.4 voltsBoot up SpeedLess than 10 second boot upDepth2 inches (51 mm)Display: Resolution800x480 pixelDisplay: Size8 inchDisplay: TypeResistive, daylight-readable LCD touchscreen, colorExtended Warranty Option1-3 yearsDimension: Height6.5 inches (165 mm)Lab Scope / Meter2-channelBandwidth 3MHzSample Rate: Up to 6 million samples/secScale range 0-100mV to 0-400VSweep rate 50 microseconds to 20 seconds (5 min in GMM mode)Sweep rate as fast as 50 secondsLive Data GraphingSelective display of 1, 2 or 4 graphsNavigation4-way keypadTouchscreenOperating SystemEmbedded SMX®USB PortPC connectivityVehicle Systems100+ OEM-specific vehicle systemsWarranty1 yearWeight (incl. battery)3.2 pounds (1.5 kg)Dimension: Width12.5 inches


From electric cars to autonomous vehicles to new vehicle security requirements, automotive technology changes just about every day. The only way to stay on top of it all is with uninterrupted access to an array of tips and techniques, tests, guided resources, and graphing capabilities from a constantly updated universe of vehicle data resources — exactly what Snap-on® diagnostic software delivers.

No matter which Snap-on diagnostic platform you choose, keeping its software up to date is the only way to make sure you can always get the most out of it and handle the problems that come your way.

The VANTAGE® Ultra is a high-speed 2-channel lab scope that handles millions of components on thousands of vehicle configurations and delivers millions of Guided Component Test procedures... and Snap-on is always adding more, based on needs and demands. With current software you get the latest for Advanced Driver Assistance Systems (ADAS) and Hybrid-EV tests.

New Guided Component Test Highlights

Acura® MDX®, RDX® and RLX®

BMW® 640 GT® xDrive 3.0L, Z4® 2.0L, 650i®, 650® xDrive 4.4L Gran Coupe®, 740® and 740i® xDrive 3.0L, X5® xDrive, sDrive 40i® and xDrive 45e®

Ford® F-Series® Super Duty® 6.2L, 6.4L, 6.7L and 7.3L, F150® 3.5L, Eco-Sport® 1.0L, Edge® 2.7L, Bronco® 2.3L and 2.7L

GMC® Sierra® 1500, 2500, and 3500 (4.3L, 5.3L, 6.0L, 6.2L, 6.6L)

Honda® Accord®, Civic®, CRV®, Odyssey®, Pilot®

Q50®, Q60®, QX50®, QX60®, QX80®

Jeep® Wagoneer®, Grand Wagoneer® 3.0L I6 Turbo and other select models

Lexus® RX350®, RX450h® Hybrid

Lincoln® Navigator® 3.5L

Mazda® Tribute® and CX-5

Mercedes-Benz® 250® and 250 4Matic® 2.0L, S560® 4.0L, GLE580® and GLS580® 4.0L

Nissan® Altima®, Armada®, Frontier®, Kicks®, Maxima®, Murano®, Pathfinder®, Rogue, Rogue Sport®, Sentra®, Versa®, Titan®

Software Options

Offers 12 months of current domestic, Asian and European coverage
