Depth1.7 inches (43 mm)Vehicle Systems100+ OEM-specific vehicle systemsDisplay size11.6 inch diagonalVehicle Coverage12 European automotive makes16 Asian automotive makes21 domestic automotive makes9 motorcycle makes (with optional adaptors)Width12.4 inches (315 mm)Extended Warranty Option1-3 yearsLive Data Graphing16 graphDisplay resolution1920x1080 pixelWarranty2 yearWeight (incl. battery without Scope/meter)4.1 lb (1.85 kg)Weight (incl. battery and Scope/meter)4.6 lb (2.00 kg)Lab Scope / Meter4-channelBandwidth 3MHzSample Rate: Up to 6 million samples/secScale range 0-100mV to 0-400V, 50kV secondary ignitionSweep rate 50 microseconds to 20 seconds (5 min in GMM mode)Operating System64-bit Windows® 10Height7.8 inches (198 mm)Built-in Camera8MP (3264 x 2448)OBD-IIAll 10 modes of Global OBD-IIAccess to Fast-Track Intelligent DiagnosticsAvailable on ZEUSUSB-C PortCharging / connectivityWeb BrowserChromeBoot up SpeedLess than 10 second boot up from Ready ModeDisplay typeOptically bonded touchscreen, colorUSB PortPC connectivityBatteryRemovable, Rechargeable, 10.8V Lithium-ion batteryNavigationTouchscreenWi-FiWi-Fi CapableScan ModuleWireless
DIAGNOSTIC SOFTWARE IS THE POWER INSIDE YOUR SCAN TOOL
From electric cars to autonomous vehicles to new vehicle security requirements, automotive technology changes just about every day. The only way to stay on top of it all is with uninterrupted access to an array of tips and techniques, tests, guided resources, and graphing capabilities from a constantly updated universe of vehicle data resources — exactly what Snap-on® diagnostic software delivers.
No matter which Snap-on diagnostic platform you choose, keeping its software up to date is the only way to make sure you can always get the most out of it and handle the problems that come your way.

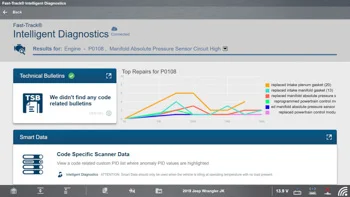

Fast-Track Intelligent Diagnostics¹,²

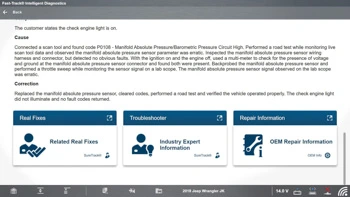

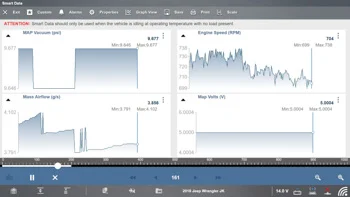

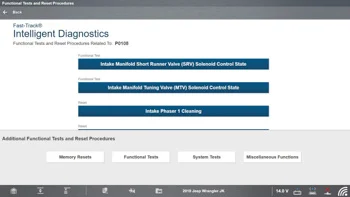

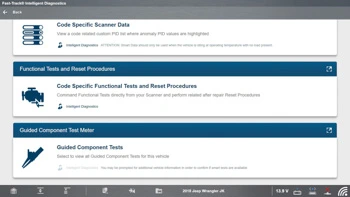

Fast-Track Intelligent Diagnostics guides users through every step needed to find the solution, while avoiding the steps they don’t. It includes continuous Smart Data updates with any Prepaid or Subscription plan. With Smart Data it automatically configures the display to show vehicle data parameters (PIDs) relevant to the fault code. Non-related parameters are filtered out to save you time. It highlights vehicle data that is out of expected range, includes SureTrack common replaced parts and real fixes for the specific DTC, and reset procedures to complete the repair after component replacement with only those that pertain to that fault code shown.
New Coverage HighlightsActive Cruise Control calibration special function
BMW 2019+ 3 SeriesProgrammable Module Installation (PMI)
Ford 2009 - 2014 F-150 & F-350 & 2011+ F-SeriesSpecial functions
Ford 2009 - 2014 F-150 TransmissionBody Control Module (BCM), Battery Monitoring System Reset
Ford 2009 - 2014 F-350 BCMCodes, data, actuator tests and resets
Ford 2014 - 2020 Transit Dosage ModuleSpecial functions
Ford 2021+ E-Series TransmissionCruise Control Module Radar Dynamic Calibration
Ford® 2015 – 2020 F350®Pedal Position Sensor relearn
GMC 2014 - 2019 SierraEngine Freeze Frame updates
GMC 2022-2023GMC 2023 NEW Canyon & Hummer Model CoverageAnti-lock Brake Control Module Brake Pad Change Mode
Hyundai 2018+ Santa FeKia 2023 NEW EV-6 Model CoverageChassis Control Module special functions
Land Rover 2013-2016 Range Rover & 2014-2016 Range Rover SportSpeed Control Module
Land Rover 2014+ Discovery Sport & 2015+ Range Rover EvoqueTowbar codes, data, functional tests and special functions
Land Rover 2015+ Discovery SportSelective Catalytic Reduction (SCR) system
Mazda CX-5 2017+Engine and Air Conditioning functional tests
Mazda3 2008-2013Vehicle Control Module and BCM
Mazda3 2019+ Engine Gasoline Particulate Filter (GPF) Regeneration
Mercedes-Benz 2013-2019 CLAMitsubishi Outlander PHEV 2023 NEW Model CoverageHeating Ventilation and Intelligent Power Distribution actuator tests
Nissan 2011+ LeafIntelligent Cruise Control functional tests
Nissan 2017+ Rogue Occupant Classification System calibration
Toyota 2017+ CamryNew Features and EnhancementsSimultaneously select multiple files to download or delete.
Easier and faster file use within Snap-on CloudFast-Track Intelligent Diagnostics¹,²For more information, see Features.Software OptionsOffers 6 months of current domestic, Asian and European coverage
Basic UpgradePrePaid Plan - 1 or 3 yearContinuous software upgrades supply domestic, Asian and optional European coverage. Fast-Track® Intelligent Diagnostics-enabled products receive complete data services for one year
Subscription Key Features of the ZEUS+™
Fast-Track Intelligent Diagnostics guides users through every step needed to find the solution, while avoiding the steps they don’t. It includes continuous Smart Data updates with any Prepaid or Subscription plan. With Smart Data it automatically configures the display to show vehicle data parameters (PIDs) relevant to the fault code. Non-related parameters are filtered out to save you time. It highlights vehicle data that is out of expected range, includes SureTrack common replaced parts and real fixes for the specific DTC, and resets procedures to complete the repair after component replacement with only those that pertain to that fault code shown.
Fast-Track Intelligent Diagnostics¹Adjustable Graph ScaleAutomotive Coverage as far back as 1983 model yearBi-directional ControlsBoots up in <10 secondsCameraID BY Camera is for use with stubborn or older vehicles unable to take advantage of Instant ID. It offers automated VIN identification using the scan tool's onboard camera
Camera Vehicle IDUnique, steady-charge lithium-ion battery technology

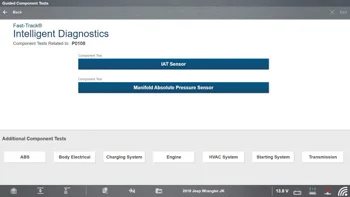

Charging SystemCode Scan ReportCoverage - 48 makes as far back to 1983Custom Data ListsData Manager Ethernet SupportShows you how to test, where to connect and what results to look for
Fast Track® Guided Component TestsFull range of component test functionalityFunctional TestsGradient Graphs make it easier to catch those intermittent glitches
Gradient GraphsFind over 70 topics and hundreds of on-tool Guided Component Test courses ranging from 5-30 minutes, including Power User Tests, How To’s and more
Guided Component Test TrainingHigh-Speed Lab ScopeIgnition Scope CapabilitiliesAuto ID using Mode 9 VIN
Instant IdInstant Screen ShotsAbility to record all available live data parameters and graph any four on screen at once. View up to eight data parameters in text mode; Display up to seven live data points in digital mode; Record all available data parameters in the background. Pause and Playback.
Live Data Graphing One-Touch Full Vehicle Code Scan & Clear quickly checks and clears codes for all available modules on the vehicle.
One-Touch Code Scan and ClearOver-Air Automatic Software UpdateOnline Instructor-led TrainingRecords All PIDS While On or Off Screen
PID RecordingPID SortingPID Trigger (a Snap-on exclusive)Complete data services, domestic, Asian and European coverage plus SureTrack®, Smart Data and more. One and three year plans available.

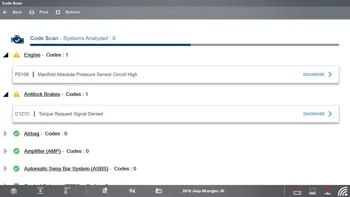

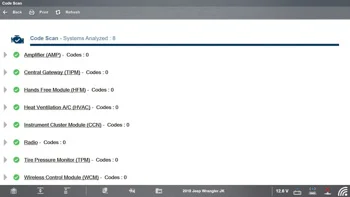

Prepaid Software Plan, 1 and 3 year RelearnsA companion to the Pre- and Post-scan Reports.
Now document recalibration completion for one or many systems.
Report: ADAS RecalibrationFriendly simplified language report for owners. Includes Pre-/Post-Scans for shop use.

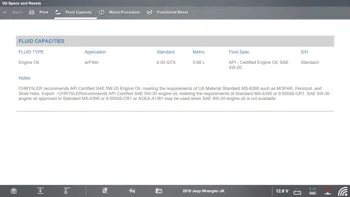

Diagnostic Health ScanReset ProceduresAccess direct from the scan tool to the FCA vehicle gateway module for 2018 and newer models
Easy set-up process by any device with Wi-Fi and browser
Turnkey access to vehicles directly from the scan tool
Security Link™³With Wi-Fi and current software get all the necessary information about related and required repair procedures that must be done to complete the job
Service Resets and Relearns³ShopKey Solutions (optional)With current software use the Snap-on® Cloud for up-to-the-second online storage.
Snap-on® Cloud³Software Status IconContinuous software upgrades supply domestic, Asian and optional European coverage. Fast-Track Intelligent Diagnostics-enabled products receive complete data services for the term of the subscription.
Make sure your tool has all the latest information

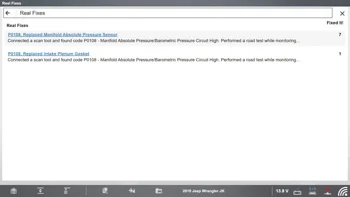

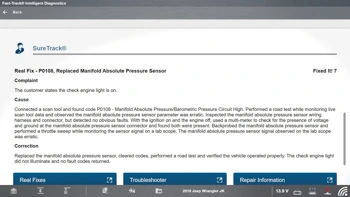

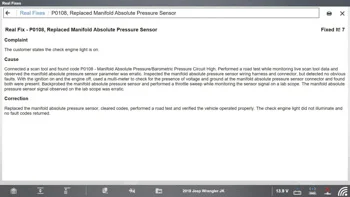

Software SubscriptionSureTrack Community²Integrated expert information on the tool with a current Snap-on software upgrade. Simply connect the diagnostic platform to Wi-Fi to get Real Fixes and verified parts replacement records harvested from millions of actual repair orders.
SureTrack® Expert Information²Touchscreen OperationTrouble Code DefinitionsTSBS, Campaigns & RecallsShortcut key for popular functions
User-programmable function keyWaveform Library and Known Good Test ValuesWi-Fi enabledWi-Fi Status IconWireless PrintingWireless ScannerScalable X-axis for live data graph
ZoomLook here for the ZEUS+ User Manual, other helpful documents and Training
