Diagnostic Thermal Imager Elite

Model: EETH310MSRP: $2,022.00

Using infrared technology to reveal heat caused by friction, electrical resistance, pressure changes and more, the Diagnostic Thermal Imager Elite from Snap-on® lets you track down vehicle faults and find the right fix faster than ever.

When connected to Wi-Fi, every image you capture with the Diagnostic Thermal Imager Elite is automatically uploaded to the new Snap-on Cloud.

This means you can access them from your phone or computer whenever you need them, to make your next diagnosis — and your next repair — faster and more accurate than your last.

Fully loaded with a database full of automotive applications, guided tests and reference images to help you interpret results, putting a more accurate diagnosis — and more productivity — in clear view on every job.

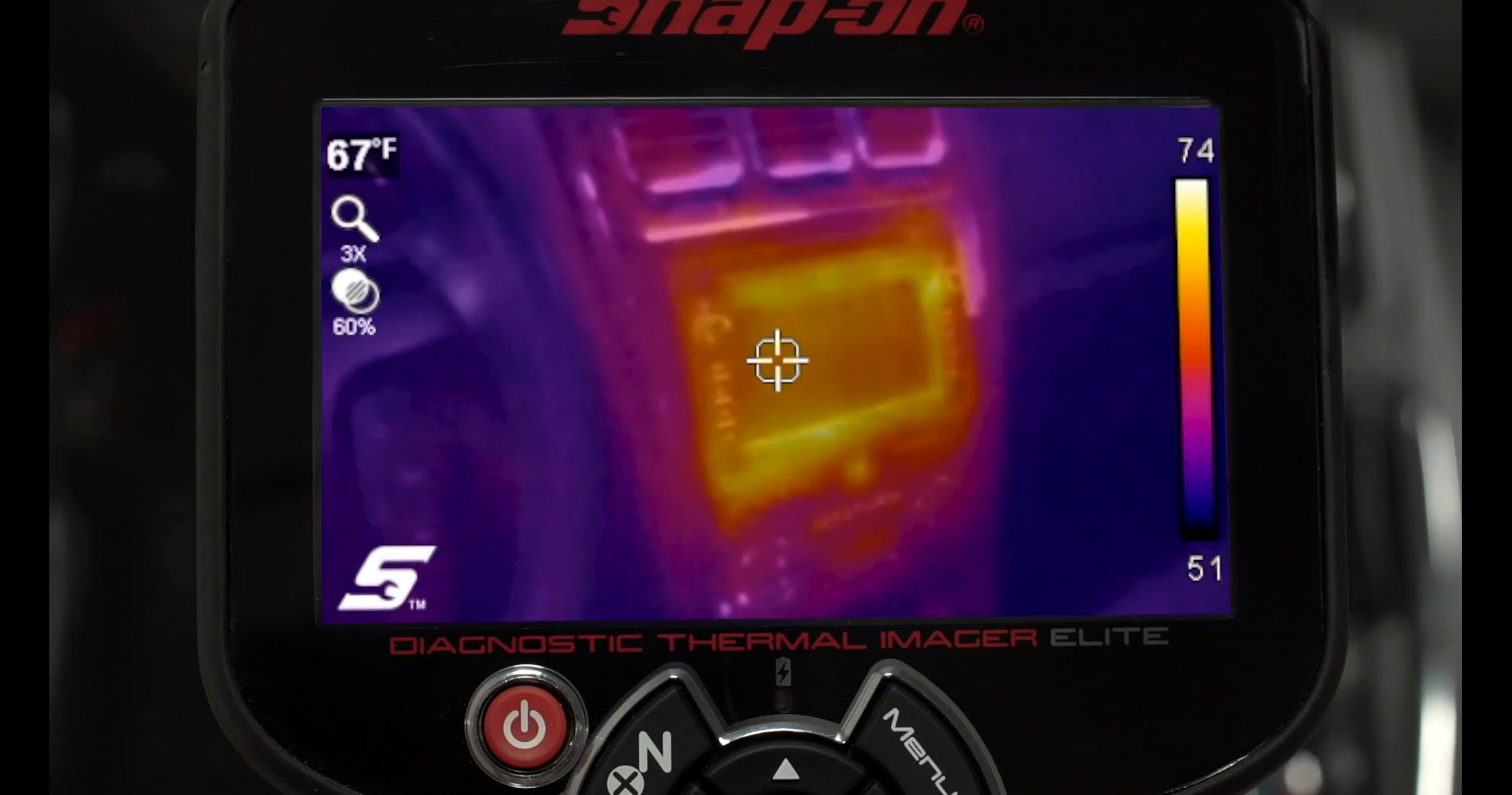

Diagnostic Thermal Imager Elite Overview
  • Diagnostic Thermal Imager Elite Overview
  • Alternator

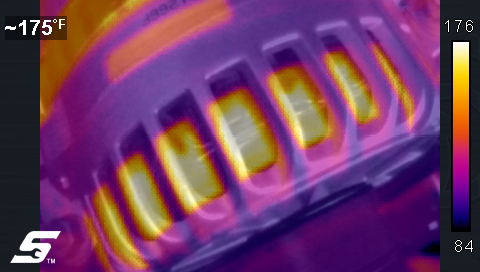

  • Alternator Charging

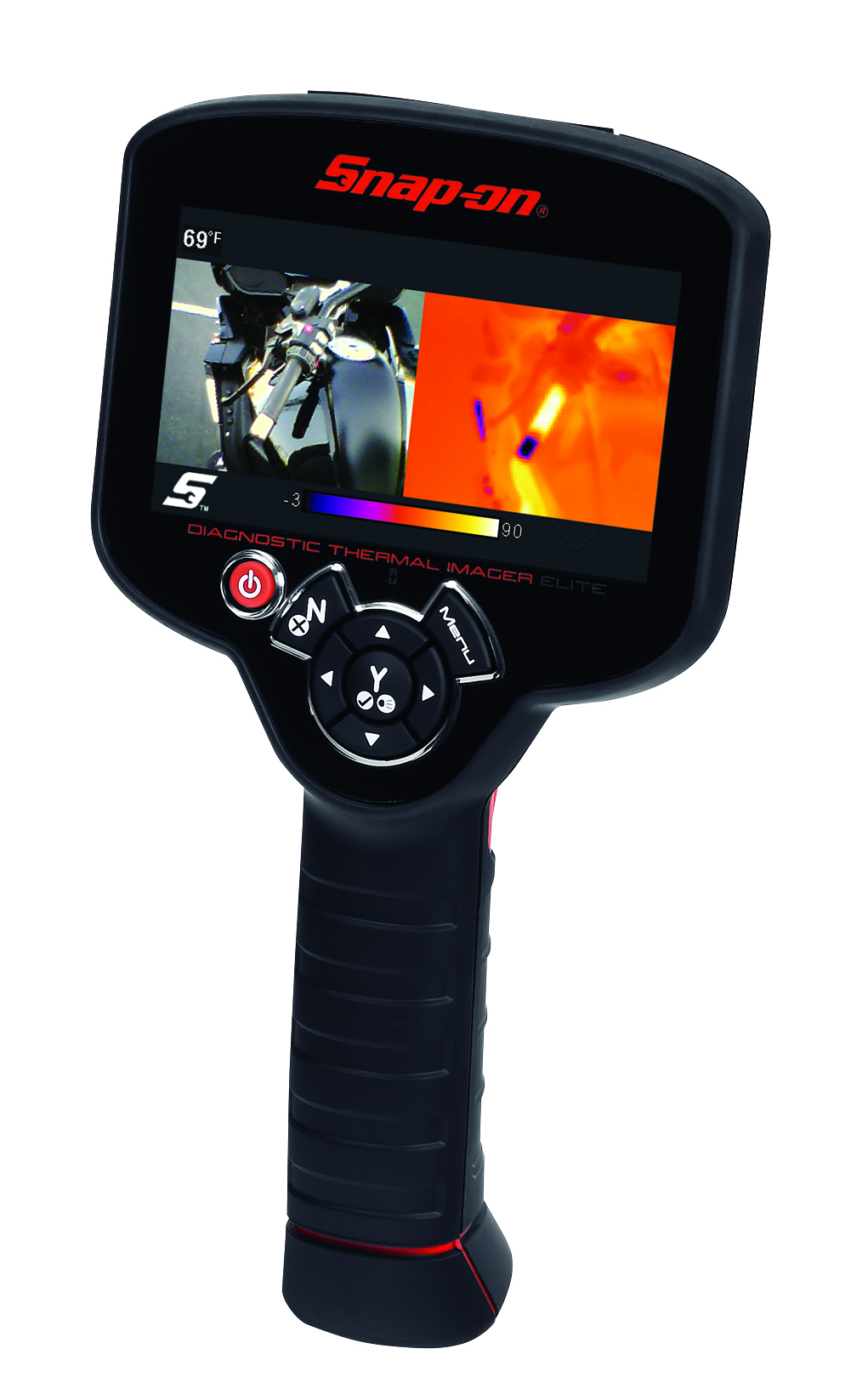

  • Side-by-side

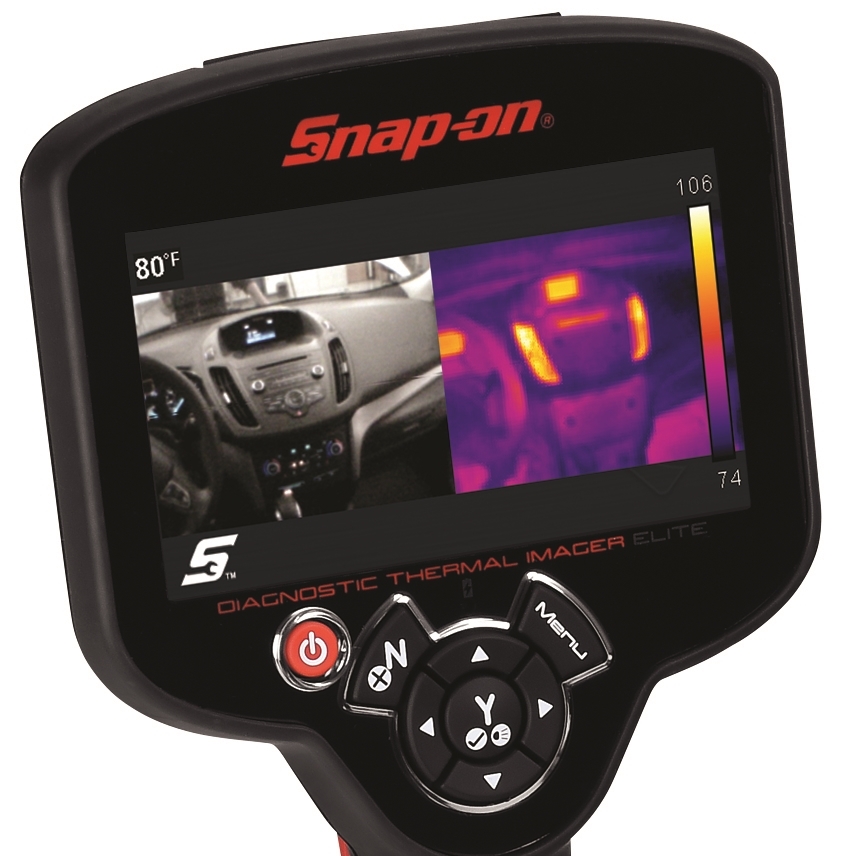

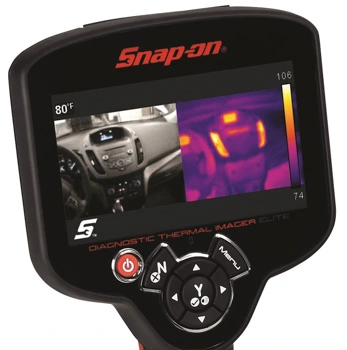

  • Heater
Open AllClose All
Specifications

Here are the numbers

Rechargable lithium-ion battery life4 hoursComponentsThermalDisplay: Resolution480x272 pixelDisplay: Size4.3 inchMaximum temperature readings - thermal mode840 degrees F (450 degrees C)Screen refresh rate9x/secondTemperature visibility range - Thermal–4 to 840 degrees F (–20 to 450 degrees C)Thermal sensor resolution80x60
Features

Here is the good news

Color reference scale automatically calibrates, so you know the temperature of everything in the imageCustomised views on screen to assist in diagnosis and pinpointing locationDetect problems all around the vehicle: brakes, heated seats, misfires, worn bearings, belts, emission controls, and many moreErgonomic hand grip for comfort and easy access to tight areasFeatures image blending, split screen view, picture-in-picture view, record a video (20 seconds)Four-hour, high-power rechargeable lithium-ion battery with level indicatorIncludes Thermal Imager Elite, MicroSD card, AC adapter, USB cable and user guideLarge 4.3in 480 x 272 resolution screen and 9x/second refresh rate clearly reveal issuesPoint at any area of vehicle for detailed images of an object's heat signaturePull trigger to capture images; then use saved images to create convincing repair orders; save, store and print your images via Wi-Fi using the Snap-on cloudReference images show normal and failed components, so you know what to look forShows temperature extremesSnap-on Cloud Integration
Resource Center
Look here for the Diagnostic Thermal Imager Elite User Manual, other helpful documents and Training
