Diagnostic Thermal Imager

Model: EETH300

Imagine a tool that lets you 'see' heat. The Diagnostic Thermal Imager does just that to reveal heat, friction, electrical resistance, pressure changes and more.

It is specifically designed for automotive applications and includes an exclusive database of guided tests, showing dozens of valuable applications.

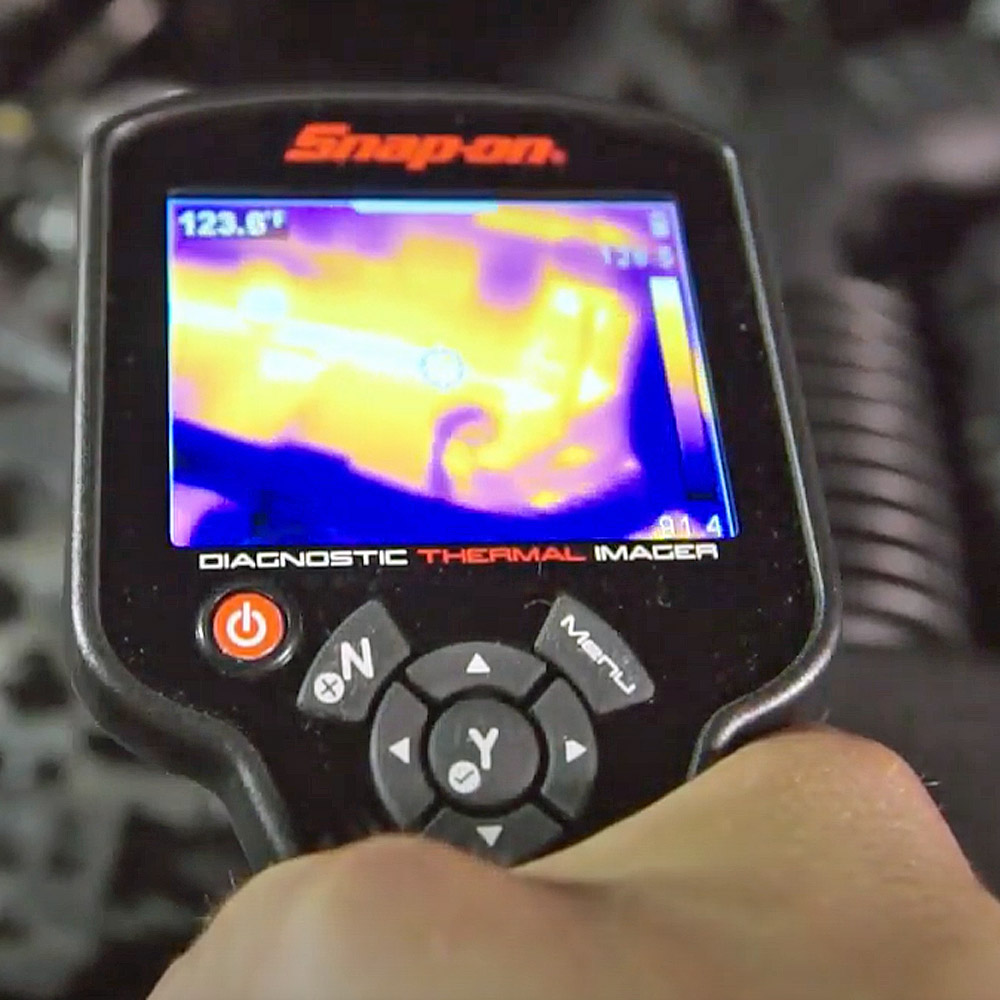

Just point it at any area of a vehicle and see detailed images of an object’s heat signature.

Diagnostic Thermal Imager From Snap-on
  • Diagnostic Thermal Imager From Snap-on
  • Diagnostic Thermal Imager From Snap-on
Open AllClose All

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Screen size3.5inResolution320 x 240Rechargable lithium-ion battery life4 hoursTemperature visibility range-4°F to 840°F (-20°C to 450°C)Screen refresh rate9x/second
Colour reference scale automatically calibrates, so you know the temperature of everything in the imageDetect problems all around the vehicle: brakes, heated seats, misfires, worn bearings, belts, emission controls, and many moreExclusive database of automotive applications and guided testsPull the trigger to capture images. Use saved images for reference and to create informative repair ordersReference images showing normal components and failed components, so you know exactly what to look forSee precise detail with complete thermal images made up of 4,800 temperature zonesTransfer images to your PC, and create your own library of thermal images for reference
