Sun EZ ADAS Recalibration System

Model: EZADAS

Bring unmatched productivity, performance and value to your workshop and be ready for the next generation of tests with the Sun EZ ADAS™ Recalibration System.

EZ ADAS is an innovative collection of precision tools with sophisticated design.

Using laser measurement and intuitive target adjustment features it reduces the risk of errors.

Our solution includes a comprehensive target kit, minimal recalibration alignment components and simplified instructions making it more efficient than other systems on the market, significantly reducing set-up steps.

This system works hand-in-hand with our diagnostic tools using current software, supplying you market-leading ADAS coverage and robust features to complete the job right the first time.

Find out more about the coverage provided by the Sun EZ ADAS Recalibration System.

Open AllClose All

Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Specialist KitADAS recalibration stand with the option to select one target set for front, rear camera and front radar calibrationAS20 Alignment FixtureCentreline finding with laser indication. Width: 28cm (11in); Height: 13.3cm (5.2in); Depth: 18cm (7in); Weight: 2.3kg (5.1lb)AS10 Alignment FixtureCentreline finding with laser indication. Width: 29cm (11.4in); Height: 58.5cm (23in); Depth: 54cm (21.3in); Weight: 5.3kg (11.6lb)Professional KitIncludes ADAS recalibration stand and comes complete with 10 target sets for front camera recalibrationTS100 Target StandIncludes mast, rotating cross beam ruler, clutch brake height adjuster, mast lock, target multi-position lever locks, centreline finder with laser indication, Zero Stop, laser and 8m tape measure Width: 200cm (78.7in) fully-assembled Height: 180cm (71in)RAD10 Radar Alignment Fixture (Optional)Includes stand with ruler and three corner reflector targets. Width: 21.5cm (8.5in); Height: 121.9cm (48in); Depth: 16.8cm (6.6in); Weight: 1.696kg (3.74lb)

Features

For faster and easier alignment positioning for front, rear and radar recalibration

AS10 Fixture with laser and mirror

With the growing complexity of the ADAS market and increased development of new sensors, typically diverging across make, model or years, we focus on what is important for garages to put these vehicles back on the road quickly and safely.

EZ-ADAS eliminates complexity to allow workshops to perform accurate sensor recalibrations.

Find out more about the coverage provided by the Sun EZ ADAS Recalibration System.

Extensive coverage

Help to quickly align fixtures to vehicle position

Graduated, easy-to-see laser positioning guides

To support various system recalibrations

Green line lasers for multi-position use

A simple and efficient tool to quickly align, measure and recalibrate

Optional RAD10 Fixture

Fewer components and a smaller footprint make the system easier to manoeuvre and store when not in use

Rotating cross beam

Highly visible integrated and adjustable rulers
Multi-position lever locks to easily secure target
Clutch brake height adjuster allows precision front camera target height positioning
The Zero Stop allows precise front camera target positioning for select auto manufacturers
Tape measure mounted stand, one-person target positioning and set-up
Rotating cross beam allows system to fit in and fit through the smallest of spaces

Target stand

Snap-on Finance

Get The Finance You Need With Snap-on

Snap-on Finance UK Ltd has over 30 years of experience in supporting the automotive industry, dealing exclusively in this market, and understands your needs.

We deal with your business requirements personally, professionally and in the way you expect from Snap-on.

Speak to the people you trust first for friendly, independent advice about your options. Hire purchase? Rental? Peace of mind deals? We can find the right solution for your business.

Click on the brochure below to read more.

Resource Centre

Sun EZ ADAS Recalibration System Getting Started Guide

Sun EZ ADAS Recalibration System User Guide

Sun EZ ADAS Recalibration System Target Placement Instructions

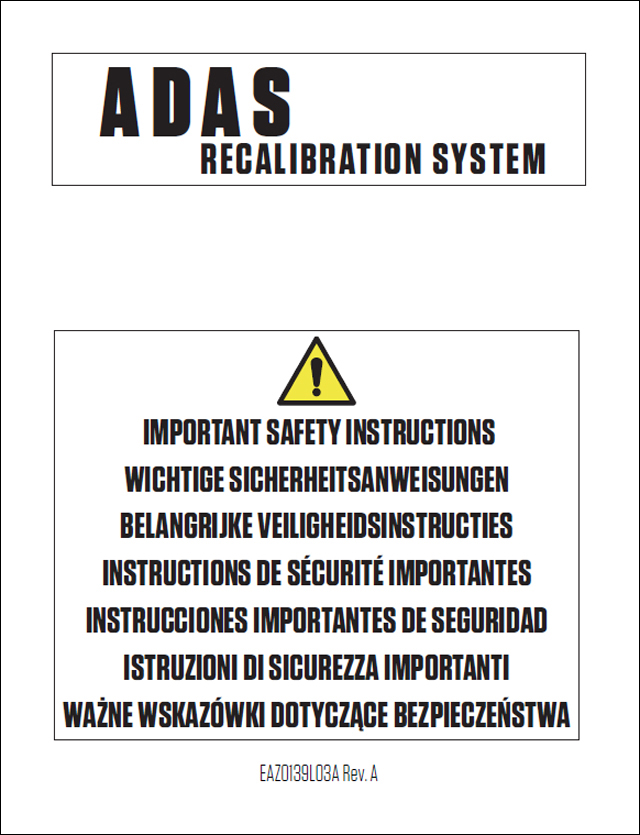

Sun EZ ADAS Recalibration System Safety Instructions
