Diagnostic Thermal Imager

Model: EETH300MSRP: $1,488.00

Imagine a tool that lets you “see” heat. The Snap-on Diagnostic Thermal Imager uses infrared technology to reveal heat, friction, electrical resistance, pressure changes.

It is specifically designed for automotive applications and includes an exclusive database of guided tests, showing dozens of valuable applications.

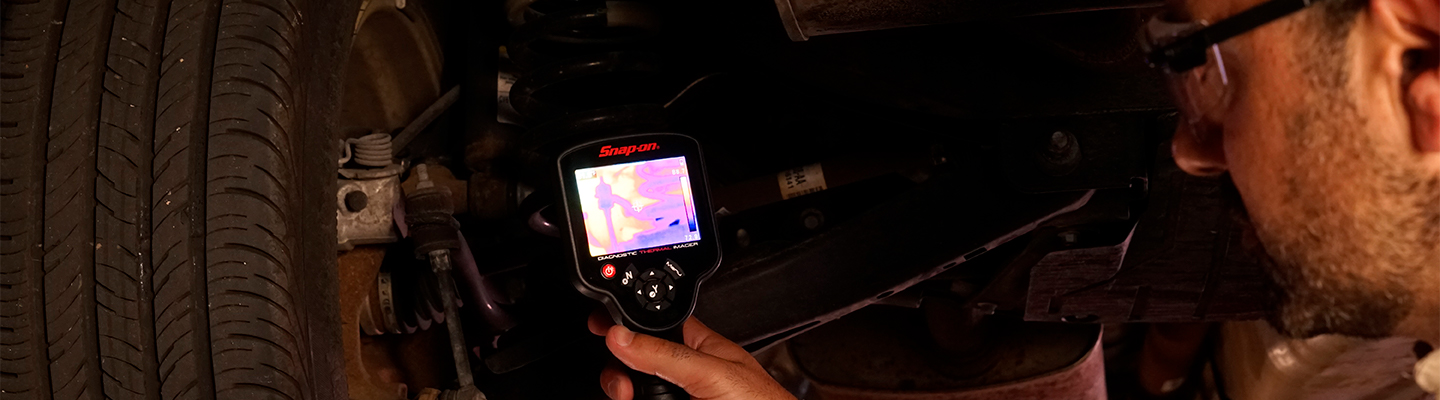

Just point it at any area of a vehicle and see detailed images of an object’s heat signature.

Diagnostic Thermal Imager Overview
Open AllClose All
Specifications

Here are the numbers

Rechargable lithium-ion battery life4 hoursComponentsThermalDisplay: Resolution320x240 pixelDisplay: Size3.5 inchMaximum temperature readings - thermal mode840 degrees F (450 degrees C)Screen refresh rate9x/secondTemperature visibility range - Thermal–4 to 840 degrees F (–20 to 450 degrees C)Thermal sensor resolution80x60
Features

Here is the good news

Color reference scale automatically calibrates, so you know the temperature of everything in the imageDetect problems all around the vehicle: brakes, heated seats, misfires, worn bearings, belts, emission controls, and many moreExclusive database of automotive applications and guided testsPull the trigger to capture images. Use saved images for reference and to create informative repair ordersReference images showing normal components and failed components, so you know exactly what to look forSee precise detail with complete thermal images made up of 4,800 temperature zonesTransfer images to your PC, and create your own library of thermal images for reference
Resource Center
Look here for the Diagnostic Thermal Imager User Manual, other helpful documents and Training
