SOLUS Legend™ Scan Tool

Model: EESC336MSRP: $3,485.00

SOLUS Legend has sophisticated functionality, advanced graphing features, an intuitive user interface and user-customizable configuration.

With fast boot up, you are ready to work in five seconds.

One-touch code-scan and clear helps you wrap up the job quickly.

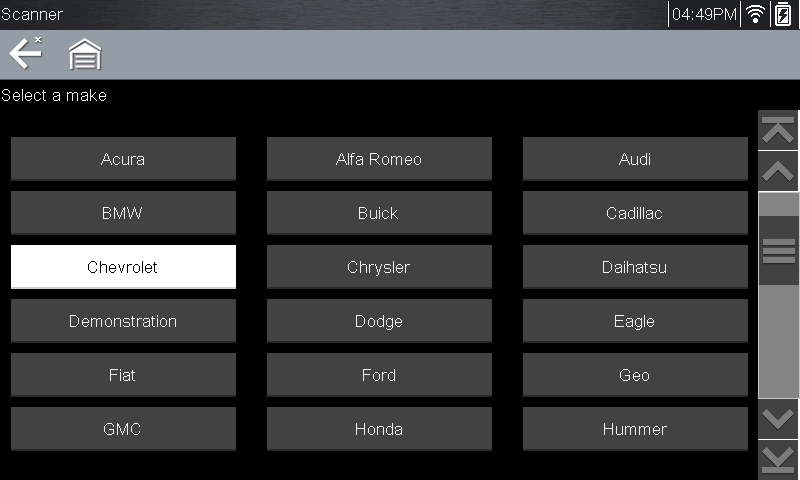

Get comprehensive information to help you complete the repair with great coverage for European, Asian and domestic vehicles.

Access SureTrack^® vehicle-specific real fixes, repair tips and common replaced parts data harvested from millions of repair orders (requires Wi-Fi connection and current software upgrade).

Open AllClose All

Specifications

Here are the numbers

Warranty1 yearDepth1.6 inches (40.3 mm)Vehicle Systems100+ OEM-specific vehicle systemsWidth11.1 inches (281 mm)Vehicle Coverage12 European automotive makes16 Asian automotive makes21 domestic automotive makes9 motorcycle makes (with optional adapters)Extended Warranty Option1-3 yearsWeight (incl. battery)2.6 pounds (1.18 kg)Navigation4-way keypadTouchscreenHeight6.3 inches (160 mm)Battery Voltage7.4 voltsDisplay size8 inchDisplay resolution800x480 pixelOBD-IIAll 10 modes of Global OBD-IIOperating SystemEmbedded SMX®Scan ModuleIntegratedBoot up SpeedLess than 10 second boot upUSB PortPC connectivityBatteryRemovable, Rechargeable, Lithium-ion batteryDisplay typeResistive, daylight-readable LCD touchscreen, colorLive Data GraphingSelective display of 1, 2 or 4 graphsWi-FiWi-Fi Capable

What Is It used For

How can SOLUS Legend help you?

Measures fluid capacities

Fluid Capacities

Resets vehicle maintenance indicator

Maintenance ResetsPulling Simple CodesRelearnsRemove & Replace Components

Reads tire pressure monitoring system

TPMS

Software

DIAGNOSTIC SOFTWARE THAT CONQUERS EVERY QUESTION

Snap-on is in touch with your needs. We develop revolutionary car diagnostics products and repair information solutions to repeatedly redefine car diagnostics. A Snap-on diagnostic tool is always ready to serve with unparalleled general and collision repair coverage. Vehicle coverage, plus the features that super charge it, are key to keeping tools as good as the day you bought it to make sure you can see anything that pulls into your bay.

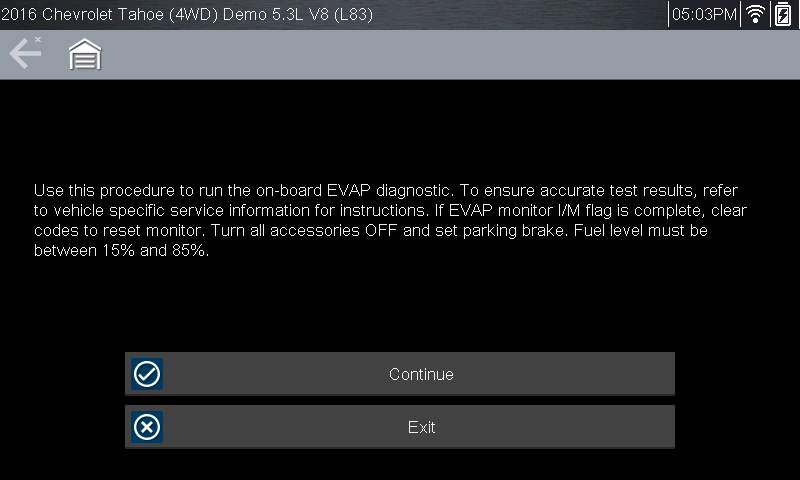

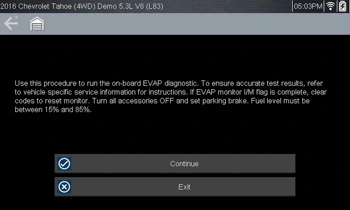

New Coverage Highlights2010 - 2016 Chevrolet Equinox EVAP Service Bay Tests

Codes and Data

2011 and newer Nissan® Leaf Regenerative Brakes2012 - 2013 Chevrolet Tahoe 6.0L (Hybrid) Automated Brake Bleed Procedure

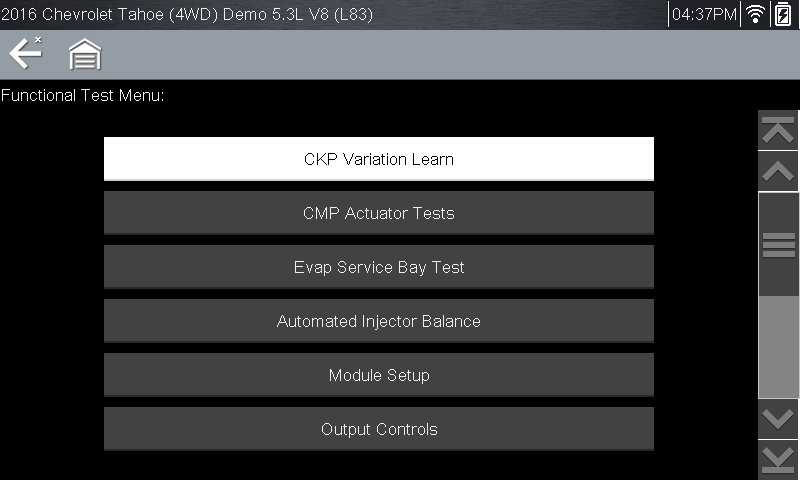

Codes Data, Functional Tests, Relearns

2014 and newer Land Rover Range Rover/Sport2016 and newer Mazda®: Mazda3, Mazda6 and MX-5 DC-to-DC Converter

Codes and Data

2017 and newer Land Rover® Discovery Rear Differential Control Module

Driver Assist System Module and Forward Radar Calibration

2019 Chrysler®/Dodge®/Jeep®/RAM® ADAS

2020 and newer Mazda® CX-30, CX-5 and CX-9 DC-to-DC Converter

for Corsair, Aviator, F-150 and Mustang, including those sought after for Hybrids and ADAS work

2021 and newer Ford® – Over 35 New Variants

2021 and newer Hyundai® Elantra, Santa Fe and Sonata Front View Camera Calibration

2021 Nissan Leaf Actuator Test

2022 Automotive Model Year Update: Acura®, Alfa Romeo®, Audi®, BMW®, Chrysler®, Dodge®, FIAT®, Ford®, Honda®, Jaguar®, Jeep®, Kia®, Mercedes-Benz®, MINI®, Porsche®, RAM®, VW®

Codes, Data, Functional Tests, Special Functions for over 15 systems

2022 Chevrolet® Silverado and GMC Sierra New Systems

Functional Tests and Special Functions

2022 Mazda MX-30 Powertrain Control Module, Instrument Cluster, Adaptive Front Lights

2022 Motorcycle Model Year Update:: BMW, Ducati®, Harley-Davidson®, Honda, Indian®, Kawasaki®, Suzuki®, Yamaha®

2023 Code Scan and Clear Codes - All Models

Automotive Update for Model Year 2022: Buick®, Cadillac®, Chevrolet®, Genesis®, Hyundai®, Infiniti®, Land Rover®, Lexus®, Mazda®, Mitsubishi®, Nissan®, Subaru®, Toyota®, Volvo®

5-Series 2003-2010 adds 9 new tests and X5 2007-2013 adds 8 new tests

BMW Air Suspension Systems

3-Series 2013 and newer, 4-Series 2014 and newer, X5 2007-2013 and X6 2008-2014

BMW Electronic Chassis SystemsExpanded Code Scan and Clear Codes for Model Year 2022

PMI Functions for Powertrain Control Module, ABS Module, Cruise Control and Image Processing Module A

Ford 2021 Mustang Mach-E 30 new modules (41 in total) and PMI Functions

Genesis GV70 coverage (new model) and Genesis GV80 special functions

Jeep 2019 Grand Cherokee L special functions

Jeep Cherokee 2014 and newer 3.0l Diesel SCR support

Lincoln 2017 Continental and newer Vehicle Dynamics Control ModuleMotorcycle Update for Model Year 2021: BMW, Ducati®, Harley-Davidson®, Honda, Indian®, Kawasaki®, Suzuki®, Yamaha®

New Models: 2019 and newer BMW® F97/98 X3 Competition Models, 2022 Genesis® GV60 (Electric), 2022 GMC® Hummer SUV & SUT, 2022 Subaru® BRZ

RAM 2015 and newer 1500 3.0l Diesel SCR support

RAM 2019 and newer pick-up Forward Radar Calibration to Driver Assist System Module

Codes and data, functional tests on applicable vehicles

Subaru 2020 Outback Keyless Access System and Reverse Automatic Braking System

Codes, data, functional tests and special functions

Toyota Front Side Radar system coverage

Volkswagen®/Audi adds coverage for 7 new engine variants

XC40 2018 and newer, XC60 2017 and newer, XC90 2015 and newer

Volvo Trailer Module codes, data and functional testsNew Features and Enhancements

When mileage and license plate is logged it is saved to platform history

Enhanced Previous Vehicles and Data screen

Simplifies technician profile management including manufacturer set up and automatic credential validation

Security Link WizardStandard Features

With Wi-Fi and current software, for up-to-the-second online storage. Archive, reference, retrieve and communicate Vehicle System Reports, thermal images and more to customers, colleagues, insurance companies

Access to Snap-on® CloudAutomatic license plate tagging when uploading Vehicle System and ADAS Recalibration Reports to the Snap-on Cloud

Device uses ShopStream Connect™ for software updates

Dedicated on-tool page and link to the relevant download information

Friendly simplified language report for owners. Includes Pre-/Post-Scans for shop

Diagnostic Health ScanEthernet communications support with applicable adapter for relevant Jaguar, Land Rover® and Volvo® vehiclesExclusive access to SureTrack®, providing Real Fixes and verified parts replacement records from millions of successful repair orders²John Bean® and Hofmann® EZ ADAS™ Recalibration System compatiblePre- and Post-scan Vehicle System Reports with on-tool report labelingSecurity Link™ provides direct access to vehicles right from the scan tool for 2018 and newer Fiat Chrysler (FCA) modelsStore up to 100 different PID listsThe Vehicle System and ADAS Recalibration Reports provide a useful summary for your customers of the diagnostic work carried outWide-ranging support programs, including a Customer Care hotline, extended warranty and free comprehensive online Training and SupportSoftware Options

Offers 6 months of current domestic, Asian and European coverage

Basic Upgrade

Continuous software upgrades supply domestic, Asian and optional European coverage. Fast-Track^® Intelligent Diagnostics-enabled products receive complete data services for one year

Subscription

Features

Here is the good news

AdaptationsAdjustable Graph ScaleAutomotive Coverage as far back as 1983 model yearAutomotive Coverage for 48 domestic, Asian and European makesBasic Software Upgrade: 6 months of current domestic, Asian and European coverageBi-directional Controls

Plug and play feature automatically powers up when connected to vehicle

Boot up - automatically powers up when connected to vehicleBoots up in just 5 seconds

Unique, steady-charge lithium-ion battery technology charges automatically from the vehicle

Charging SystemCursor FunctionsCustom Data Lists

High-capacity microSD™ card contains the diagnostic software and stores your data files

Data StorageDisplay - large, for better readability and greater ease of useEthernet Support is available for applicable Jaguar, Land Rover and Volvo models with Ethernet AdapterFreeze Frame

Auto ID using Mode 9 VIN

Instant IdInstant Screen Shots with Hotkey

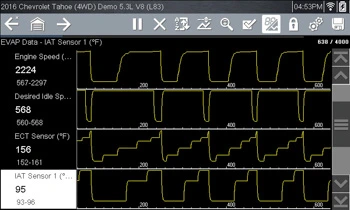

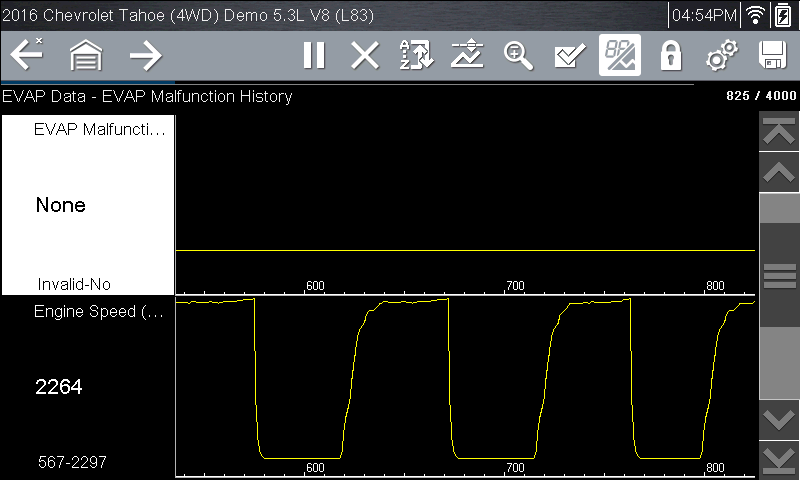

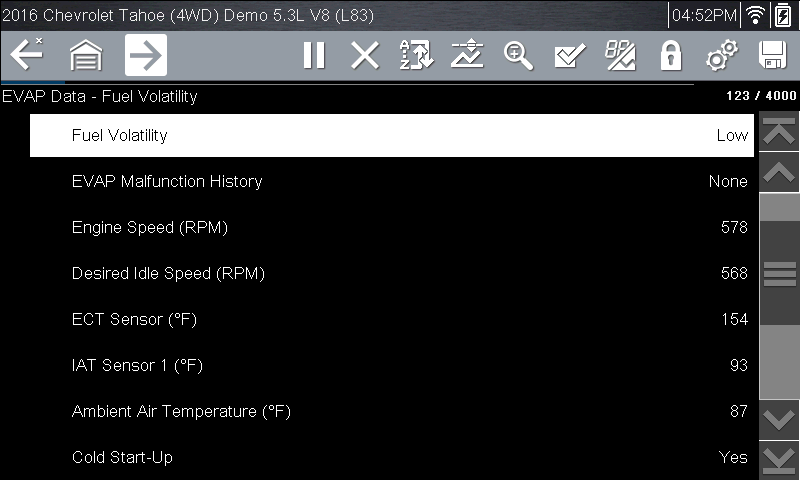

Ability to record all available live data parameters and graph any four on screen at once. View up to eight data parameters in text mode; Display up to seven live data points in digital mode; Record all available data parameters in the background. Pause and Playback.

Live Data Graphing (Scanner and/or Scope)

High-capacity microSD™ card contains the diagnostic software and stores your data files

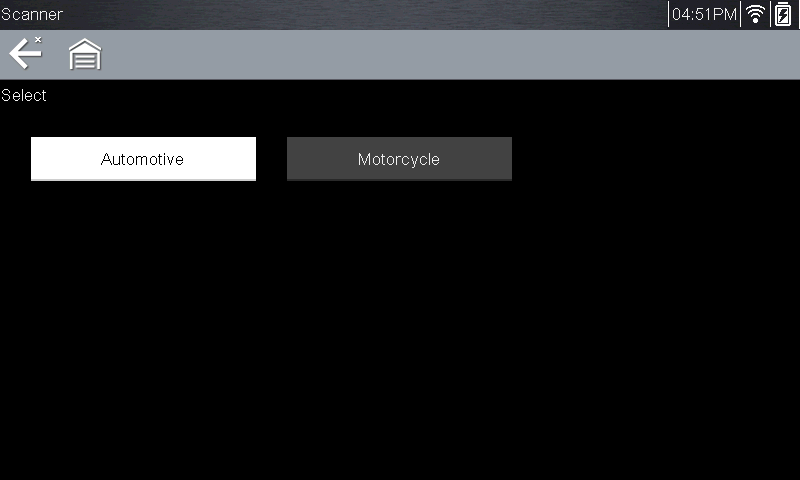

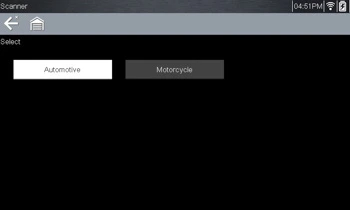

MicroSD™ CardMotorcycle Coverage (with optional adapters)Motorcycle Coverage: Harley-Davidson, BMW, Victory, Indian, Ducati, Yamaha, Honda, Kawasaki and Suzuki (with optional adapters)Navigate with touchscreen or 4-way keypad

One-Touch Full Vehicle Code Scan & Clear quickly checks and clears codes for all available modules on the vehicle.

One-Touch Code Scan and ClearOnline Software Update via ShopStream ConnectOperating System embedded, dedicated to diagnostic functions for fast, reliable operationPerforms Relearns & Initializations

Records All PIDS While On or Off Screen

PID RecordingPID SortingPID Trigger (a Snap-on exclusive)

Complete data services, domestic, Asian and European coverage plus SureTrack®, Smart Data and more. One year plan available.

Prepaid Software Plan, 1 year plan available

Quick Lookups from home screen for tire and wheel service plus oil specifications and service interval resets

Quick Lookups with Wi-Fi and current software³RelearnsReset Procedures to complete the repair after component replacement

Access direct from the scan tool to the FCA vehicle gateway module for 2018 and newer models

Easy set-up process by any device with Wi-Fi and browser

Turnkey access to vehicles directly from the scan tool

Security Link™ (formerly known as Secure Vehicle Gateway™)³

Save, print, and share files with free PC-based ShopStream Connect software

ShopStream Connect™

With current software use the Snap-on® Cloud for up-to-the-second online storage.

Snap-on® Cloud³Software Status Icon lets you know you are on the latest softwareSoftware Subscription: Continuous software upgrades supply domestic, Asian and optional European coverageSureTrack Community on PC web browser

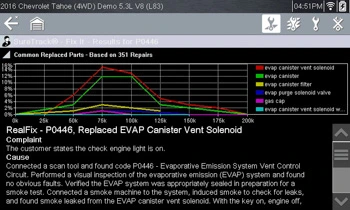

Integrated expert information on the tool with a current Snap-on software upgrade. Simply connect the diagnostic platform to Wi-Fi to get Real Fixes and verified parts replacement records harvested from millions of actual repair orders.

SureTrack® Expert Information²Thin and light designTrouble Code Definitions

Icon-based navigation for fast operation

User Interface

Shortcut key for popular functions

User-programmable function keyVehicle System ReportsWi-Fi enabledWireless Printing (via Snap-on Cloud)

Scalable X-axis for live data graph

Zoom
