Dual-clutch transmissions used throughout Volkswagen Audi Group vehicles are renowned for rapid shifts and refined drivability, but behind that smooth performance is a complex combination of high-pressure hydraulics, a mechatronics unit and precision clutch control. When routine repairs or clutch replacements are required, removing the mechatronics unit without first depressurising the oil reservoir can lead to mechanical damage — particularly if shift solenoid actuator rods eject under stored pressure.
With the latest Snap-on® Diagnostic Software update, technicians can now release DSG oil pressure using a dedicated Special Function, ensuring safe removal of the mechatronics module without relying on an OEM tool.
In this Technical Focus Article, we cover:
- How VAG DSG mechatronics operate
- Why DSG oil pressure must be depressurised before mechatronics removal
- When to use the Snap-on DSG oil pressure release Special Function
- How to perform post-repair DSG clutch and gearbox relearns
Understanding DSG Gearbox and Mechatronics
DSG systems combine two clutches, a manual gearbox and a high-pressure hydraulic control unit. The mechatronics module manages both clutch operation and gear selection using:
Gear shifts are completed by applying regulated hydraulic pressure to selector forks and clutch actuators. Stored pressure is held in an accumulator so that rapid gear changes can be made without delay.
The accumulator remains pressurised even when the engine is switched off. Removing components while this pressure is still stored risks physical damage.
How the DSG System Operates

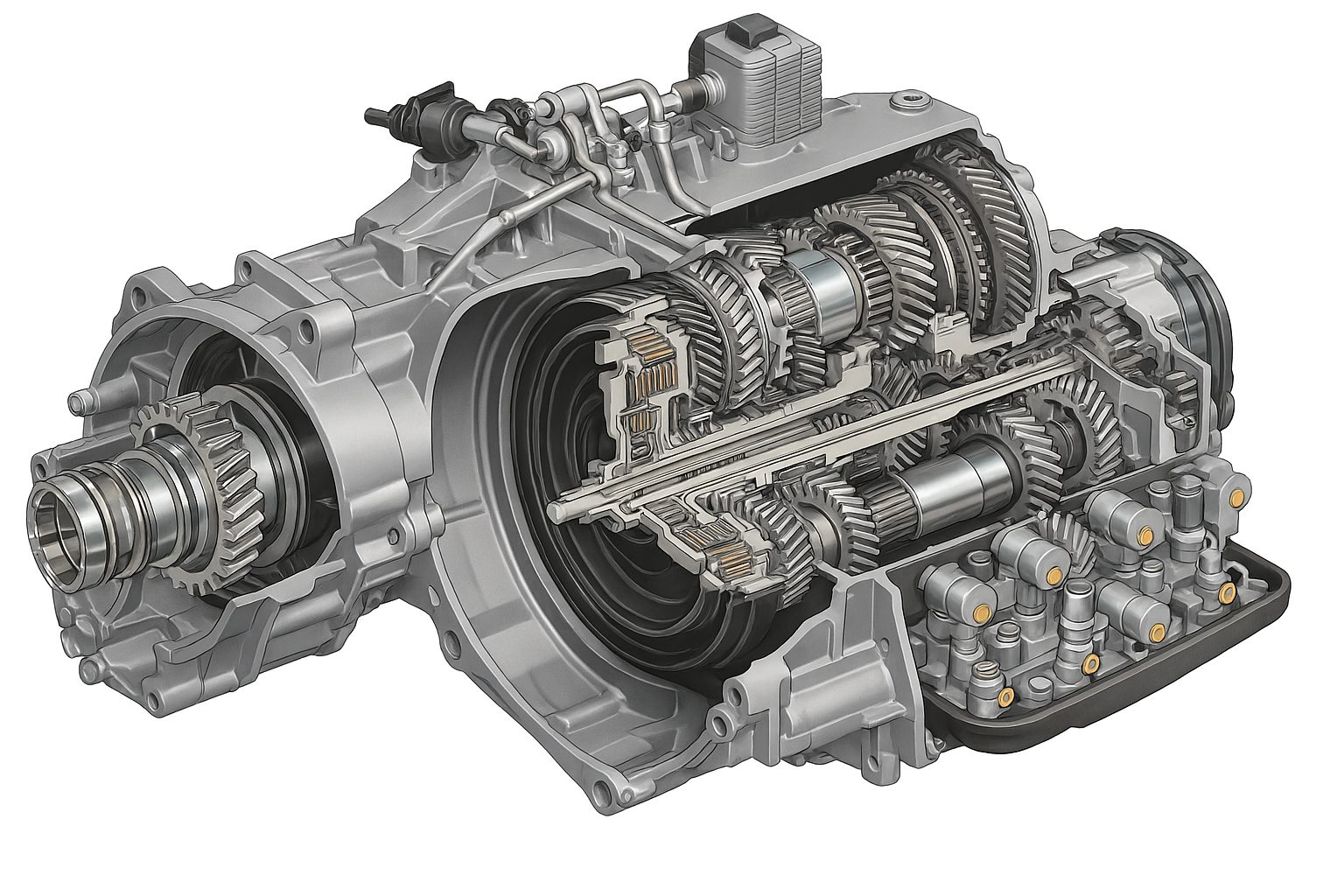

Volkswagen Audi Group DSG transmissions are built around two separate input shafts, each linked to its own clutch. One shaft carries odd gears (1, 3, 5) while the second carries even gears (2, 4, 6). This layout allows the system to pre-select the next gear before a shift takes place.
Although the gearbox looks similar to a manual transmission externally, the internals differ significantly:
This clutch-to-clutch changeover produces the rapid shift that DSG is known for. There is no torque interruption because one clutch hands off to the other at the precise moment of change.
Why the Oil Pressure Reservoir Must Be Drained
When the mechatronics unit is removed, stored hydraulic pressure can eject:
This can cause irreversible damage and may contaminate the gearbox with internal fragments. Depressurising the reservoir is essential during:
The new software function ensures this can be completed safely and consistently.
Security Link and Secure Gateway Vehicles
Vehicle manufacturers are increasingly protecting critical vehicle systems from unauthorised access and cyber threats by securing them behind electronic gateways. These secure gateways restrict access to vital modules and functions unless the car diagnostic tool is properly authenticated.
Snap-on works in partnership with vehicle manufacturers to provide authorised access to OEM-secured modules through Snap-on Security Link™. This integrated solution manages the authentication process between the technician, the diagnostic platform, and the manufacturer, allowing approved OEM functions to be performed on protected vehicles.
For VAG vehicles equipped with a secure gateway, Security Link access may be required to carry out DSG-related Special Functions, including oil pressure reservoir draining and post-repair adaptations. Without authenticated access, these essential procedures may be restricted.
Keeping your Snap-on Diagnostic Software up to date ensures continued access to secured vehicles and uninterrupted use of manufacturer-approved functions.
VAG Drain Oil Pressure Reservoir – DSG
You can now carry out pressure release via the Special Functions menu on compatible VAG models.
Before performing this procedure:
The system is under pressure: Deactivate the ATF pump and drain the hydraulic pressure reservoir before removing the Mechatronic
Operational procedure:
From the vehicle system menu select:
Once pressure is removed, the unit can be disassembled without risk of component ejection.
Don’t Skip This Procedure
Use the pressure release function whenever performing:
Skipping this step can lead to costly part damage.
Service Reset and Relearn Procedures
After completing mechanical work, the following adaptations are essential:
These functions ensure smooth clutch take-up and correct selection after refit.
Conclusion
DSG transmissions combine dual clutches, hydraulic control and a pressurised accumulator to deliver seamless gear shifts. However, this same pressure can cause mechanical damage if the mechatronics unit is removed without releasing it first.
With the new Snap-on Special Function for draining the oil pressure reservoir, technicians can now carry out this essential step safely, confidently and without the need for an OEM tool. Completing the correct relearn procedures afterwards ensures smooth operation, dependable drivability and a professional finish to every repair.
Out-of-date diagnostic software can limit your coverage, restrict access to secure gateway vehicles, and prevent you fully benefiting from the exclusive functionality your tool has to offer. Each Snap-on software release adds new capability and expanded vehicle coverage — including the latest DSG special functions — so you can complete transmission repairs with confidence.
Explore the Software Features Guide and see how keeping your diagnostic platform up to date enhances capability, efficiency and your confidence in every repair.
Training resources available directly in the car diagnostic tool

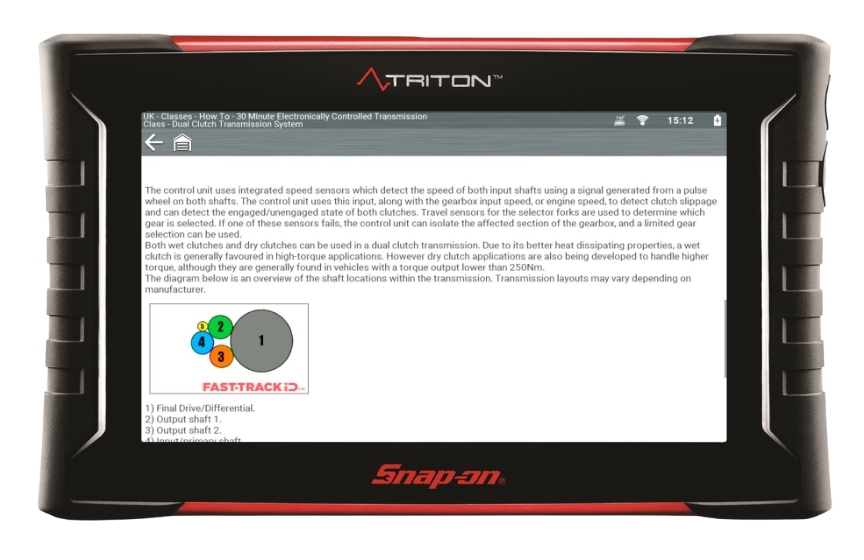

Did you know Fast-Track® Guided Component Tests come with built-in training classes? This exclusive feature transforms your diagnostic platform into an on-demand learning hub.
Exclusively available on MODIS®, TRITON™, ZEUS® & Vantage® platforms with current software.
Navigate to the Top Level Menus to access a dedicated library of practical “how-to” classes covering real-world topics, including:
…and many more!
