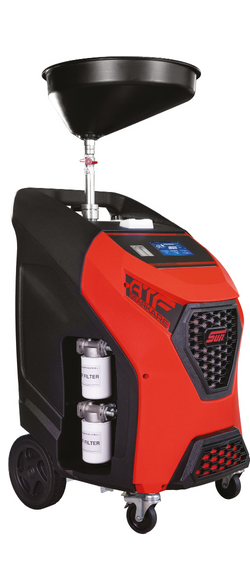

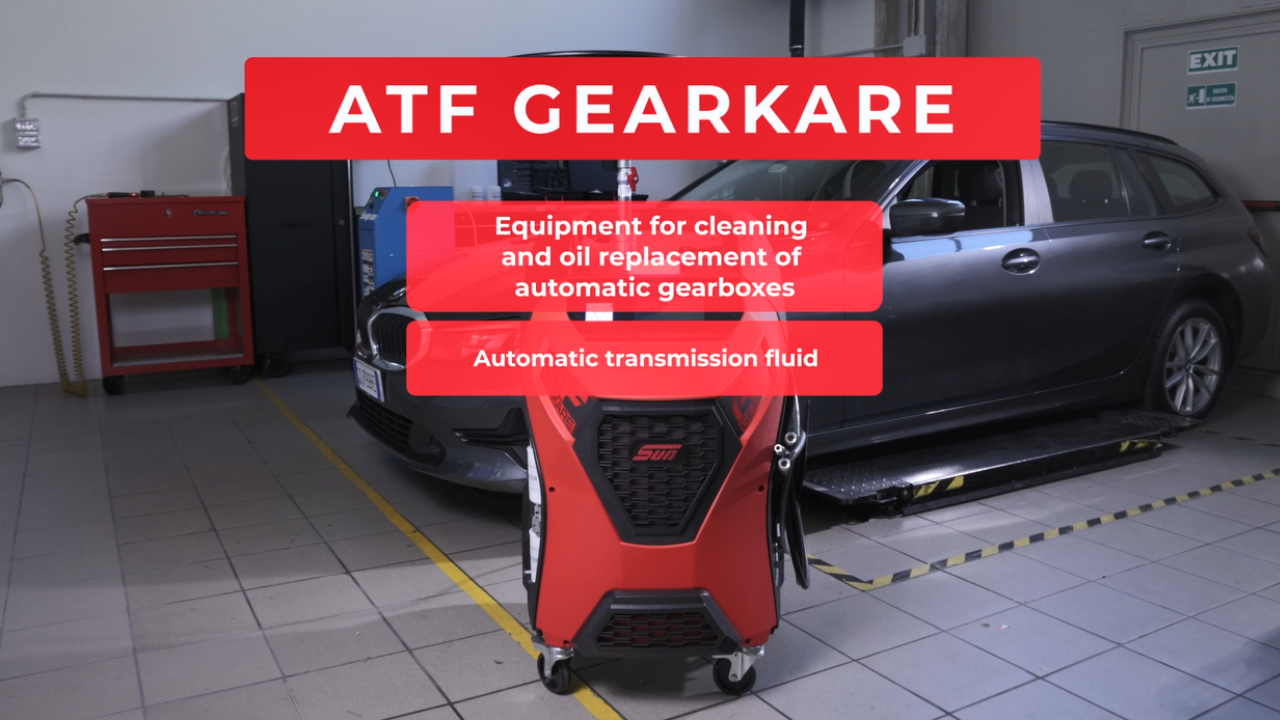

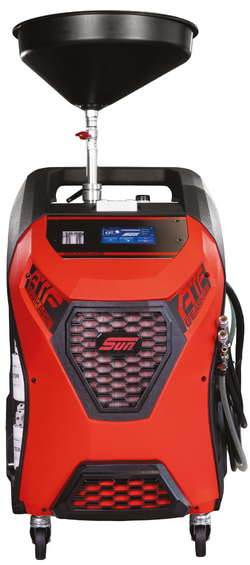

ATF GearKare

Model: EETF105A

The SUN® ATF GearKare is designed for workshops specialising in automatic transmission servicing. It ensures efficient transmission fluid exchange, helping to maintain gearbox performance and longevity. Regular fluid changes prevent contamination, reduce wear, and preserve transmission integrity. The ATF GearKare restores smooth gear shifts, improves fuel economy, and enhances transmission lifespan, offering high performance and reliability.

Open AllClose All

Specifications

App smartphoneWi-FiBowl for Carter Oil RecoveryProvided - SMART DRIP SystemCertificationsCECross-ContaminationCompletely PreventedDatabaseDisplays Accurate Positioning of ConnectionsDetection of Flow DirectionAutomaticDimensions72 x 73 x 108 cm, 80 kgDimensions with packaging76 x 70 x 137 cm, 95 kgDisplayTouchscreen 7inLanguages27 LanguagesNew and Used Oil Scale Resolution5 gr, load cellNew Oil ContainerRemovable Plastic Canister, 20 LitersOil Cleaner Additive Containers2 LitersOil Cleaner Additive InjectionAutomaticOil Cleaner Additive Scale Resolution5 gr, load cellOil Filtering2x Ultra-Fine FiltersOil Quality IndicatorBy Transparent Illuminated TubesPipe for Emptying Used Oil1,5 MetersPumpHigh Flow Rate Pump (up to 9 Liters per Minute)Power Cord CableLocking Plug as StandardSelf-PrimingIntroduce new oil type after flushing out residue of previously-used oil typeService Pipes2x 3 MetersSoftware UpdateUSB Flash DriveThermal PrintingStandardTop-upFrom 1 Liter Bottle or CanisterType of ServiceAutomaticUsed Oil ContainerFixed Container, 25 LitersUsed Oil Emptying ValveManualUsed Oil Tank EmptyingWith compressed air, easy emptyingValves for Oil ChangeAutomaticVoltage230Vac, 50/60 HzWi-FiStandardWorking Ambient Temperature Range5 - 55 °C / 10-95% humidity

Features

High-quality adapters, suitable for professional use, come as standard, alongside a wide range of fittings for added convenience

Adapters & Fittings

Perform automatic gearbox maintenance through a simple, reliable, and automated process.

Automated Gearbox Maintenance

By starting the vehicle engine with the ATF GEARKARE connected to the gearbox, the two ultra-fine filters clean the circulating oil, removing all contaminants.

Automated Oil Replacement

Customisable memory for frequently accessed codes and features.

Customisable Memory

Always visible on display.

Digital Pressure Measurement

A scale for the cleaner provides the highest accuracy and precision compared to other systems. Using a scale avoids the risk of the pump sucking in air while injecting additives and removes the constant need to purge the pump.

High Accuracy Scale

Ensures up to 9 litres of oil per minute for efficient fluid exchange.

High-Flow Gear Pump

With strategically placed compact valves and anti-pressure drop measures optimises performance. Generous diameters and smooth oil flow passages eliminate pressure drops, increasing fluid flow speed and consistency.

High-Performance Manifold

Over time, expect improved fuel economy, enhanced transmission longevity, and increased reliability, all while maintaining high performance.

Improved Oil Maintenance

Designed to accommodate various sizes and multiple brands. Used oil is discharged using compressed air—clean, fast, and simple, with no pump, maintenance, or tank removal required.

Improved Oil Tank DesignOil Temperature Monitoring

Engineered to prevent contamination between new and used oil, this system guarantees optimal fluid replacement.

Optimal Fluid Replacement

Replaceable ultra-fine filters offer complete protection to all internal components, ensuring the longevity and reliability of the ATF GEARKARE station.

Replaceable Filters

Offers a quick, safe, and clean method for handling used fluid. The recovered oil is automatically weighed, and the adjustable drain pan adapts to various gearboxes with its asymmetrical design.

SMART-DRAIN System

The automatic and intuitive software guides technicians through the cleaning, oil replacement, and pan and/or filter substitution processes. The engine does not need to be running during critical stages, and the navigation remains simple and user-friendly.

Software - Automatic & Intuitive

Integrated thermal printer provides full service report.

Thermal PrinterTwo Temperatures For Oil (39°C or 20°C)

Supported by an extensive online database, updatable via Wi-Fi, provides oil specifications, connection points, and more.

User- Friendly Interface

Database included; provides oil type and the position of connection points online or on-screen via Wi-Fi.

Wi-Fi Enabled Database

Resource Centre

ATF GearKare Brochure
