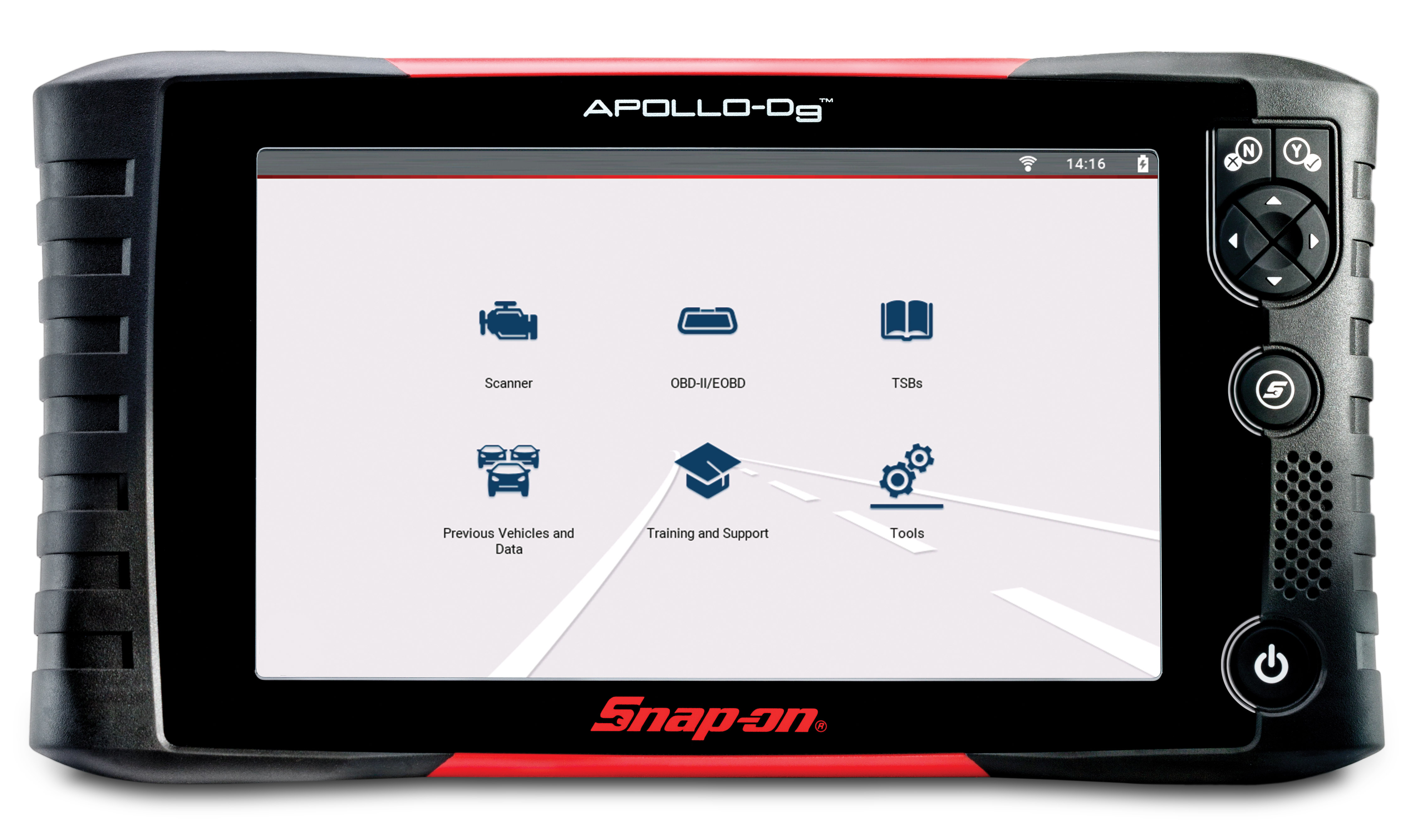

APOLLO-D9

Model: EESC335W

The APOLLO-D₉ provides the information and resources you need to get the job done. It even gives you access to Fast-Track® Intelligent Diagnostics from Snap-on — for filtered codes and vehicle-specific data to help you find the right fix, fast. No more hunting through forums or endlessly searching to find the right answers. No more wondering which fix is the right one for the job at hand.

Everything you need, and nothing you don’t. For that specific issue on that specific vehicle. All right there, when and where you need it.

* Access to Fast-Track® Intelligent Diagnostics software requires an applicable software agreement.

Open AllClose All

Specifications

Here are the numbers

Access to Intelligent DiagnositcsAvailable on APOLLO-D9BatteryRemovable, Rechargeable, Lithium-ion batteryBoot up SpeedLess than 10 second boot upDepth1.6in (40.3mm)Display resolution1024px x 600pxDisplay size9 inchDisplay typeResistive, daylight-readable LCD touchscreen, colorHeight6.4in (162mm)Live Data GraphingSelective display of 1, 2 or 4 graphsNavigation4-way keypadOBD-IIAll 10 modes of Global OBD-IIOperating SystemEmbedded SMX®Scan ModuleIntegratedUSB PortPC connectivityWeight2.6lb (1.18kg)Width11.8in (299mm)Wi-FiWi-Fi Capable

What Is It used For

How can APOLLO-D9 help you?

Driveability Issues

Resets vehicle maintenance indicator

Maintenance ResetsMulti-Code ProblemsPulling Simple Codes

Remove and Replace Components

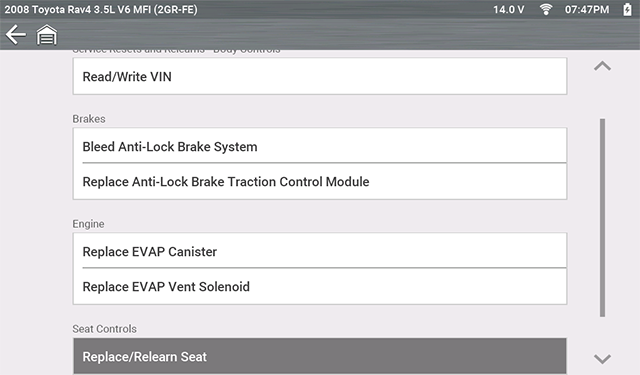

R&R ComponentsRelearns

Reads tire pressure monitoring system

TPMS

Software

DIAGNOSTIC SOFTWARE THAT CONQUERS EVERY QUESTION

Snap-on is in touch with your needs. We develop revolutionary car diagnostics products and repair information solutions to repeatedly redefine car diagnostics. A Snap-on diagnostic tool is always ready to serve with unparalleled general and collision repair coverage. Vehicle coverage, plus the features that super charge it, are key to keeping tools as good as the day you bought it to make sure you can see anything that pulls into your bay.

New Coverage Highlights

Transfer Case Special Functions including: Automatic Clutch Calibration, High/Low Range Position Sensor Replacement, Transfer Case Oil Replacement

2017+ Range Rover® & Range Rover Sport® added2025 Code Scan & Clear - All MakesAlfa Romeo® Stelvio® 2017+ Particle Matter Replacement Special Function

Audi® A3 2012-2020 1.4L Petrol, Audi® A6® 1997-20052.4L Petrol, Audi® A6 2014-2018 3.0L Diesel

Audi® Guided Component Tests Added for:BMW® 2015-2019 F30 (3-Series) 330e – High Voltage Battery Health Check

All affected models Ignition Rumble Misfire Reset Special Function added to the Engine Module

Citroen® 2013-2026

2018-2024 Berlingo 1.5L Diesel

Citroen® Guided Component Tests Added for:Dacia® 2023+ Jogger® 1.6L Hybrid Engine addedEV and ADAS coverage included as Snap-on standard.Fiat® Ducato® 2019 AdBlue ECU added with Codes, Data. Special Functions & Functional Tests

Kuga® 2019-2024 1.5L Diesel, Kuga® 2019-2014 1.5L Petrol, Mondeo® 2001-2007 2.5L Petrol, Transit Connect® 2005-2014 1.8L Diesel

Ford® Guided Componenet Tests Added for:

2021+ All Affected Models: Special Functions added to the ABS module to replace the ESC Variant Coding

Hyundai® Special Functions Added:

2020+ All affected Models: Selective Catalytic Reduction Special Functions and Reset added

Kia® Special Functions Added:

A200® 2018-2024 1.3L Petrol, B180® 2005-2011 2.0L Diesel, E220® 2016-2024 2.0L Diesel, E350® 2004-2010 3.5L Petrol, C230® 2002-2008 1.8L Petrol

Mercedes-Benz® Guided Componenet Tests added for:Mercedes-Benz® New Transmission Variants added to all models®

Added to R52® 2000-2006

MINI® Electrohydraulic Power Steering Control Module

Customisation and Write Learned Values for Multi Around Vision System

Mitsubishi® 2017+ Outlander L200®, Eclipse Cross®

BMW®, Citroen®, DACIA®, Ford®, Fuso®, Honda®, Iveco®, Jaguar®, Mercedes-Benz®, MINI®, Mitsubishi®, Vauxhall®/Opel®, Peugeot®, Renault®, Suzuki®

New Models Including

2013-2019 X-Trail® including: Adaptive Frontal Lighting System, System Object Detection, Chassis Control

Nissan® New Systems added to:

2013-2021 Qashqai® 1.3L Dig Turbo added Special Functions including: Engine Adaptive, Oil Change for Oxidation, Oil for Dilution, GPF Filter Regeneration

Nissan® Special Functions Added for:Peugeot® 2013-2022 All Affected Models: Ignition Rumble Misfire Reset Special Function added to the Engine ModulePeugeot® 5008® 2017+ Crash Data Reactivation Special Function added to the BSI

Captur® date ranging from 2013-2024 1.5L Diesel & Espace® 2015-2024 1.6L Diesel

Renault® Guided Componenent Tests Added for:Seat® 2022+ Leon® New 2.0L TSI Engine added

2013-2021 Octavia® 2.0L Diesel

Skoda® Guided Component Tests added for:Subaru® 2004-2010 Justy® Electro-mechanical Power Steering and Immobiliser System addedSubaru® 2020+ Outback® Electronic Brake Booster System addedSuzuki® 2022+ All Affected Models: Special Function Verification Test for Brake Pipes and Hydraulic Unit added to the ABS Module

Guided Component Tests for the Model S 2012-2022 and Model X 2015-2022 include: ABS Module, Brake Fluid Level Switch, Brake Pedal Switch, Electric Brake Booster, Electronic Parking Brake Actuator, iBoost Pedal Sensor, Wheel Speed Sensor

Tesla® Guided Componenet Tests added for:Toyota® Proace® 2016+ Diesel Particulate Filter Resets Special Function and additional DataVauxhall® Updated Core Systems- Engine, Transmission, ABS and Airbag to: 2016+ Crossland®, 2016-2021 Grandland X®

Activate Fuel Pump, Adapt DPF Adaptation Values, Adapt Injector Quantity Values, Diesel Particle Filter, Reset Engine Regulation Adaption Values

Volkswagen® 2010-2018 Touareg® 4.2L TDI engine Special Functions include:

Vehicle Gateway Module, Lounge Console Power Module, Accessory’s Gateway Unit, Telematics and Connectivity Antenna Module , Exterior Sound Module Reverse for Hybrid vehicles

Volvo® XC90®2015+ added Sub Systems, Codes, Data and applicable functional tests including:New Features and Enhancements

Visit snapon.com/securitylink/uk for details

NEW Mercedes-Benz® CeBAS Secure Gateway access added!

Toggle between English and 7 different languages on Snap-on Cloud and Altus Drive

New Snap-on® Cloud multilingual supportSoftware OptionsOutright PurchaseSubscription

Features

Here is the good news

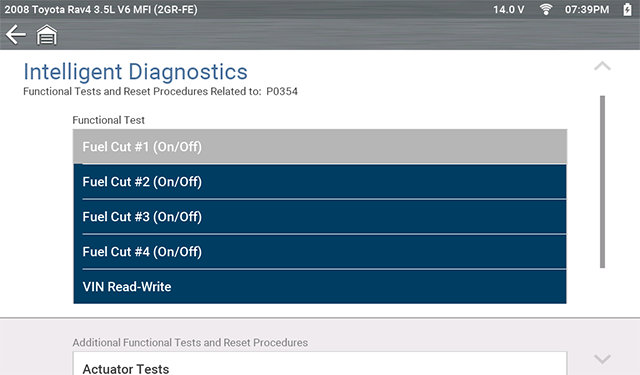

Intelligent Diagnostics provides you with the fastest path to complete the job.

What makes it unique is that it anticipates your next move and guides you through every step to find the solution by displaying only information relevant to the specific vehicle and fault code.

Not only is Intelligent Diagnostics comprehensive enough to provide all the diagnostic and repair tips you need, it's also smart enough to skip the ones you don't.

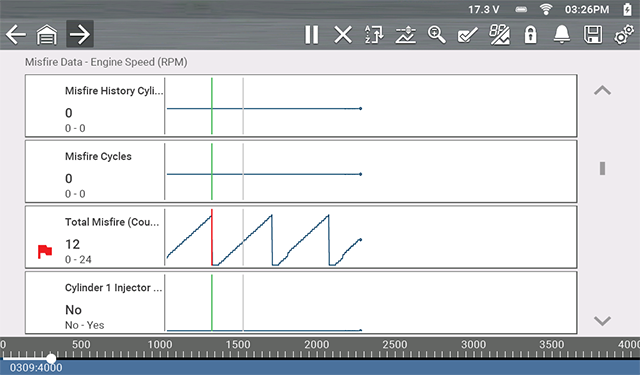

'Smart Data' from Intelligent Diagnostics automatically configures the display on your applicable platform to show vehicle data parameters (PID) relevant to the fault code, while non-related data parameters are filtered out to save you time.

It also highlights vehicle data that is out of expected range.

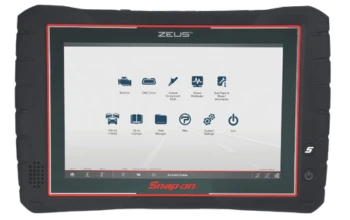

Access to Intelligent Diagnostics is available on the Snap-on ZEUS^®, TRITON-D8^® and APOLLO-D8™ platforms and requires an applicable software agreement, which more than pays for itself through its depth of information and time savings.

Not sure which of our Intelligent Diagnostics products best suits you? Fill in this short form and get a recommendation tailored to your needs.

*Access to Intelligent Diagnostics software requires an applicable software agreement.

Snap-on Intelligent Diagnostics SoftwareFast-Track Intelligent Diagnostics: SureTrack common replaced parts and real fixes for the specific vehicle and DTC¹Fast-Track Intelligent Diagnostics: Smart Data automatically configures the display to show vehicle data parameters (PIDs) relevant to the fault code. Non-related parameters are filtered out to save you time¹Fast-Track Intelligent Diagnostics: Reset procedures to complete the repair after component replacement. Only those that pertain to that fault code are shown¹

SureTrack - recognised in 2019 with a Queen's Award for Enterprise in the Innovation category - brings together a unique combination of intelligence and expertise to help auto repair technicians of any experience level increase accuracy and efficiency from diagnosis to a completed repair.

The industry's most comprehensive source of expert knowledge for professional technicians, SureTrack combines real-world insights with repair time-savers and detailed parts replacement records.

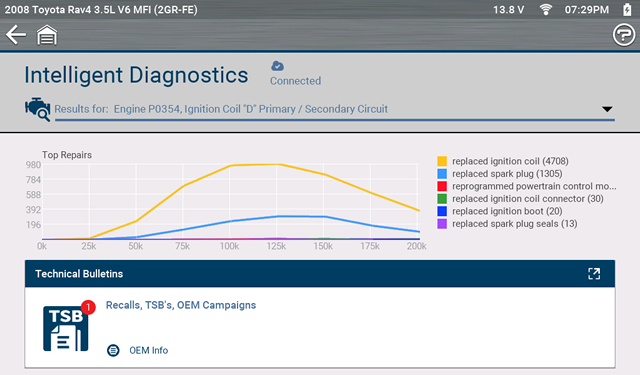

Build a diagnostic strategy with Real Fixes, Top Repairs, Causes and Fixes and more to reduce diagnostic time and increase accuracy.

Find out more about SureTrack and the exclusive benefits it can bring to your workshop.

SureTrack expert information and verified parts replacement records for a confident diagnosis

Snap-on diagnostic tools are known the world over for great performance, rock-solid construction and intuitive design, along with instant access to online and in person training solutions.

But what makes them the best in the industry is what we put into them, both when they're built and over the life of every tool.

Ensuring your software is up to date means that your tool is always ready for the next job that comes into the garage.

Take a look at what's new in the latest diagnostic software upgrade from Snap-on and find out everything it can do for you and your business, while also discovering how you can save money with a Software Subscription Plan.

In-depth diagnostic software and subscription plansLinks to the Snap-on cloud via altusdrive.comUnique, steady-charge lithium-ion battery system charges automatically from the vehicleScan for vehicle fault codes / diagnostic trouble codes (DTCs)Large 8in display for better readability and greater ease of useEmbedded SMX® Operating System dedicated to diagnostic functions for fast, reliable operationAbility to record all available live data parameters and graph any four on screen at onceCustomisable to work the way you do - custom data lists, freeze-frame, vehicle data parameter ID (PID) sorting, pause, zoom, PID trigger, snapshot and cursor functionsHigh-capacity microSD-card contains diagnostic software and stores your data filesDetailed trouble code definitions, live data, functional tests, relearns and adaptationsOne-Touch Full Vehicle Code Scan & Clear quickly checks and clears codes for all available modules on the vehicleUSB port for PC connectivity: save, print and share using ShopStream Connect™ softwareAdaptationsAdjustable Graph ScaleAutomotive Coverage as far back as 1983 model yearAutomotive Coverage for nearly 40 manufacturersBasic Software Upgrade: 6 months of current manufacturer coverage, plus built-in SureTrack®Bi-directional Controls

Plug and play feature automatically powers up when connected to vehicle

Boot up - automatically powers up when connected to vehicleBoots up in just 5 seconds

Unique, steady-charge lithium-ion battery technology charges automatically from the vehicle

Charging SystemCursor FunctionsCustom Data Lists

High-capacity microSD™ card contains the diagnostic software and stores your data files

Data StorageDisplay - large, for better readability and greater ease of useEthernet Support is available for applicable Jaguar, Land Rover and Volvo models with Ethernet Adapter

Auto ID using Mode 9 VIN

Instant IdInstant Screen Shots with Hotkey

Ability to record all available live data parameters and graph any four on screen at once. View up to eight data parameters in text mode; Display up to seven live data points in digital mode; Record all available data parameters in the background. Pause and Playback.

Live Data Graphing (Scanner and/or Scope)

High-capacity microSD™ card contains the diagnostic software and stores your data files

MicroSD™ CardNavigate with touchscreen or 4-way keypad

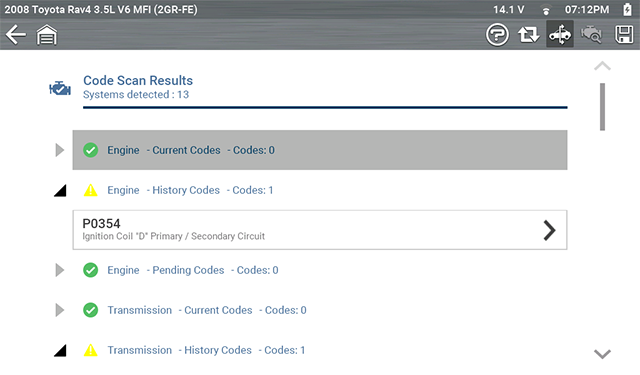

One-Touch Full Vehicle Code Scan & Clear quickly checks and clears codes for all available modules on the vehicle.

One-Touch Code Scan and ClearOnline Software Update via ShopStream ConnectOver-Air Automatic Software Update

Records All PIDS While On or Off Screen

PID RecordingPID SortingPID Trigger (a Snap-on exclusive)Quick Lookups with Wi-Fi and current softwareSecure Vehicle Gateway™

With current software use the Snap-on® Cloud for up-to-the-second online storage.

Snap-on® Cloud³Software Status Icon lets you know you are on the latest softwareSoftware Subscription: Continuous software upgrades supply domestic, Asian and optional European coverage. Fast-Track Intelligent Diagnostics-enabled products receive complete data services for one year.

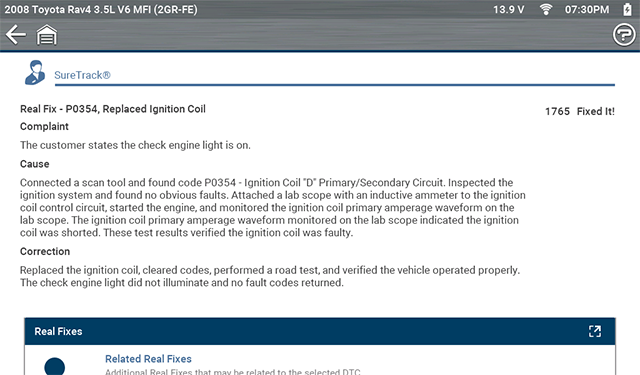

Integrated expert information on the tool with a current Snap-on software upgrade. Simply connect the diagnostic platform to Wi-Fi to get Real Fixes and verified parts replacement records harvested from millions of actual repair orders.

SureTrack® Expert Information²Thin and light designTrouble Code Definitions

Icon-based navigation for fast operation

User Interface

Shortcut key for popular functions

User-programmable function key

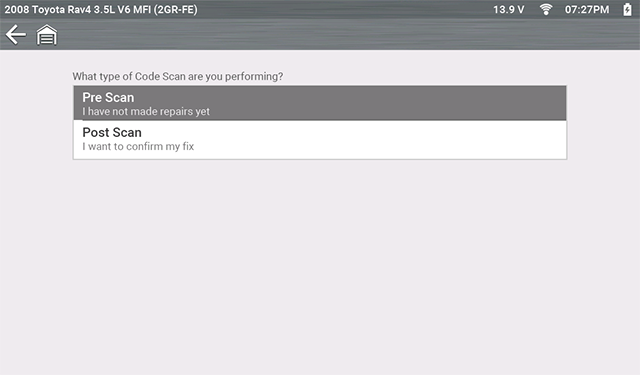

Pre-/Post-Scan Vehicle System Report Of Diagnostic Results

Vehicle System ReportsWi-Fi enabledWi-Fi status icon confirms you're connected

With the wireless connectivity option between the roller chassis control box and the PC you have the flexibility to place your PC/display in the most convenient place in the workshop for testing (within the required range)

Wireless connectivityWireless Scanner

Scalable X-axis for live data graph

Zoom

Resource Centre

Look here for the APOLLO-D9 User Manual, other helpful documents and Training

APOLLO-D9 User Manual
