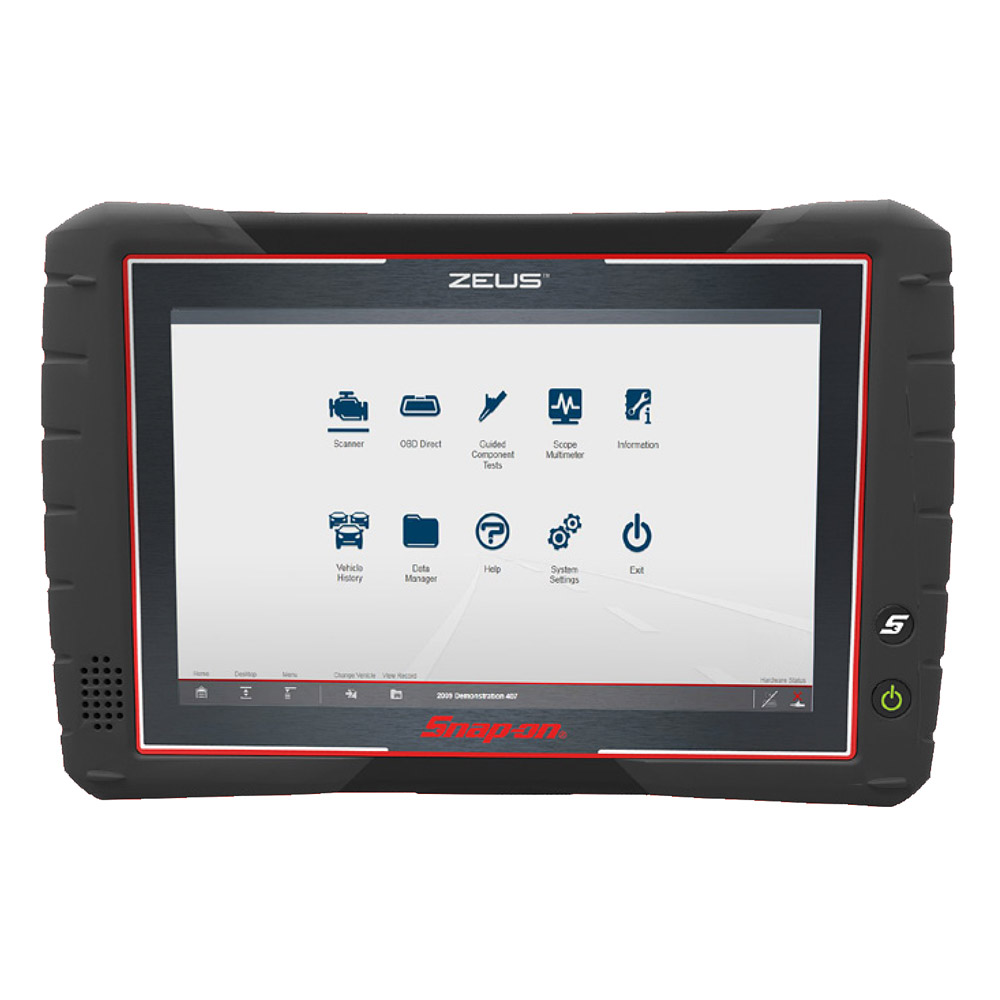

ZEUS

Model: EEMS342W

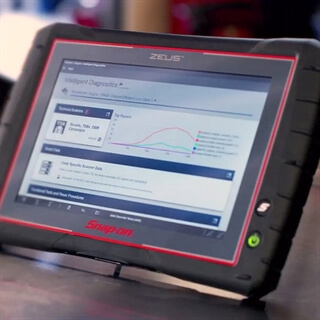

Target the issue by focusing on the detail you need for the specific fault code and vehicle with Snap-on Intelligent Diagnostics software live on ZEUS™.

The first tool to feature Intelligent Diagnostics*, ZEUS provides all the functions and repair tips you need to diagnose, repair and manage any issue.

But unlike any tool before, it practically anticipates your next move by guiding you through every step you need to find the solution, while avoiding the steps you don’t by displaying only information relevant to the specific vehicle and fault code.

From Technical Service Bulletins and scanner Smart Data to SureTrack™ Expert Information, ZEUS is the most sophisticated, intuitive shop management tool we've ever created.

*Access to Intelligent Diagnostics software requires an applicable software agreement.

ZEUS Scan Tool With Intelligent Diagnostics From Snap-on

Open AllClose All

Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Access to Intelligent DiagnositcsAvailable on ZEUSBatteryRemovable, Rechargeable, Lithium-ion batteryBoot up SpeedLess than 10 second boot up from Ready ModeBuilt-in CameraSave and share photosDepth2in (51mm)Display resolution1280px x 800pxDisplay size10in (254mm)Display typeResistive, daylight-readable LCD touchscreen, colorHeight6.3in (160mm)Lab Scope / Meter4-channelBandwidth 3MHz bandwidthSample Rate: 6 megasamples/secondScale range 0-100mV to 0-400V, 50kV secondary ignitionSweep rate 50 microseconds to 20 seconds (5 min in GMM mode)Live Data Graphing16 graphNavigation4-way keypadTouchscreenOBD-IIAll 10 modes of Global OBD-IIOperating SystemEmbedded Windows® 10Scan ModuleWirelessUSB PortPC connectivityWeb browserChromeWeight4.4lb (2kg)Width12.4in (31mm)Wi-FiWi-Fi Capable

Software

New Coverage Highlights

Transfer Case Special Functions including: Automatic Clutch Calibration, High/Low Range Position Sensor Replacement, Transfer Case Oil Replacement

2017+ Range Rover® & Range Rover Sport® added2025 Code Scan & Clear - All MakesAlfa Romeo® Stelvio® 2017+ Particle Matter Replacement Special Function

Audi® A3 2012-2020 1.4L Petrol, Audi® A6® 1997-20052.4L Petrol, Audi® A6 2014-2018 3.0L Diesel

Audi® Guided Component Tests Added for:BMW® 2015-2019 F30 (3-Series) 330e – High Voltage Battery Health Check

All affected models Ignition Rumble Misfire Reset Special Function added to the Engine Module

Citroen® 2013-2034

2018-2024 Berlingo 1.5L Diesel

Citroen® Guided Component Tests Added for:Citroen® C5 2.0L T-Diesel 2004-2024 Guided Component Tests addedDacia® 2023+ Jogger® 1.6L Hybrid Engine addedEV and ADAS coverage included as Snap-on standard.Fiat® Ducato® 2019 AdBlue ECU added with Codes, Data. Special Functions & Functional Tests

Kuga® 2019-2024 1.5L Diesel, Kuga® 2019-2014 1.5L Petrol, Mondeo® 2001-2007 2.5L Petrol, Transit Connect® 2005-2014 1.8L Diesel

Ford® Guided Componenet Tests Added for:

Added to 2012-2020 Focus® 1.0L, 2011-2014 Ranger 3.2L TDCi, 2015-2024 Transit Connect® 1.5L

Ford® NEW Guided Component Engine TestsHyundai® IQ® 20091.0L Petrol Guided Component Tests added

2021+ All Affected Models: Special Functions added to the ABS module to replace the ESC Variant Coding

Hyundai® Special Functions Added:Jaguar® F-Pace® 2.0L Diesel 2015-2024 Guided Component Tests added

2020+ All affected Models: Selective Catalytic Reduction Special Functions and Reset added

Kia® Special Functions Added:

A200® 2018-2024 1.3L Petrol, B180® 2005-2011 2.0L Diesel, E220® 2016-2024 2.0L Diesel, E350® 2004-2010 3.5L Petrol, C230® 2002-2008 1.8L Petrol

Mercedes-Benz® Guided Componenet Tests added for:Mercedes-Benz® New Transmission Variants added to all models®

Added to R52® 2000-2006

MINI® Electrohydraulic Power Steering Control Module

Customisation and Write Learned Values for Multi Around Vision System

Mitsubishi® 2017+ Outlander L200®, Eclipse Cross®

BMW®, Citroen®, DACIA®, Ford®, Fuso®, Honda®, Iveco®, Jaguar®, Mercedes-Benz®, MINI®, Mitsubishi®, Vauxhall®/Opel®, Peugeot®, Renault®, Suzuki®

New Models Including

2013-2019 X-Trail® including: Adaptive Frontal Lighting System, System Object Detection, Chassis Control

Nissan® New Systems added to:Nissan® NEW Guided Component Tests for 2014-2024 X-Trail®

2013-2021 Qashqai® 1.3L Dig Turbo added Special Functions including: Engine Adaptive, Oil Change for Oxidation, Oil for Dilution, GPF Filter Regeneration

Nissan® Special Functions Added for:

Captur® date ranging from 2013-2024 1.5L Diesel & Espace® 2015-2024 1.6L Diesel

Renault® Guided Componenent Tests Added for:Seat® 2022+ Leon® New 2.0L TSI Engine added

2013-2021 Octavia® 2.0L Diesel

Skoda® Guided Component Tests added for:

Added for 2014-2024 Corsa-E® 1.2L 16v, 2017-2024 Grandland X 1.2L SIDi

Vauxhall® NEW Engine Guided Component Tests

For 2015-2024 Caddy® 2.0L TDi, Various Golf Models ranging from 2008-2021, 2009-2015 Transporter® 2.0L Diesel and 2015-2024 2.0L TDi, 2017-2020 T-Roc® 1.0L Petrol

Volkswagen® New Engine Guided Component Tests

Added to 2013-2021 Golf®, 2008-2018 Tiguan®, 2010-2018 Touareg®, 2012-2019 Beetle®

Volkswagen® Battery Energy Control ModuleNew Features and EnhancementsBluetooth Notification Messaging

Visit snapon.com/securitylink/uk for details

NEW Mercedes-Benz® CeBAS Secure Gateway access added!

Toggle between English and 7 different languages on Snap-on Cloud and Altus Drive

New Snap-on® Cloud multilingual support

Allows you to add a device to your technician profile

On Device Profile AssociationSoftware OptionsOutright PurchaseSubscription

Features

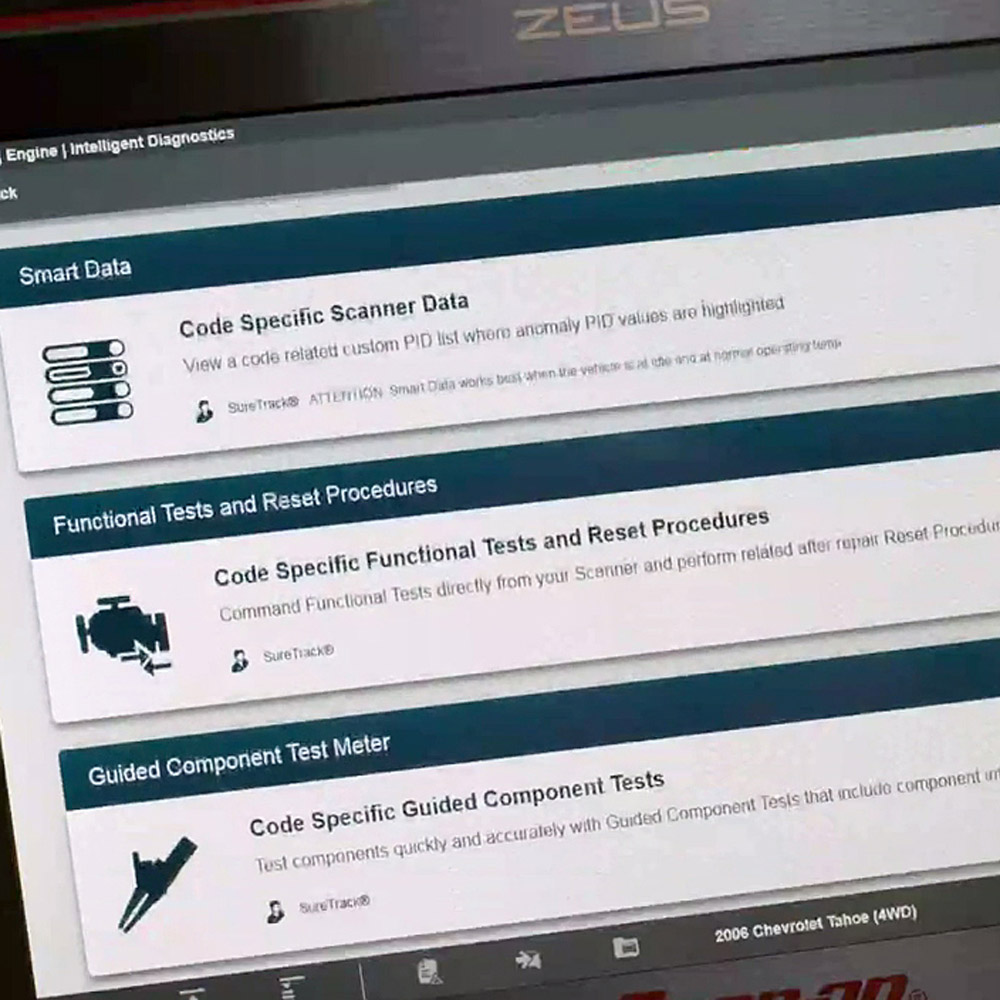

Fast-Track Intelligent Diagnostics: SureTrack common replaced parts and real fixes for the specific vehicle and DTC¹Fast-Track Intelligent Diagnostics: Smart Data automatically configures the display to show vehicle data parameters (PIDs) relevant to the fault code. Non-related parameters are filtered out to save you time¹Fast-Track Intelligent Diagnostics: Reset procedures to complete the repair after component replacement. Only those that pertain to that fault code are shown¹Boots from cold in about a minute; powers up in Ready Mode in just five secondsFast-Track Troubleshooter database includes vehicle-specific tips, tests, and timesavers

A companion to the Pre- and Post-scan Reports.< /br> Now document recalibration completion for one or many systems

ADAS Recalibration ReportAdjustable Graph Scale

Automatic ID reads the VIN so you don't have to

Auto-IDAutomotive Coverage for nearly 40 manufacturersBasic Software Upgrade: 6 months of current manufacturer coverage, plus built-in SureTrack®Bi-directional Controls

Illustrated procedures at your fingertips
Time-saving component locator
Best test location guide shows where to connect
Connector diagrams show how to connect
Reference waveforms and test values for a positive pass/fail diagnosis

Fast-Track Guided Component Tests include:

Auto ID using Mode 9 VIN

Instant Id

Ability to record all available live data parameters and graph any four on screen at once. View up to eight data parameters in text mode; Display up to seven live data points in digital mode; Record all available data parameters in the background. Pause and Playback.

Live Data Graphing (Scanner and/or Scope)

One-Touch Full Vehicle Code Scan & Clear quickly checks and clears codes for all available modules on the vehicle.

One-Touch Code Scan and Clear

Records All PIDS While On or Off Screen

PID RecordingPID SortingPID Trigger (a Snap-on exclusive)RelearnsReset Procedures to complete the repair after component replacement

With current software use the Snap-on® Cloud for up-to-the-second online storage.

Snap-on® Cloud³Software Status Icon lets you know you are on the latest softwareWi-Fi enabledWi-Fi status icon confirms you're connectedWireless Printing (via Snap-on Cloud)

Scalable X-axis for live data graph

Zoom
