APOLLO-D8

Model: EESC333

With Fast-Track^® Intelligent Diagnostics* now accessible in this versatile platform, you don't have to be a master tech to perform like one.

The APOLLO-D8 saves time by guiding you directly to the fix and eliminating guesswork.

It also offers the extra assurances of SureTrack™ expert information, 'Smart Data', and quick access to functional tests and resets – within a highly intuitive user interface that's simple to learn and operate.

With the Snap-on APOLLO-D8 you'll have the confidence to tackle more challenges than ever before.

*Access to Intelligent Diagnostics software requires an applicable software agreement.

APOLLO-D8 Scan Tool With Intelligent Diagnostics From Snap-on

Open AllClose All

Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Access to Intelligent DiagnositcsAvailable on APOLLO-D8BatteryRemovable, Rechargeable, Lithium-ion batteryBoot up SpeedLess than 10 second boot upDepth1.6in (40.3mm)Display resolution800px x 480pxDisplay size8in (203mm)Display typeResistive, daylight-readable LCD touchscreen, colorHeight6.3in (160mm)Live Data GraphingSelective display of 1, 2 or 4 graphsNavigation4-way keypadTouchscreenOBD-IIAll 10 modes of Global OBD-IIOperating SystemEmbedded SMX®Scan ModuleIntegratedUSB PortPC connectivityWeight2.65lb (1.2kg)Width11.1in (281mm)Wi-FiWi-Fi Capable

Software

New Coverage Highlights

Transfer Case Special Functions including: Automatic Clutch Calibration, High/Low Range Position Sensor Replacement, Transfer Case Oil Replacement

2017+ Range Rover® & Range Rover Sport® added2025 Code Scan & Clear - All MakesAlfa Romeo® Stelvio® 2017+ Particle Matter Replacement Special Function

Audi® A3 2012-2020 1.4L Petrol, Audi® A6® 1997-20052.4L Petrol, Audi® A6 2014-2018 3.0L Diesel

Audi® Guided Component Tests Added for:BMW® 2015-2019 F30 (3-Series) 330e – High Voltage Battery Health Check

All affected models Ignition Rumble Misfire Reset Special Function added to the Engine Module

Citroen® 2013-2028

2018-2024 Berlingo 1.5L Diesel

Citroen® Guided Component Tests Added for:Dacia® 2023+ Jogger® 1.6L Hybrid Engine addedEV and ADAS coverage included as Snap-on standard.Fiat® Ducato® 2019 AdBlue ECU added with Codes, Data. Special Functions & Functional Tests

Kuga® 2019-2024 1.5L Diesel, Kuga® 2019-2014 1.5L Petrol, Mondeo® 2001-2007 2.5L Petrol, Transit Connect® 2005-2014 1.8L Diesel

Ford® Guided Componenet Tests Added for:

2021+ All Affected Models: Special Functions added to the ABS module to replace the ESC Variant Coding

Hyundai® Special Functions Added:

2020+ All affected Models: Selective Catalytic Reduction Special Functions and Reset added

Kia® Special Functions Added:

A200® 2018-2024 1.3L Petrol, B180® 2005-2011 2.0L Diesel, E220® 2016-2024 2.0L Diesel, E350® 2004-2010 3.5L Petrol, C230® 2002-2008 1.8L Petrol

Mercedes-Benz® Guided Componenet Tests added for:Mercedes-Benz® New Transmission Variants added to all models®

Added to R52® 2000-2006

MINI® Electrohydraulic Power Steering Control Module

Customisation and Write Learned Values for Multi Around Vision System

Mitsubishi® 2017+ Outlander L200®, Eclipse Cross®

BMW®, Citroen®, DACIA®, Ford®, Fuso®, Honda®, Iveco®, Jaguar®, Mercedes-Benz®, MINI®, Mitsubishi®, Vauxhall®/Opel®, Peugeot®, Renault®, Suzuki®

New Models Including

2013-2019 X-Trail® including: Adaptive Frontal Lighting System, System Object Detection, Chassis Control

Nissan® New Systems added to:

2013-2021 Qashqai® 1.3L Dig Turbo added Special Functions including: Engine Adaptive, Oil Change for Oxidation, Oil for Dilution, GPF Filter Regeneration

Nissan® Special Functions Added for:Peugeot® 2013-2022 All Affected Models: Ignition Rumble Misfire Reset Special Function added to the Engine ModulePeugeot® 5008® 2017+ Crash Data Reactivation Special Function added to the BSI

Captur® date ranging from 2013-2024 1.5L Diesel & Espace® 2015-2024 1.6L Diesel

Renault® Guided Componenent Tests Added for:Seat® 2022+ Leon® New 2.0L TSI Engine added

2013-2021 Octavia® 2.0L Diesel

Skoda® Guided Component Tests added for:Subaru® 2004-2010 Justy® Electro-mechanical Power Steering and Immobiliser System addedSubaru® 2020+ Outback® Electronic Brake Booster System addedSuzuki® 2022+ All Affected Models: Special Function Verification Test for Brake Pipes and Hydraulic Unit added to the ABS ModuleSuzuki® Special Function Verification Test for Brake Pipes and Hydraulic Unit added to the ABS Module

Guided Component Tests for the Model S 2012-2022 and Model X 2015-2022 include: ABS Module, Brake Fluid Level Switch, Brake Pedal Switch, Electric Brake Booster, Electronic Parking Brake Actuator, iBoost Pedal Sensor, Wheel Speed Sensor

Tesla® Guided Componenet Tests added for:Toyota® Proace® 2016+ Diesel Particulate Filter Resets Special Function and additional DataVauxhall® Updated Core Systems- Engine, Transmission, ABS and Airbag to: 2016+ Crossland®, 2016-2021 Grandland X®

Activate Fuel Pump, Adapt DPF Adaptation Values, Adapt Injector Quantity Values, Diesel Particle Filter, Reset Engine Regulation Adaption Values

Volkswagen® 2010-2018 Touareg® 4.2L TDI engine Special Functions include:

Vehicle Gateway Module, Lounge Console Power Module, Accessory’s Gateway Unit, Telematics and Connectivity Antenna Module , Exterior Sound Module Reverse for Hybrid vehicles

Volvo® XC90®2015+ added Sub Systems, Codes, Data and applicable functional tests including:New Features and Enhancements

Product training available in English and French

Multilingual Product Training Support

Visit snapon.com/securitylink/uk for details

NEW Mercedes-Benz® CeBAS Secure Gateway access added!

Toggle between English and 7 different languages on Snap-on Cloud and Altus Drive

New Snap-on® Cloud multilingual supportSoftware OptionsOutright PurchaseSubscription

Features

Intelligent Diagnostics provides you with the fastest path to complete the job.

What makes it unique is that it anticipates your next move and guides you through every step to find the solution by displaying only information relevant to the specific vehicle and fault code.

Not only is Intelligent Diagnostics comprehensive enough to provide all the diagnostic and repair tips you need, it's also smart enough to skip the ones you don't.

'Smart Data' from Intelligent Diagnostics automatically configures the display on your applicable platform to show vehicle data parameters (PID) relevant to the fault code, while non-related data parameters are filtered out to save you time.

It also highlights vehicle data that is out of expected range.

Access to Intelligent Diagnostics is available on the Snap-on ZEUS^®, TRITON-D8^® and APOLLO-D8™ platforms and requires an applicable software agreement, which more than pays for itself through its depth of information and time savings.

Not sure which of our Intelligent Diagnostics products best suits you? Fill in this short form and get a recommendation tailored to your needs.

*Access to Intelligent Diagnostics software requires an applicable software agreement.

Snap-on Intelligent Diagnostics Software

SureTrack - recognised in 2019 with a Queen's Award for Enterprise in the Innovation category - brings together a unique combination of intelligence and expertise to help auto repair technicians of any experience level increase accuracy and efficiency from diagnosis to a completed repair.

The industry's most comprehensive source of expert knowledge for professional technicians, SureTrack combines real-world insights with repair time-savers and detailed parts replacement records.

Build a diagnostic strategy with Real Fixes, Top Repairs, Causes and Fixes and more to reduce diagnostic time and increase accuracy.

Find out more about SureTrack and the exclusive benefits it can bring to your workshop.

SureTrack expert information and verified parts replacement records for a confident diagnosis

Snap-on diagnostic tools are known the world over for great performance, rock-solid construction and intuitive design, along with instant access to online and in person training solutions.

But what makes them the best in the industry is what we put into them, both when they're built and over the life of every tool.

Ensuring your software is up to date means that your tool is always ready for the next job that comes into the garage.

Take a look at what's new in the latest diagnostic software upgrade from Snap-on and find out everything it can do for you and your business, while also discovering how you can save money with a Software Subscription Plan.

In-depth diagnostic software and subscription plansLinks to the Snap-on cloud via altusdrive.comUnique, steady-charge lithium-ion battery system charges automatically from the vehicleScan for vehicle fault codes / diagnostic trouble codes (DTCs)Large 8in display for better readability and greater ease of useEmbedded SMX® Operating System dedicated to diagnostic functions for fast, reliable operationAbility to record all available live data parameters and graph any four on screen at onceCustomisable to work the way you do - custom data lists, freeze-frame, vehicle data parameter ID (PID) sorting, pause, zoom, PID trigger, snapshot and cursor functionsHigh-capacity microSD-card contains diagnostic software and stores your data filesDetailed trouble code definitions, live data, functional tests, relearns and adaptationsOne-Touch Full Vehicle Code Scan & Clear quickly checks and clears codes for all available modules on the vehicleUSB port for PC connectivity: save, print and share using ShopStream Connect™ software

Resource Centre

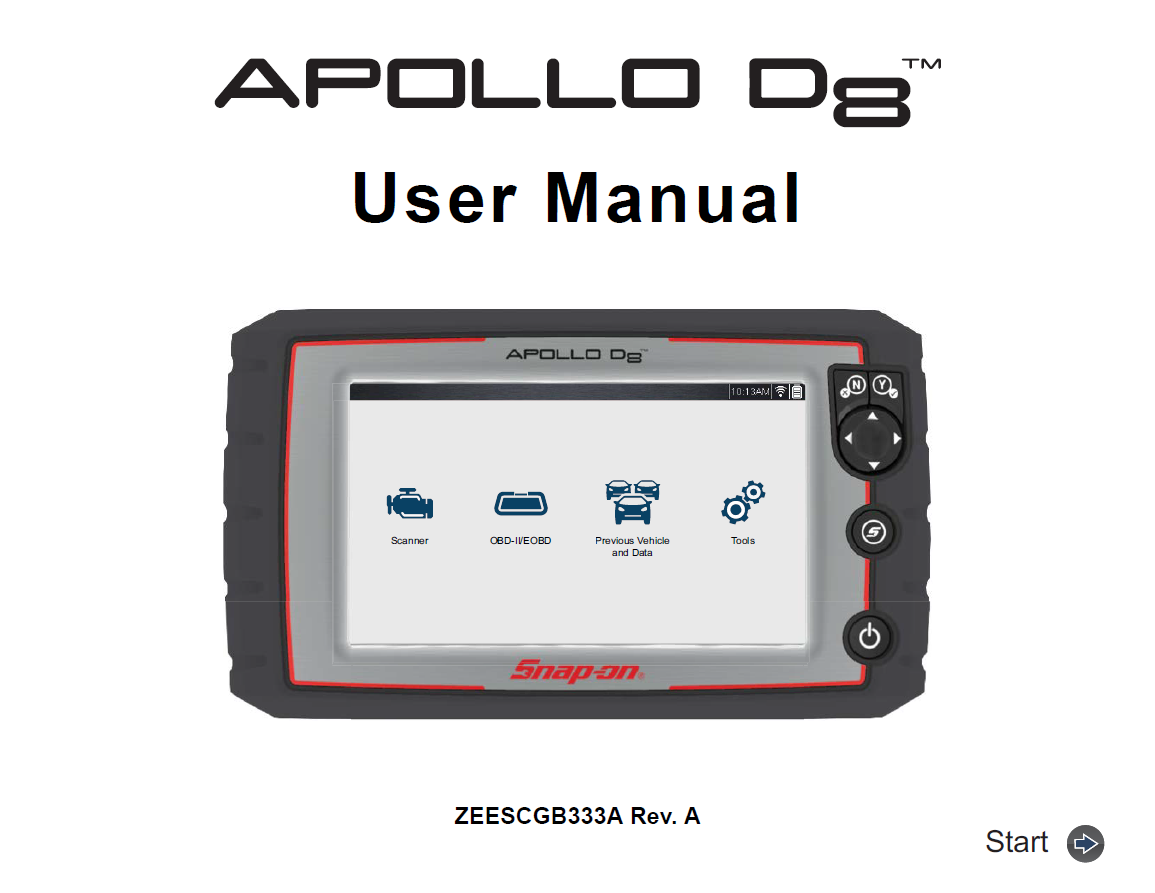

Snap-on APOLLO-D8 User Manual
