Diagnostic Thermal Imager+

Model: EETHGB312A

Back

Using infrared technology to reveal heat caused by friction, electrical resistance, pressure changes and more, the Diagnostic Thermal Imager+ from Snap-on® lets you track down vehicle faults and find the right fix faster than ever.

When connected to Wi-Fi, every image you capture with the Diagnostic Thermal Imager+ is automatically uploaded to the new Snap-on Cloud.

This means you can access them from your phone or computer whenever you need them, to make your next diagnosis — and your next repair — faster and more accurate than your last.

Fully loaded with a database full of automotive applications, guided tests and reference images to help you interpret results, putting a more accurate diagnosis — and more productivity — in clear view on every job.

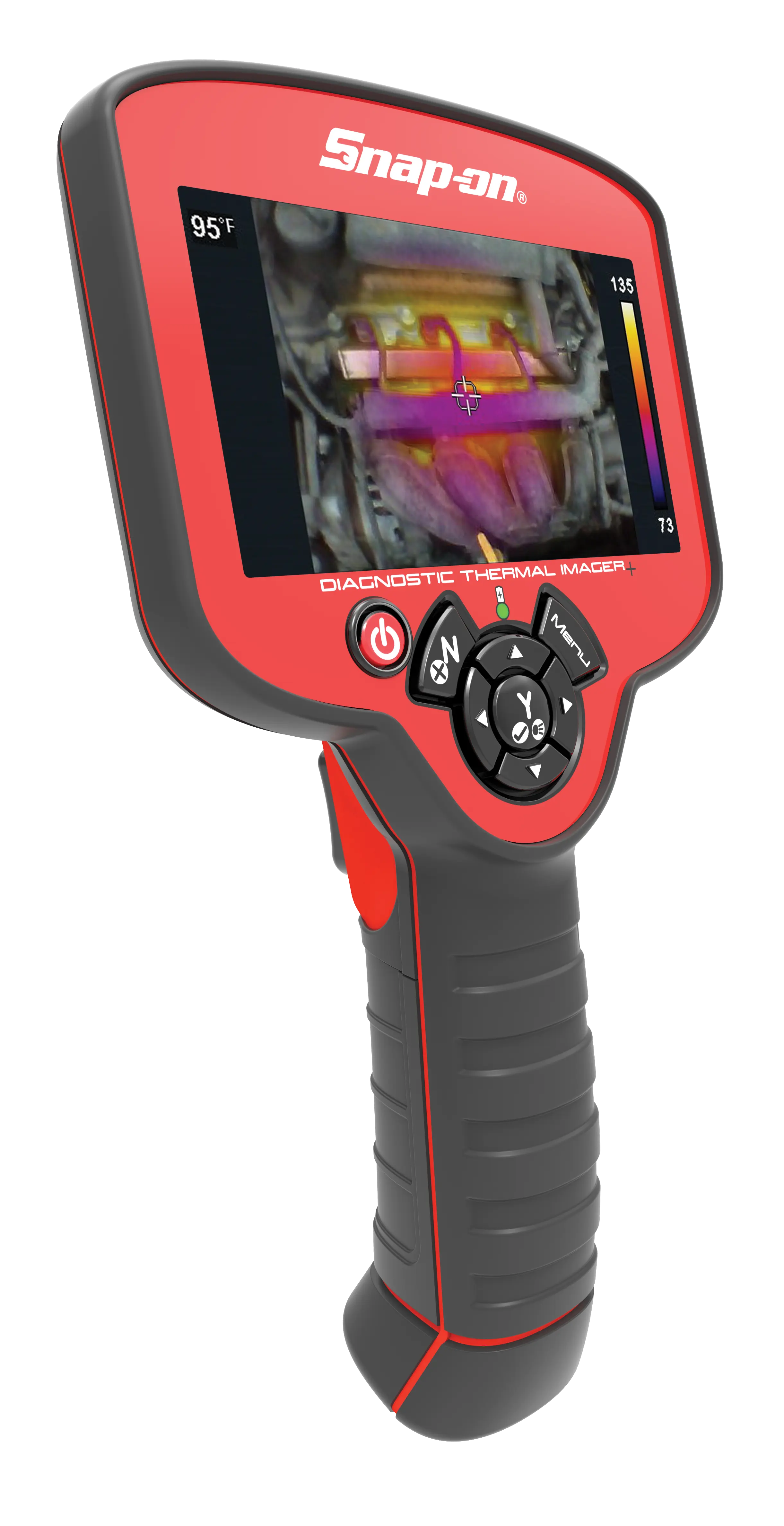

Diagnostic Thermal Imager Plus Slight Side View

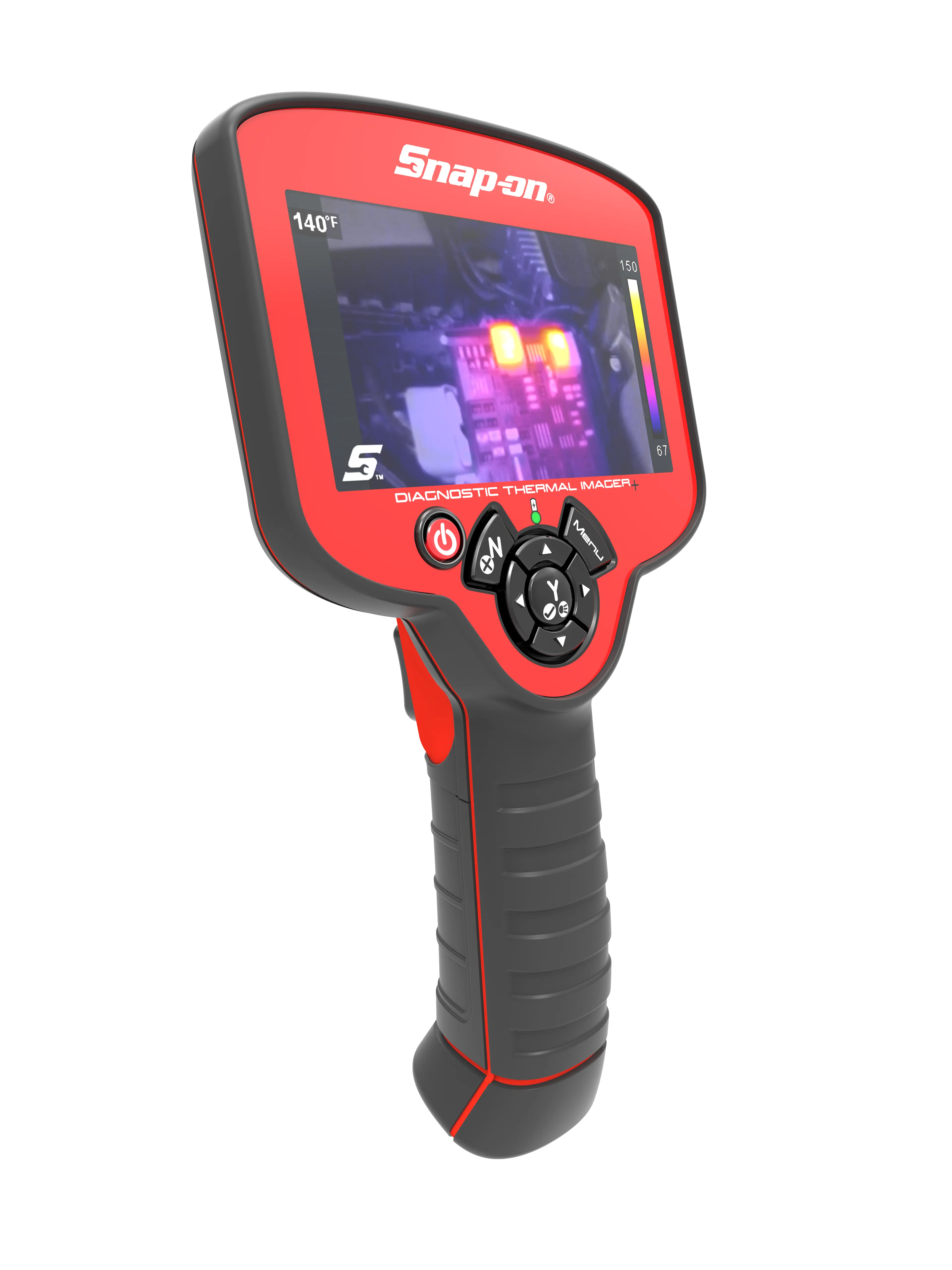

  • Diagnostic Thermal Imager Plus Slight Side View

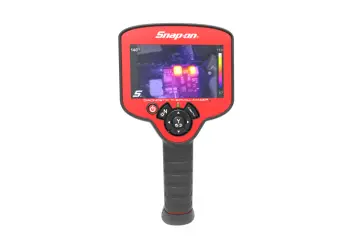

  • Diagnostic Thermal Imager+ front view Snap-on

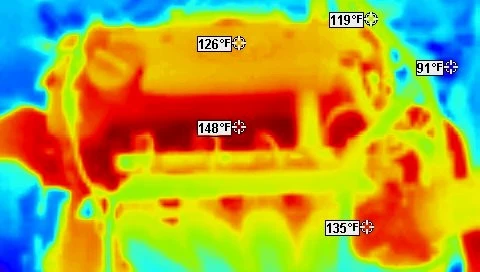

  • Diagnostic Thermal Imager+ Freeze Function

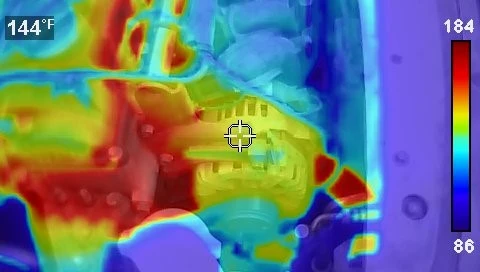

  • Diagnostic Thermal Imager+ Snap-on Plasma view

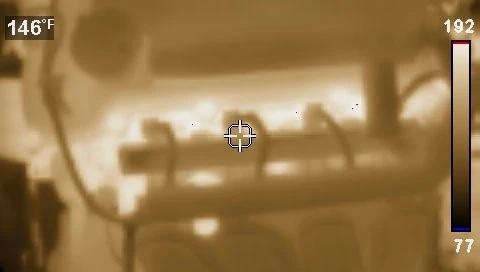

  • Diagnostic Thermal Imager+ Snap-on Sepia tone

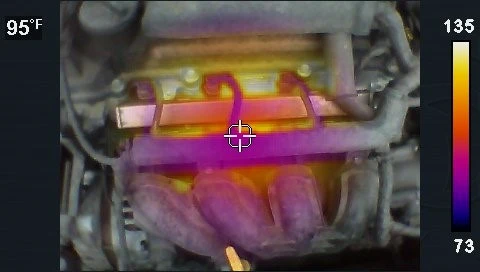

  • Diagnostic Thermal Imager+ Snap-on Thermal Blend

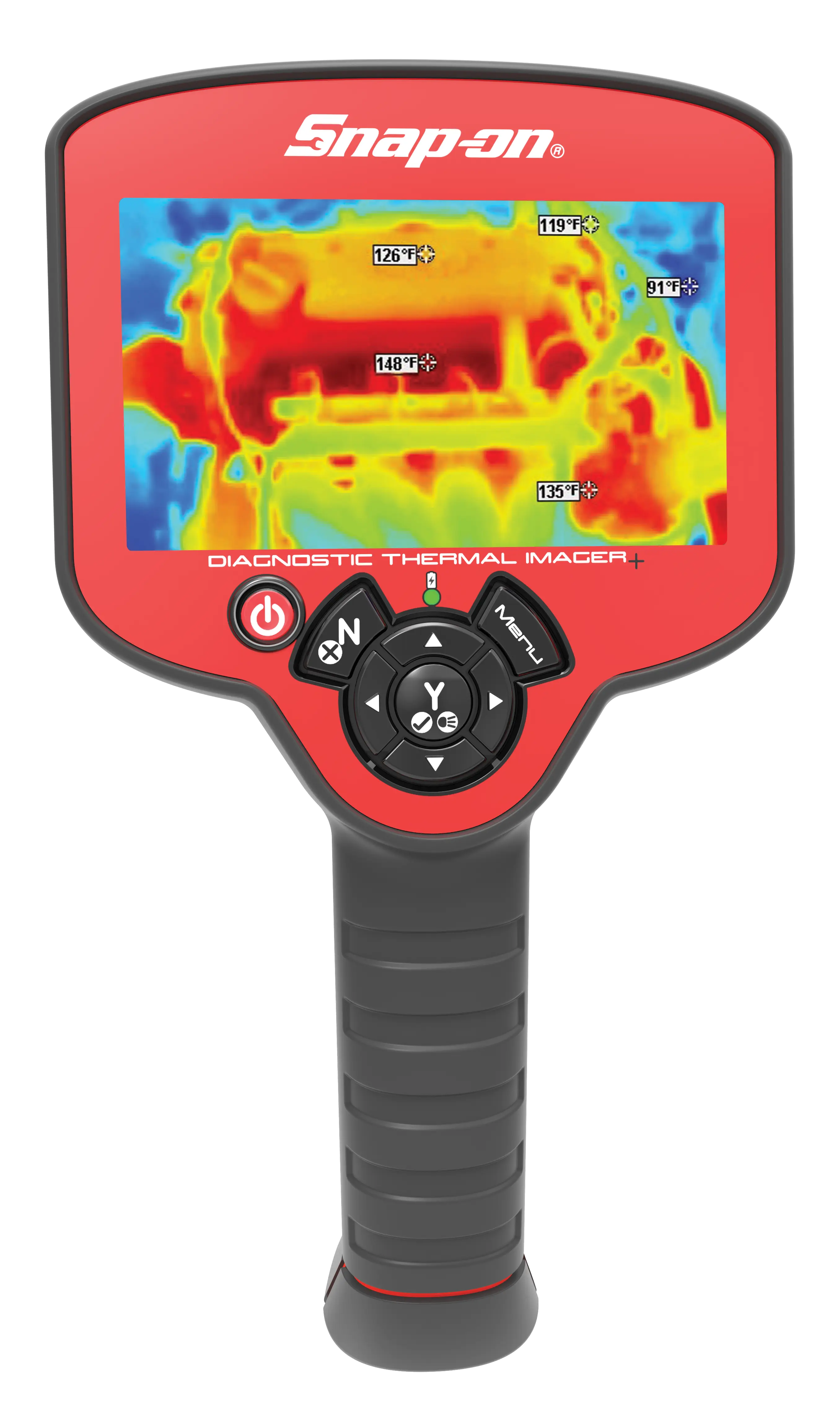

  • Diagnostic Thermal Imager+ (Plus) Front View Freeze Function

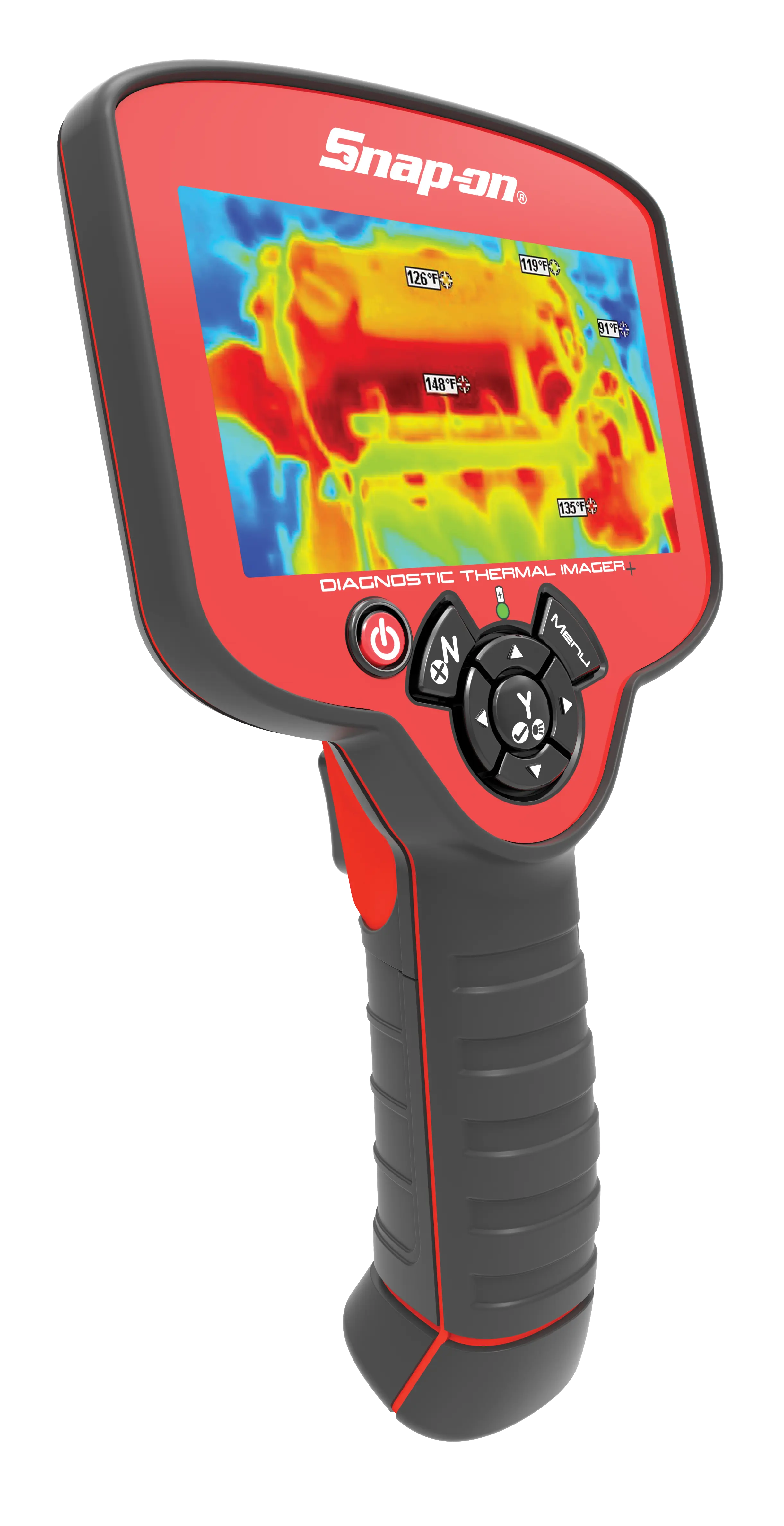

  • Diagnostic Thermal Imager+ (Plus) Side View Freeze Function

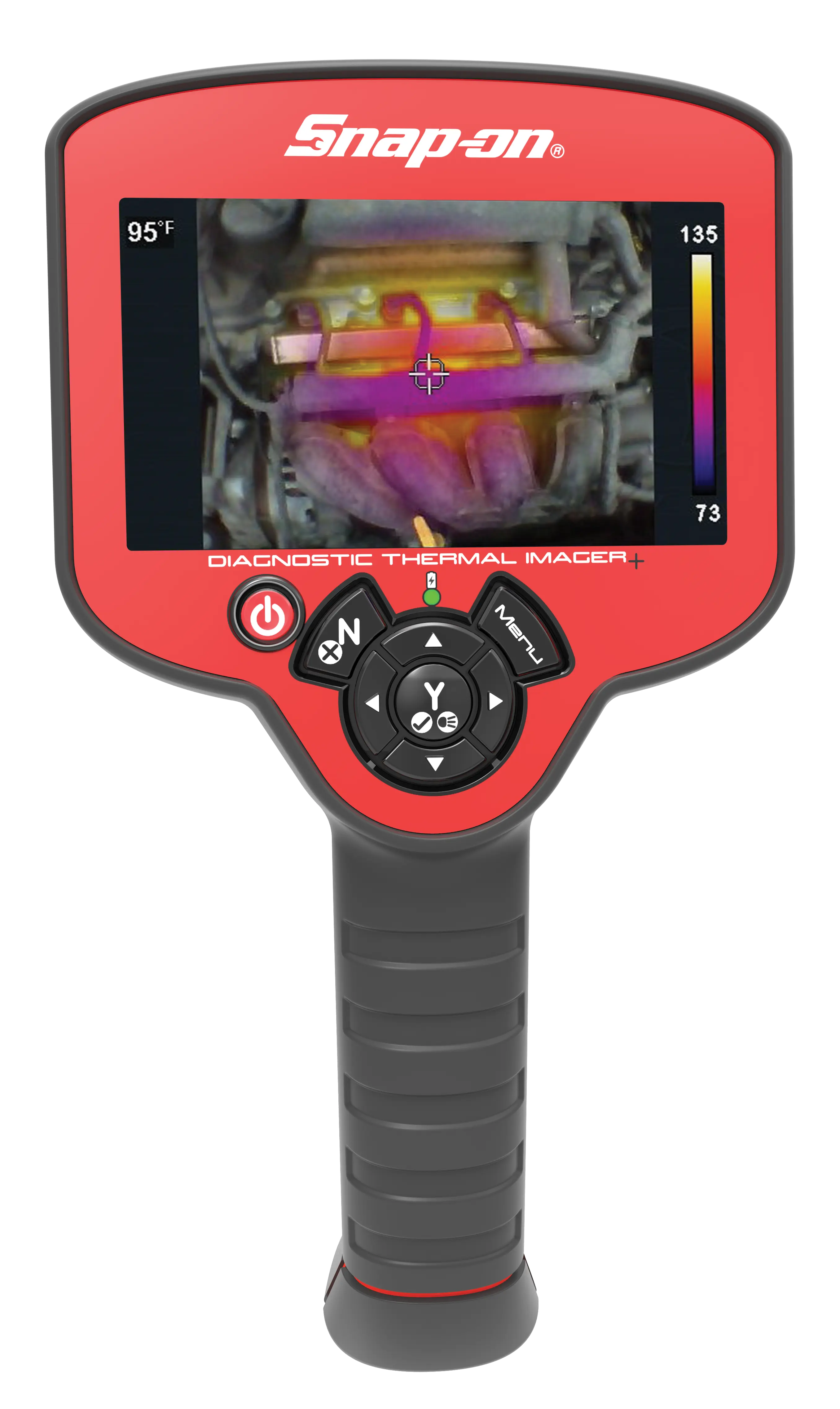

  • Diagnostic Thermal Imager+ (Plus) Front View Thermal Blend
  • Diagnostic Thermal Imager+ (Plus) Side View Thermal Blend
  • Diagnostic Thermal Imager From Snap-on
Open AllClose All
Specifications

Here are the numbers

Battery Charge Time5 hoursBattery Life4 hoursBattery Pack Size CapacitySingle Cell, 3.6V, 2150mAh MINBattery Pack TypeRechargeable lithium-ion battery packDC Operating Voltage4.75 to 5.25 VDCDimension: Depth2.24 inches (57.0 mm)Dimension: Width4.80 inches (122.0 mm)Dimension: Height9.09 inches (231.0 mm)Display: Resolution365px x 270 pxDisplay: Size4.3 inch diagonalDisplay typeTFT Color LCD Touch ScreenPower Supply5 VDC, 2AScreen refresh rate9x/secondThermal Max. Temp. Reading840 degrees F (450 degrees C)Thermal Temp. Visibility-4 to 840 degrees F (-20 to 450 degrees C)Weight0.83 lb (376.5 g)Wi-FiWi-Fi Capable
Features

Here is the good news

Choose between thermal, sepia and plasma colour pallettes for flexible viewing options

close modal3 Color Pallette Options

Large 4.3 inch IPS colour screen so you don’t miss a clue

close modal4.3" IPS Color Screen

Color reference scale automatically calibrates, so you know the temperature of everything in the image

close modalAutomatic Color Calibration

120 x 90 pixel thermal sensor resolution and with 2x camera zoom up to 360 x 270 pixel

close modalCrisp 120 x 90 Thermal Sensor Resolution

Point at any area of the vehicle to see detailed images of an object's heat signature

close modalDetailed Heat Signature Images

Exclusive database of guided tests shows dozens of valuable automotive applications

close modalExclusive Guided Tests

Shows extreme temperatures from -4 deg F (-20 deg C) to 840 deg F (450 deg C)

close modalExtreme Temp Measurement Capabilities

Cursors move the crosshair which enables you to take multiple still images with temperature readings from 5 different points per image

close modalFreeze Function

Pull the trigger to capture images. Use saved images for reference and to create compelling repair orders

close modalImage Capture

Image refresh rate: 9 times per second

close modalImage Refresh

Display - large, for better readability and greater ease of use

close modalLarge Display

Pistol-grip ergonomics for comfort and convenient access to tight locations

close modalPistol-grip Ergonomics

Detect problems all around the vehicle: brakes, heated seats, misfires, HVAC, worn bearings, belts, emission controls, and many more

close modalProblem Identification from Any Angle

Reference images showing normal components and failed components, so you know exactly what to look for

close modalTest Reference Images

Video recording up to 20 seconds

close modalVideo Recording

Customised views on screen to assist in diagnosis and pinpointing location - choose from picture in picture, full thermal, side by side

close modalView - Customized On-screenView - Picture-in-PictureView - Split ScreenView - ThermalWi-Fi enabled

Wireless Printing (via Snap-on Cloud)

close modalWireless Printing

Includes: Thermal Imager, MicroSD card, AC charger, USB cable, User guide
