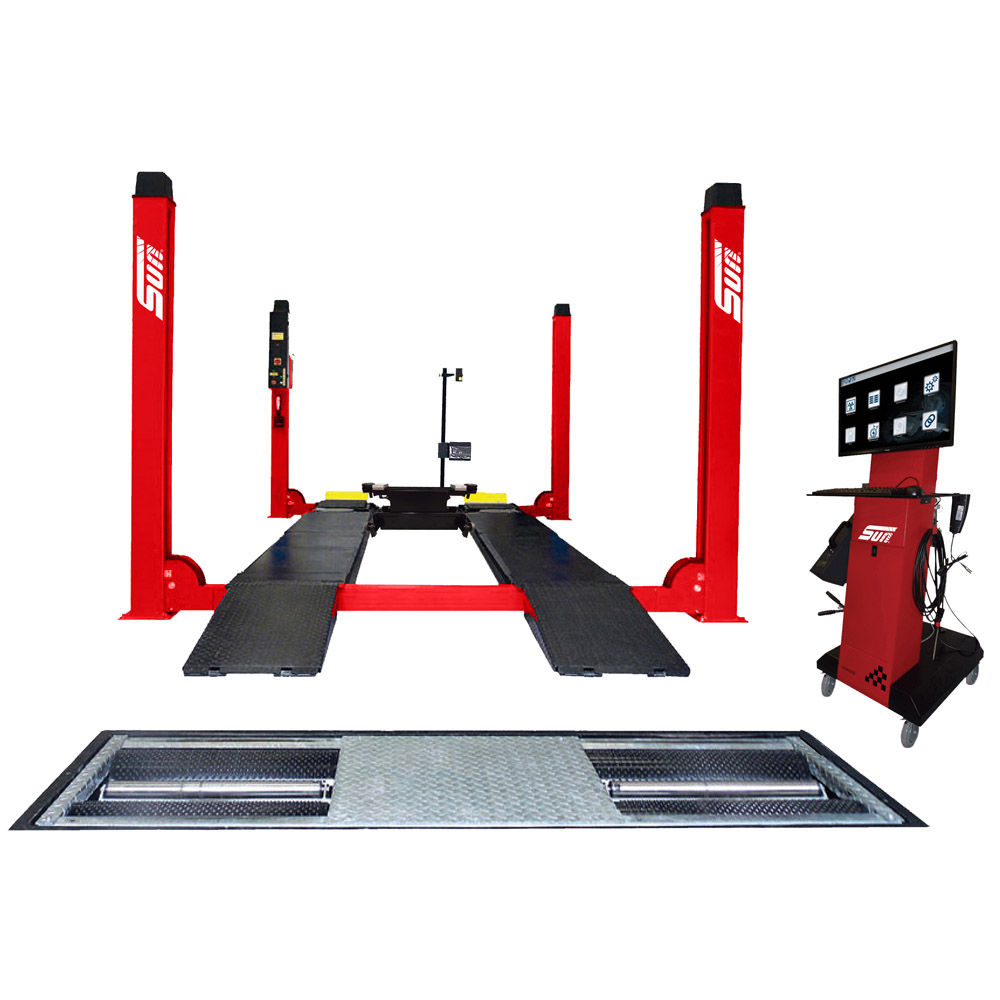

Sun Automated Test Lane

Model: ATL

Make your MOT testing even more productive with the complete automated test lane solution from Sun and its advanced time-saving enhancements.

Sun's ATL is an industry leading, DVSA-approved automated test lane system for one person operated MOT testing for class IV and VII with the optional class I, II, III and class VL ability.

At the heart of the Sun ATL is the DGA5000, with a large 27-inch monitor providing clear visible information in your workshop.

Using Windows-based, icon-driven software, the Sun ATL requires minimum training for the test to be completed. Test procedures can be performed in fully automatic mode or manually.

Open AllClose All
Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Maximum Platform Height - Four Post Lifts1750mmMaximum Platform Height - Scissor Lifts1805mmOverall Height - Scissor Lifts1805mmPlatform Height When Lowered - Four Post Lifts190mmOverall Width - Scissor Lifts (3.5T; 5T)2170mm; 2240mmOverall Height - Four Post Lifts2340mmPlatform Height When Lowered - Scissor Lifts (3.5T; 5T)280mm; 265mmOverall Width - Four Post Lifts3300mmPower Requirements - Scissor Lifts400v (3 phase); 415vPower Requirements - Four Post Lifts415vPlatform Length - Scissor Lifts (3.5T; 5T)4600mm; 5500mmOverall Length - Scissor Lifts (3.5T; 5T)4790mm; 5710mmPlatform Length - Four Post Lifts (4T; 5T)5200mm; 5700mmOverall Length - Four Post Lifts (4T; 5T)5250mm; 5750mmPlatform Width - Four Post Lifts600mmPlatform Width - Scissor Lifts (3.5T; 5T)615mm; 650mm
Features

Rail mounted headlight beam setter

close modal
Beam setter

Heavy duty recessed bearing radius plates - minimum maintenance

close modal
Bearing radius plates

Features DGA5000 with large screen providing clear information in your workshop and allowing direct access to DVSA online system

close modal
Emissions tester included

Hydraulic play detectors are more likely to find faults than any other on the market as they accentuate any wear in steering components

close modal
Hydraulic play detectors

Four-post lift has integrated slip plates - make the most of your investment by including a wheel alignment package

close modal
Integrated slip plates

Either 2T or 2.8T depending on lift purchased

close modal
Jacking beam included

Class IV or VII roller brake tester, with easy-to-use PC software and roller cover plates

close modal
Roller brake tester

Safety ladder locks on all posts

close modal
Safety ladder locks

Unique dimple design for brake tester with a 10-year surface warranty

close modal
Unique roller design + long warranty

Can easily be upgraded to cover Class I and II tests

close modal
Upgrade options

Integral wireless inspection lamp incorporating buttons for play detector operation

close modal
Wireless operation
