ETHOS Edge delivers the scan tool functions you expect from Snap-on® including codes, data, tests, relearns and adaptations.

With full coverage for over 30 manufacturers dating back to 2000, there’s no need to worry about the challenge in front of you.

Auto vehicle ID reads the VIN for you, saving you time and getting you off the line faster.

And you can take on every day confidently with manufacturer-specific coverage for over 100 systems, including TPMS, hybrid power, collision avoidance and more.

Expedite maintenance tasks with special functions, including brake bleeding, steering angle reset and service light reset to keep you rolling with ease.

Figure it out faster with One-Touch Code Scan and Clear All Codes for easy scanning of all available vehicle systems.

Avoid wasting time by saving and recalling previous vehicles and diagnostic results.

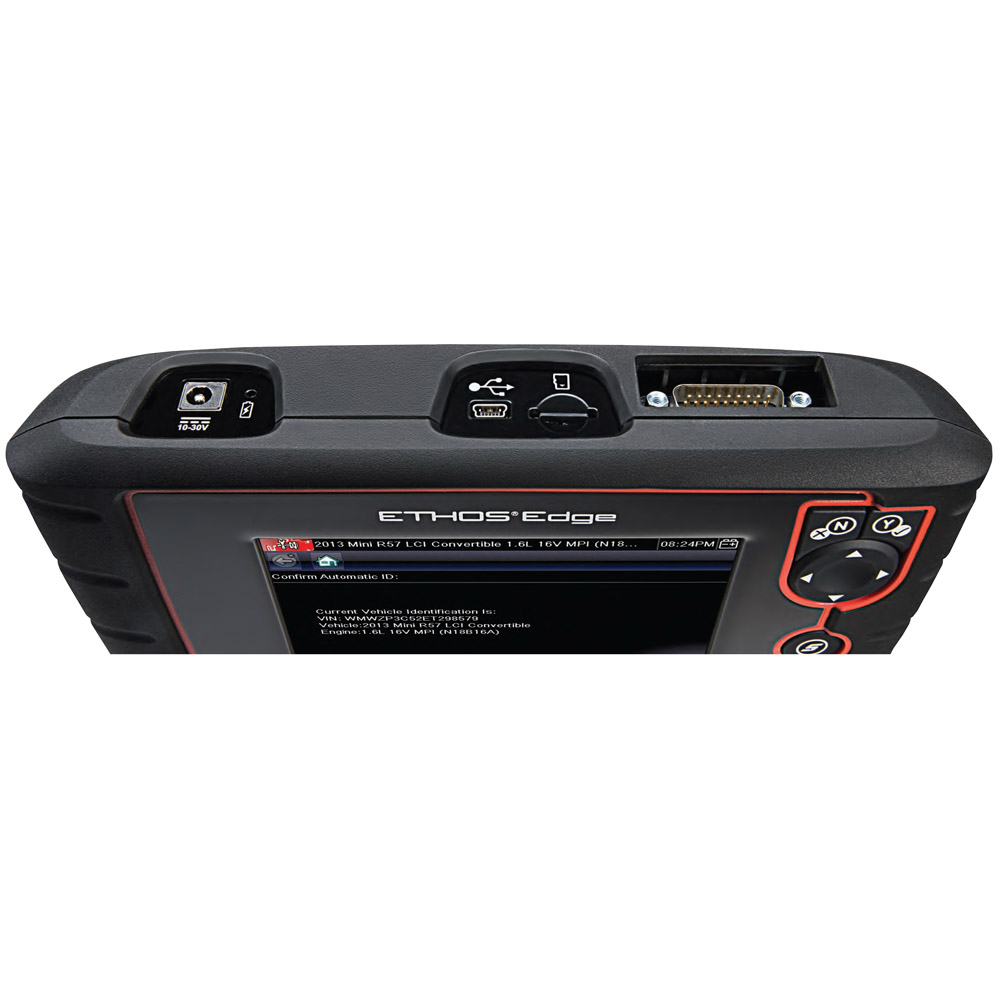

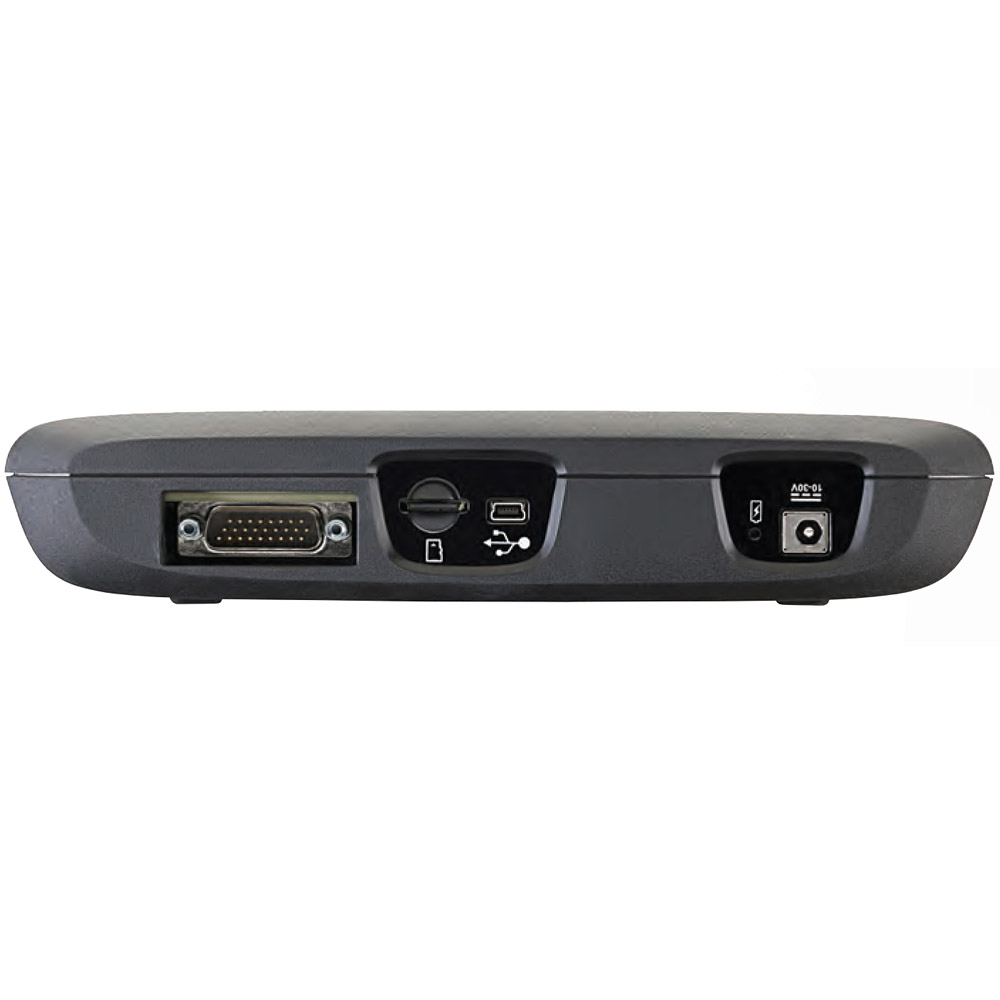

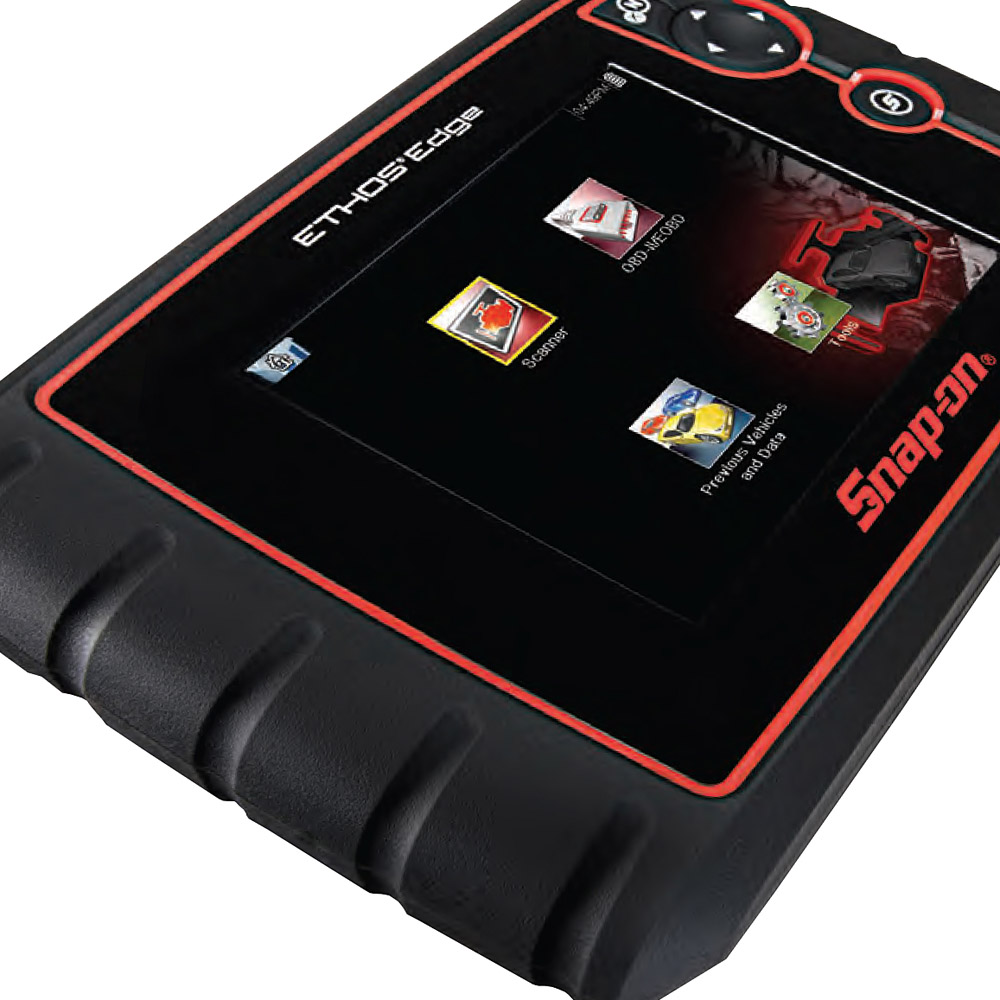

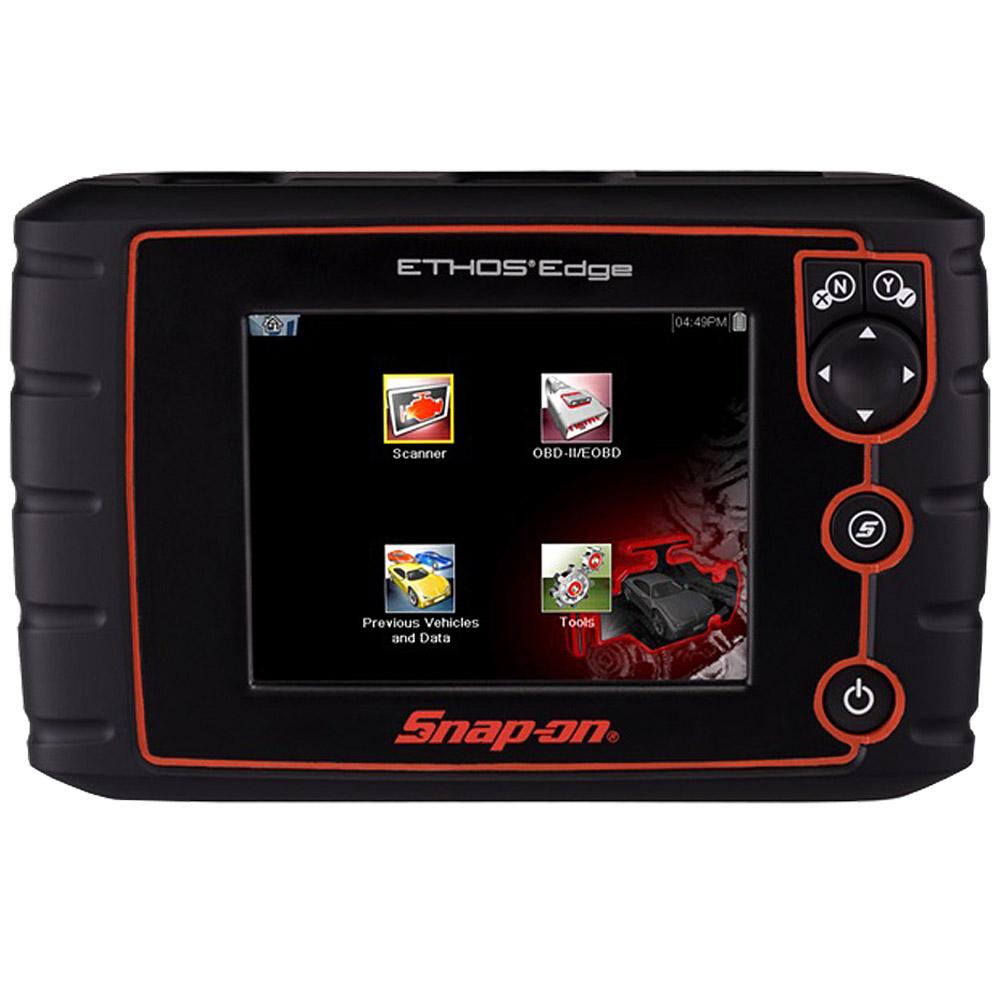

ETHOS Edge Diagnostic Scan Tool From Snap-on
  • ETHOS Edge Diagnostic Scan Tool From Snap-on
  • ETHOS Edge Diagnostic Scan Tool From Snap-on
  • ETHOS Edge Diagnostic Scan Tool From Snap-on
  • ETHOS Edge Diagnostic Scan Tool From Snap-on
  • ETHOS Edge Diagnostic Scan Tool From Snap-on
  • ETHOS Edge Diagnostic Scan Tool From Snap-on
  • ETHOS Edge Diagnostic Scan Tool From Snap-on
Open AllClose All
Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Access to Intelligent DiagnositcsNot available on ETHOS EdgeBatteryRemovable, Rechargeable, Lithium-ion batteryBoot up SpeedLess than 10 second boot upDepth1.75in (44.5mm)Display resolution640px x 480pxDisplay size5in (127mm)Display typeResistive, daylight-readable LCD touchscreen, colorHeight5.67in (144mm)Live Data GraphingSelective display of 1, 2 or 4 graphsNavigation4-way keypadTouchscreenOBD-IIAll 10 modes of Global OBD-IIOperating SystemEmbedded SMX®Scan ModuleIntegratedUSB PortPC connectivityWeight2.15lb (975g)Width8.9in (226mm)Wi-FiWi-Fi Capable
Software
New Coverage Highlights

Transfer Case Special Functions including: Automatic Clutch Calibration, High/Low Range Position Sensor Replacement, Transfer Case Oil Replacement

close modal
2017+ Range Rover® & Range Rover Sport® added
2025 Code Scan & Clear - All MakesAlfa Romeo® Stelvio® 2017+ Particle Matter Replacement Special Function

Audi® A3 2012-2020 1.4L Petrol, Audi® A6® 1997-20052.4L Petrol, Audi® A6 2014-2018 3.0L Diesel

close modal
Audi® Guided Component Tests Added for:
BMW® 2015-2019 F30 (3-Series) 330e – High Voltage Battery Health Check

All affected models Ignition Rumble Misfire Reset Special Function added to the Engine Module

close modal
Citroen® 2013-2030

2018-2024 Berlingo 1.5L Diesel

close modal
Citroen® Guided Component Tests Added for:
Dacia® 2023+ Jogger® 1.6L Hybrid Engine addedEV and ADAS coverage included as Snap-on standard.Fiat® Ducato® 2019 AdBlue ECU added with Codes, Data. Special Functions & Functional Tests

Kuga® 2019-2024 1.5L Diesel, Kuga® 2019-2014 1.5L Petrol, Mondeo® 2001-2007 2.5L Petrol, Transit Connect® 2005-2014 1.8L Diesel

close modal
Ford® Guided Componenet Tests Added for:

2021+ All Affected Models: Special Functions added to the ABS module to replace the ESC Variant Coding

close modal
Hyundai® Special Functions Added:

2020+ All affected Models: Selective Catalytic Reduction Special Functions and Reset added

close modal
Kia® Special Functions Added:

A200® 2018-2024 1.3L Petrol, B180® 2005-2011 2.0L Diesel, E220® 2016-2024 2.0L Diesel, E350® 2004-2010 3.5L Petrol, C230® 2002-2008 1.8L Petrol

close modal
Mercedes-Benz® Guided Componenet Tests added for:
Mercedes-Benz® New Transmission Variants added to all models®

Added to R52® 2000-2006

close modal
MINI® Electrohydraulic Power Steering Control Module

Customisation and Write Learned Values for Multi Around Vision System

close modal
Mitsubishi® 2017+ Outlander L200®, Eclipse Cross®

BMW®, Citroen®, DACIA®, Ford®, Fuso®, Honda®, Iveco®, Jaguar®, Mercedes-Benz®, MINI®, Mitsubishi®, Vauxhall®/Opel®, Peugeot®, Renault®, Suzuki®

close modal
New Models Including

2013-2019 X-Trail® including: Adaptive Frontal Lighting System, System Object Detection, Chassis Control

close modal
Nissan® New Systems added to:

2013-2021 Qashqai® 1.3L Dig Turbo added Special Functions including: Engine Adaptive, Oil Change for Oxidation, Oil for Dilution, GPF Filter Regeneration

close modal
Nissan® Special Functions Added for:
Peugeot® 2013-2022 All Affected Models: Ignition Rumble Misfire Reset Special Function added to the Engine ModulePeugeot® 5008® 2017+ Crash Data Reactivation Special Function added to the BSI

Captur® date ranging from 2013-2024 1.5L Diesel & Espace® 2015-2024 1.6L Diesel

close modal
Renault® Guided Componenent Tests Added for:
Seat® 2022+ Leon® New 2.0L TSI Engine added

2013-2021 Octavia® 2.0L Diesel

close modal
Skoda® Guided Component Tests added for:
Subaru® 2004-2010 Justy® Electro-mechanical Power Steering and Immobiliser System addedSubaru® 2020+ Outback® Electronic Brake Booster System addedSuzuki® 2022+ All Affected Models: Special Function Verification Test for Brake Pipes and Hydraulic Unit added to the ABS Module

Guided Component Tests for the Model S 2012-2022 and Model X 2015-2022 include: ABS Module, Brake Fluid Level Switch, Brake Pedal Switch, Electric Brake Booster, Electronic Parking Brake Actuator, iBoost Pedal Sensor, Wheel Speed Sensor

close modal
Tesla® Guided Componenet Tests added for:
Toyota® Proace® 2016+ Diesel Particulate Filter Resets Special Function and additional DataVauxhall® Updated Core Systems- Engine, Transmission, ABS and Airbag to: 2016+ Crossland®, 2016-2021 Grandland X®

Activate Fuel Pump, Adapt DPF Adaptation Values, Adapt Injector Quantity Values, Diesel Particle Filter, Reset Engine Regulation Adaption Values

close modal
Volkswagen® 2010-2018 Touareg® 4.2L TDI engine Special Functions include:

Vehicle Gateway Module, Lounge Console Power Module, Accessory’s Gateway Unit, Telematics and Connectivity Antenna Module , Exterior Sound Module Reverse for Hybrid vehicles

close modal
Volvo® XC90®2015+ added Sub Systems, Codes, Data and applicable functional tests including:
New Features and Enhancements

Visit snapon.com/securitylink/uk for details

close modal
NEW Mercedes-Benz® CeBAS Secure Gateway access added!

Toggle between English and 7 different languages on Snap-on Cloud and Altus Drive

close modal
New Snap-on® Cloud multilingual support
Software OptionsOutright PurchaseSubscription
Features

Snap-on diagnostic tools are known the world over for great performance, rock-solid construction and intuitive design, along with instant access to online and in person training solutions.

But what makes them the best in the industry is what we put into them, both when they're built and over the life of every tool.

Ensuring your software is up to date means that your tool is always ready for the next job that comes into the garage.

Take a look at what's new in the latest diagnostic software upgrade from Snap-on and find out everything it can do for you and your business, while also discovering how you can save money with a Software Subscription Plan.

close modal
In-depth diagnostic software and subscription plans
Unique, steady-charge lithium-ion battery system charges automatically from the vehicleAuto vehicle ID reads the VIN so you don't have toCoverage for over 100 systems including the latest technology: TPMS, hybrid power, collision avoidance and steering angle sensorFull-function diagnostics including codes, live data graphing, functional tests, service light resets, relearns and adaptationsReads all available vehicle systems with One-Touch Code Scan and Clear All CodesUpgrade software online any time with ShopStream Connect™Automatic power-on when connected to vehicleExpedite maintenance tasks with special functions including brake bleeding, steering angle reset, battery relearn and service light resetSave and recall vehicle ID and diagnostic resultsConsistent navigation for all makesFull coverage for over 30 manufacturers dating back to the year 2000Operate with touchscreen functionality or the four-way keypad
