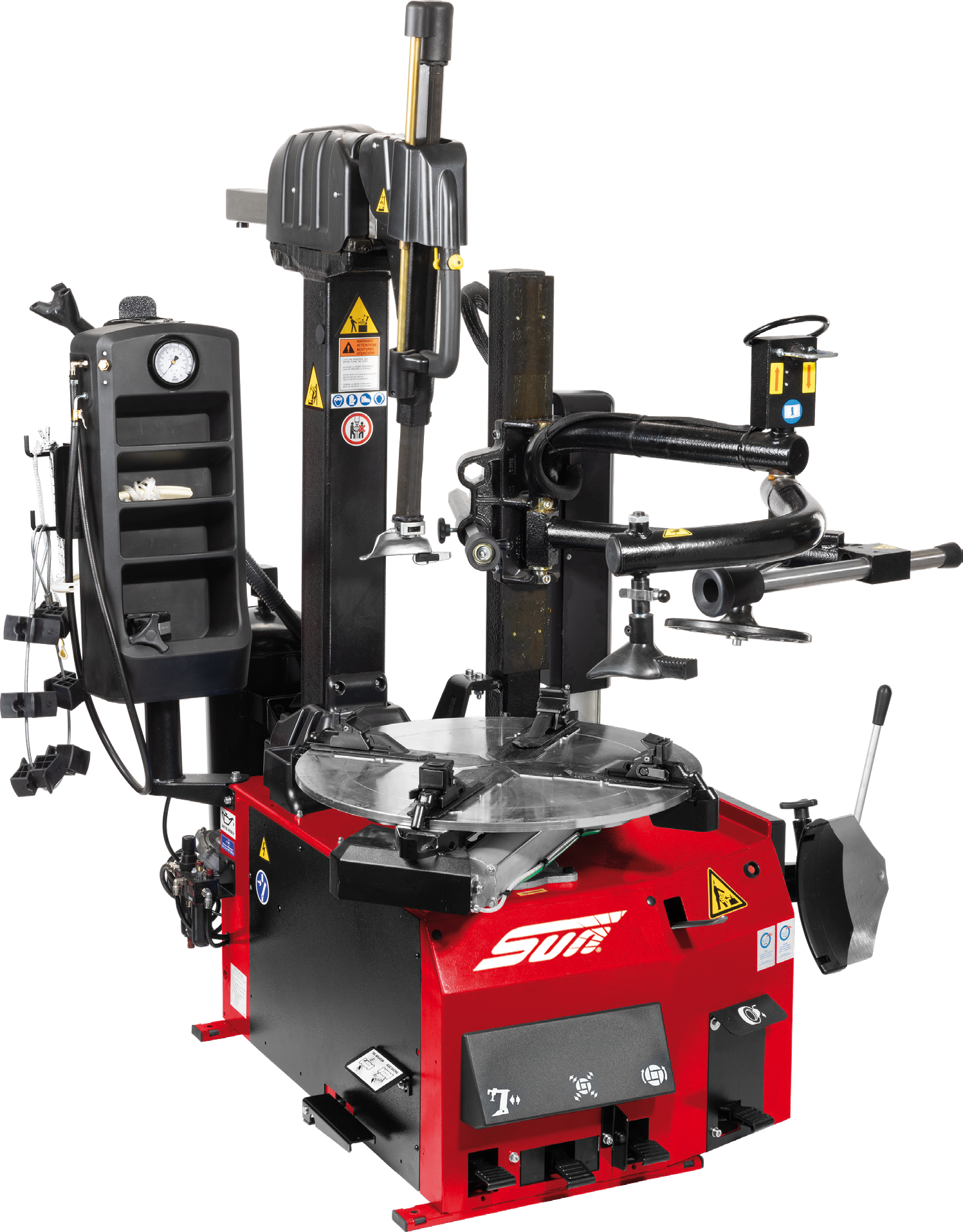

SUN STC5565 2S Pro Tyre Changer

Model: EEWH596AEM

Back

The SUN® STC5565 Tyre Changer delivers a powerful combination of precision, performance, and protection—engineered for workshops servicing passenger cars and light commercial vehicles, from standard fitments to UHP and run-flat tyres. Designed for greater flexibility, it supports rims up to 26"", giving technicians the capacity to handle larger and more demanding fitments.

Featuring patented PROspeed™ technology, it automatically adjusts torque and rotation speed for safe, efficient operation, while the pneumatic tilt-tower provides maximum clearance during tyre installation.

With self-centring clamping jaws and a wave bead breaker for stiff sidewalls, the STC5565 is built to handle today’s most demanding tyre types with speed, consistency, and care. Designed for durability, safety, and ease of use, it’s a high-performance solution that keeps productivity high and accuracy assured.

Sun STC5565 Tyre Changer
  • Sun STC5565 Tyre Changer
  • Sun STC5565 Tyre Changer Left
Open AllClose All
Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Acoustic Pressure - During Standard Work<70 dB AAir Specifications - Air Pressure Required8-12 barBead Breaker - AdjustableYes, 5 degrees of freedomBead Breaker - Breaking Force12 kN (2,700 lbs)Bead Breaker - Capability50-385mm (2"-15")Bead Breaker - TechnologyOn-FloorBead Breaker - TypePedal-operated - 3-way valveCertification - CE / UKCAYesCertification - WDK CertificationYes (*plus models only)Clamping SystemTurntable & clamping jawsDimensions - Machine Weight415kgDimensions - Maximum Dimensions (W x D x H)1590 x 1710 x 1820mmDimensions- Shipping dimensions (W × D × H)1140 x 1450 x 1940mmDimensions- Shipping weight450kgElectrical Specifications - Installed Motor Power0,9 kWElectrical Specifications - Standard Power Supply230V 1ph 50-60Hz 15AEnvironmental - Relative Humidity Range0 - 90%Environmental - Temperature Range0 - 50°Inflation and Bead Seating - Air GaugePressure gauge in the toolboxInflation and Bead Seating - InflationStandard - operated by pedalInflation and Bead Seating - Inflation pressure limitationCE conform via quick inflation valve (AIR CONTROL 4,5 Bar)Jaw TypeAdjustable - SlidingM/D Tool TechnologyM/D tool & bead leverPneumatic Bead AssistMH 330 proTool BoxStandardTool Vertical PositioningPneumaticTower TechnologyPneumatic tilt backTurntable - Max. Torque> 1,200 Nm (> 885 lbf-ft)Turntable - Rotation SpeedCW 7 - 18 rpm - CCW 7 rpmTurntable - Speed ControlPROspeed™Tyre Types ProcessedOE tyre range, conventional, UHP, low profile, run flat, truck balloon and soft sidewallWheel LiftOptionalWheel Lift - Capability70kgWheel Specs - Clamping range10"-26"Wheel Specs - Inside Clamping Range12"-26"Wheel Specs - Max Rim Width14" (355mm)Wheel Specs - Max. Wheel Diameter44" (1120mm)Wheel Specs - Max. Wheel Width15" (380mm)Wheel Specs - Motorcycle Wheels with Adaptors8"-24" w/ ATV adaptor - 12"-28" w/ m/c adaptorWheel Specs - Outside Clamping Range10"-26"Wheel Specs - Tool Working Range8"-26" *Higher diameters need tool extension
Features

The expanded contact surface improves the clamping force, providing shorter set up times and greater flexibility. In addition, plastic protectors are included for greater protection

close modalAdjustable clamping jawsClamping RangeEngineered to LastLow-profile chassisPedal-Operated Bead BreakerPneumatic Vertical ArmPressing ToolPROSPEED™ Patented TechnologyTilt-towerToolbox with Integrated Pressure GaugeWave Bead Breaker
