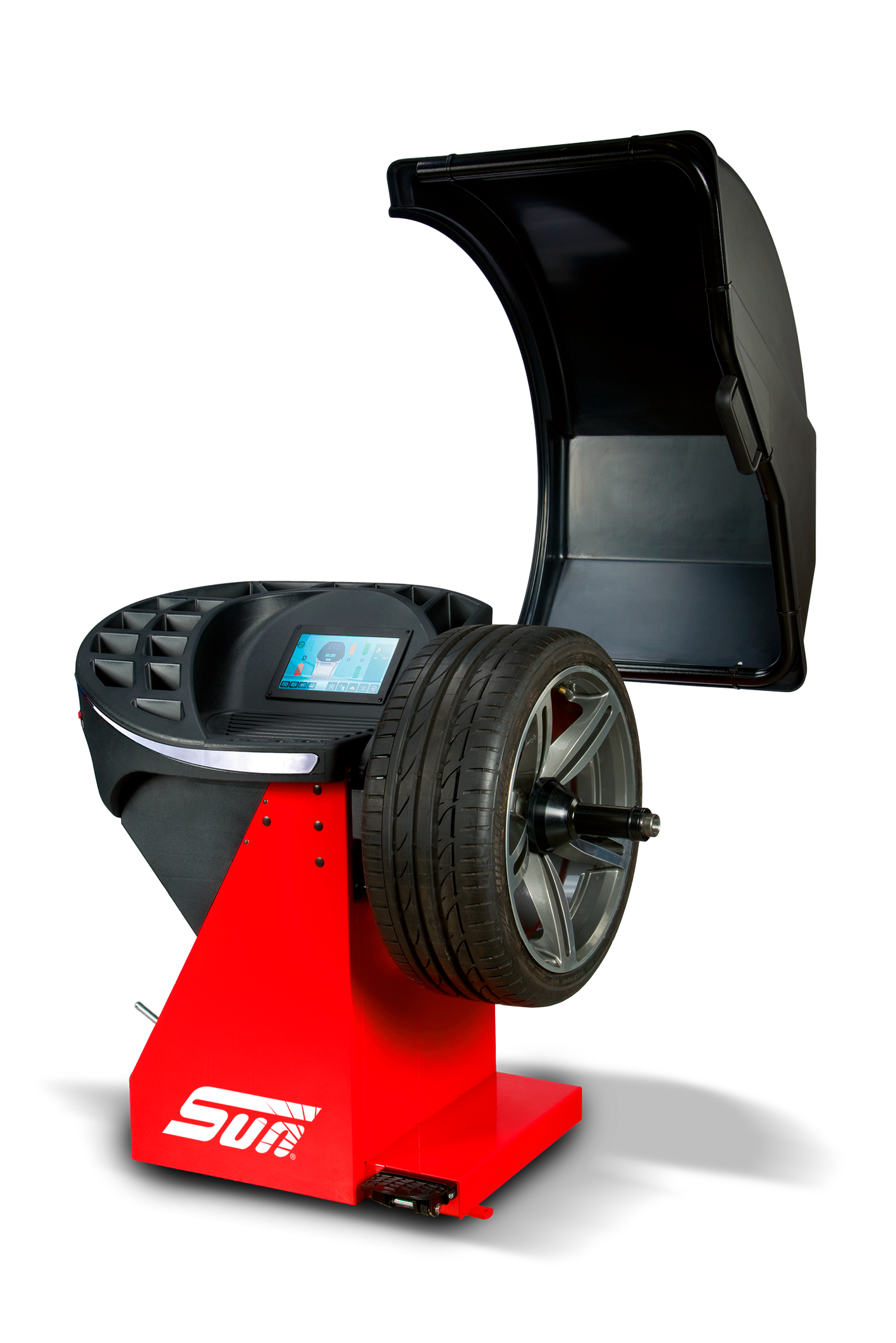

SUN SWB340P Wheel Balancer

Semi-automatic, laser wheel balancer with integrated touchscreen

Model: EEWB120APE1

The SWB600P wheel balancer combines a user-friendly interface and productivity-enhancing features to help high-volume garages get more jobs done in less time. Features like QuickBAL™, Smart Sonar™, easyWeight™, and easyALU™ allow technicians to move through the wheel balancing process with increased speed and the highest level of accuracy. The Power Clamp™ system is faster than manual operation, secures wheels with 400 N of force, and reduces the fatigue and effort required to clamp a wheel, boosting productivity.

An elevated 19” touchscreen allows fast switching between two technicians, so both can work on separate jobs simultaneously without waiting, and provides clear instructions and prompts to guide users through each balancing step—making the SWB600P ideal for a wide range of workshops including OEM tyre shops, independent tyre specialists, fast-fit centres, and dealerships.

Open AllClose All

Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Angular Resolution0.7°Balancer Flange Offset268 mm (10.5 inch)Balancing Accuracy1 g (0.035 oz)Diameter of Shaft40 mm (1.57 inch)Dimensions - Gross Weight110 kg (243 lbs)Dimensions - Net weight80 kg (176 lbs)Dimensions - Packaging Dimensions W x D x H1150 x 760 x 1055 mmDimensions W x D x H (min/max)970-1260 x 1300-1620 x 1040 mmDisplay10” TouchscreeneasyALU™YesElectric Data - Power supply230 V - 1 ph - 50/60 Hz – 1.7 AGauge Arm Working Range0-278 mm (0-10.94 inch)Length of Shaft225 mm (8.85 inch)Manual Data Entry - Offset Range1" - 20" | 3-51 cmManual Data Entry - Rim Diameter Range8" - 32" | 20-81 cmManual Data Entry - SmartSONAR™13–26"Measuring Speed200 rpmOffset0–290 mmResolution1g / 3.5g (0.05 oz / 0.25 oz)Semi-Automatic Data Entry - Rim Diameter Range8″-25″ | 20-64 cmSemi-Automatic Data Entry - Rim Width Range3″-15″ | 8-38 cmVehicles SupportedCar, light truck, SUVs, motorcycles (with adaptor)Wheel ClampingPower Clamp™Wheel Dimensions - Maximum Diameter42” (1066 mm)Wheel Dimensions - Maximum Width21” (530 mm)Wheel Dimensions - Rim Width3-20” (76-510 mm)Wheel Dimensions -Maximum Weight70 Kg (154 lbs)Wheel Lift Max. Load70 kg (154 lbs)Wheel Lift TypeBW3030A - OptionWheel Width Range3” - 20” (508 mm)

Features

Touch the screen to automatically rotate the wheel to the weight application position

Stop in positionEASYWEIGHT™Optimisation ProcedurePOWER CLAMP™proTOUCH™ Touchscreen InterfaceQuickBAL™Semi-Automatic Data Entry with easyALU™Shaft LockSMARTSONAR™Split Weight ModeVirtual Plane Imaging
