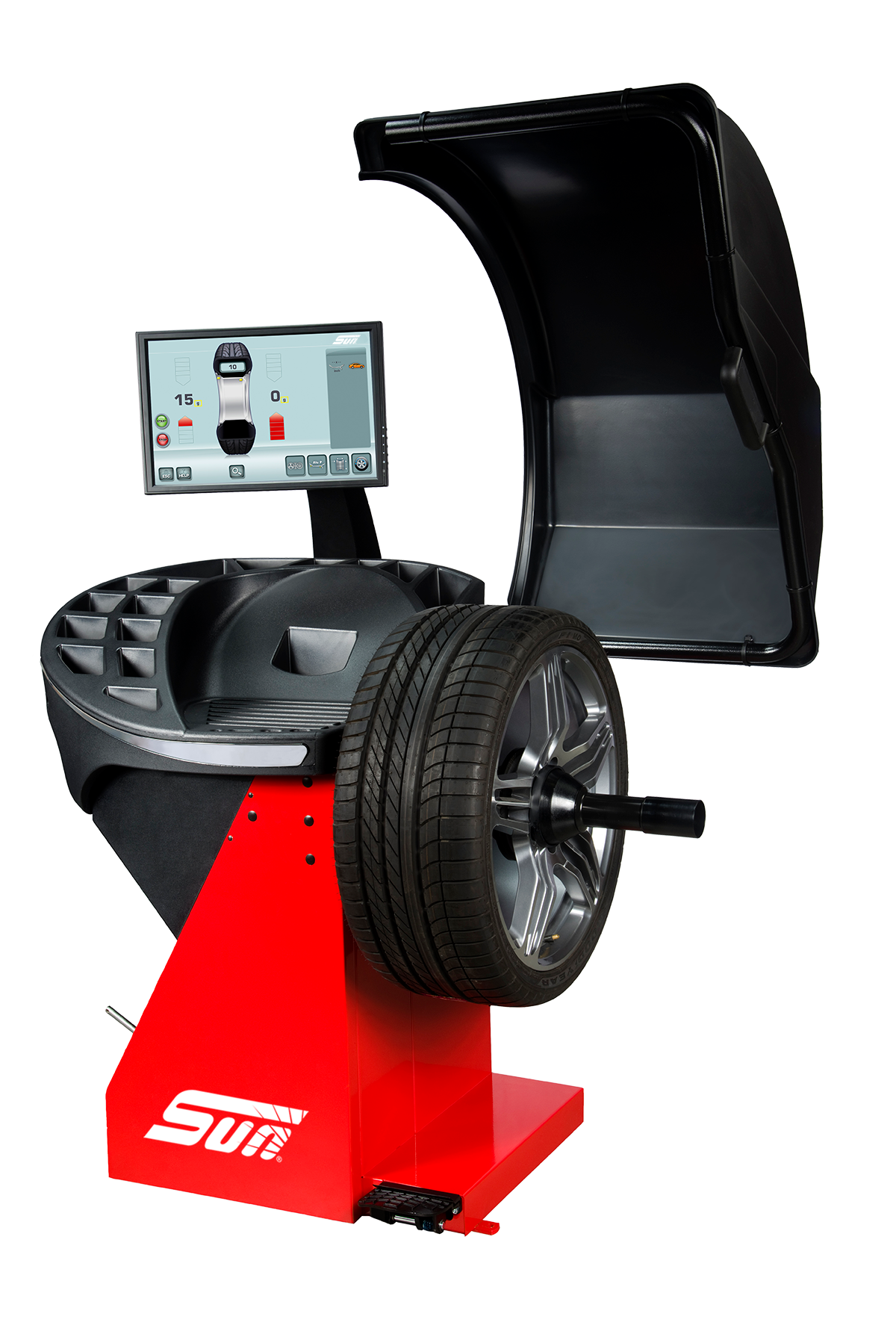

SUN SWB600P Wheel Balancer

Model: EEWB121AEA

Back

The SWB600P wheel balancer combines a user-friendly interface and productivity-enhancing features to help high-volume garages get more jobs done in less time. Features like smartSonar™, easyWeight™, and easyALU™ allow technicians to move through the wheel balancing process with increased speed and with the highest level of accuracy.

The Power Clamp™ system is faster than manual operation, secures wheels with 400 N of force, and reduces the fatigue and effort required to clamp a wheel, boosting productivity. An intuitive 10” touchscreen allows fast switching between two technicians, so both can work on separate jobs simultaneously without waiting, and provides clear instructions and prompts to guide users through each balancing step—making the SWB 340P ideal for a wide range of workshops including OEM tyre shops, independent tyre specialists, fast-fit centres, and dealerships.

Sun SWB600P Wheel Balancer
  • Sun SWB600P Wheel Balancer
  • SWB600P
  • SWB600P
  • SWB600P
Open AllClose All
Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Electric Data - Power consumption1.1 AAutomatic Rim Diameter RangeN/AAutomatic Scanner Offset RangeN/AAutomatic Rim Width RangeN/ABalancing Accuracy1g / 5g (0.05 oz / 0.25 oz)Diameter of Shaft40 mm (1.57 inch)Dimensions - Net weight130 kgDimensions (W × D × H)1313 × 870 × 1835 mm (51.7” × 34.2” × 72.2”)Dimensions- Shipping dimensions (W × D × H)1300 × 1120 × 1262 mm (51.2” × 44.1” × 49.7”)Dimensions- Shipping weight160 kgDisplayLarge Independent TouchscreeneasyALU™YesElectric Data - Mains fuses(2×) IEC 127 T 6.3AElectric Data - Motor rating0.12 kWElectric Data - Power supply230V~, 50/60 Hz, 1 phEnvironment - Noise level / acoustic pressure<70 dB(A)Environment - Relative humidity range0%–90% (non-condensing)Environment - Temperature range0°–50°CFeatures - Network optionWi-FiGauge Arm Working Range30–330 mm (1.3–13 inch)Length of Shaft225 mm (8.85 inch)Manual data entryYesManual Data Entry - Offset Range1"–20" (3–51 cm)Manual Data Entry - Rim Diameter Range8"–32" (20–81 cm)Manual Data Entry - SmartSONAR™13–26"Maximum Wheel Diameter42” (1066 mm)Maximum Wheel Weight70 kg (154 lbs)Maximum Wheel Width20” (500 mm)Measuring Speed<200 rpmOffset0–290 mmResolution1g / 3.5g (0.05 oz / 0.25 oz)Rim Diameter Range8″–25″ (20–64 cm)Rim Width1–20” (30–510 mm)Rim Width Range1″–20″ (3–51 cm)Semi-Automatic Data Entry (SADE / Gauge Arm)TBDVehicles SupportedCar, light truck, SUVs, motorcycles (with adaptor)Wheel ClampingPower Clamp™
Features

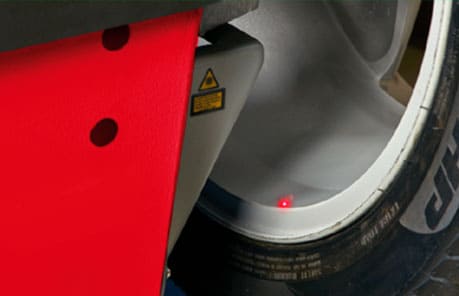

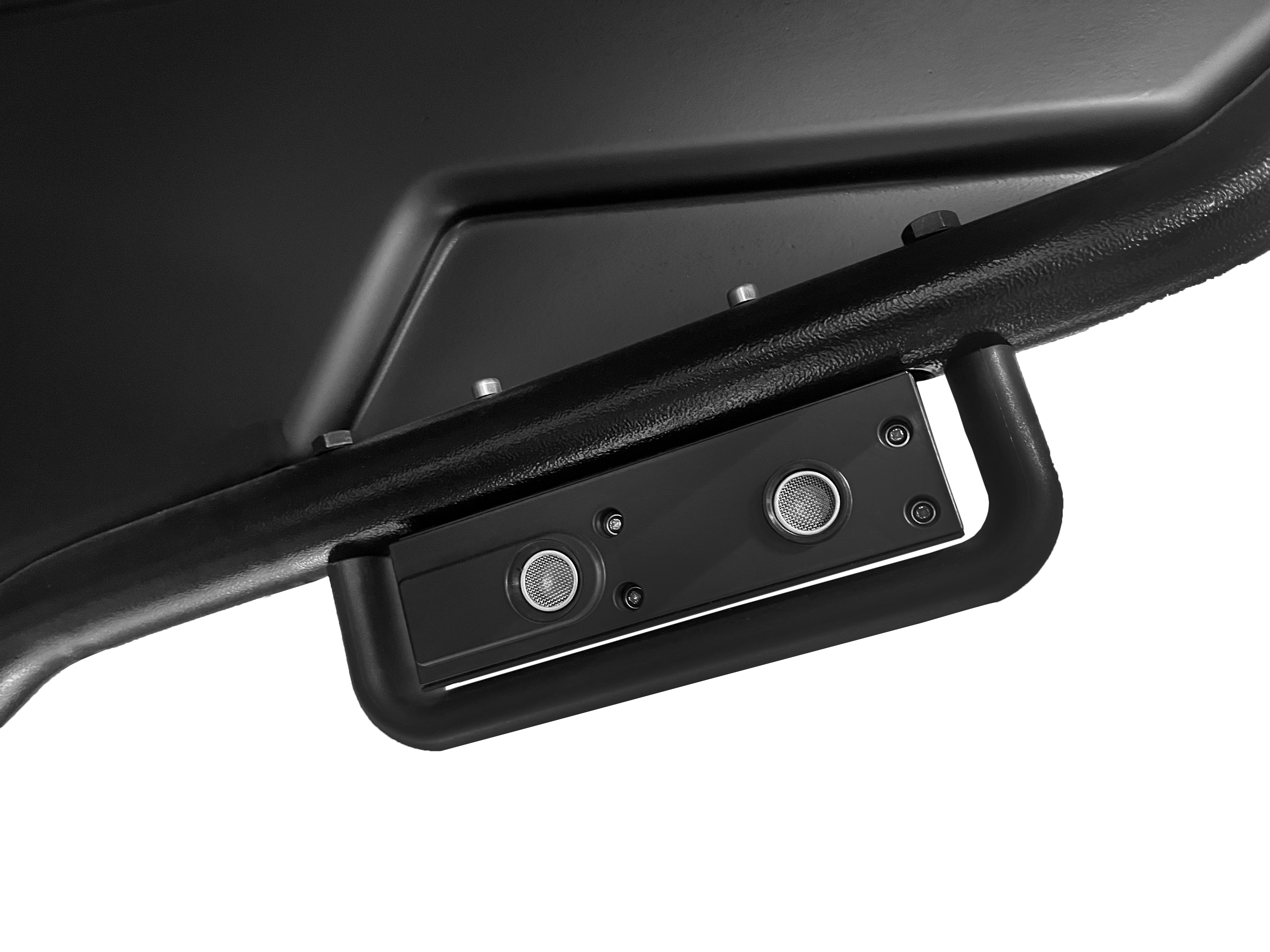

EASYWEIGHT™Optimisation ProcedurePOWER CLAMP™proTOUCH™ Touchscreen InterfaceQuickBAL™Rim LightingSemi-Automatic Data Entry with easyALU™Shaft LockSMARTSONAR™Split Weight ModeVirtual Plane Imaging
