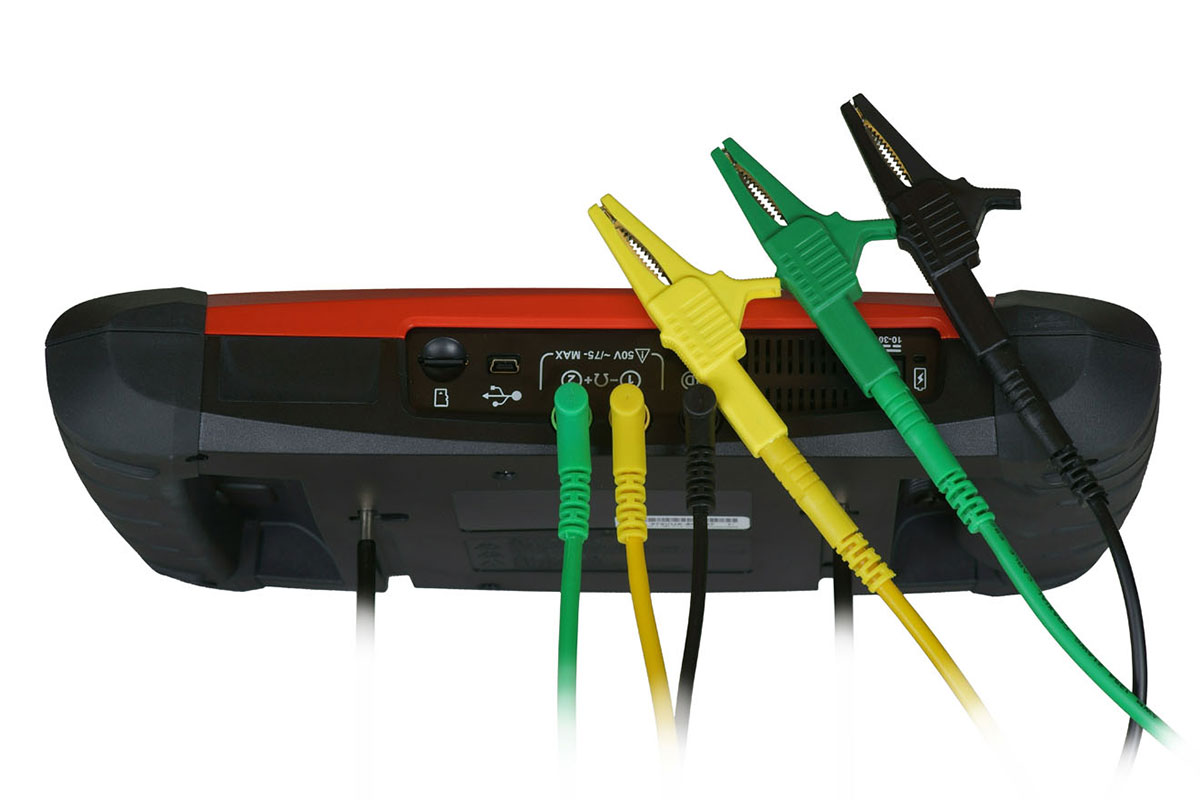

VANTAGE Ultra

Model: EETM309W

The Snap-on VANTAGE Ultra is the ideal companion to any car diagnostic platform - don’t settle for a general diagnosis when the full story is just a tool away.

Digital graphing meter, high-speed 2-channel lab scope plus exclusive expert information make it easy to verify component failures.

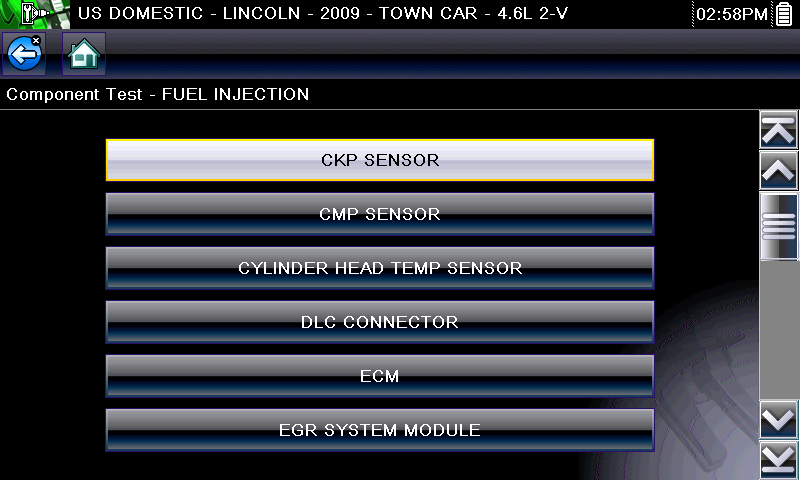

Exclusive Fast-Track® Guided Component Tests for a confident diagnosis.

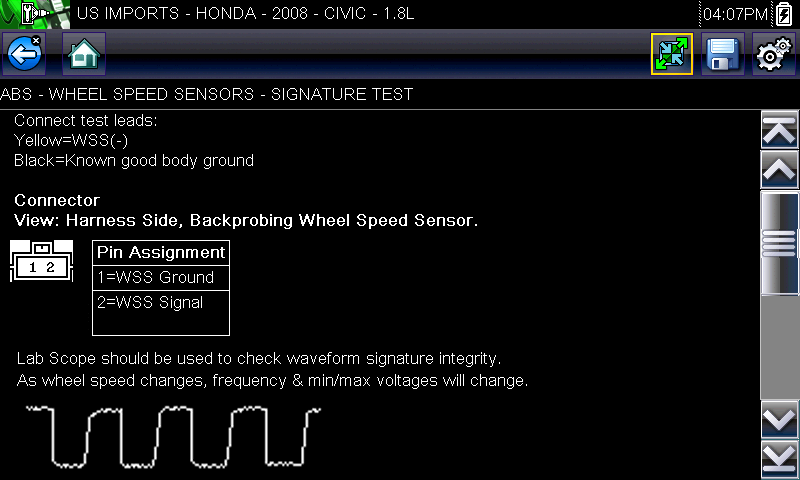

Vehicle-specific illustrated test procedures show where to connect, how to connect, and what the results should look like.

VANTAGE Ultra Component Diagnostic Test System | Snap-on

Open AllClose All

Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Bandwidth3MHz; Sweep rate as fast as 50 microsecondsDimensions (WxDxH, in)12.5 x 2 x 6.5Display resolution800px x 480pxLab Scope / MeterHigh-speed 2-channel lab scope displays up to two waveforms in real timeSample Rate: Up to 6 million samples/secScale range 0-100mV to 0-400VSweep rate 1 second to 5 minutesUSB PortPC connectivity

Software

DIAGNOSTIC SOFTWARE IS THE POWER INSIDE YOUR SCAN TOOL

Snap-on has delivered leading edge, innovative car diagnostic tools and software for more than 35 years.

Snap-on is in touch with your needs. It develops revolutionary car diagnostics products and repair information solutions to repeatedly redefine car diagnostics.

A Snap-on car diagnostic tool is always ready to serve with unparalleled general and collision repair coverage. Vehicle coverage, and features that super charge it, are key and that is where being up to date with your software comes in.

If your car diagnostic tool is out of date because the software is old, working on cars will take longer and cost you money.

You purchased the best diagnostic tool available – maintain it so it is as good as the day you bought it to make sure you can see anything that pulls into your workshop.

Check Out The Latest Coverage Details Here

Features

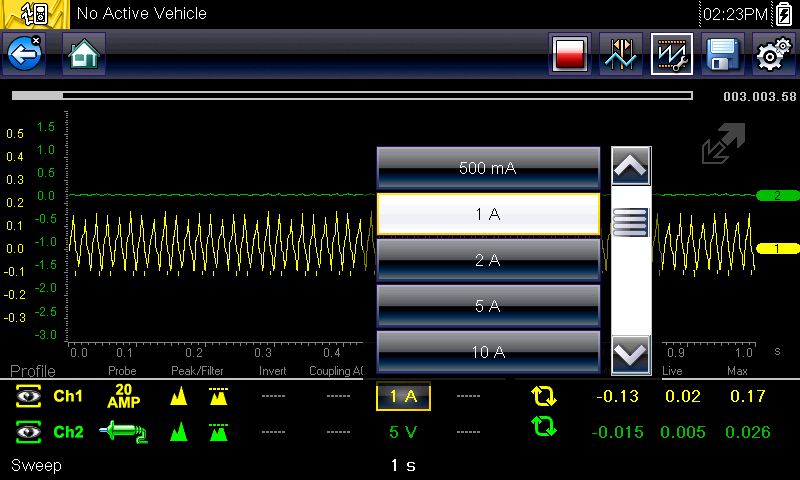

Automatic meter presets, or customise setting with easy menu selectionsColour-coded waveform for each channel

Engine, fuel, transmission, emissions, ignition, ABS, lighting, solenoids, valvetrain, cooling, climate, antitheft, oxygen sensor, and many more

Coverage for over a million applications:Diagnostic results in as little as 30 secondsDigital min/max/current values are displayed alongside waveform for clarityEasy one-touch navigation using four-way keypad or touch screenFast, reliable operation with dedicated SMX-embedded operating system

Illustrated procedures at your fingertips
Time-saving component locator
Best test location guide shows where to connect

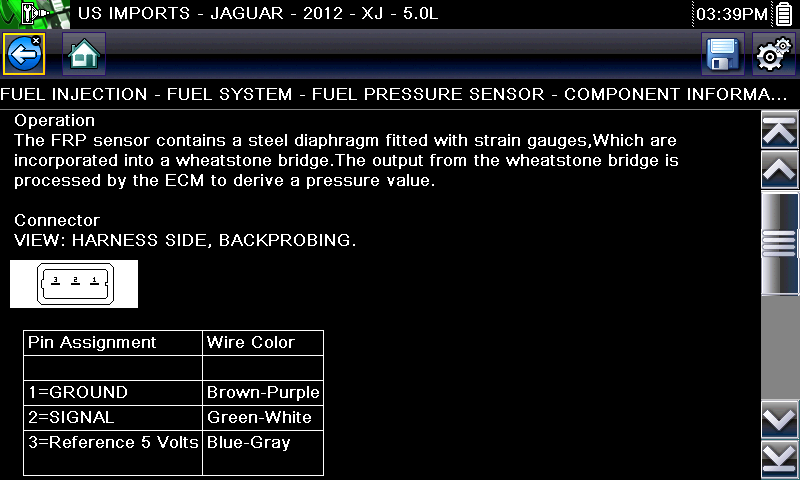

Connector diagrams show how to connect

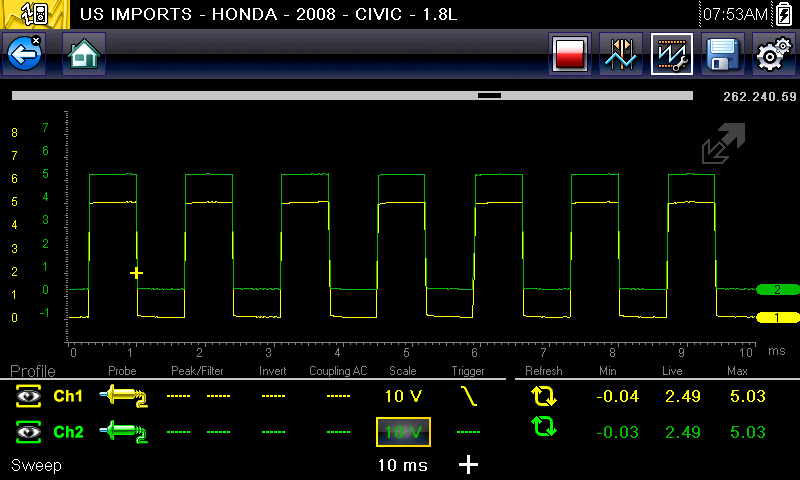

Reference waveforms and test values for a positive pass/fail diagnosis

Fast-Track Guided Component Tests include:Large 8in colour LCD displayPowerful peak detect function captures high-speed signals to find glitches, dropouts and problems other scopes missSuper-fast boot-up in only five secondsTest components before replacing, for a confident diagnosis and accurate first time repairsVehicle-specific component tests for over 20 manufacturer-specific titles
