Diagnostic Capabilities Overview

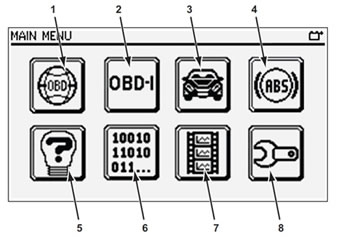

What do the main menu options mean?


  1. Global OBD-II—opens a sub-menu of operations.
  2. OBD-I Codes—access the code report on older vehicles. Optional accessories are needed to connect to these vehicles, contact your Snap-on representative for details.
  3. Enhanced Codes—opens a list of manufacturer specific codes that are not included in the standard DTC list.
  4. ABS Codes—displays codes for the antilock brake system (ABS).
  5. Global OBD Help—opens a file that explains certain tests and procedures.
  6. Select Protocol—allows you to choose which vehicle communication protocol the scan tool uses.
  7. Captured Movies—opens a list of previously recorded data files.
  8. Tools—opens a menu for configuring the scan tool display characteristics

Last Updated: June 20, 2019
