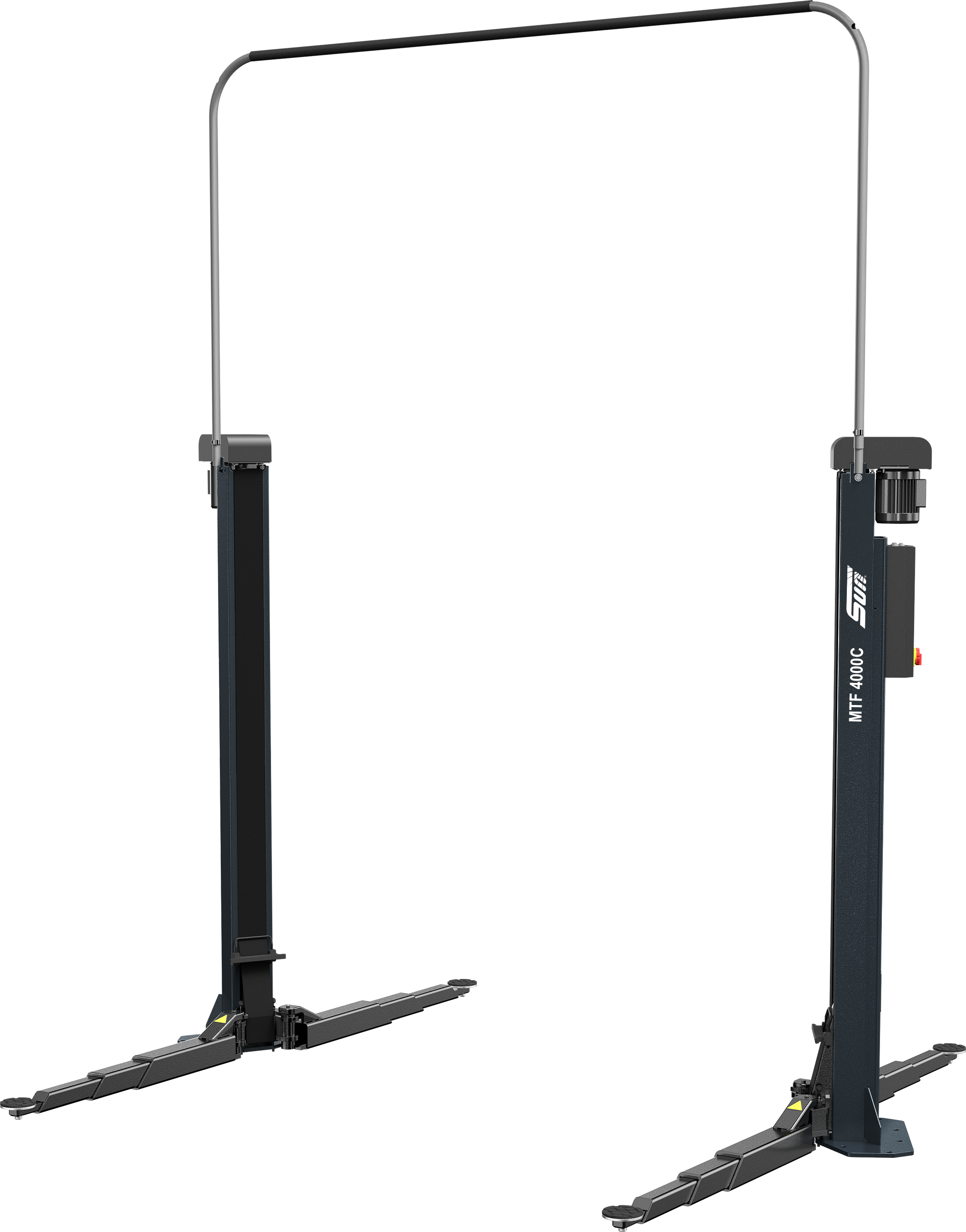

MTF-4000C 2-Post Electro-Mechanical Clear Floor Lift

Model: EELS128A

The SUN® MTF‑4000C is a 2‑post electro‑mechanical lift with a 4000 kg capacity, suitable for lifting cars, SUVs and vans. Designed for everyday workshop use across a wide range of servicing and repair tasks.

Steel columns set at a 30° angle improve door clearance and vehicle access. Four long 3‑stage arms offer a reach of 722–1300 mm with a total span of 2805 mm and an 85–1930 mm lifting range. The electro‑mechanical screw lift enables precise height positioning, allowing the vehicle to be set exactly where required, an advantage compared to lifts with fixed locking positions. An overhead cable bridge keeps the working area clear and features adjustable height to suit workshop and vehicle requirements.

The electro‑mechanical lifting system provides consistent and controlled operation, supporting accurate working across a range of service and repair tasks. Unlike lifts with stepped locking positions, the screw lift design allows continuous adjustment, enabling technicians to position the vehicle precisely for improved access and efficiency.

Open AllClose All

Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Arm Extension Range722–1300 mmArm TypeFour long 3‑stage armsCable RoutingOverhead cable bridgeCarriage TypeRoller‑guided carriage with maintenance‑free bearingsColumn Height2561 mmCurrent Consumption16 ADrive‑Through Width2277–2377 mmDuty CycleS3 – 10%Fuse Rating20 AHeight with Cable Bridge4100 mmInstallation Width3400–3500 mmLevelling SystemElectronic synchronisation systemLift TimeApprox. 35–40 sLifting Range85–1930 mmLoad Distribution12/30/1899 3:01 AMLoad SystemBronze load nut with cast alloy safety nutLowering TimeApprox. 35–40 sMaximum Lift Height1930 mm (+30 mm)Minimum Lift Height85 (+30 mm)Motor Power2 × 2.5 kWNet Weight750 kgOperation TypeElectro‑mechanical screw driveOverall Width3400–3500 mmPacking Dimensions280 × 80 × 70 cmPower Supply400 V / 50 HzRated Capacity4000 kgSafety FeaturesAudible safety stop (CE Stop)Lockable control switchSound Pressure Level78 dB(A)Stroke1845 mm

What Is It used For

A robust carriage system runs on maintenance‑free roller bearings, delivering smooth movement and long service life in demanding workshop environments. The combination of durable construction and engineered components ensures dependable performance for day‑to‑day use.

The overhead cable bridge routes power and synchronisation elements above the working area, reducing obstructions and supporting a clean and organised workspace. Adjustable bridge height allows the lift to be installed to suit different workshop layouts and vehicle types.

Designed to support a wide range of vehicles and applications, the MTF‑4000 provides a practical balance of precision, durability and ease of use, making it a reliable lifting solution for workshops focused on consistent performance.

Features

4000 kg rated lifting capacity suitable for cars, SUVs and vans85–1930 mm lifting range supports a wide range of service and repair tasksAdjustable cable bridge height suits different workshop layouts and vehicle typesDurable load and safety nut system enhances long‑term reliabilityElectro‑mechanical screw lifting system enables precise height positioning, allowing the vehicle to be set exactly where requiredEngineered for reliable, long‑term use in demanding workshop environmentsFour long 3‑stage lifting arms provide flexible positioning across a wide range of vehicle typesHeavy‑duty carriage system with maintenance‑free roller bearings for smooth, long‑term performanceOverhead cable bridge routes cables safely above the working areaSteel columns set at a 30° angle improve access and door clearance
