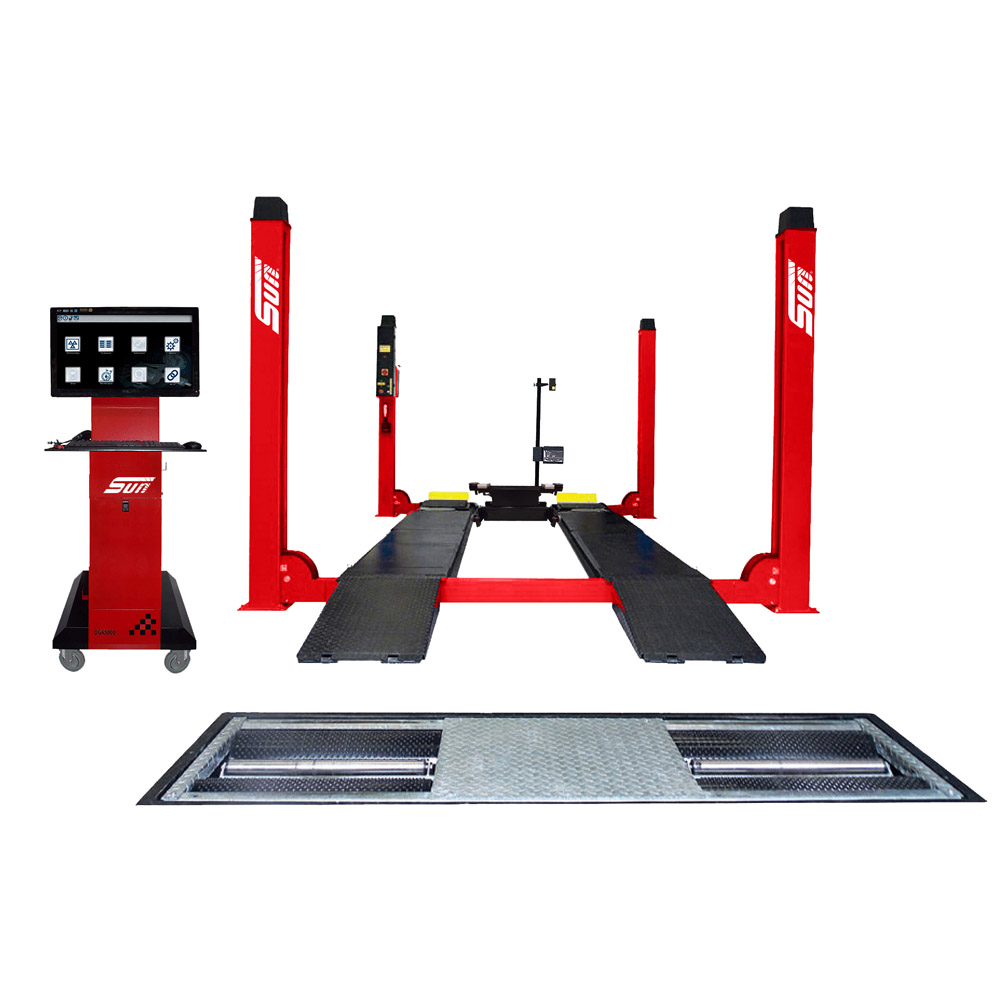

Sun Standard MOT Testing Bay

Model: STDMOT

Take your business into vehicle testing on a budget with the Sun standard MOT bay and become a DVSA-approved, fully operational test station.

This option is part of our comprehensive range and allows your business to move into MOT testing on a budget.

Should you wish to upgrade your MOT bay to an Automated Test Lane at a later date, we have an upgrade option available.

As expected with all Sun products, our standard MOT bay provides a quality product with the service and support that you expect from Snap-on.

Open AllClose All
Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Brake Tester Roller Coefficient Dry-Wet0.9-0.7/0.7-0.5Brake Tester - Operating Temperature0°C-70°CHeadlight Beam Tester - Maximum Height of Beam1410mmHeadlight Beam Tester - Height1520mmLift - Maximum Vehicle Lifting Height (4T; 5T)1820mm; 1830mmLift - Maximum Ground Clearance190mmBrake Tester - Motor Power2 x 3.7kwBrake Tester - Roller Diameter204mmHeadlight Beam Tester - Minimum Height of Beam240mmBrake Tester - Roller Displaced in Height25mmBrake Tester - Fuse Rating C-Type32Brake Tester - Voltage3N-PE-400VLift - Certified Maximum Capacity (4T; 5T)4000kg; 5000kgBrake Tester Maximum Axle Weight (Class IV; Class VII)4000kg; 6000kgLift - Power Requirements (4T; 5T)415V; 230-400VLift - Lowering Time45sBrake Tester - Main Lead Diameter5 x 4mmBrake Tester - Idle Running Speed (Class IV; Class VII)5.2kmh; 2.6kmhLift - Frequency50HzBrake Tester - Frequency50HzLift - Lifting Time50sLift - Platform Length (4T; 5T)5200mm; 5700mmHeadlight Beam Tester - Focal Length520mmLift - Platform Width600mmHeadlight Beam Tester - Length610mmBrake Tester - Roller Length (Class IV; Class VII)700mm; 1000mmLift - Noise70dB (A)/1mBrake Tester - Principle of MeasurementDMSBrake Tester - Processing of Measured ValueMicroprocessor
Features

Two-stage mechanical safety lock and telescopic finger guards to prevent accidental injury

close modal
Safety lock and guards

  • Class IV and class VII configurations
  • Lift includes integral jacking beam
  • Safety ladder locks on all posts
  • The Sun brake testers have robust galvanised frames with long life brake tester rollers
  • Cover plates as standard
  • Recessed radius plates

close modal
Standard MOT bay highlights:
