Connecting to a PC


How to connect ETHOS to a PC as a Mass Storage Device using a USB cable.


  1. Connect the ETHOS to the AC power adapter

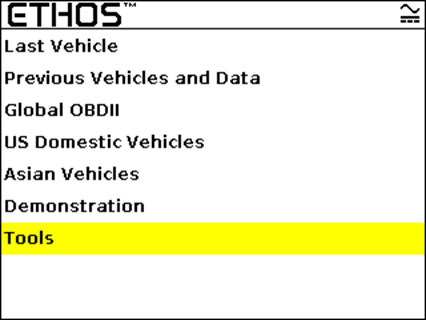

  2. From the Main Menu scroll down to Tools and press “Y”

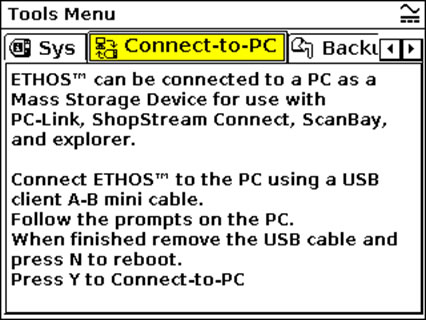

  3. Scroll right to the Connect-to-PC tab

  4. Press “Y” to put the ETHOS into Connect to PC mode

    NOTE: Once “Y” has been pressed to put the ETHOS into Connect to PC mode the screen on the ETHOS will NOT change. It will freeze. This is normal.
  5. Connect the USB cable to the PC and then to the ETHOS. The standard end goes to the PC, the Mini end goes to the ETHOS.
  6. The PC will recognize the ETHOS as a USB Mass Storage Device
  7. When you are ready to end Connect to PC mode, disconnect the USB cable from the ETHOS and press the “N” button. It will beep twice and then reboot to the normal ETHOS main menu.

Last Updated: June 19, 2019
