Connecting to a PC

Applies To: SOLUS PRO™
Overview:

Using ShopStream Connect software to connect the tool to a PC.

Symptoms:

Resolution:

Requires:
SOLUS PRO AC Charging Cable
SOLUS PRO Battery (Must have at least a 25% charge)
USB Cable (Type A to Mini B), Snap-on Stock#: EAX0066L05B

  1. Connect SOLUS PRO to the AC power adapter and insert a charged Battery
  2. Power on the diagnostic tool

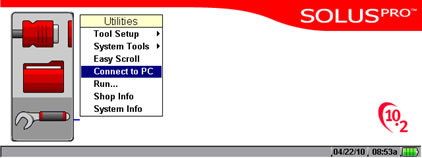

  3. Select Utilities (Wrench Icon)
  4. Select “Connect to PC”

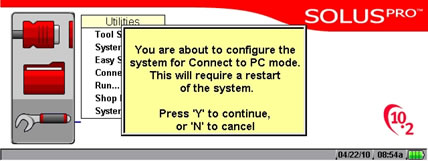

  5. A message will be displayed that states “You are about to configure the system for Connect to PC mode.”


  6. Press “Y” to continue. The unit will reboot.

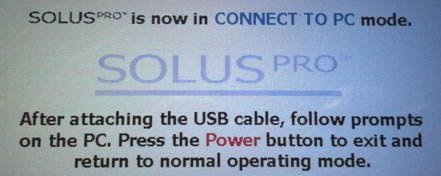

  7. “SOLUS PRO is now in Connect to PC mode.” Should now be displayed


  8. Connect the USB cable's Mini plug into the SOLUS PRO and the Standard plug into the PC
  9. The PC will recognize the SOLUS PRO as a USB Mass Storage Device
  10. When finished, disconnect the USB cable from the SOLUS PRO and press the Power button. It will reboot to the normal main menu.

Last Updated: June 19, 2019
