Pairing the M2 Meter with the Display Device

Applies To: VERDICT®, VERUS®, VERUS® PRO, VERUS® Wireless
Overview:

How to Bluetooth Pair M2 Meter with the Display Device

Symptoms:

These instructions will guide you thru Bluetooth pairing the M2 Meter to the display device. Make sure the display device has a charged battery and is connected to an AC power supply before beginning.

Resolution:

1. Power on the Display Device.


2. Set the M2 Rotary Switch to the oscilloscope position.

3. Press and hold the F1 key on the M2 scope. Alternate menu options for F2-F4 key will be displayed.
4. Press the F4 key to activate Bluetooth Discovery. The F4 icon on the screen will be inversed (white on black).

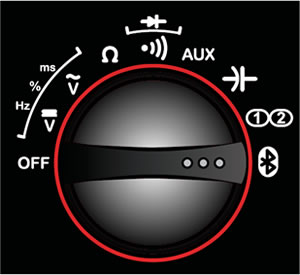

5. Turn the M2 Rotary Switch to the Remote Functions (Bluetooth) position.

6. On the Display Device Home Screen tap the System Settings button.

7. Select Paired Devices from the top center of the screen.

8. Select Add from the top right corner of the screen.

9. Select OK from the top right corner of the screen.

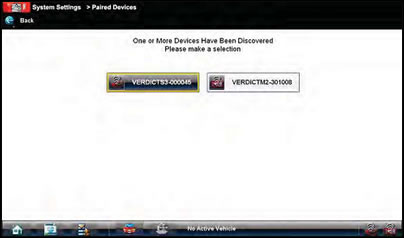

10. Select the M2 Module from the search results list. A search in progress message displays during the pairing procedure and then once complete the Paired Devices screen is displayed.

11. Tap the Home button on the bottom left of the toolbar to return to the Home screen.

12. The M2 has been successfully paired; turn the Rotary Switch to the oscilloscope position.

13. Press and hold the F1 key on the M2. Alternate menu options for F2-F4 key will be displayed.

14. Press the F4 key. The F4 field on the screen switches to normal (black on white).

The M2 pairing process is now complete. The Rotary Switch can be turned to OFF.



Last Updated: June 20, 2019
