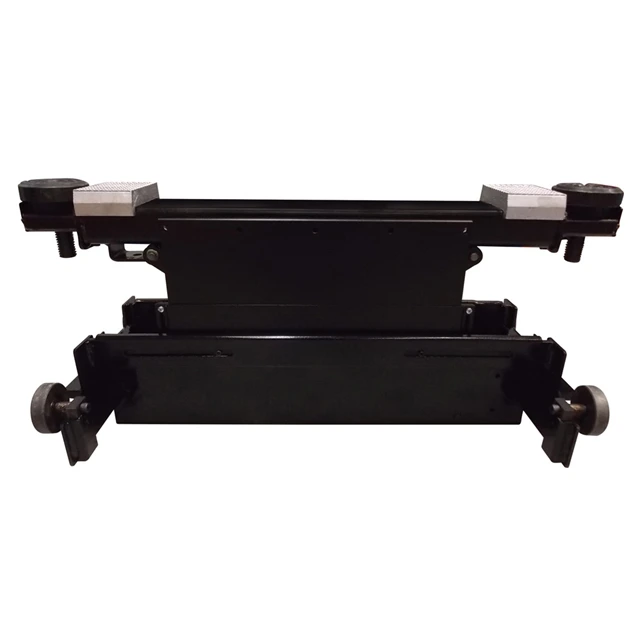

Make working on a vehicle on your lift even easier with the addition of a Snap-on jacking beam, which brings advanced safety features for security and support.

There are two jacking beam options available, 2000kg for class IV and 2800kg for class VII. They feature a two-stage mechanical safety lock and telescopic finger guards to prevent accidental injury.

The beams have spring-loaded flat arms with roller bearings and when unloaded these support the weight of the beam, allowing the entire unit to run smoothly along the pit or ramp, but when loaded they locate the unit firmly.

Open AllClose All
Specifications

*Snap-on reserves the right to make changes to specifications without notice and without making changes retroactively.

Maximum Width Over Support Arm (2T; 2.8T)1125mm; 1130mmWidth Extended1700mmClosed Height (2T; 2.8T)212mm; 242mmTotal Height260mmHeight Above Platform (2T; 2.8T)75mm; 92mmMinimum Width Over Support Arm (2T; 2.8T)775mm; 790mmWidth Retracted (2T; 2.8T)800mm; 815mm
Features

Double acting manual pump reduces effort needed to raise the vehicle

close modal
Double acting manual pump

The beams have spring-loaded flat arms with roller bearings and when unloaded these support the weight of the beam, allowing the entire unit to run smoothly along the pit or ramp, but when loaded they locate the unit firmly

close modal
Ease of movement with secure positioning

Support arms specifically designed for lift (different options available for four post, low profile, scissor lift and pit requirements)

close modal
Support arms specifically designed for lift
