Configuring the shortcut (S) button

Applies To: VERUS™ Edge, ZEUS
Overview:

This feature allows you to change the function of the Shortcut (S) button

Symptoms:

The shortcut (S) button located on the front of the diagnostic tool, is a customizable button that can be set to perform various routine functions.

You can open the Shortcut menu at anytime by pressing and holding the S button for 3 seconds. Pressing the shortcut button (Figure 2-1) (when set to open the shortcut menu), opens a slide-out menu which provides the following selectable icon options:

Resolution:

To configure the Shortcut (S) button:

  1. Press and release the S button.
  2. Select the Settings icon from the slide-out menu.

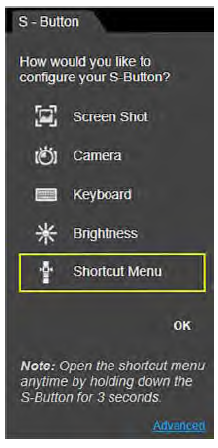

  3. Choose the function you would like the S button to perform when pressed. The current/active setting is indicated by a yellow highlight box.

Last Updated: October 1, 2019
